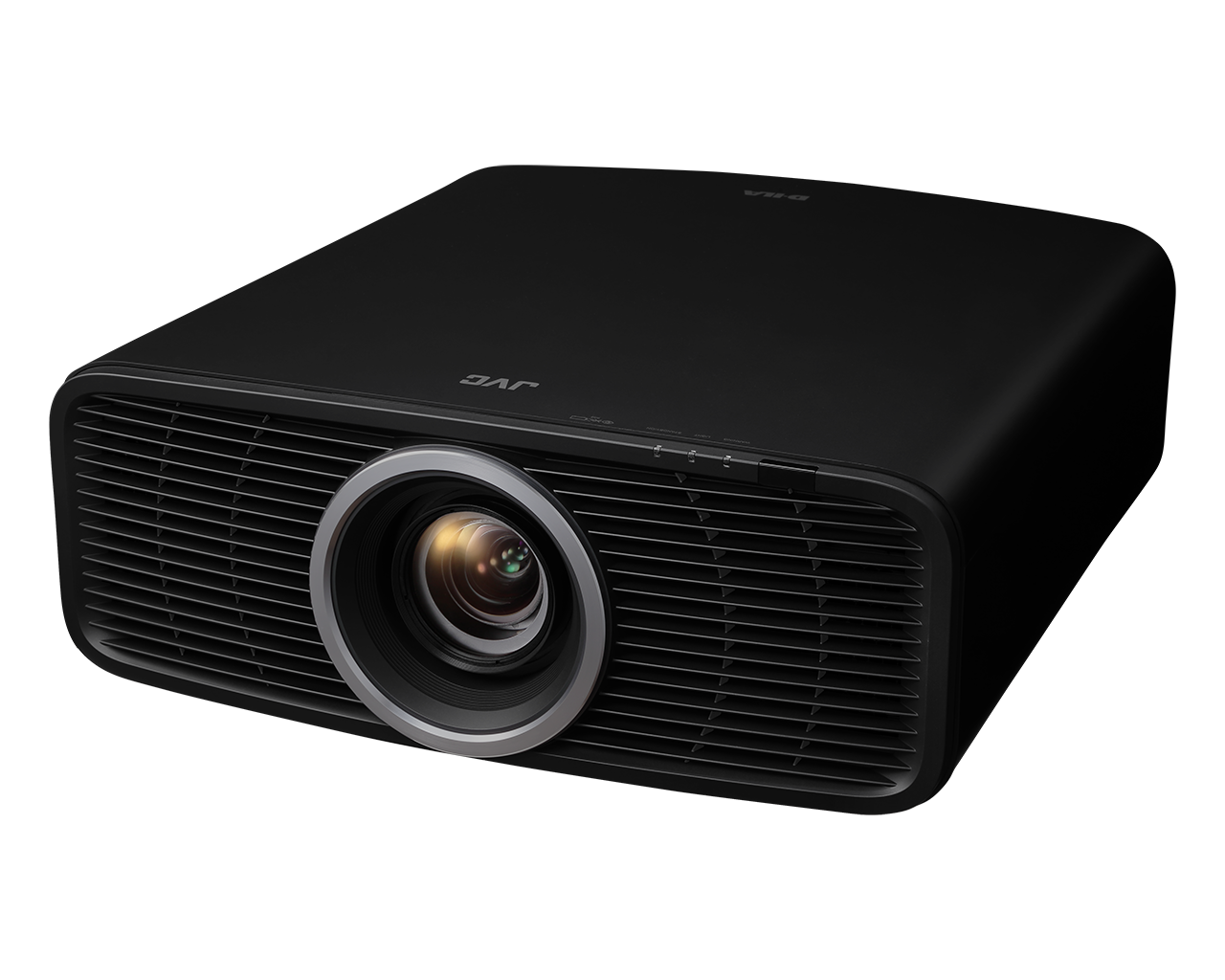

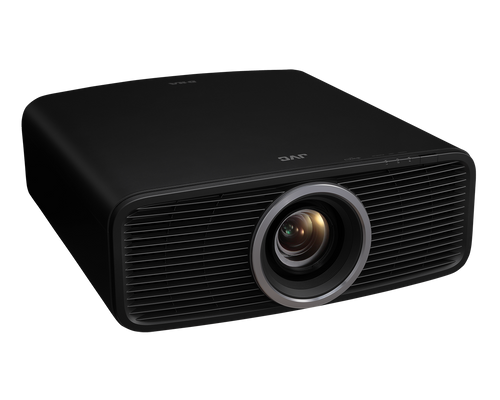

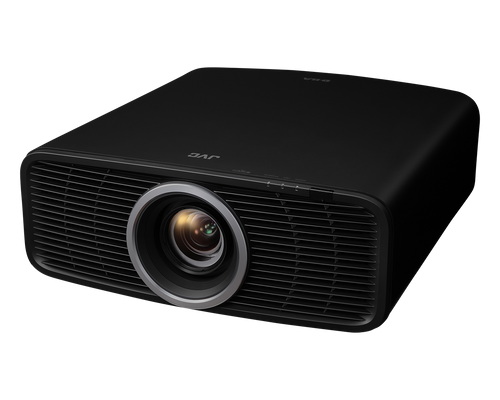

Product info:

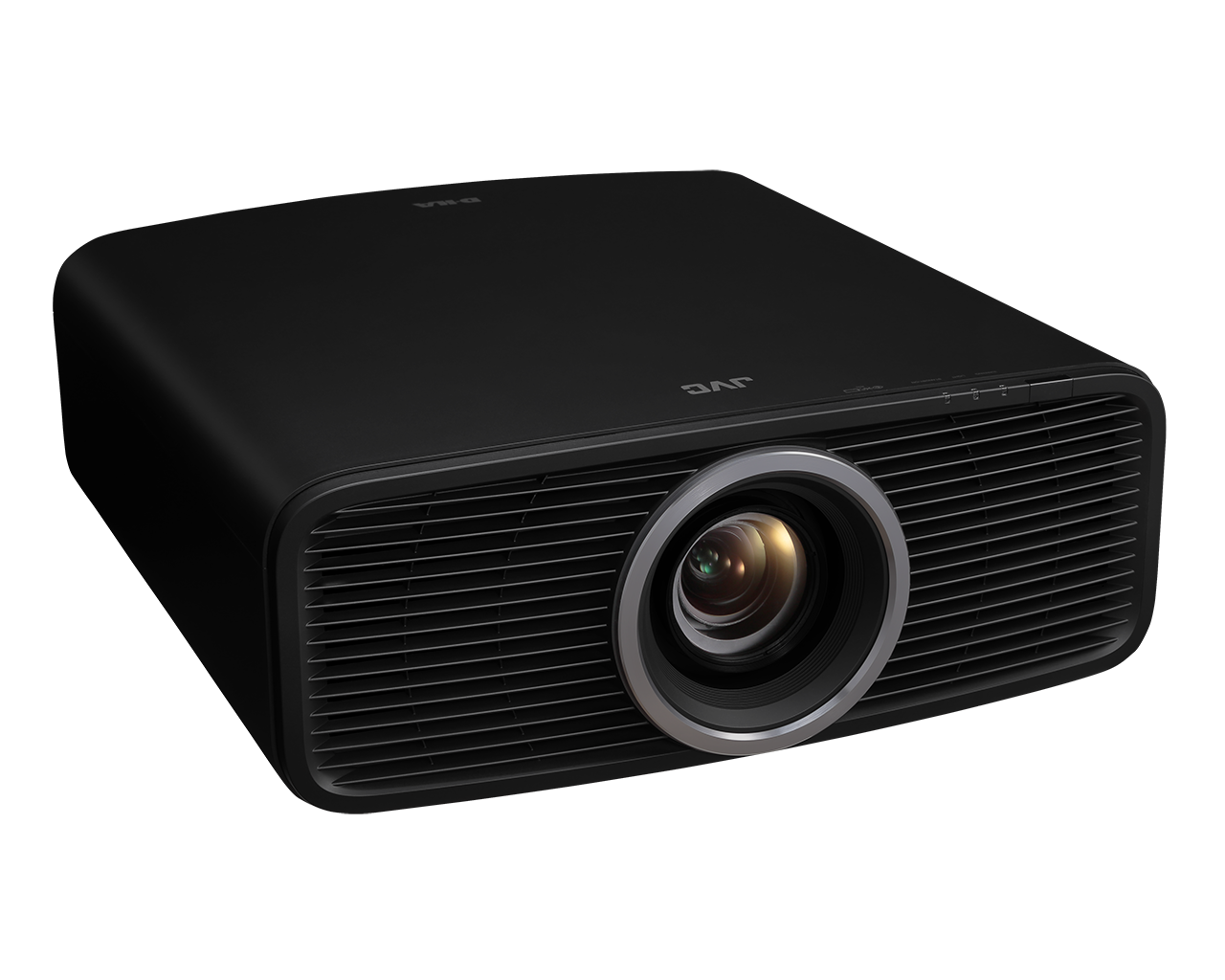

world's smallest native 4K D-ILA projector available
BLU-Escent Laser phosphor light engine delivers ultra-pure light with zero maintenance
light output: 2,000 lumens
native contrast: 40,000:1
Picture:
three 0.69" D-ILA panels with Full Digital Cinema 4K resolution (4096 x 2160 pixels each)
High Dynamic Range (HDR10, HDR10+, and HLG) for extended picture contrast and brightness with HDR sources
second-generation Frame Adapt feature automatically optimizes HDR10 content with real-time tone mapping for a brighter, more colorful image
Deep Black Tone Control displays dark areas more realistically
widescreen 16:9 aspect ratio
recommended image size: 60" to 200"

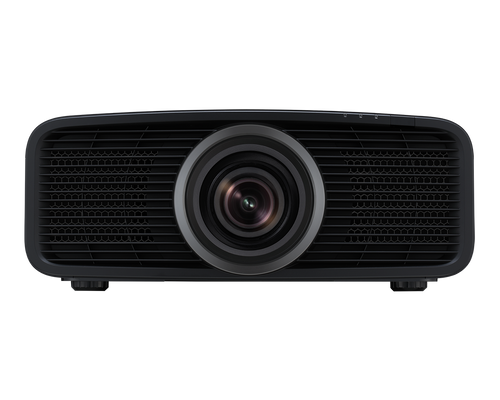

15-element, 11-group 80mm lens provides excellent sharpness and edge-to-edge focus
Multiple Pixel Control image processor analyzes and optimizes images pixel by pixel
Clear Motion Drive frame interpolation with Motion Enhance reduces blur and judder and makes motion look smoother
Filmmaker Mode automatically adjusts picture settings to preserve the director's intent
color management system with 6-axis matrix
101-step luminance control slider
Low Latency Mode suppresses display delay for faster response with signals from PCs and game consoles
Image adjustments:
1.6X powered zoom/focus lens
±28% horizontal and ±70% vertical powered lens shift image adjustment
5-setting Installation Mode lets you easily customize picture settings/lens positions

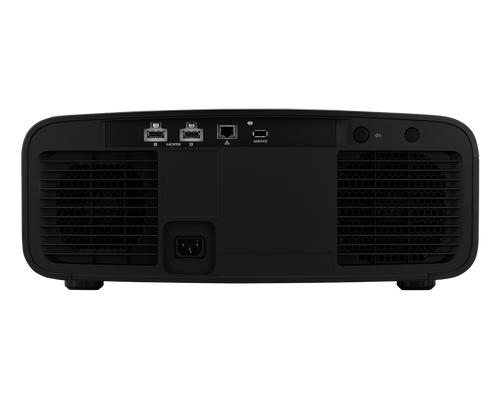

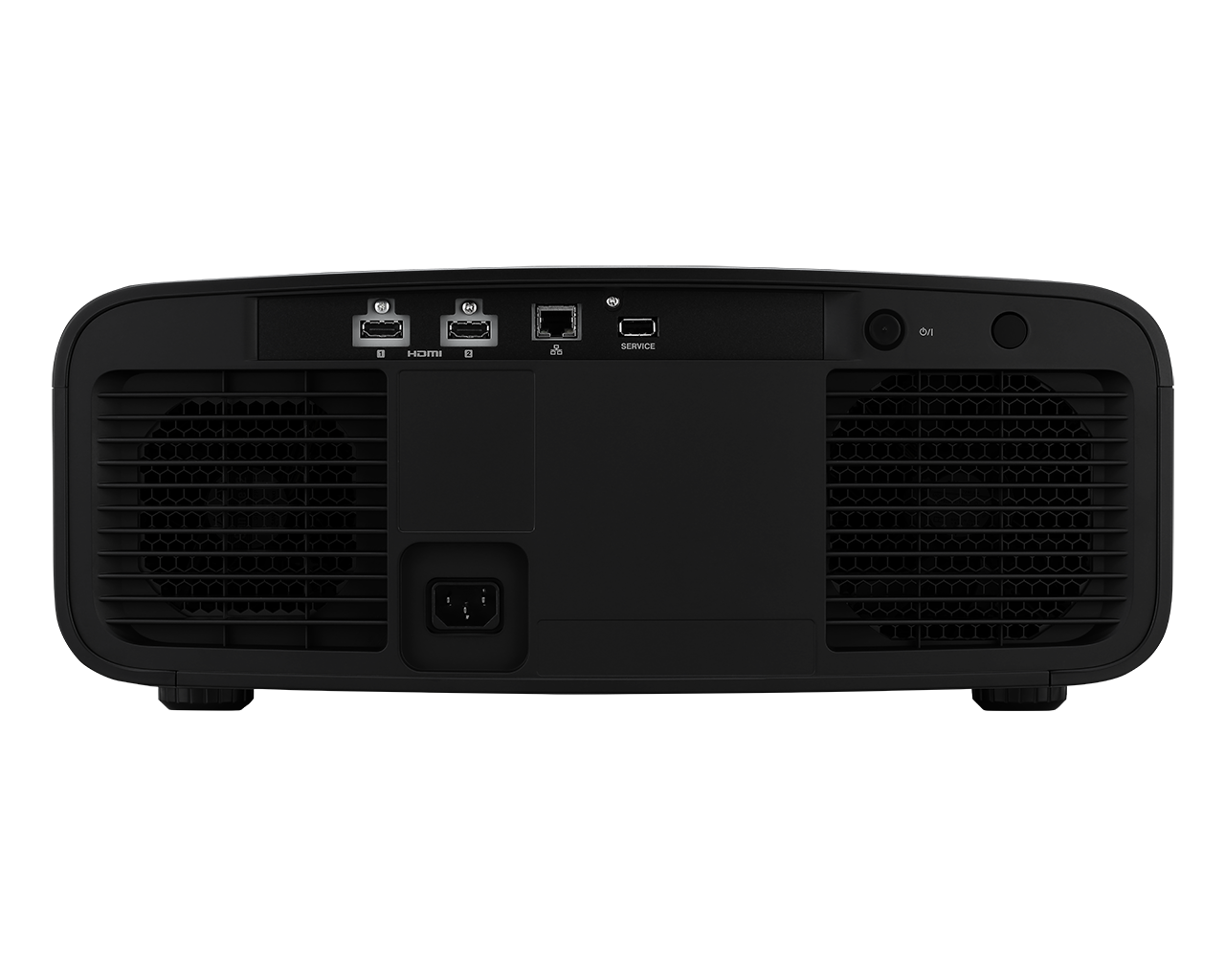

Connections:
2 HDMI inputs
supports 4K/60Hz
does not support CEC (remote control via HDMI)
RJ-45 LAN port for controlling the projector via a network connection
USB Type-A input for firmware updates
detachable power cord
Device
D-ILA Technology
Yes
Chip Type
3rd Generation 0.69-inch 4K D-ILA device
Native Resolution
4096 x 2160
Number Of Chips
3
Display Resolution
4096 x 2160
Light Source
Laser
Yes
Type
BLU-Escent Laser Diode
Life Time (Standard Mode)
20000 hours
Brightness
2300 lm
Dynamic Contrast
∞ : 1
Native Contrast
80000 : 1
Dynamic Light Power control
Yes
Modes
Low,High,Balance,Off
Manual Aperture
Yes
Range
-15 (stops down) to 0 (opens up)
DCI-P3 Color Gamut
Yes
100% REC 709
Yes
Color Bit Depth
12 bit
ISFccc Certification
Yes
HDR
HDR10
Yes
HDR10+
Yes
Frame Adapt HDR
Yes
HLG
Yes
Mastering Info Display
Yes
Info data
MaxCLL, MaxFALL , DML
Deep Black Tone Control
Yes
Lens
Zoom
1.6 x
Throw Ratio
1.34 - 2.14 (16:9)
1.26 - 2.01 (17.9)
Diameter
80 mm
Build
15-element, 11-group.
Lens Shift
Yes
Range Horizontal
± 28 %
Range Vertical
± 70 %
Motorized Zoom
Yes
Motorized Shift
Yes
Motorized Focus
Yes
Projection Display size (diagonal)
60 - 200 inch
Memory Function
Yes
Number of user presets
5
Lens Cover
Yes
HDMI
HDMI
Yes
Number of Inputs
2
Data Rate
32 Gbps
HDCP Version
2.3
4K60P signal input
Yes
Video Signal range
480p, 576p, 720p 60/50, 1080p 60/ 50/ 30/ 25/ 24, 3840 x 2160p 60/ 50/ 30/ 25/ 24, 4096 x 2160p 60/ 50/ 30/ 25/ 24
PC Signal range
640x480, 800x600, 2048x1080, 1600x1200, 1920x1200, 2048x1536, 2560x1440
Input Level Adjustment
Auto / Standard (16-235) / Enhanced (0-255) / Super White (16-255)
Color Space Range
Auto/ YCbCr444 / YCbCr422 / RGB
EDID Modes
Standard, Option1 , Option2 (older hardware may need to use Option1 or Option2 settings)
Connections
LAN
Yes
Connector
RJ45
Service
Yes
Connector
USB (Type A) for firmware update or backup
Picture Settings
Picture Modes
Natural, Cinema, Filmmaker, Vivid, Frame Adapt HDR1,Frame Adapt HDR2, HDR10+, HLG, FilmMaker, 4 User modes
Color Temperatures
Xenon 1, Xenon 2, 5500K, 6500K, 7500K, 9300K, High Bright, HDR10+, HDR10, HLG, Custom 1, Custom 2
Gamma Processing Depth
12 bit
Gamma Adjust
HDR (Auto), HDR(PQ), HDR(HLG), 2.2, 2.4, 2.6, Cinema 1, Cinema 2, Vivid, 3 Custom modes
Color Management
6-Axis adjustable CMS
MPC
Yes
Filmmaker Mode
Yes
Auto Calibration
Yes
Installation Mode
Yes
Number of modes
5
Included settings
Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, and Aspect
Anamorphic Modes
4 Modes (A, B, C, D)
Control4 SDDP
Yes
Power & Environment
Power Requirement
AC100-240V, 50/60Hz
Projector in Use
280W
Standby
Eco-mode: 0.3W
Network Standby
1.5W (LAN)
Switchover time
Approx. 15 min. (To standby or networked standby; default)
Fan Noise
23 dB
Eco Mode
Yes
Standby Timer
Yes
Operating Temperature
5°C to 35°C
Operating Humidity
20% to 80%
Installation Angle
Horizontal +/- 10 degree / Vertical +/- 10 degree
Installation Height
Below 2,000 m
In the box
Remote Control
Yes, RM-MH27
Quick Guide
Yes
Power Cord
Yes
Batteries
Yes, 2 x AAA-size batteries
Dimensions & Weight
Product Dimensions (WxHxD)
450 x 181 x 479 (mm)
Product Weight
14.8 Kg
Package Dimensions (WxHxD)
585 x 361 x 600 (mm)
Package Weight
18.9 Kg
General Editing Note
General Note:
Simulated pictures.The values for weight and dimensions are approximate.E.&O.E. Design and specifications subject to change without notice.
