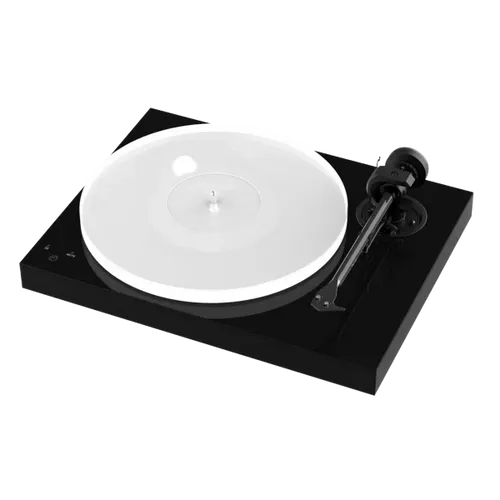

The Pro-Ject X1 B represents the next generation of the acclaimed X-Line series, designed for passionate vinyl listeners seeking precision, purity, and timeless craftsmanship. Building on Pro-Ject’s rich analog heritage, the X1 B introduces a True Balanced Connection through a mini XLR output, enabling a fully symmetrical signal path from cartridge to phono stage. The result is a cleaner, more dynamic sound, with dramatically reduced background noise and interference.
Every detail of the X1 B has been carefully refined to deliver exceptional sonic performance and elegant design. It’s hand-built in Europe using high-grade materials, featuring an acrylic platter, carbon-aluminium tonearm, and electronically controlled speed regulation – all engineered for true audiophile performance that lasts a lifetime.
True Balanced Connection
The hallmark feature of the X1 B is its True Balanced mini XLR output. By pairing the turntable with a moving-coil (MC) cartridge and one of Pro-Ject’s new balanced phono cables, users can enjoy a fully balanced signal path that eliminates hum and interference, increases signal strength, and unlocks greater dynamics and resolution.
This configuration delivers the purest connection possible between the cartridge and the phono preamplifier, ensuring that every subtle detail in the record’s groove is reproduced with lifelike clarity.
Mini XLR Output – One Cable Connects It All
The X1 B comes equipped with a mini XLR Balanced output, allowing seamless connection to compatible Pro-Ject balanced phono preamps such as the Phono Box S3 B or Phono Box DS3 B. Simply use the dedicated Connect it Phono Mini XLR / Mini XLR cable to achieve the highest level of signal integrity.
Pro-Ject also offers a complete range of balanced cables with various connectors (RCA, 5-pin, and XLR) to suit any system configuration.
Carbon-Aluminium Tonearm – 8.6 Inch Precision
The X1 B features an 8.6-inch carbon-aluminium sandwich tonearm, machined as a one-piece construction without a detachable headshell. This design minimizes resonance, increases rigidity, and provides superior tracking precision.
The tonearm’s bearing assembly is CNC-machined to extreme accuracy, ensuring friction-free movement and precise alignment. Azimuth and Vertical Tracking Angle (VTA) can both be finely adjusted, allowing users to tailor the tonearm geometry for any cartridge or mat combination.
Pick it PRO Balanced Cartridge – Factory Fitted
The X1 B is equipped with Pro-Ject’s Pick it PRO Balanced cartridge, pre-mounted and factory-aligned for optimal performance. This new cartridge delivers outstanding tonal balance, wide soundstage, and exceptional musical dynamics.
Existing X1 B owners who purchased earlier units with the Pick it S2 MM cartridge can upgrade to the new Balanced version through authorized Pro-Ject dealers.
1.5 kg Acrylic Platter – Resonance-Free Performance
The heavy 20 mm thick acrylic platter weighs 1.5 kg and offers a perfectly inert platform for your records. Its resonance-free material ensures smooth, consistent rotation and neutral sonic character. Unlike metal platters, acrylic avoids unwanted ringing or magnetic interference, maintaining pure analog playback integrity.
High-Precision Speed Control – 33/45/78 RPM
The X1 B’s motor system features a sophisticated DC/AC generator board, providing clean, stable power for precise speed regulation. Three playback speeds (33, 45, and 78 RPM) are electronically controlled and can be switched effortlessly with a single push-button.
The electronically regulated synchronous motor minimizes vibration and maintains impeccable pitch stability, ensuring a fluid and natural musical presentation.
Main Bearing & Motor Isolation
At its core, the X1 B utilizes a stainless-steel spindle bearing housed in a bronze bushing with Teflon mirrors for ultra-low friction and long-term durability. The motor is decoupled from the chassis by advanced suspension damping, effectively isolating mechanical vibrations from reaching the platter and tonearm.
This meticulous design translates into quieter operation, improved bass control, and a smoother overall presentation.
Adjustable Aluminium Feet – Vibration Control
Three height-adjustable aluminium feet with integrated damping ensure perfect leveling and stability. They drastically reduce acoustic feedback and environmental vibration, allowing the cartridge to track with maximum precision even on sensitive surfaces.
Premium Construction & European Craftsmanship
The plinth is made from dense MDF, finished in multiple layers of hand-polished lacquer or real-wood veneer. Each unit undergoes careful hand assembly and testing in Pro-Ject’s European facility, ensuring outstanding mechanical integrity and longevity.

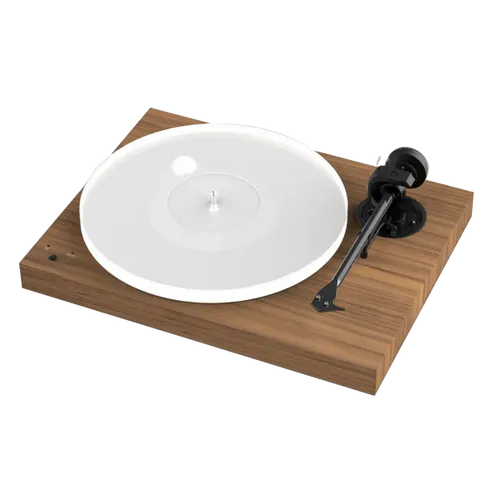

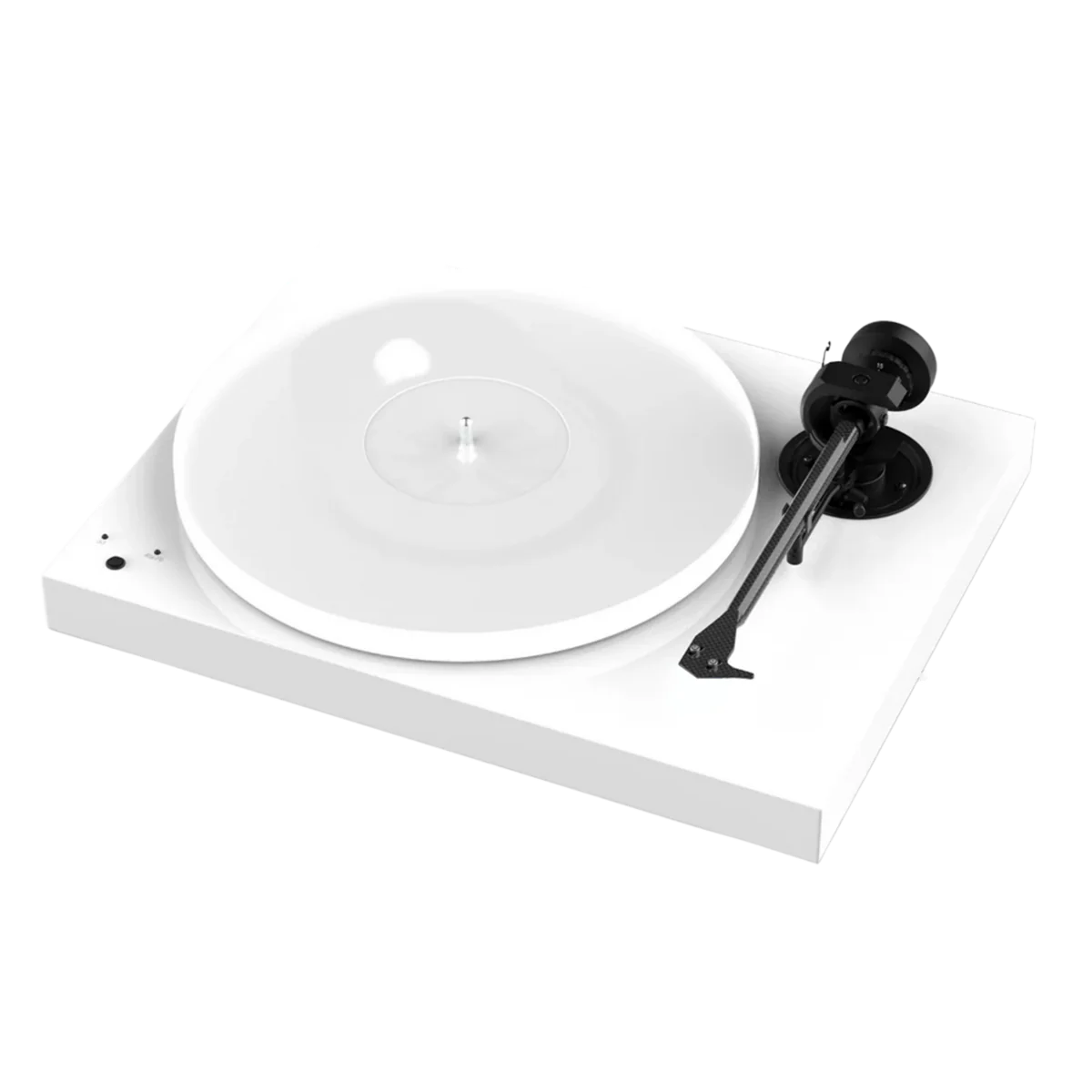

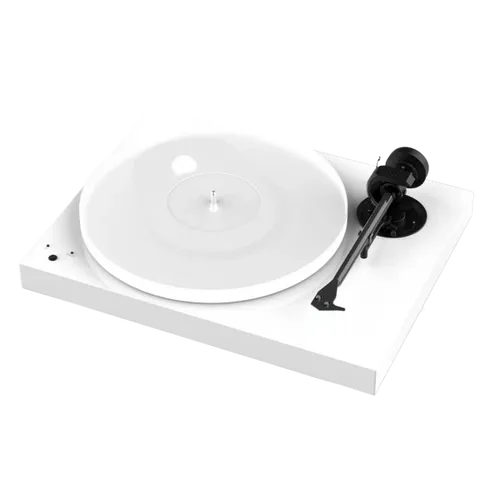

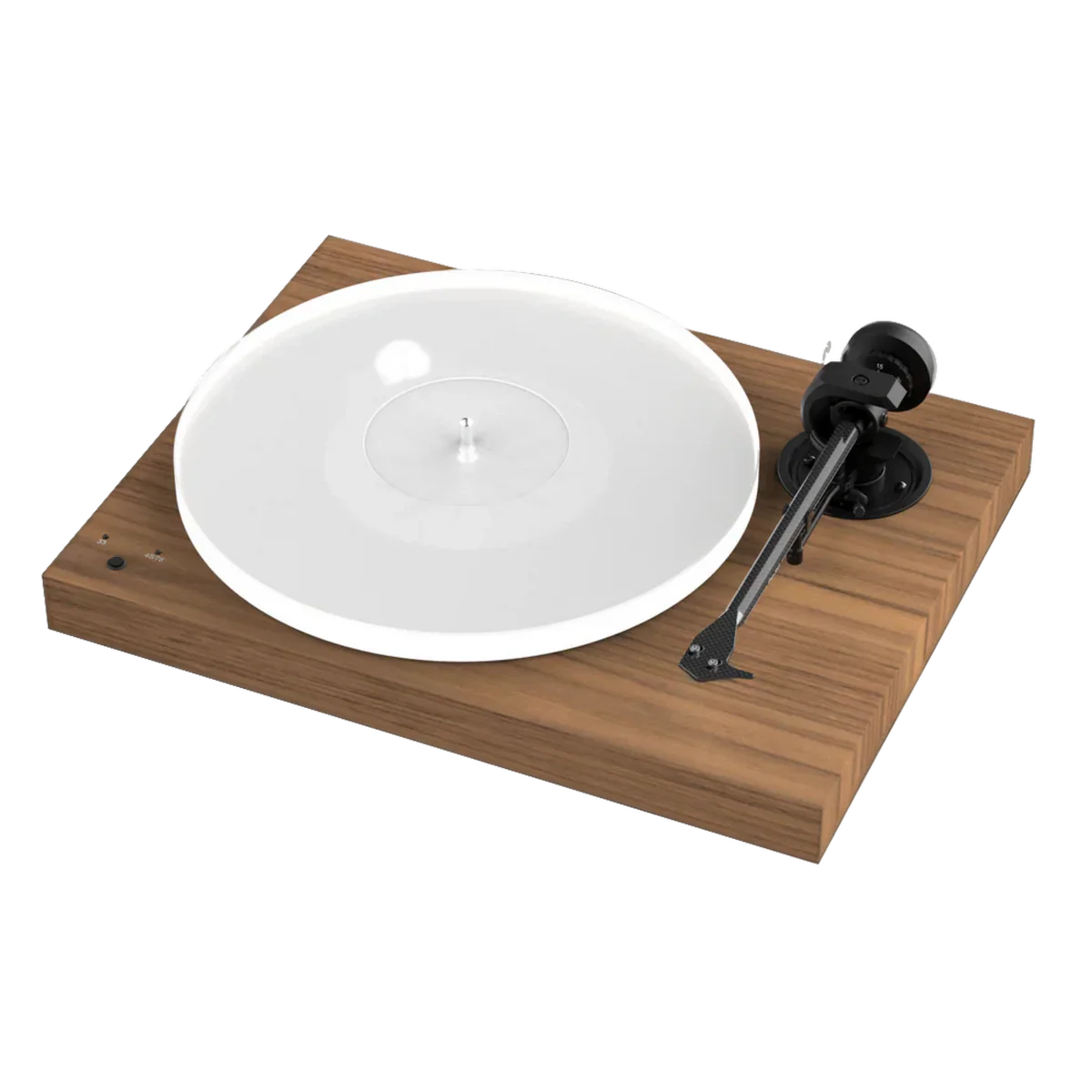

Available finishes include High Gloss Black, Satin White, and Real Walnut Veneer, making the X1 B as visually refined as it sounds.
Technical Specifications
-
Speeds: 33 / 45 / 78 RPM (electronic speed change)
-
Drive principle: Belt drive with electronic speed control
-
Platter: 20 mm thick acrylic, 1.5 kg resonance-free
-
Main bearing: Stainless steel axle in bronze bushing with Teflon mirrors
-
Speed variance: 33 ±0.30%, 45 ±0.25%
-
Wow & Flutter: 33 ±0.15%, 45 ±0.13%
-
Signal-to-Noise Ratio: > 70 dB
-
Tonearm: 8.6″ one-piece carbon/aluminium sandwich
-
Effective arm length: 218.5 mm
-
Overhang: 18 mm
-
Effective tonearm mass: 10 g
-
Power supply: 15 V DC / 0.8 A
-
Power consumption: 5 W max / < 0.3 W standby
-
Dimensions (W×H×D): 415 × 125 × 335 mm
-
Weight: 7 kg (net)
Why Choose the Pro-Ject X1 B
The X1 B redefines what’s possible in its class by combining balanced connectivity, precision engineering, and hand-crafted build quality. Whether used with MM or MC cartridges, it delivers remarkably low noise, powerful dynamics, and a soundstage of true depth and clarity.
It’s more than a turntable – it’s a musical instrument built to honor the art of analog reproduction.
