ZIDOO UHD8000 Smart Media Player
Overview

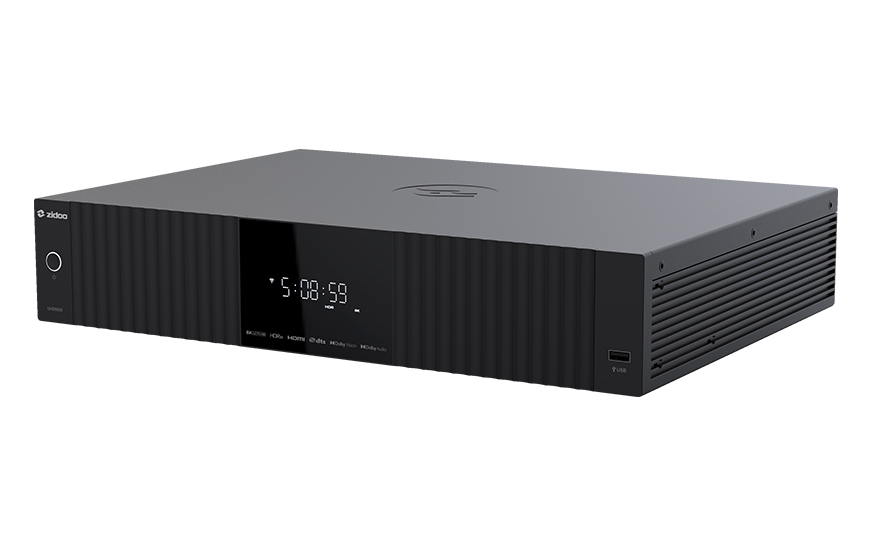

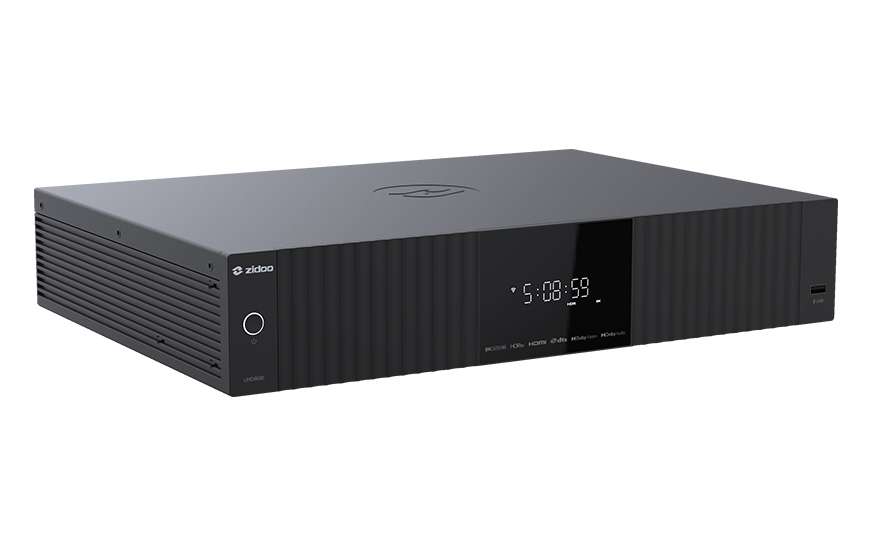

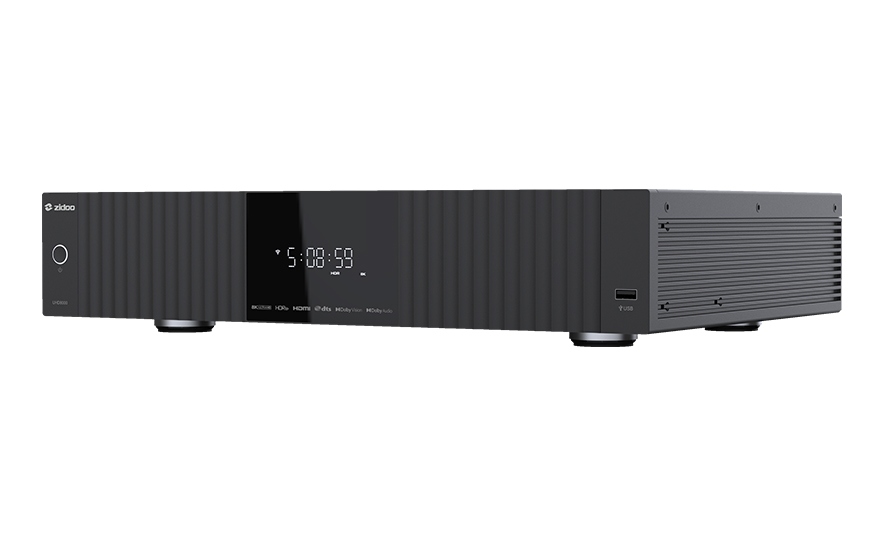

430mm standard size with excellent texture, featuring an all-aluminum alloy brushed panel, frosted upper cover, thickened bottom, and shockproof foot pad
New generation Amlogic S928X-K 64-bit penta-core A76 + A55 high-performance multi-functional processor
8GB DDR4 RAM and 64GB eMMC storage with 64-bit memory bandwidth, delivering exceptional system smoothness
USB and ESS9069Q DAC supporting decoding up to DSD512 and PCM768KHz 32Bit
Supports SACD ISO, DSF, DFF, WAV, FLAC, and more, with gapless playback and CUE track playback
USB DAC input supported, functioning as a high-end decoder compatible with Windows 10/11, macOS, and Android systems
High-quality switching power supply and large toroidal linear power supply, independently designed for audio and video circuits to ensure strong, stable power and clean signal output
High-fidelity audio decoding through XLR fully balanced and RCA analog outputs
Dual HDMI audio and video separate output enables 4K video and HD audio simultaneously without upgrading an AV receiver
Android 11 OS ensures smooth and stable performance

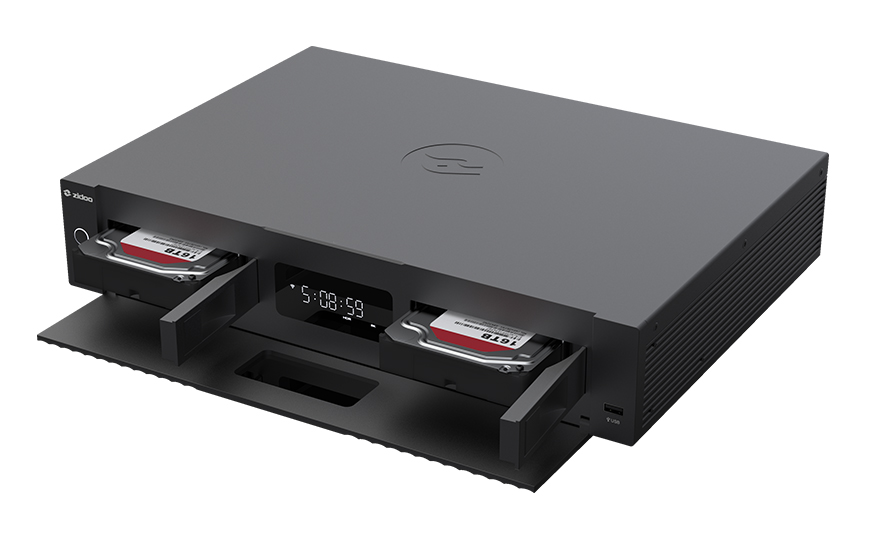

Large LED display panel with dual hidden NSS patented HDD bays, each supporting up to 16TB capacity
HDMI 2.1 supports 8K 60Hz point-to-point output with HDR10, HLG, HDR10+, and Dolby Vision
Supports AV1, VP9, H.265, AVS3, and AVS2 video codecs, 12-bit BT.2020 wide color range, and Atmos/DTS:X audio pass-through output
Built-in VS10 image quality engine with highly customizable mapping options for improved video rendering across multiple modes
Accurate HDR10 static metadata (MaxFall, MaxCll) processing delivers higher brightness and deeper contrast levels
Supports HDR10+ dynamic metadata, processing color and brightness frame by frame and scene by scene
Automatic frame rate (23.976) and resolution switching ensures smooth, uninterrupted movie playback for both local and online sources
Supports external BD, DVD (unencrypted), and CD disc playback, as well as CD ripping
Supports BD/UHD Blu-ray menu playback and seamless branching playback of Blu-rays with complex MPLS structures
Supports graphic subtitle effects with adjustable brightness and downloadable subtitles, and uniquely supports Blu-ray and MKV dual forced subtitles
Supports multiple music streaming options including DLNA and Tidal Connect
Poster Wall 4.0 includes movie trailers and customizable classification and management
Music Player 8.0 features a new UI, lossless playback and decoding, personalized settings, and automatic song data matching
Supports HDMI CEC, RS232, and Control4 integration for smart home systems
Compatible with the exclusive Zidoo Controller App for iOS and Android phones, iPad landscape mode, and Android tablets for seamless playback and control
Supports network protocols including NFS, SMB v1/v2/v3, UPnP, WebDAV, and built-in SMB service
Specifications
Model: UHD8000
Display Screen: LED
Chassis Material: Aluminum Alloy
Operating System: Android 11
CPU: Amlogic S928X-K ARM Cortex-A76 + Cortex-A55 (Penta-core)
GPU: ARM Mali-G57 MC2
Memory & Storage: 8GB DDR4 + 64GB eMMC
Bluetooth: BT 5.2
Wi-Fi: 2.4G + 5G dual-band Wi-Fi, 802.11 a/b/g/n/ac/ax 2T2R, 802.11ax MIMO OFDM
Ethernet: RJ-45 (10/100/1000Mbps) ×1
HDMI Outputs
Main HDMI Output: HDMI 2.1a supports up to 8K@60p, HDR10+, 12-bit color depth, BT.2020 wide color range, HDR10, HDR10+, HLG, and Dolby Vision, with Dolby Atmos and DTS:X audio pass-through
Audio-Only HDMI Output: Separate audio/video output supporting Dolby Atmos, DTS:X pass-through, multi-channel PCM, and DSD output
Video Decoding
8K@60p AV1, VP9, H.265, AVS3, AVS2; HDR10, HDR10+, HLG, Dolby Vision
Audio Decoding
Supports Dolby/DTS formats up to Dolby TrueHD Atmos and DTS:X decoding, equipped with XMOS + ESS9069Q DAC, supports PCM 768kHz@32Bit and DSD512 decoding
Streaming
Supports DLNA, SqueezeLite, and TIDAL Connect (including TIDAL Connect ATMOS streaming), integrates multiple music streaming services
USB Audio Input
Compatible with Windows 10/11, macOS, and Android; supports up to 2-channel DSD512 and PCM 768kHz@32bit decoding
Audio Output

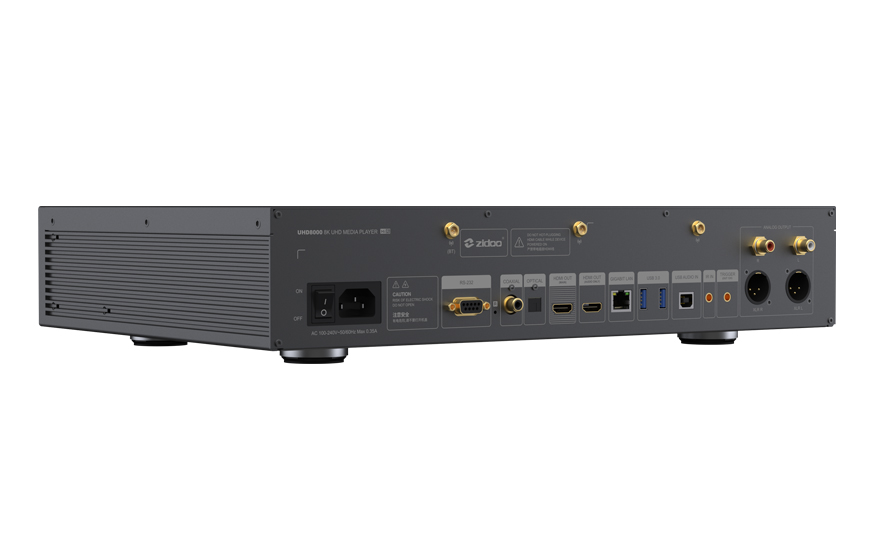

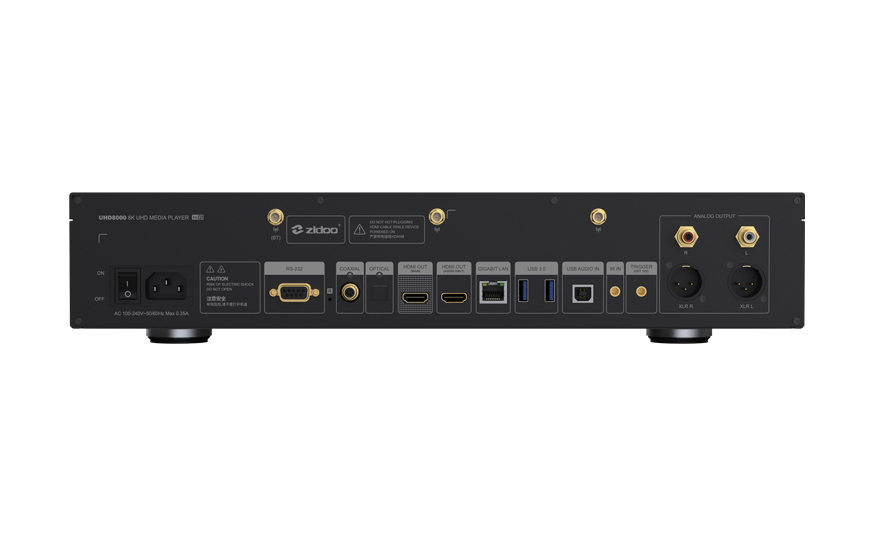

USB output, Optical ×1, Coaxial ×1, RCA L/R ×1, XLR balanced L/R ×1
Analog Audio Characteristics
Frequency Range: 20Hz–20KHz ±0.15dB
SNR: >123dB (A-weighted)
THD+N: <0.00015%
Output Level: XLR 4.2Vrms / RCA 2.1Vrms
DNR: >123dB
Crosstalk: 135dB (A-weighted)
Intelligent Control
App control for iPhone, iPad (landscape mode), Android phone, Android tablet, RS-232, TCP/IP (supports Wake-on-LAN)
Storage
Two built-in 3.5" HDD bays with SATA 3.0 specification, up to 16TB each (HDDs not included)
USB Ports
USB 3.0 ×2, USB 2.0 ×1
Power Supply
AC 110–120V / 220–240V 50/60Hz Max 0.35A
Other Interfaces
Infrared receiver ×1, RS-232 ×1, Trigger Out 3.5mm jack ×1, IR IN 3.5mm jack ×1
Accessories
Remote control ×1
Power adapter ×1
SATA cable ×1
HDMI cable ×1
High-gain antennas ×3
User manual ×1
Dimensions & Weight
Size: 430mm × 312mm × 80mm
Net Weight (without accessories): 5.9kg
