Acoustic Data
Rated Bandwidth: 10Hz-20kHz (±1 dB)
SN Ratio: 90dB @1V input, 2 x 150W output
Power Amp: 300 watts RMS (150 watts x 2 into 4ohm)
Overall Dimensions: (includes feet, knobs, rear in/out jacks, speaker terminals):
82.0mm (H) X 230.8mm (W) X 223.8mm (D)
3.23" (H) X 9.10" (W) X 8.81" (D)
Packaged Dimensions:
156mm (H) X 300mm (W) X 300mm (D)
6.14" (H) X 11.81" (W) X 11.81" (D)
Amplifier Specs:
300 Watt (150 watts x 2) Class-D Power Amp
Wireless Streaming Options:
DTS Play-Fi: Lossless 192kHz/24-bit via Critical Listening Mode over WiFi
Apple Airplay 2 for iPhones and iOS devices, Chromecast for Android Phones and Devices: CD Quality
Bluetooth 5.0 with AAC and aptX
Spotify Connect

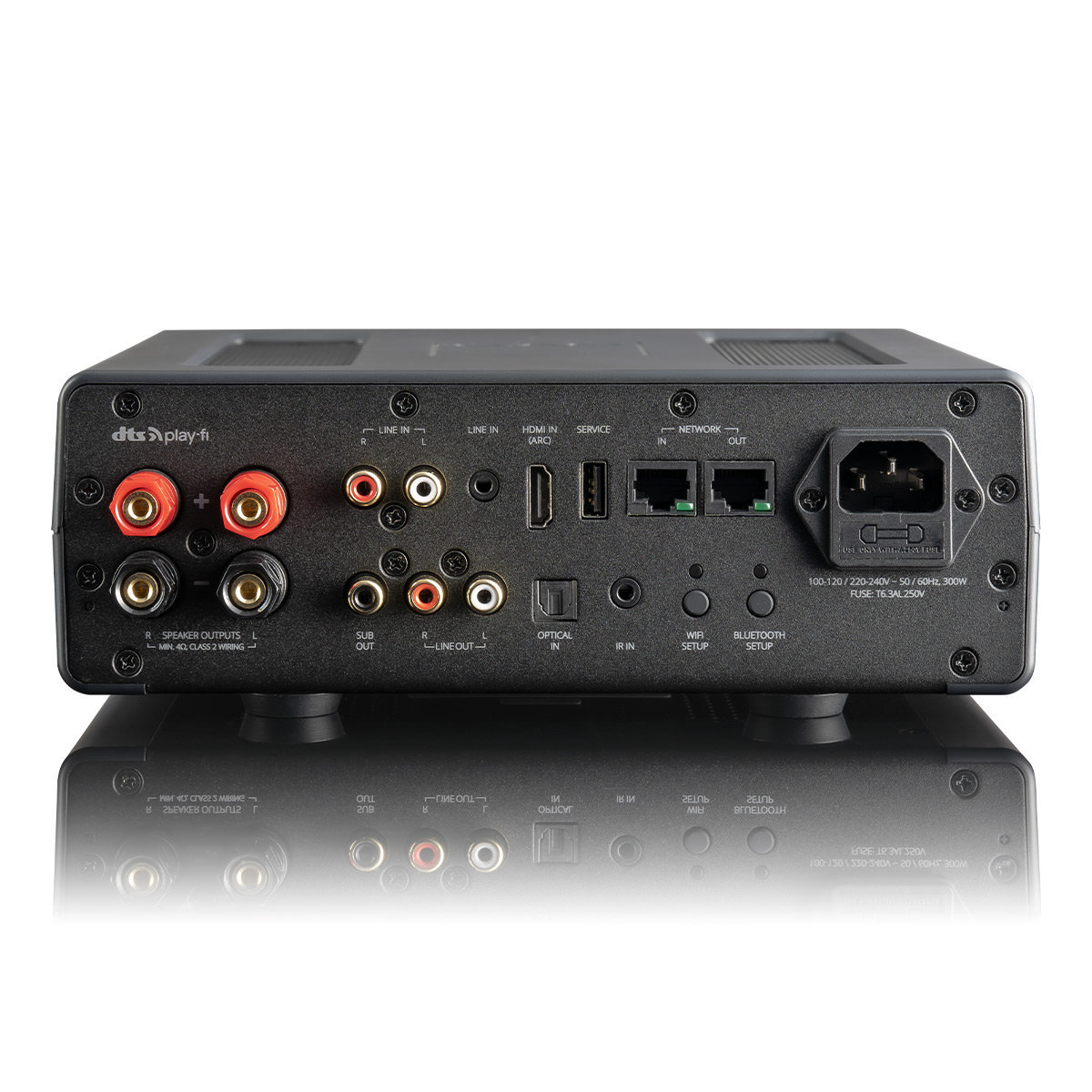

Input Specs
HDMI audio input. Supports ARC and eARC
Left/Right RCA Input: Input Impedance: 20K
3.5mm Aux Input: Input Impedance: 20K
Toslink Optical Input: S/PDIF receiver works at a wide range of sampling frequencies up to 96kHz
Bluetooth 5.0 with AAC and aptX
6 front panel presets for one-touch access to music services and playlists
Ethernet
USB service port also for powering wireless accessories (See SoundPath Wireless Audio Adapter)
3.5mm IR control input
Output Specs:
Subwoofer Output: 2V MAX
Left/Right RCA Output: 2V MAX
Front 3.5mm headphone output: 1V@32Ωmax
Ethernet
General Specs
3.15” wide Front Panel OLED display
Switch Mode Power Supply: Auto Switching 100 – 120V / 220 – 240V, 50/60Hz
Fuse - 6.3A/250V
Detachable power cord
IR Remote control and 2 AAA batteries included
Warranty:
Unconditional 2-Year Warranty
