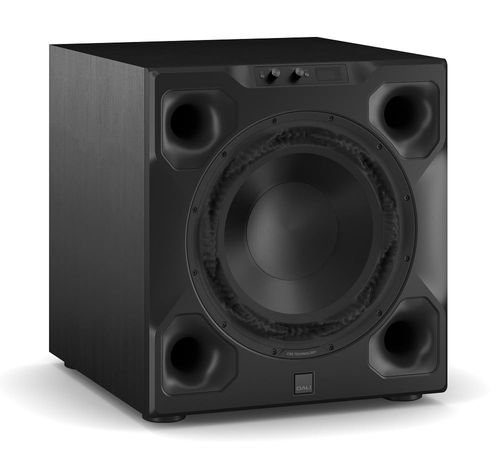

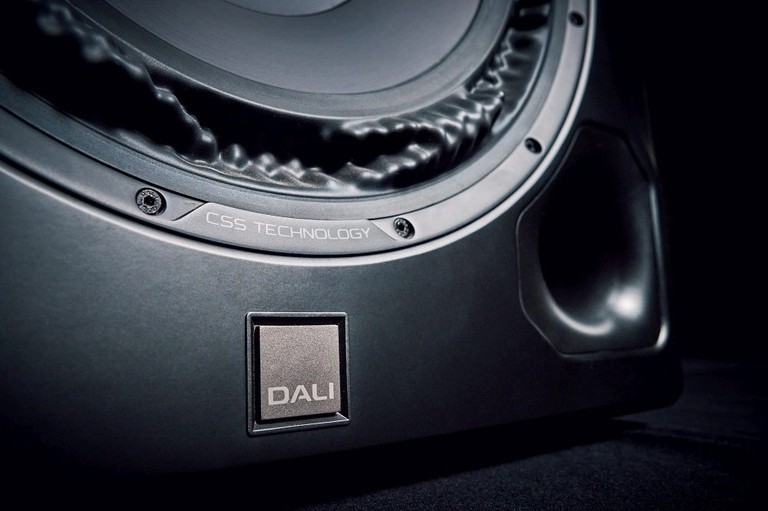

The DALI SUB V-16F is a flagship subwoofer that combines cutting-edge engineering with uncompromising performance, designed to deliver deep, powerful, and precise bass in both music and home cinema applications. At its core lies a remarkable 16-inch aluminum driver supported by an advanced suspension system featuring dual mirrored spiders. This unique configuration offsets non-linear movements in opposite directions, significantly reducing even-order harmonic distortion and ensuring that the former remains perfectly centered under extreme stress conditions. Complementing this design is Purifi Audio’s Constant Surface Surround (CSS) technology, applied here for the first time in such a massive subwoofer driver. Unlike conventional half-roll surrounds, CSS is geometrically symmetric, maintaining identical behavior during both inward and outward movements. This symmetry reduces distortion, keeps the radiating surface area consistent throughout the cone’s travel, and guarantees linear performance across a wide range of amplitudes.
Dimensions (H × W × D) 570.5 × 520 × 560 mm
22.46 × 20.47 × 22.04 inches
Shipping dimensions (H × W × D) 730 x 660 × 710 mm
28.74 × 25.98 × 27.95 inches
Minimum flush-mount installation
dimensions (H × W × D)
590 × 560 × 650 mm
23.23 × 22.05 × 25.59 inches

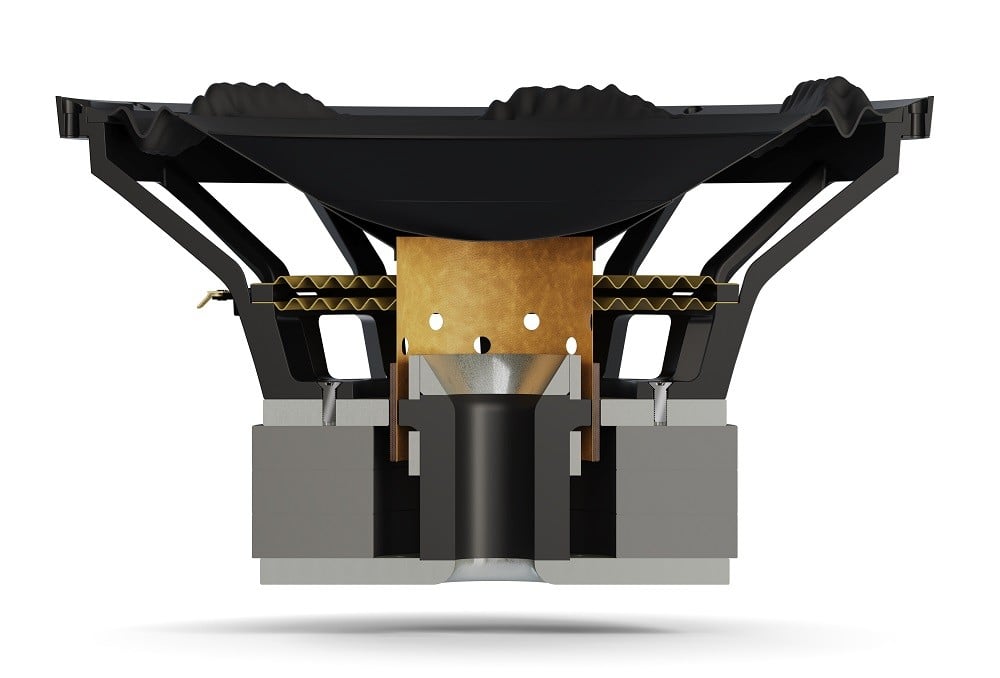

Driving this transducer is a powerful motor system built around a triple-stack ferrite magnet weighing in at 2.4 inches thick and nearly 8 inches in diameter, the most powerful ferrite magnet DALI has ever used. The 4-layer, 3.5-inch copper-clad aluminum voice coil is mounted on a glass fiber former to prevent interference with the magnetic field, enabling 16mm of one-way linear excursion and up to 35mm mechanical excursion for extreme air displacement. To further expand bandwidth and reduce distortion, dual aluminum shorting rings are incorporated, lowering inductance and enabling frequency response to extend beyond 1kHz, a rare capability for a driver of this size.
The driver is powered by a 1,500-watt RMS Class-D amplifier with advanced DSP preamplification. Unique features include Room Mode Attenuation, a user-friendly single-band parametric EQ with built-in tone generator for quick elimination of room mode peaks, and Constant Group Delay, a system that aligns group delay across the frequency range by applying frequency-specific delay up to 40ms. These intelligent tools allow users to integrate the V-16F seamlessly into both simple and advanced audio setups, ensuring controlled, accurate bass response in any environment.

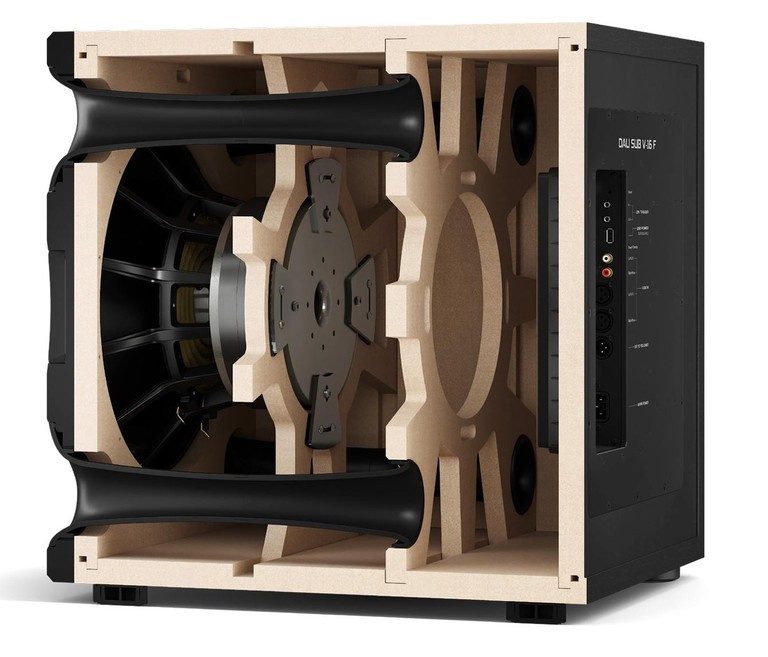

The cabinet is constructed with 1-inch side panels and a massive 2-inch front baffle, reinforced by dual window braces to control resonance and support the heavy driver motor. At 117 lbs, the V-16F exudes solidity and precision craftsmanship. Four front-firing corner-mounted ports, tuned to 18Hz, use specialized aerodynamic shaping to maintain laminar airflow and suppress turbulence, enabling clean and effortless infrasonic extension. The combination of cabinet design, port tuning, and advanced driver technology allows the V-16F to dig deep into subsonic frequencies while maintaining fidelity at high output levels.
With its striking design, intelligent engineering, and unmatched performance, the DALI SUB V-16F sets a new standard for high-end subwoofers. Offering extraordinary bass extension, low distortion, and innovative user features, it is a true statement piece for audiophiles and home theater enthusiasts seeking the very best.
