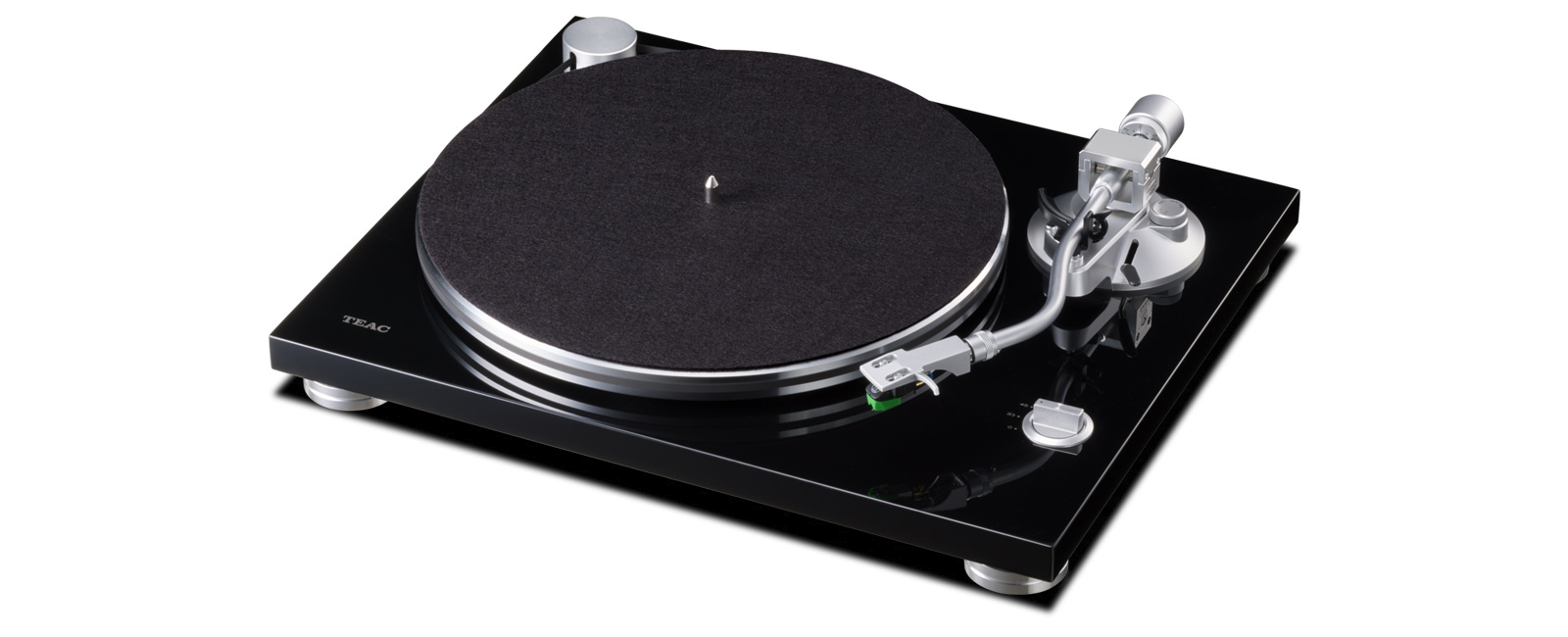

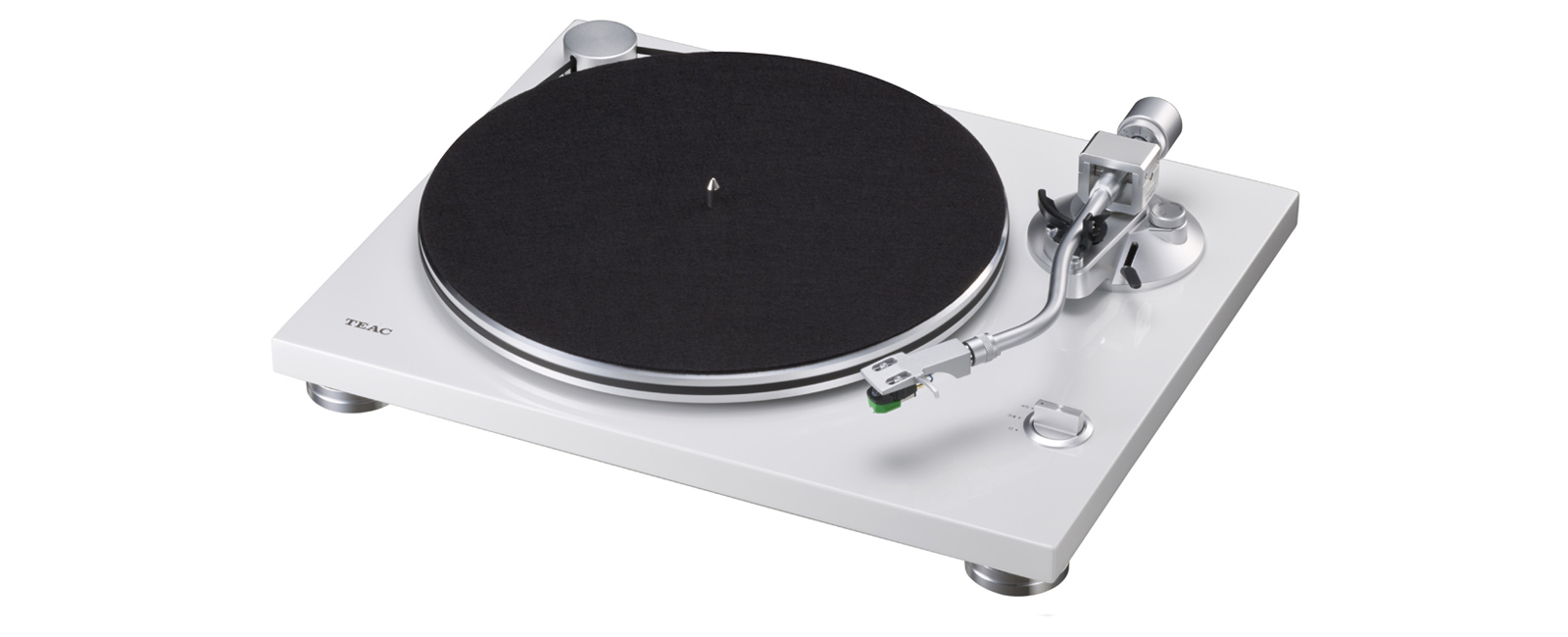

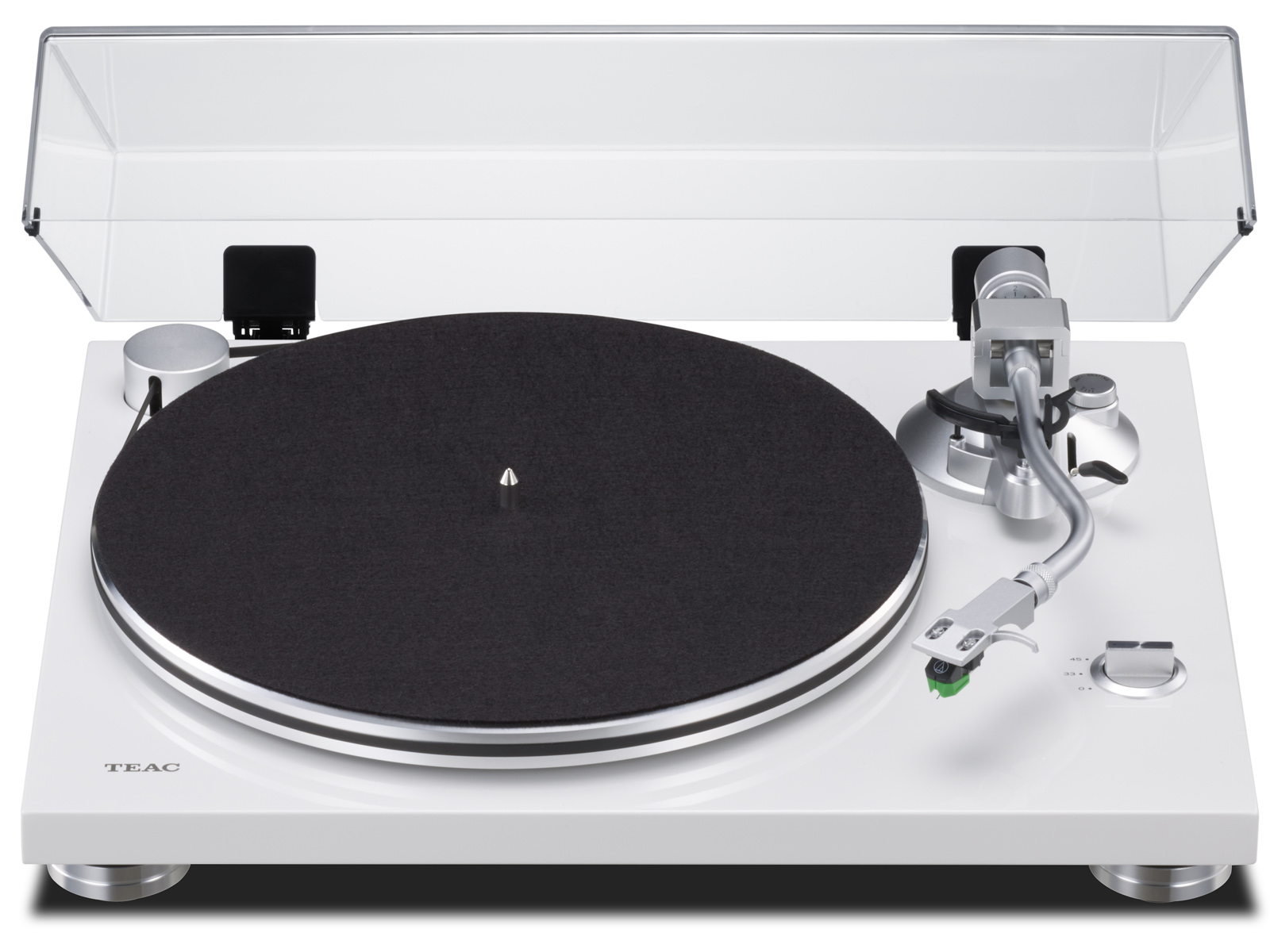

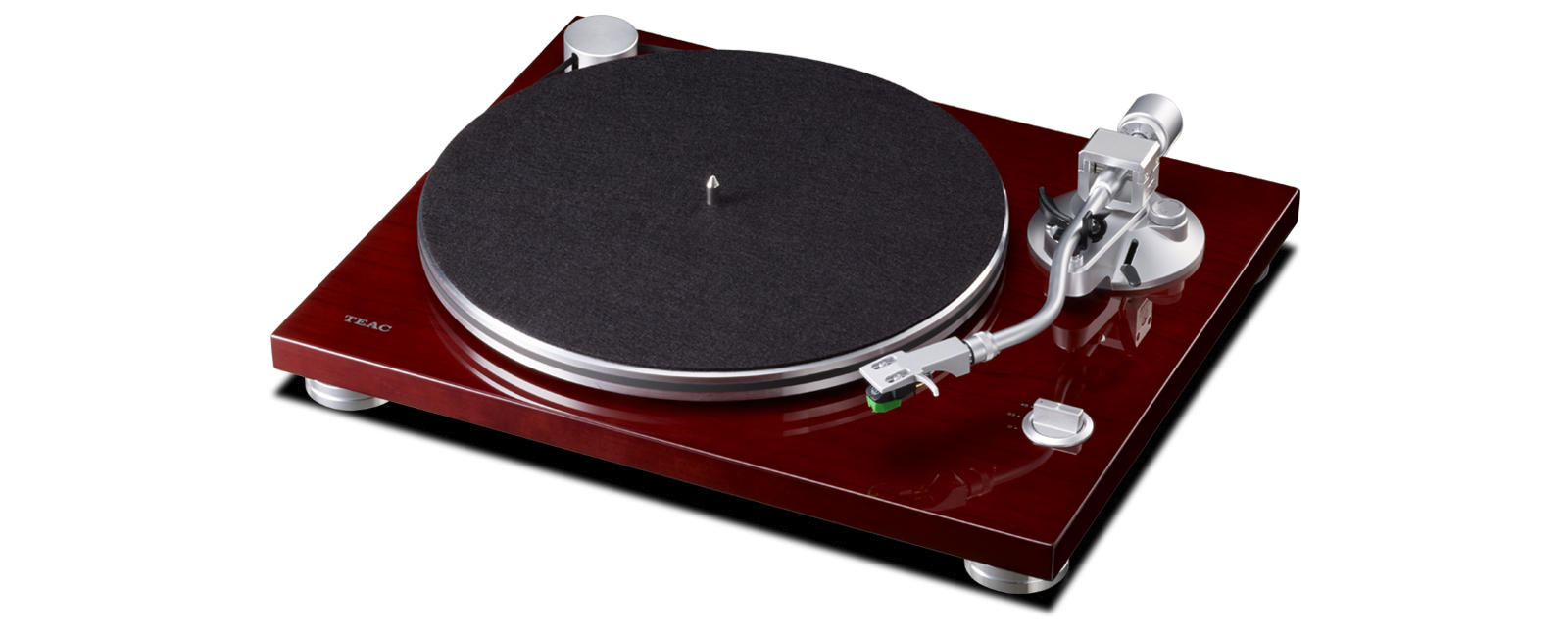

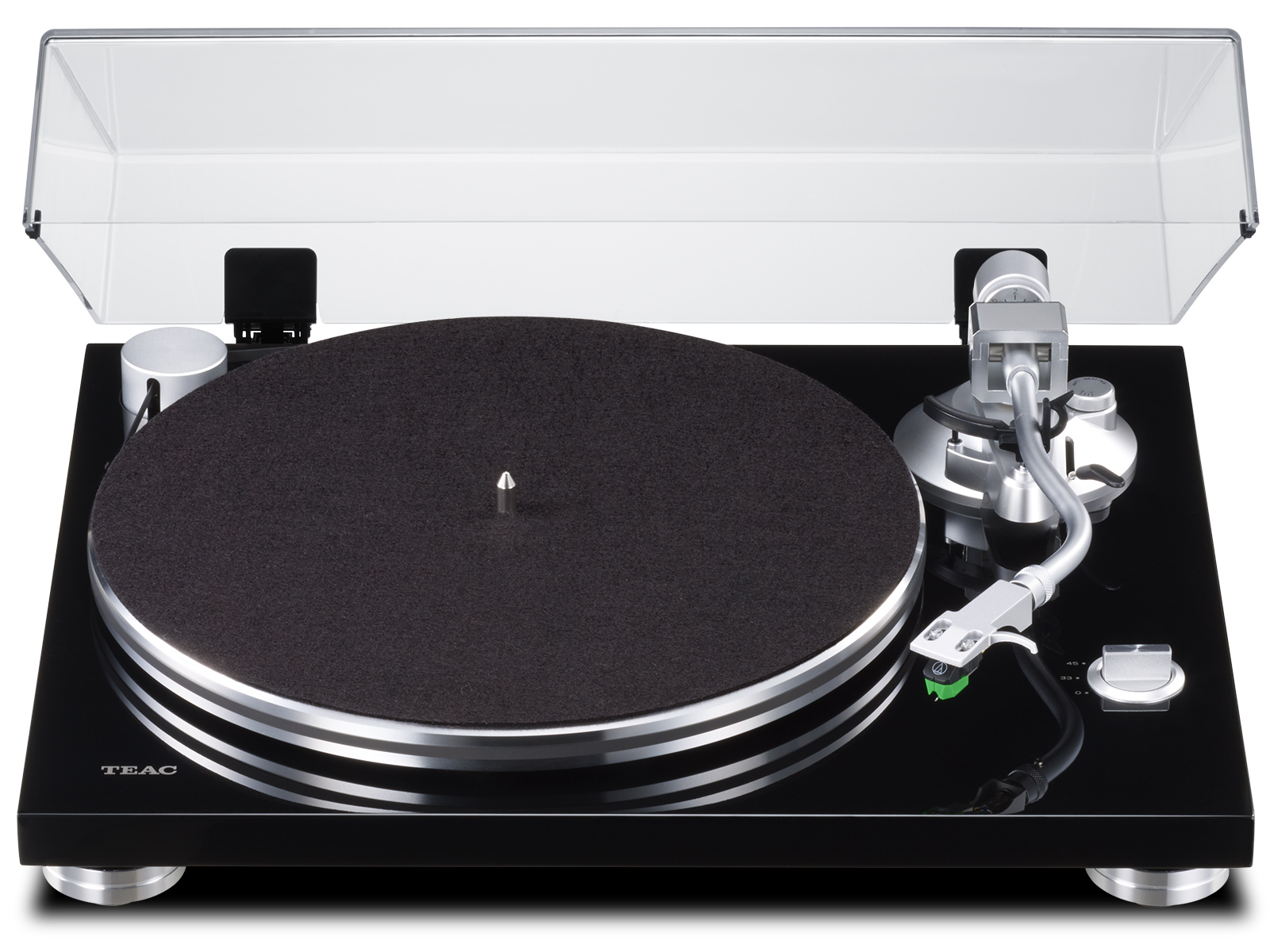

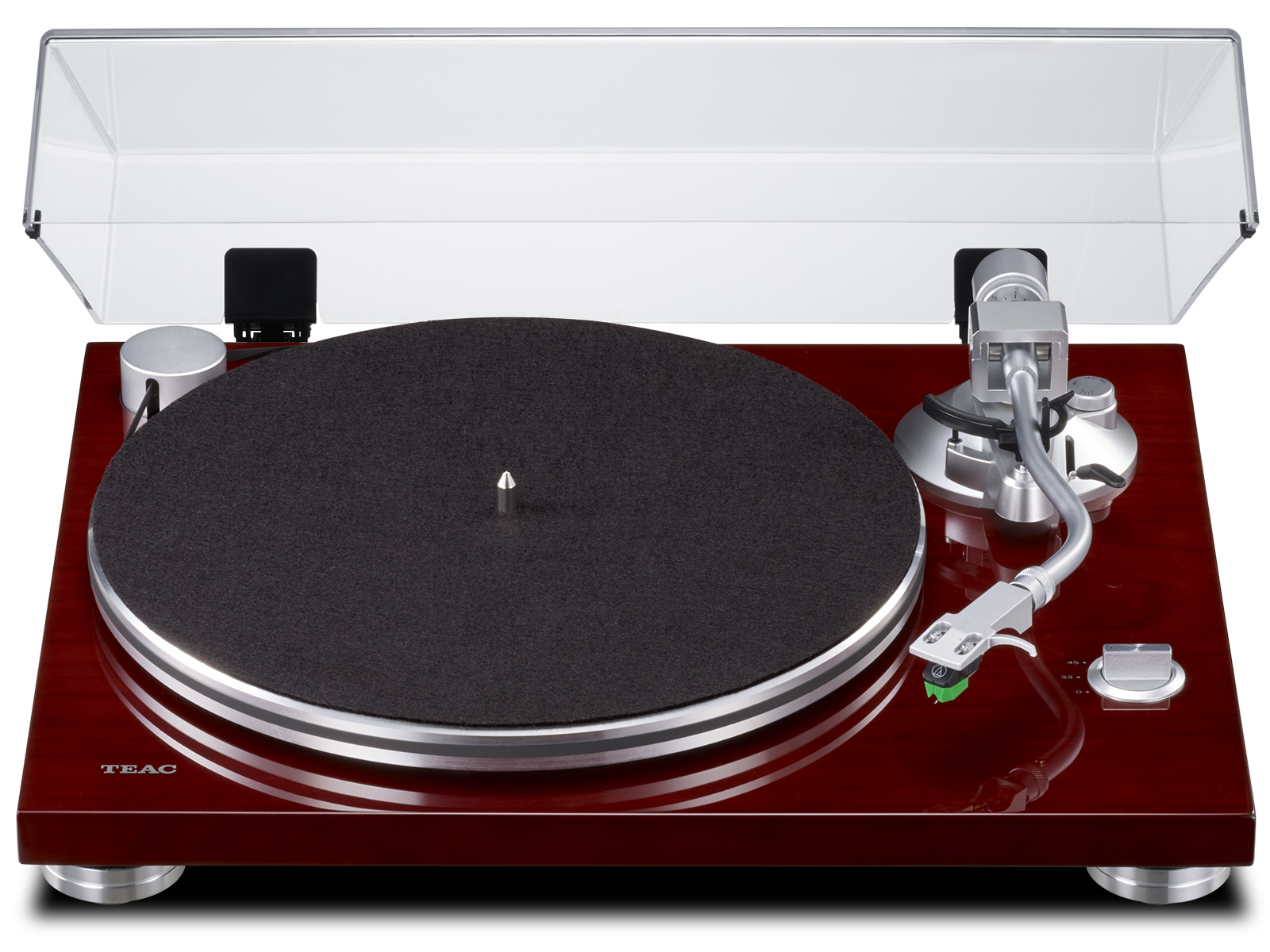

TEAC - TN-3B-SE

עכשיו בפיוצ’ר ה-TEAC TN-3B-SE הוא פטיפון מעוצב ואלגנטי המונע ברצועה, עם מגבר פונו מובנה מסוג MM. הפטיפון מצויד בזרוע טון חדשה עם מסבי נקודת ציר בסגנון סכין, שפותחה בשיתוף פעולה עם SAEC, יצרנית זרועות טון מהשורה הראשונה, כדי להבטיח יציבות ופתרון ברמה גבוהה במיוחד. מנגנון ההנעה ברצועה מפחית תופעות לא רצויות כמו פעימות עדינות מהמנוע, מה שמאפשר סיבוב חלק ומדויק של הפלטה.

ה-TN-3B-SE כולל גם מחט מסוג VM מבית audio-technica מדגם AT-VM95E ומגבר Phono EQ מובנה עם מעגל מדויק מדגם NJM8080, מה שמאפשר האזנה לתקליטים עם עיוות נמוך ואיכות שמע גבוהה.

הפטיפון מספק צליל טבעי ומאוזן, וקל להרכבה ולהפעלה, כך שתוכלו להתחיל ליהנות מהמוזיקה שלכם תוך זמן קצר. אנו מאמינים שה-TN-3B-SE קובע סטנדרט חדש שיספק את הצרכים של אודיופילים ואספני תקליטים נלהבים כאחד. כולל אחריות היבואן הרשמי בישראל – לעוד פרטים ניתן ליצור קשר עם אולם התצוגה שלנו.

קרדיט:

Knife-edge, pivot-point tone-arm bearings

TN-3B



In collaboration with SAEC Corporation, a world-famous, high-end tonearm manufacturer, the TN-3B's tone-arm employs a knife-edge, pivot-point bearing. Unlike the case for tonearms with conventional bearings, any fine vertical movements that take place in this tone-arm actually help in delivering a more dynamic sound with excellent resolution. The S-shaped tone-arm also employs a universal head-shell fitting, allowing users to quickly and easily swap cartridges/head-shells, and supports a wide range of cartridge weights (from 14 - 23g / 0.5 - 0.8 oz.)。

Precision anti-skating and stylus-pressure adjustment
TN-3B

The static-balanced, S-shape tone-arm is equipped with a counterweight for precise stylus-pressure adjustment, as well as an anti-skating mechanism for accurate tracking force adjustment, allowing the cartridge to accurately play any quality vinyl disc.

Pre-installed VM-series cartridge
TN-3B

A VM-type cartridge the AT-VM95E manufactured by audio-technica exclusive for TEAC with an elliptical-shaped stylus tip comes pre-installed on the head-shell for convenience. After you’ve opened the box, set up the platter and mounted the head-shell on the tonearm, you'll be ready to enjoy your records.
* Replacement styli should be available at the retail store where you purchased the unit, or via the TEAC On-line store. (TEAC On-line store is available in selected countries.)
* The VM-series cartridge is a MM (Moving Magnet) type design, and is compatible with all conventional MM-type phono EQ amplifiers.

Built-in MM-type phono EQ amplifier

The TN-3B-SE incorporates an MM-type phono EQ amplifier, allowing you to connect the turntable to a conventional amplifier/hi-fi system that lacks a PHONO input. A low distortion, hi-fi-grade op-amp, the NJM8080, is employed to boost the low-level signals from the phono cartridge up to LINE level.

External belt-drive with aluminum die-cast platter
TN-3B

A belt-drive arrangement is employed in order to minimise any motor cogging effects by driving the outer rim of the platter (which has a larger diameter, mass and surface area).

Luxurious, multi-layer lacquer paint finish

All internal components are mounted on a robust and high-density MDF plinth for rigidity and vibration-deadening. Thanks to its sleek and stylish design, the TN-3B looks at home in most domestic environments, creating the perfect setting for listening to vinyl records.

33-⅓ and 45 rpm 2-speed turntable

The TN-3B-SE supports both 33-⅓ and 45 rpm for LP and EP records. Our insistence on quality engineering can even be seen in the construction of the rotary control for start-up/speed selection, formed of machined aluminium.

Insulating feet with excellent shock absorption
TN-3B

The insulating feet comprise a machined aluminium shell, topped with a rubber cushion that is fixed to the high-density MDF plinth. Thanks to their excellent shock absorption characteristics, the TN-3B-SE is very resistant to acoustic feedback.

Honeycomb patterned bottom panel

In order to achieve sleek cabinet design without compromising rigidity, the bottom panel is imprinted with a honeycomb pattern that minimises unwanted vibrations.

TN-3B

Features at a glance

Belt-drive mechanism

2-speed turntable supporting 33-⅓ and 45 rpm

Knife-edge, pivot-point tonearm, designed by high-end tonearm manufacturer SAEC

Aluminum die-cast platter

Built-in PHONO EQ amplifier compatible with MM-type cartridges

Hi-fi grade op-amp, NJM8080, used in PHONO EQ stage

Anti-skating mechanism

PHONO/LINE analog output (switchable)

Gold-plated oxidation-resistant output connectors

Pre-installed AT-VM95E cartridge supplied by audio-technica

Rigid, high-density MDF plinth with multi-layered lacquer finish

Shock-absorbing insulating feet

GND terminal

RoHS compliant

      *This product does not have a USB digital output.


Spec description

Turntable section
Type Belt-drive (External drive)
Motor DC Motor
Rotation Speeds 33-⅓ rpm, 45 rpm
Wow-and-Flutters 0.1% or less
S/N Ratio 67dB (A-weighted, 20kHz LPF)
Turntable (Platter)
Material Aluminum Die-cast
Diameter 30cm
Tone-arm section
Type S-shape, Static-balanced
Effective Length 223mm
Needle Pressure Range 0g to 5.0g
Compatible Cartridge Weight 3.0g to 12.0g
14g to 23g (including Head-shell)
Cartridge section
Type MM-type
Output Voltage 4.0mV (1kHz, 5cm/sec.)
Needle Pressure 1.8 to 2.2g (2.0g recommended)
Weight 6.1g
Head-shell weight 11g (including screws, nuts, and wires)
Compatible Stylus AT-VMN95E * Average stylus life: approx. 300 hours.

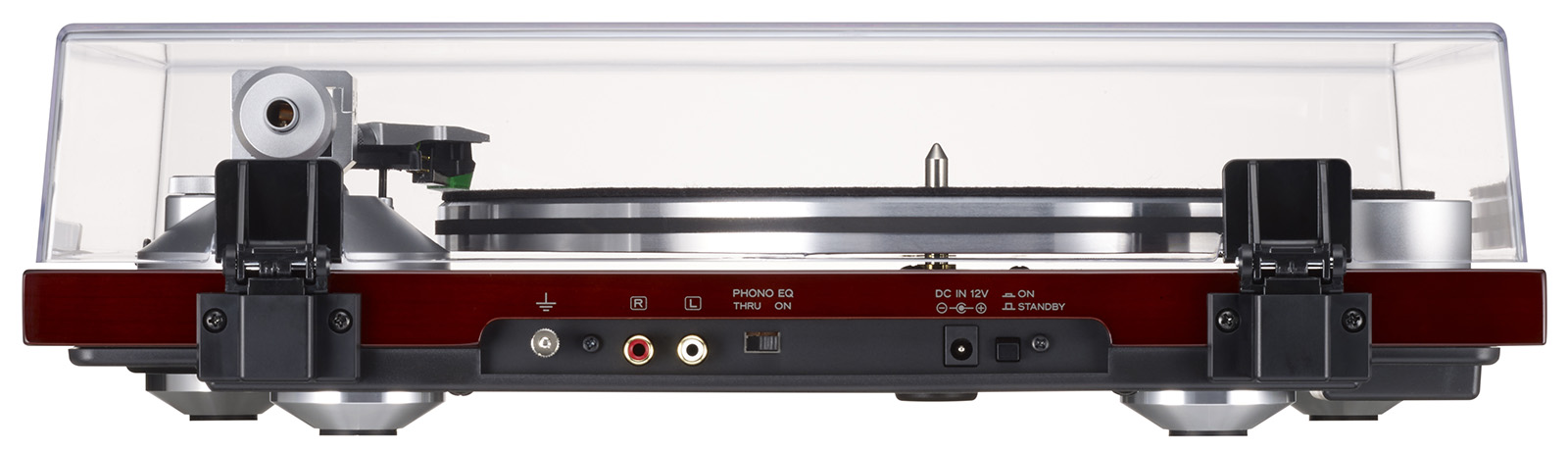

Analog Outputs
Connector RCA Pin jack × 1 pair (Gold-plated)
Output Voltage
PHONO 4.0mV (1kHz)
LINE 224mV (–13dBV)
Operating Power AC 100 to 240V, 50/60Hz
Power Consumption 1.5W
Standby Power 0.5W
Overall Dimensions (W×H×D) 420 × 117 × 356 mm /
16.5" × 4.6" × 14.0" (including protrusions)
Weight approx. 5.0kg / 11.0 lbs.
Included Accessories Felt Mat, EP Adapter, Counter Weight, Head-shell (AT-VM95E installed), Platter, Dust Cover, Hinges × 2, RCA Audio cable with GND terminal, AC Adapter (GPE053A-V120050), Owner's Manual (including Warranty Card)



מחיר: 2,500 ₪
משלוח חינם
משלוח חינם: 0 ₪
אחריות: אחריות יבואן רשמי לשנה
זמן אספקה: 7 ימים , קיימת אפשרות לאיסוף עצמי
למה לקוחות קונים אצלנו:
  • אחריות: אחריות יבואן רשמי לשנה
  • אפשרות לעד 12 תשלומים ללא ריבית
  • משלוח חינם, קניה מאובטחת ושירות לקוחות מעולה
אחריות יבואן רשמי לשנה חודשי אחריות
משלוח חינם משלוח חינם
קניה בטוחה
שאל אותנו על מוצר זה

מידע נוסף

Knife-edge, pivot-point tone-arm bearings

TN-3B



In collaboration with SAEC Corporation, a world-famous, high-end tonearm manufacturer, the TN-3B's tone-arm employs a knife-edge, pivot-point bearing. Unlike the case for tonearms with conventional bearings, any fine vertical movements that take place in this tone-arm actually help in delivering a more dynamic sound with excellent resolution. The S-shaped tone-arm also employs a universal head-shell fitting, allowing users to quickly and easily swap cartridges/head-shells, and supports a wide range of cartridge weights (from 14 - 23g / 0.5 - 0.8 oz.)。

Precision anti-skating and stylus-pressure adjustment
TN-3B

The static-balanced, S-shape tone-arm is equipped with a counterweight for precise stylus-pressure adjustment, as well as an anti-skating mechanism for accurate tracking force adjustment, allowing the cartridge to accurately play any quality vinyl disc.

Pre-installed VM-series cartridge
TN-3B

A VM-type cartridge the AT-VM95E manufactured by audio-technica exclusive for TEAC with an elliptical-shaped stylus tip comes pre-installed on the head-shell for convenience. After you’ve opened the box, set up the platter and mounted the head-shell on the tonearm, you'll be ready to enjoy your records.
* Replacement styli should be available at the retail store where you purchased the unit, or via the TEAC On-line store. (TEAC On-line store is available in selected countries.)
* The VM-series cartridge is a MM (Moving Magnet) type design, and is compatible with all conventional MM-type phono EQ amplifiers.

Built-in MM-type phono EQ amplifier

The TN-3B-SE incorporates an MM-type phono EQ amplifier, allowing you to connect the turntable to a conventional amplifier/hi-fi system that lacks a PHONO input. A low distortion, hi-fi-grade op-amp, the NJM8080, is employed to boost the low-level signals from the phono cartridge up to LINE level.

External belt-drive with aluminum die-cast platter
TN-3B

A belt-drive arrangement is employed in order to minimise any motor cogging effects by driving the outer rim of the platter (which has a larger diameter, mass and surface area).

Luxurious, multi-layer lacquer paint finish

All internal components are mounted on a robust and high-density MDF plinth for rigidity and vibration-deadening. Thanks to its sleek and stylish design, the TN-3B looks at home in most domestic environments, creating the perfect setting for listening to vinyl records.

33-⅓ and 45 rpm 2-speed turntable

The TN-3B-SE supports both 33-⅓ and 45 rpm for LP and EP records. Our insistence on quality engineering can even be seen in the construction of the rotary control for start-up/speed selection, formed of machined aluminium.

Insulating feet with excellent shock absorption
TN-3B

The insulating feet comprise a machined aluminium shell, topped with a rubber cushion that is fixed to the high-density MDF plinth. Thanks to their excellent shock absorption characteristics, the TN-3B-SE is very resistant to acoustic feedback.

Honeycomb patterned bottom panel

In order to achieve sleek cabinet design without compromising rigidity, the bottom panel is imprinted with a honeycomb pattern that minimises unwanted vibrations.

TN-3B

Features at a glance

Belt-drive mechanism

2-speed turntable supporting 33-⅓ and 45 rpm

Knife-edge, pivot-point tonearm, designed by high-end tonearm manufacturer SAEC

Aluminum die-cast platter

Built-in PHONO EQ amplifier compatible with MM-type cartridges

Hi-fi grade op-amp, NJM8080, used in PHONO EQ stage

Anti-skating mechanism

PHONO/LINE analog output (switchable)

Gold-plated oxidation-resistant output connectors

Pre-installed AT-VM95E cartridge supplied by audio-technica

Rigid, high-density MDF plinth with multi-layered lacquer finish

Shock-absorbing insulating feet

GND terminal

RoHS compliant

      *This product does not have a USB digital output.


Spec description

Turntable section
Type Belt-drive (External drive)
Motor DC Motor
Rotation Speeds 33-⅓ rpm, 45 rpm
Wow-and-Flutters 0.1% or less
S/N Ratio 67dB (A-weighted, 20kHz LPF)
Turntable (Platter)
Material Aluminum Die-cast
Diameter 30cm
Tone-arm section
Type S-shape, Static-balanced
Effective Length 223mm
Needle Pressure Range 0g to 5.0g
Compatible Cartridge Weight 3.0g to 12.0g
14g to 23g (including Head-shell)
Cartridge section
Type MM-type
Output Voltage 4.0mV (1kHz, 5cm/sec.)
Needle Pressure 1.8 to 2.2g (2.0g recommended)
Weight 6.1g
Head-shell weight 11g (including screws, nuts, and wires)
Compatible Stylus AT-VMN95E * Average stylus life: approx. 300 hours.
Analog Outputs
Connector RCA Pin jack × 1 pair (Gold-plated)
Output Voltage
PHONO 4.0mV (1kHz)
LINE 224mV (–13dBV)
Operating Power AC 100 to 240V, 50/60Hz
Power Consumption 1.5W
Standby Power 0.5W
Overall Dimensions (W×H×D) 420 × 117 × 356 mm /
16.5" × 4.6" × 14.0" (including protrusions)
Weight approx. 5.0kg / 11.0 lbs.
Included Accessories Felt Mat, EP Adapter, Counter Weight, Head-shell (AT-VM95E installed), Platter, Dust Cover, Hinges × 2, RCA Audio cable with GND terminal, AC Adapter (GPE053A-V120050), Owner's Manual (including Warranty Card)
