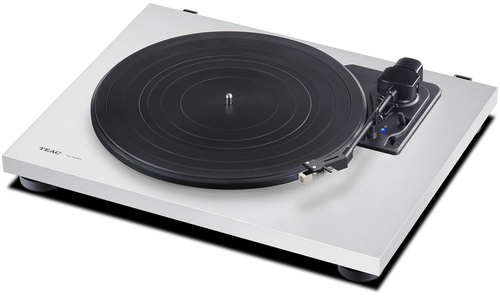

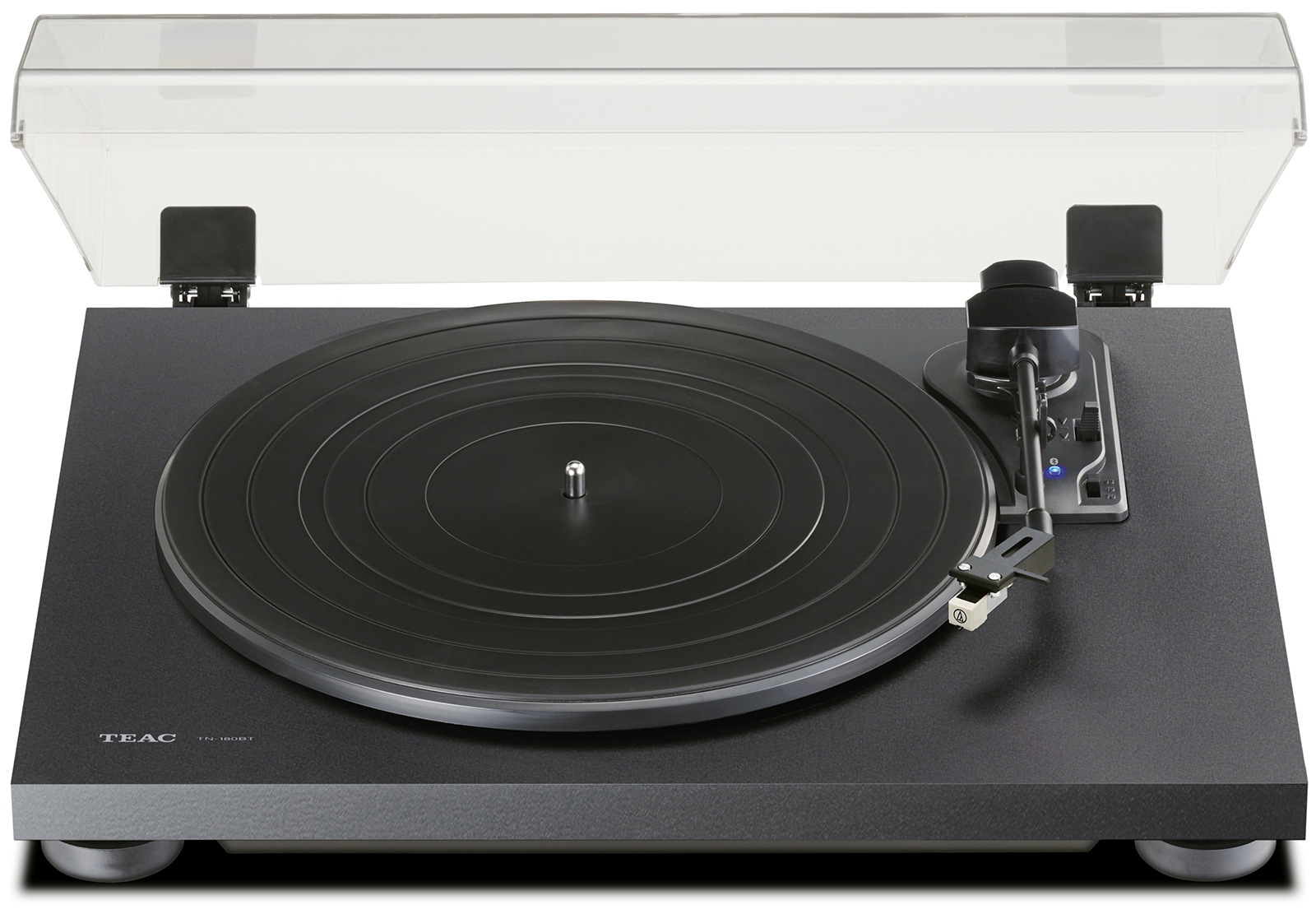

ה-TEAC TN-180BT הוא פטיפון אלחוטי המשלב טכנולוגיה מתקדמת עם עיצוב קלאסי כדי לספק חוויית שמע איכותית ונוחה. המכשיר מצויד בחיבור Bluetooth, המאפשר להאזין לתקליטים ישירות דרך רמקולים או אוזניות אלחוטיות, ללא צורך בחיבורים מסורבלים. בנוסף, המכשיר תומך גם בחיבורי RCA אנלוגיים להאזנה באמצעות מערכות שמע מסורתיות. הפטיפון מגיע בשלושה צבעים לבחירה שלכם. עכשיו בפיוצ’ר כל דגמי החברה במחיר מנצח עם אחריות היבואן הרשמי.
ה-TN-180BT בנוי ממארז עץ איכותי המסייע בהפחתת רעידות לשיפור איכות השמע. הוא כולל מנגנון הנעה ישירה (belt-drive) המספק פעולה שקטה ויציבה, עם מהירויות נגינה של 33/45/78 סל"ד. הזרוע הסטנדרטית מגיעה עם ראש פונו מובנה המוכן לשימוש מידי, כך שאין צורך במגבר פונו חיצוני.
הפטיפון מעוצב בסגנון אלגנטי ומתאים לכל סביבה ביתית, והוא הבחירה המושלמת לכל מי שמחפש לשלב את חוויית ההאזנה המסורתית של תקליטים עם נוחות הטכנולוגיה המודרנית. לעוד פרטים ניתן ליצור קשר עם אולם התצוגה שלנו.
2024-10-05 18:00:34 +0300
קרדיט:
A new way of record playing
Built-in Bluetooth® transmitter
The TN-180BT-A3 delivers the sound wirelessly via built-in Bluetooth® transmitter, in addition to conventional RCA output in analog Line or Phono format. The pairing button is located at the tone-arm base, which illuminates when the connection with BT speakers/headphone is made successfully.
Unlike other turntable units, the TN-180BT-A3 provides you the simplest way of listening to vinyl records via Bluetooth® wireless technology.
If you already have a Bluetooth-enable speakers or headphone for your iPhone/Android phone, all you have to do is to install the TN-180BT-A3 in your room – no pricy hi-fi system and complicated wiring are required –. The connection is as simple as ABC, just press the BT pairing button when the Bluetooth® speakers/headphones are ready to the pairing, and once the connection is established, you don't need to repeat the same process every time you listening to vinyl records.
The TN-180BT-A3 also provides conventional ways of connection to hi-fi system with or without PHONO input via cable, and an RCA audio cable comes with the TN-180BT-A3.
An authentic 3-speed Turntable
The TN-180BT-A3 plays LP, EP and SP records from your library. The tone-arm automatically returns to the original position as playback finished.
*The groove of the SP (78rpm) records is 3 to 4 times wider than typical 33 1/3rpm record, so it might damage the stylus and cause the noise when you play back the record with pre-installed stylus. Please keep it limited use.
MM-type cartridge pre-installed for quick start
A VM-type (equivalent to MM-type) cartridge AT3600L by audio-technica is already installed to the straight-type tone-arm at the factory, so you can start playing records as soon as you open the box.
The authentic belt-drive turntable is driven by a high torque DC motor, while precision stainless steel spindle and durable brass spindle holder maintain accurate rotation speed.
High-density MDF cabinet construction
Unlike others with plastic chassis, a single wooden board with high-density MDF minimizes vibrations and resonance to playback of your vinyl record library with clearer sound.
Built-in VM-type Phono EQ amplifier
Enjoy vinyl playback with any amplifier regardless type of inputs. The TN-180BT-A3 supports both PHONO and LINE outputs that allow you to play vinyl with or without Phono equalizer.
Turntable Comparison
| |
TN-180BT-A3 |
TN-100 |
| Bluetooth® Transmitter |
Yes |
- |
| Speed |
33 1/3, 45, 78 RPM |
33 1/3, 45, 78 RPM |
| Platter |
Plastic |
Plastic |
| Cartridge |
VM-type (audio-technica AT3600L) |
MM-type (TEAC original version) |
| Head-shell |
Fixed |
Fixed |
| Tone-arm |
Straight 200mm, Static-balanced |
Straight 200mm, Static-balanced |
| Counter-weight |
Fixed |
Fixed |
| Auto Return |
Supported |
Supported |
| Phono EQ Amp |
Built-in |
Built-in |
| Output |
PHONO/LINE (switchable) |
PHONO/LINE (switchable)
USB Digital Out |
| Cabinet |

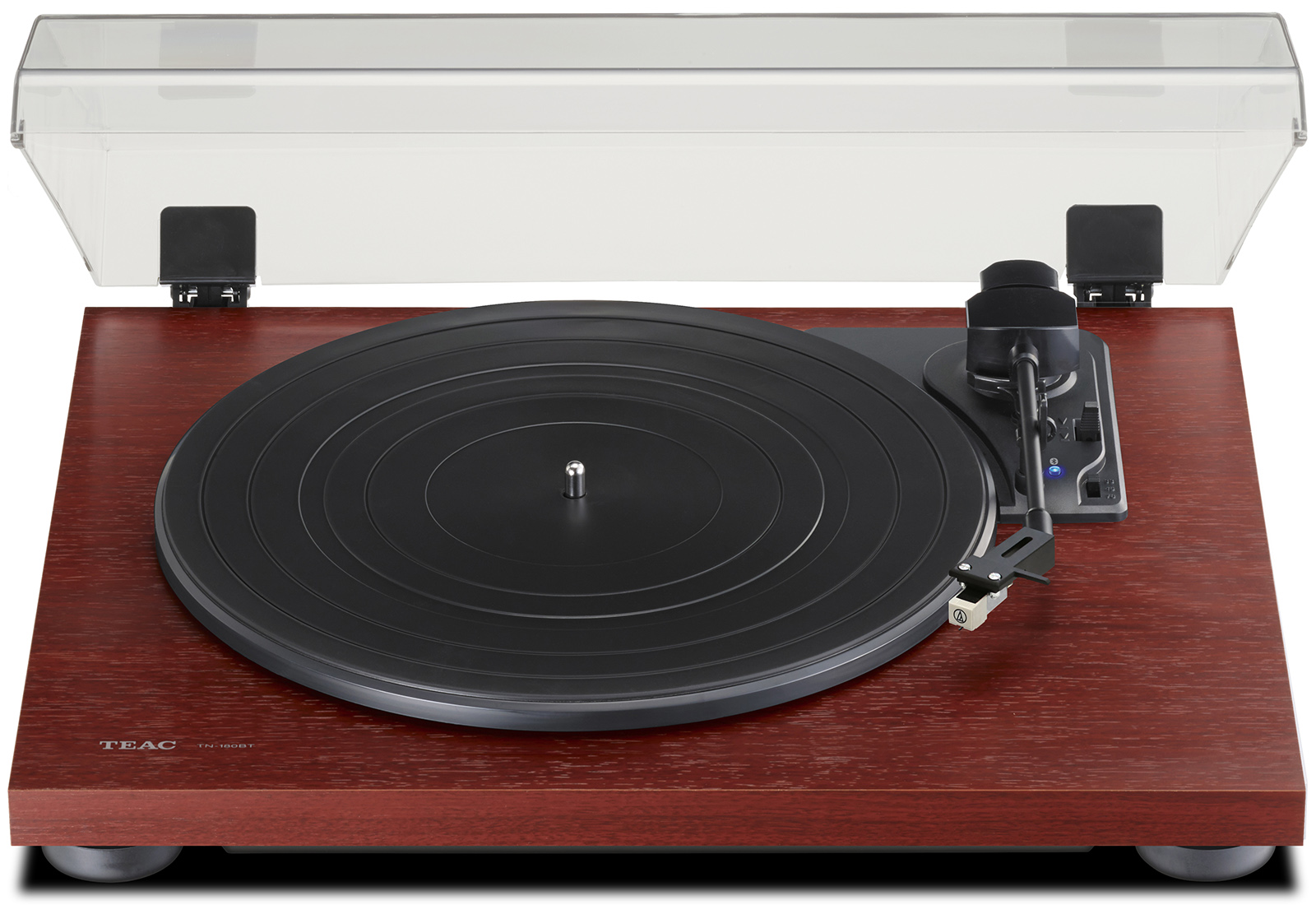

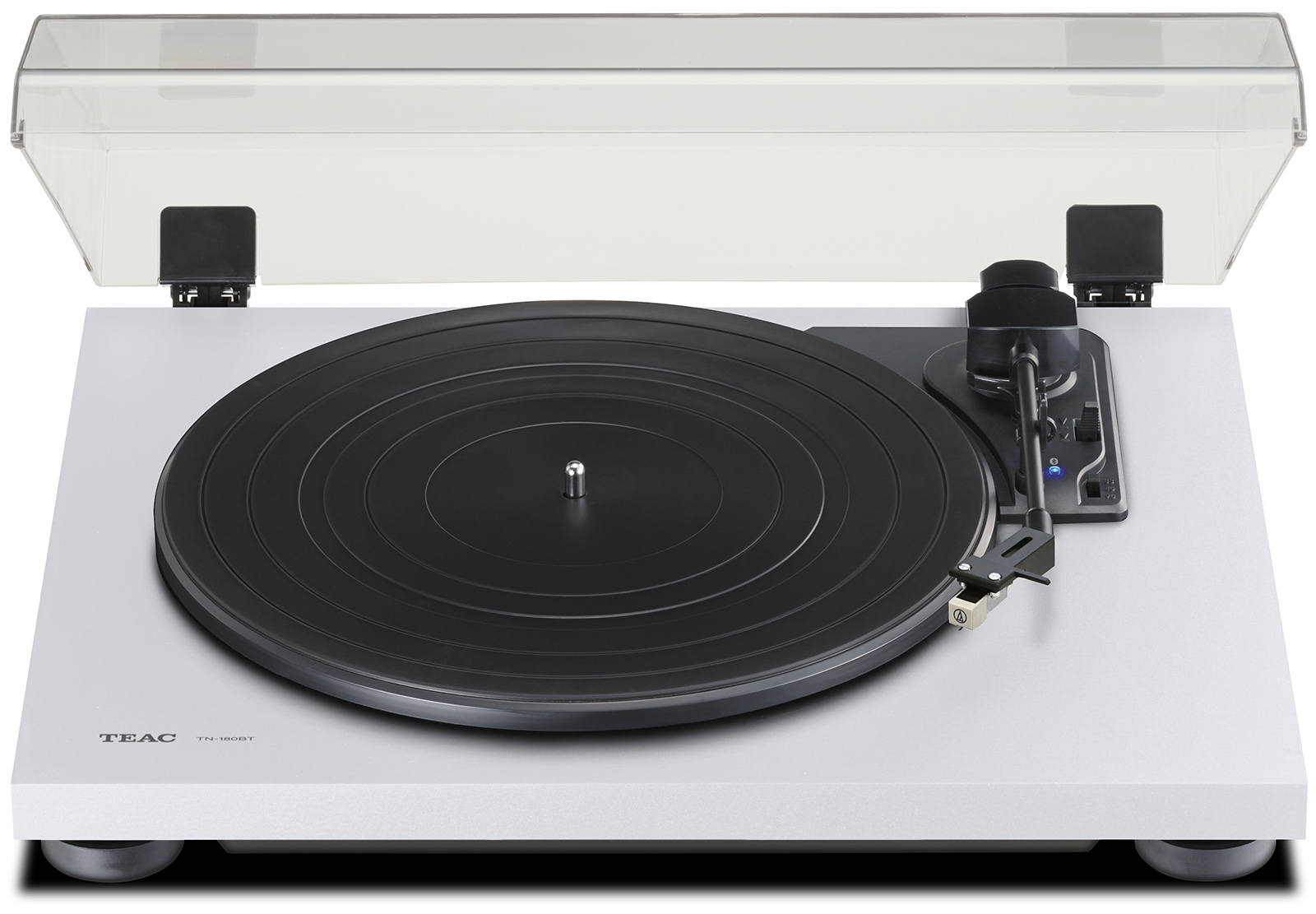

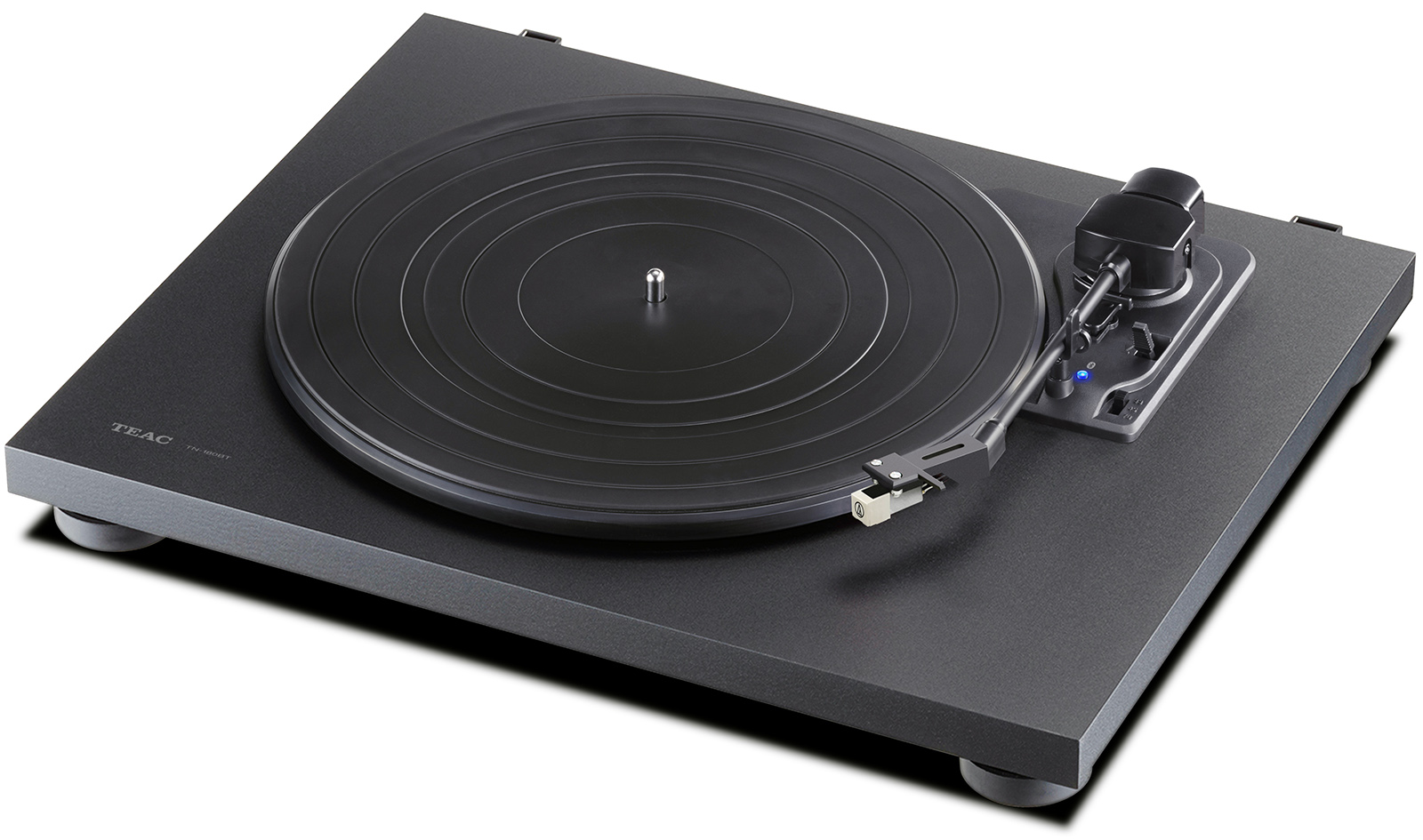

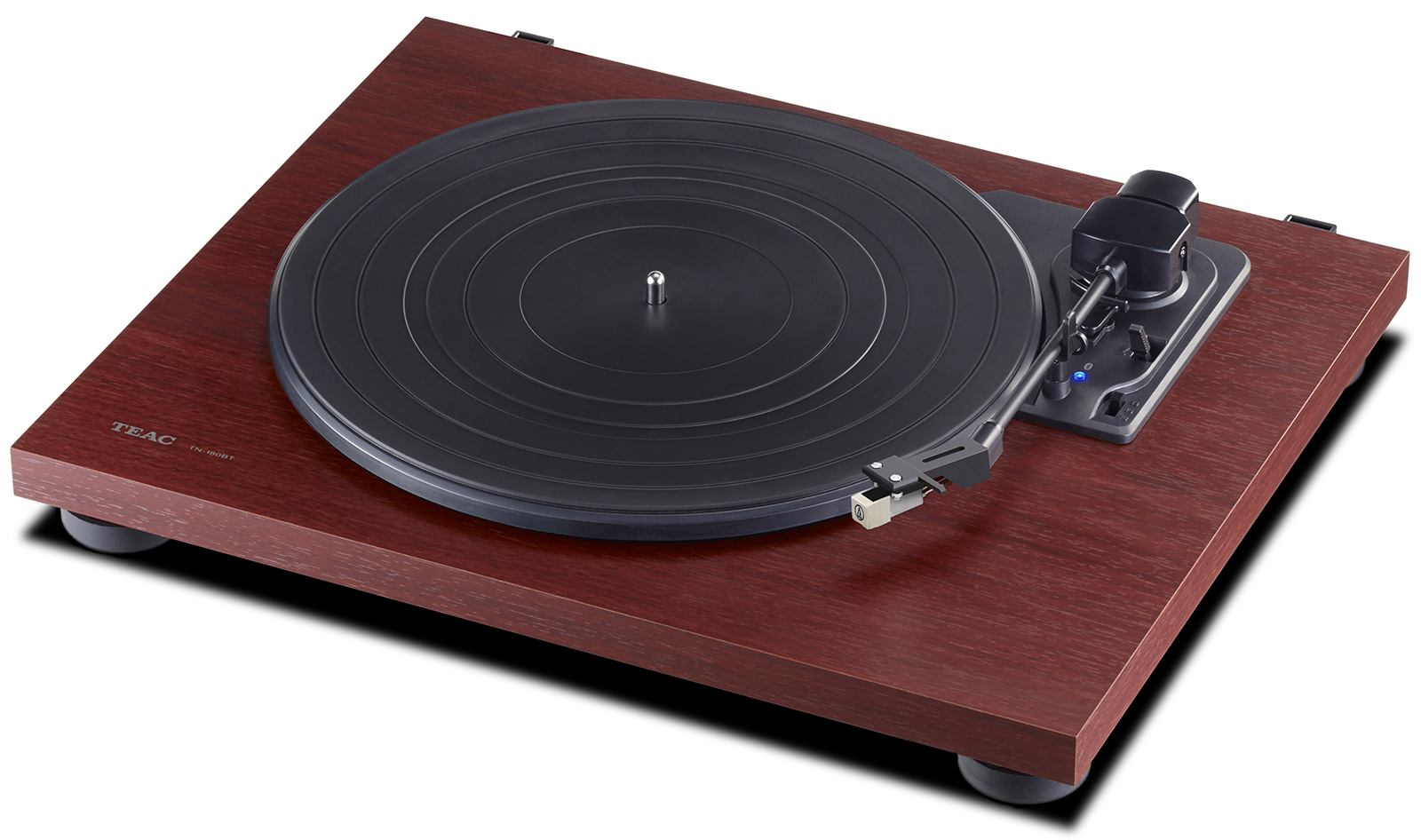

Black, White, Cherry |
Black, Cherry |
Features at a glance
Belt-drive turntable
Built-in Bluetooth® transmitter to BT speakers or headphones
Built-in Phono equalizing amplifier
PHONO, LINE and Bluetooth® outputs
High-density MDF cabinet for improved resonance reduction
3-speed (33-1/3, 45, 78 rpm)
Auto-return and manual arm lifter
audio-technica AT3600L MM-type cartridge installed
Sleek design in cherry, black or white finish
Spec description
| Turntable section |
|
| Motor |
DC Motor |
| Speed |
33 1/3 RPM, 45 RPM, 78 RPM |
| Wow and Flutter |
0.25% |
| Signal-to-Noise Ratio |
64dB or higher (A-weighted, 20kHz LPF) |
| Platter |
Plastic |
| Diameter of Platter |
12", 30cm |
| Tonearm section |
|
| Type |
Static Balance, Straight |
| Effective Arm Length |
7.9", 200mm |
| Stylus Pressure Range |
0 to 5g |
| Cartridge section |
|
| Type |
VM-type |
| Output Voltage |
3.5mV (1 kHz, 5 cm/s) |
| Stylus Replacement |
audio-technica ATN3600L |

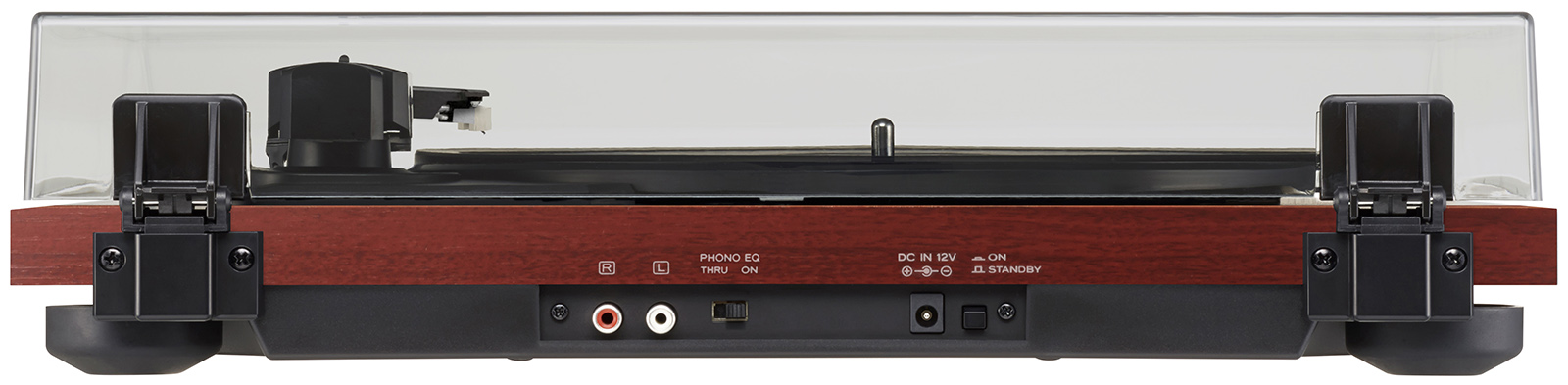

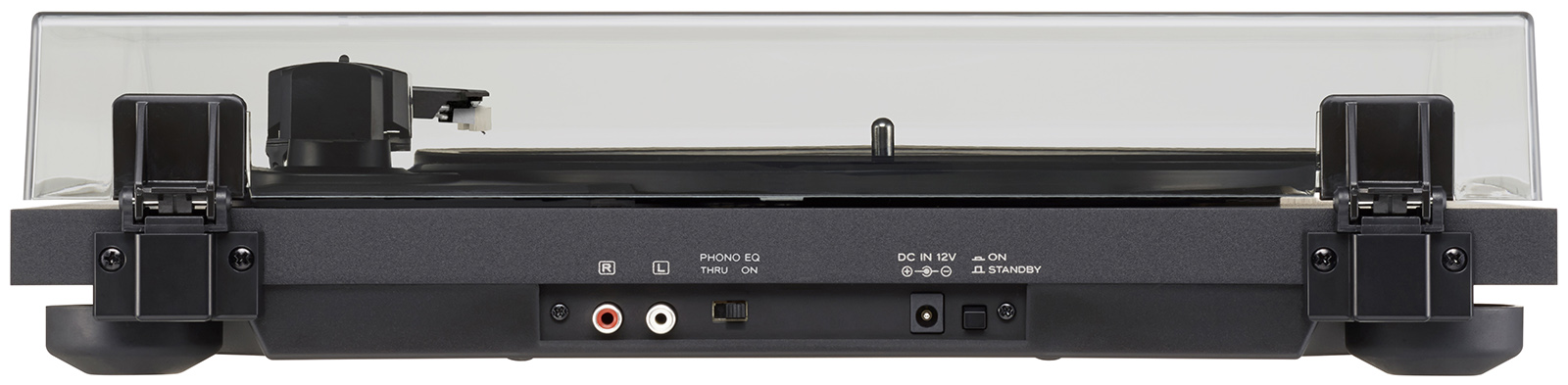

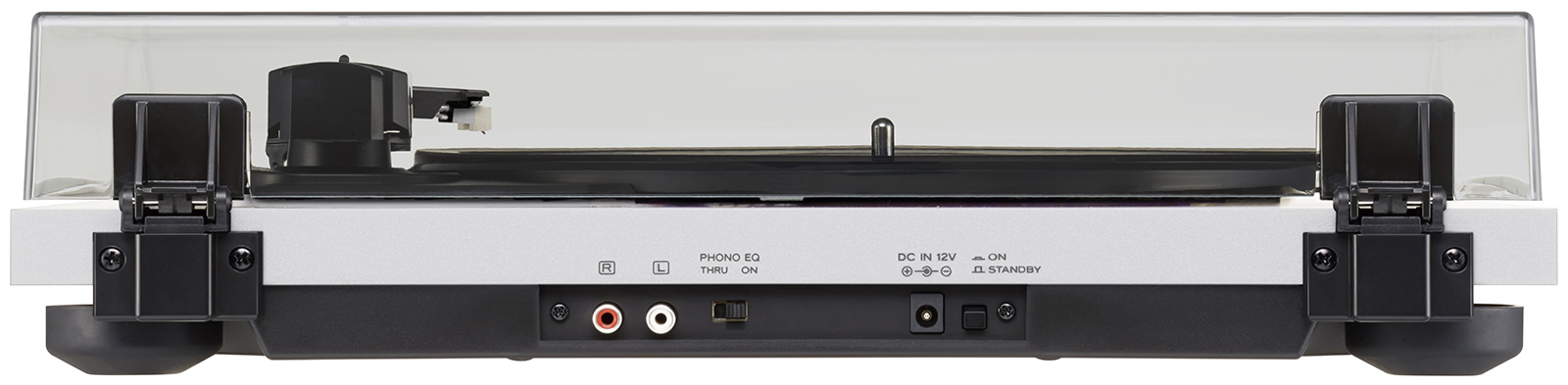

| Analog Output section |
|
| Connectors |
RCA Pin x 1 pair (Chrome-plated) |
| Output Voltage |
|
| PHONO |
2.4mV (±3dB) |
| LINE |
149mV (–16.5dBV) |
| Bluetooth® section |
|
| Range |
Approx. 30ft. / 10 meters |
| Supported Codec |
SBC |
| General |
|
| Power |
AC 100 to 240V, 50/60Hz |
| Power Consumption |
< 1.5W (< 0.2W at Standby) |
Overall Dimensions
(W x H x D) |
16.5" x 4.1" x 14.0"
420 x 105 x 356 mm |
| Weight |
Approx. 10.8 lbs. 4.9 kg |
| Accessories |
Rubber Sheet, EP Adapter, Dust Cover, Rubber Feet fro Dust Cover x2, Hinge x2, RCA Audio Cable, AC Adapter (GPE053A-120050-Z), Owner's Manual (including Warranty Card) |
