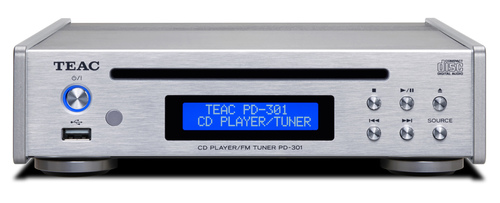

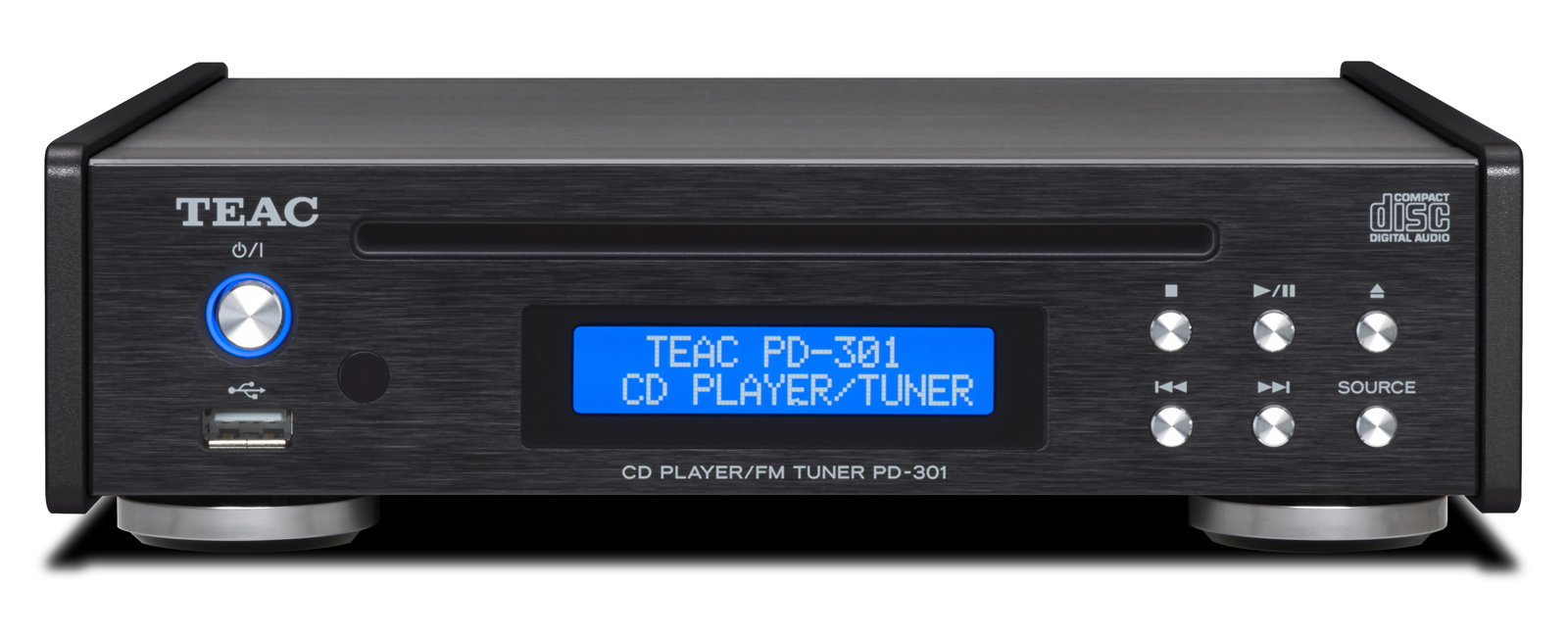

TEAC - PD-301-X CD Player/FM Tuner

ה-TEAC PD-301-X הוא נגן CD איכותי המשולב עם טיונר FM, שנועד לספק חוויית שמע ברמה גבוהה במבנה קומפקטי ואלגנטי. המכשיר כולל מנגנון קריאה מתקדם ל-CD, המבטיח קריאה מדויקת של הדיסקים ואיכות צליל מצוינת. ה-PD-301-X תומך בפורמטים שונים כמו CD, CD-R ו-CD-RW, כך שתוכלו ליהנות ממוזיקה בפורמטים שונים ללא פשרות. כל מוצרי חברת TEAC עכשיו בפיוצ’ר במחיר מנצח ובאספקה מהירה.

בנוסף לנגן ה-CD, המכשיר מצויד בטיונר FM מובנה עם אפשרות לתכנות תחנות רדיו, המאפשר לכם להאזין לתחנות הרדיו האהובות עליכם באיכות צליל גבוהה. המכשיר כולל גם יציאת אודיו דיגיטלית ואנלוגית, מה שמאפשר גמישות בחיבור למערכות שמע שונות.

העיצוב הקומפקטי של TEAC PD-301-X מאפשר להציבו בקלות בכל מערכת אודיו ביתית, והוא מגיע בגימור מתכתי יוקרתי המשתלב באופן מושלם עם מוצרים אחרים של TEAC. זהו הפתרון האידיאלי עבור מי שמחפש לשלב נגן CD וטיונר FM איכותי במכשיר אחד עם ביצועים מצוינים ועיצוב מודרני.

קרדיט:

Slot-load CD drive mechanism supporting quick loading and automatic playback



PD-301-X

The PD-301-X features a compact, high-precision, slot-load CD drive mechanism that’s exclusively designed for professional audio applications. Thanks to its quick loading times and automatic playback function, users can get on with enjoying their music mere moments after inserting a CD into the slot.

Supports MP3, WMA, AAC and WAV formats

Conventional digital audio formats such as MP3 and WMA can be played back from CD-ROM/CD-R/CD-RW discs. In addition, music files in AAC and WAV formats are also supported when played from a USB flash drive inserted into the front USB port. Usefully, the player can show ID3 tag, song title and artist name info contained on MP3, WMA and AAC files on its LC-display.

High-performance 32-bit DAC

The PD-301-X employs a high-performance DAC (digital to analogue converter), the PCM5142 from BurrBrown, for silky smooth audio reproduction.

Robust full-metal body with a small footprint

Employing aluminum panels for the player’s front, sides and top means that the PD-301-X provides unusual rigidity, minimizing the adverse effect of unwanted vibrations on sound quality. And all from a package with a tiny footprint that occupies an area of just 215mm x 232mm (8.5” x 9.1”), allowing users to comfortably locate the unit on the smallest of desktops.

Built-in FM Tuner

Unlike most other CD Players, the PD-301-X also features a FM Tuner module within its compact cabinet.

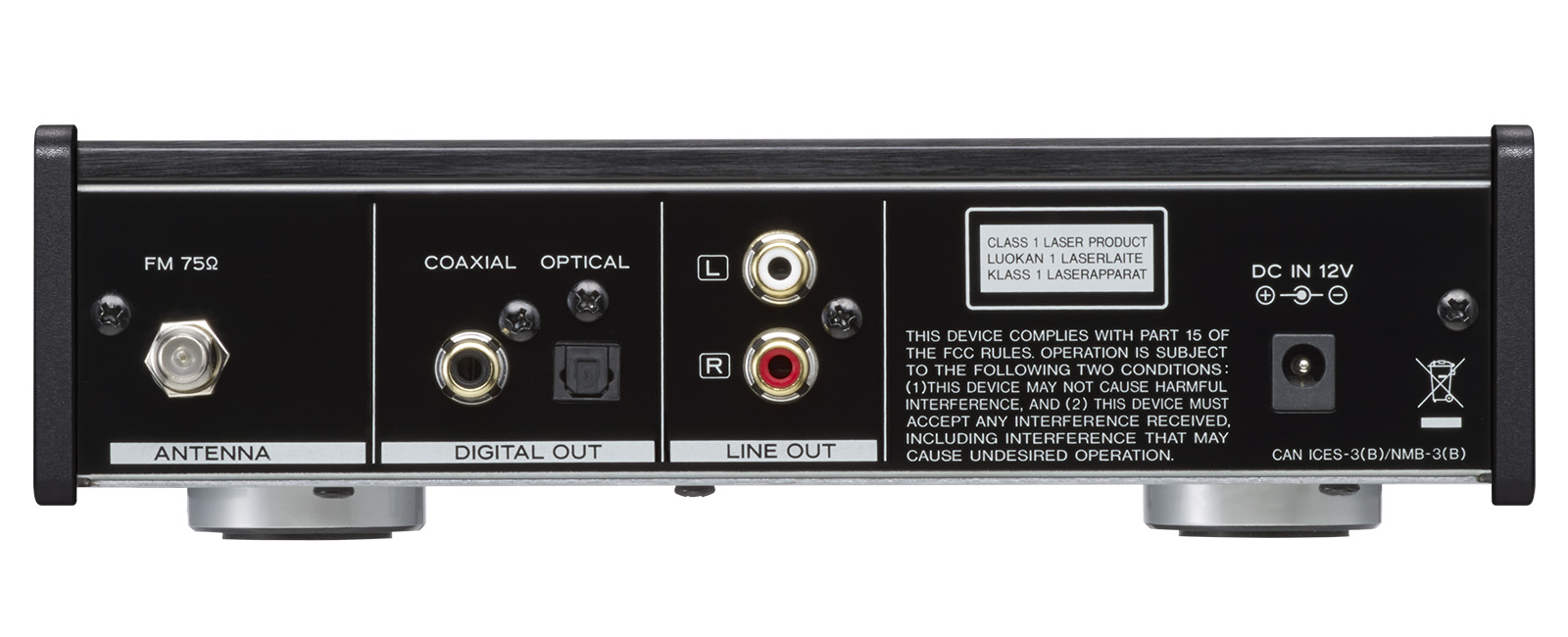

Digital audio outputs for all sources, including FM
PD-301-X

In addition to conventional analogue audio outputs, audio signals from the PD-301-X’s built-in FM tuner are also delivered from the digital audio outputs, via both the coaxial and optical connectors (of course, these connections also deliver digital audio from CD).
Please note that the digital audio output format is PCM 44.1kHz/16-bit, regardless of the resolution of the original source.

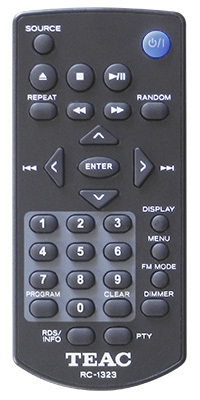

10-key Remote Control

A compact card-type remote control is supplied as standard with the PD-301-X.

Features at a glance

Slot-load CD player supporting CD-DA, CD-ROM, CD-R and CD-RW discs

High performance BurrBrown PCM5142 32-bit D/A converter

Sleek, small footprint design

Built-in FM Tuner with 20 x FM station presets

Automatic CD Playback (On/Off selectable)

MP3, WMA playback from CD-ROM, CD-R and CD-RW

MP3, WMA, AAC, WAV playback from USB flash drive

Program playback (CD-DA only)

Shuffle and Repeat playback

Song title and artist name display (ID3 tag required)

Selectable Folder/File browse modes

USB Port for USB flash drive (USB A-type)

Coaxial and optical digital audio outputs

Analogue LINE audio output via RCA Pin

Card-type Remote Control

Full-metal body

Auto power-saving (On/Off selectable)

RoHS compliant



Spec description

CD section
Supported media CD-DA, CD-ROM, CD-R, CD-RW* (8cm CDs not supported)
* Supports CD-DA format on CD-RW
Max number of files 300 (including Folders)
Max number of folders 50
Max number of layers 16
USB section
Supported USB devices USB Mass Storage device class
Interface USB2.0 (FULL-SPEED), USB1.0 (HIGH-SPEED), USB3.0 compatible
File system FAT16, FAT32
Max number of files 300 (including Folders)
Max number of folders 50
USB bus power DC 5V, max 500mA
Supported file formats
WAV (USB only)
Extension .wav, .WAV
Bit depth 16-bit
Sampling frequency 44.1k / 48kHz
MP3
Extension .mp3, .MP3
Bit-rate 32k to 320k bps and VBR
Sampling frequency 16k / 22.05k / 24k / 32k / 44.1k / 48kHz
Format MPEG1/2 Audio Layer-3
WMA
Extension .wma, .WMA
Bit-rate 32k to 320k bps and VBR
Sampling frequency 8k / 11.025k / 16k / 22.05k / 32k / 44.1k / 48kHz
Format WMA ver.9 standard (DRM not supported)
AAC (USB only)
Extension .m4a, .M4A
Bit-rate 8k to 320k bps and VBR
Sampling frequency 8k / 11.025k / 12k / 16k / 22.05k / 24k / 32k / 44.1k / 48kHz
Format MPEG4 AAC-LC (Audio stream)
Tuner section
Band FM
Frequency range FM 76.0 to 108.9MHz
Number of presets FM 20
Audio outputs
Analog LINE audio
Connector RCA Pin × 1 pair
Impedance 470Ω or less
Maximum output level 2.0Vrms (1kHz, Full scale, 10kΩ loaded)
Coaxial digital audio
Connector RCA Pin × 1
Output impedance 75 Ω
Output level 0.5Vp-p
Optical digital audio
Connector TOS-link × 1
Sampling frequency 44.1kHz
Bit depth 16-bit
Power
  AC120V, 50/60Hz
  AC220 - 240V, 50/60Hz
Power consumption 8W
Overall dimensions 8.5" × 2.4" × 9.4" / 215 × 61 × 238mm (W×H×D)
Weight 4.6 lbs. / 2.1kg
Accessories AC adapter (GPE-152-120125W), Power cord for AC adapter, Remote control (RC-1323), AAA batteries × 2, RCA audio cable, FM cable antenna, User Manual (including Warranty)



Audio performance

Frequency response 20Hz to 10kHz (–3dB, LINE out)
Signal-to-Noise ratio 113dB (LINE out)
Total harmonic distortion 0.005% (1kHz, LINE out)



מחיר: 1,900 ₪
משלוח חינם
משלוח חינם: 0 ₪
אחריות: אחריות לשלוש שנים - יבואן רשמי
זמן אספקה: 7 ימים , קיימת אפשרות לאיסוף עצמי
