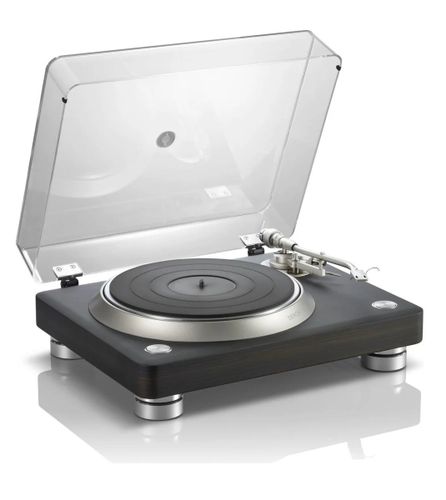

Flagship Denon Turntable Plays with Elevated Smoothness, Focus, Stability, and Precision: Direct-Drive DP-3000NE Features Space Vector PWM
Anchored around a premium-quality 16-pole direct-drive motor and distinguished by its beautiful dark ebony wood veneer, DP-3000NE, Denon’s flagship turntable pulls no punches. Devised from the inside-out to spin vinyl LPs with superb precision and rotate with a smoothness and stability that allow for all the details embedded in the grooves to come to the surface, this benchmark component plays at 33, 45, and 78RPM without any fluctuation — no matter the load. Just as cool, DP-3000NE reaches full speed nearly instantaneously due to its high torque and belt-less operation.

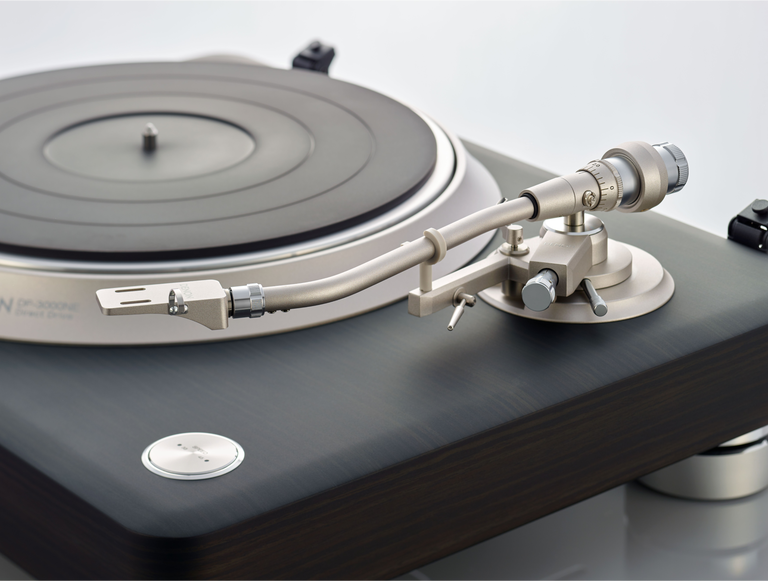

Equipped with a static-balance S-shape tonearm that cancels vibration and optimizes the track angle, DP-3000NE seamlessly works with nearly all MM and MC cartridges thanks to its fully adjustable configurations. Denon’s Space Vector PWM functions as an algorithm that controls the motor power supply to reduce harmonics — and ensure continuous reliable voltage. A massive aluminum platter further complements with the advanced engineering that leads to desirable wow-flutter (less than 0.06%) and rumble specs. Similarly, the SMPS power supply is built directly into the deck — and avoids fluctuations from variation in your power grid.
Underneath this heavyweight 40.8-pound unit, adjustable insulator feet help guard against ruinous distortion and guarantee your ‘table will always be on the level — key to high-end precision, balance, and clarity. DP-3000NE comes with a dust cover, platter mat, power cable, head shell, overhang gauge, counter weight, EP adapter, and all the other accessories you’ll need for the relatively easy assembly.
Drive system: Direct
Motor: 16-pole, 12-coil, brushless motor
Control method: PWM Vector
Platter: Aluminum diecast (305 mm)
Platter inertia: 382 kg/cm2
Wow flatter: less than 0.06% JIS
Speed tolerance: less than ± 0.3%
Rumble: (S/N ratio) Over 70dB
Bearing type: Miniature Steel ball bearing
Tone arm: Static Balanced S-Shaped
Arm length: 244 mm
Overhang: 14 mm
Offset angle: 20.5°
Tracking error angle: 2.5° (Max.)
Suitable cartridge weight: Without sub weight: 4 – 16g / With sub weight: 14 – 26g
Stylus force: adjustment 0 – 2.5g / rotation
High adjustment range: 9 mm
Anti-skating adjustment: 0-3g
Headshell material: Aluminum
Speed tolerance less than ± 0.3%
Sensitivity Horizontal: 30 mg
Vertical: 30 mg
Operation: Manual
Speed: 33 ⅓ / 45 / 78 rpm
Control: Start / Stop
Colors: Dark Ebony
Dimensions: 500 × 394 × 185mm (W × D × H)
Weight: 18.5 kg
Power supply: AC 100-240V, 50/60Hz
Power consumption: <4W
Standby power consumption: Less than 0.3W
What's in the box: Platter mat, Dust cover, Power cable, RCA cable and ground cable, Headshell, Overhang gauge, Screw set for cartridge mount (10, 13, 18mm), 2 x Cartridge spacers (1 mm), 2 x Plastic Washer, Screw driver, Counter weight, Sub-counter weight, Denon EP adapter/weight
