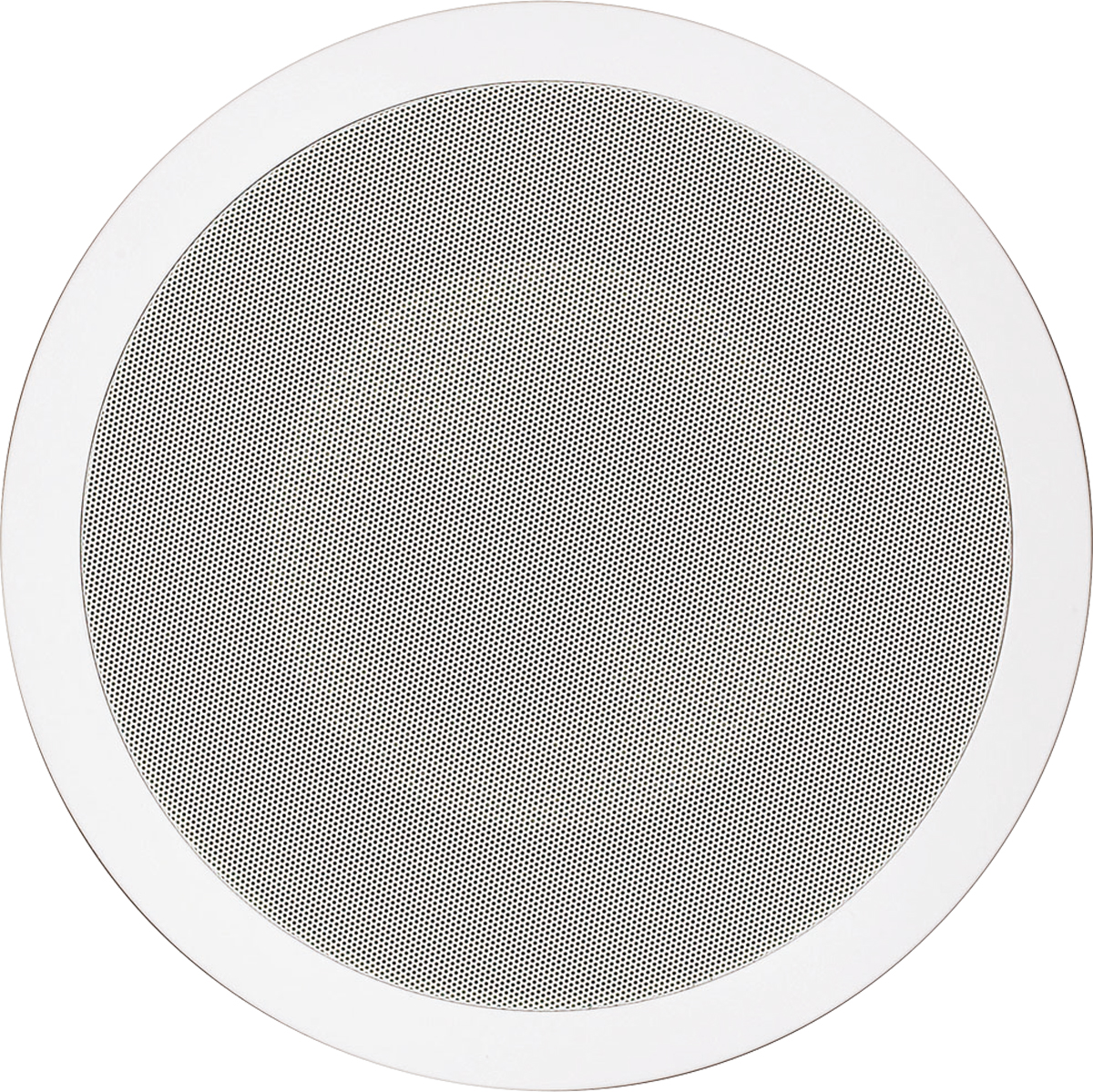

The IC 82 is the larger of two strong-sounding built-in ceiling loudspeakers in the Interior series. As with all models in the series, the bass/mid-range cone has been manufactured from a carbon-glass-fibre mix – which guarantees extremely high stability and a very clear and dynamic sound.

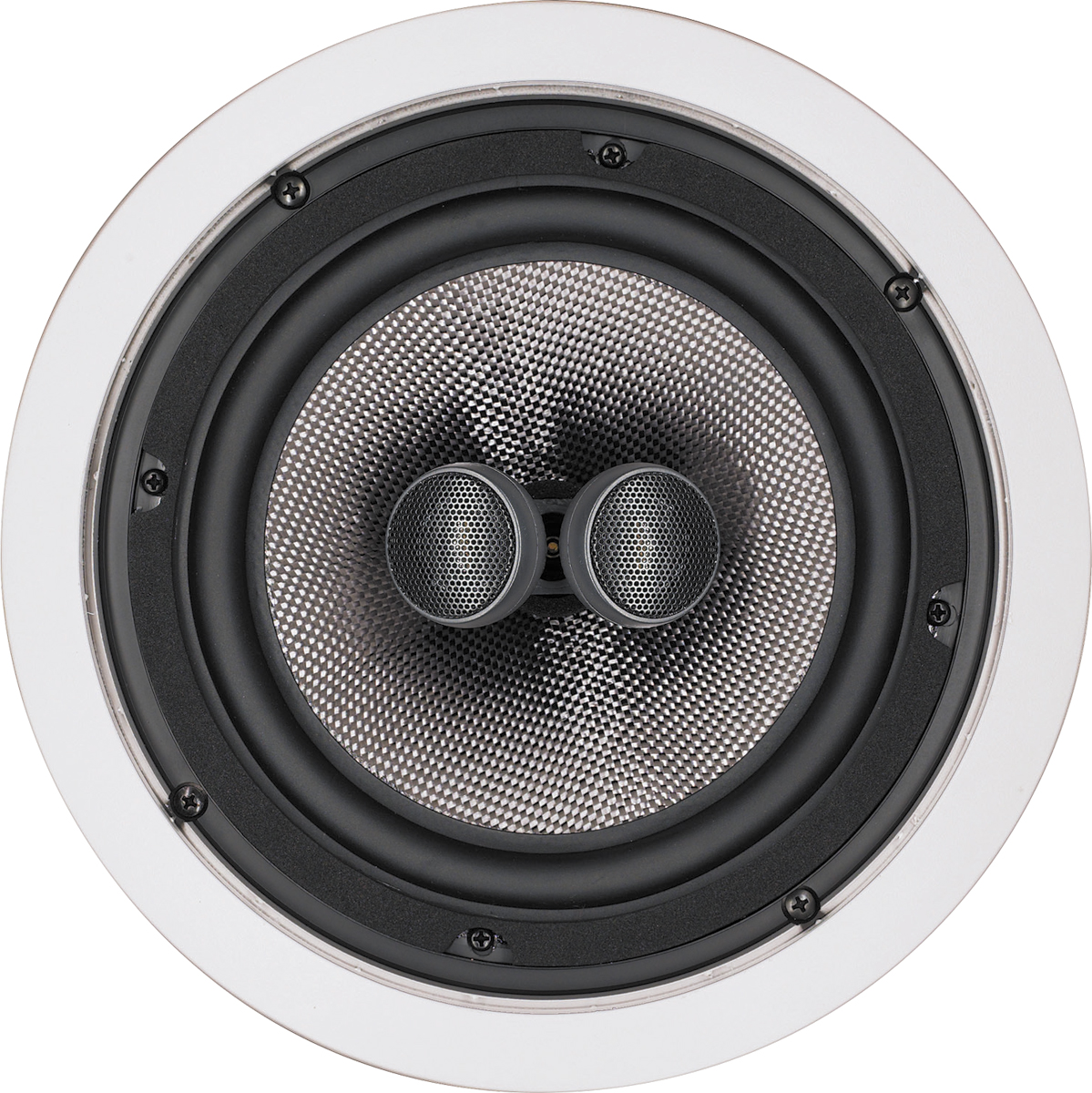

The two built-in coaxial tweeters make two circuit versions possible – sound directed over a wide area or at specific points. A sophisticated fastening system allows the loudspeaker to be quickly installed with extreme ease.
PRINCIPLE
2-way in-wall/in-ceiling loudspeaker
DRIVERS
2 x 19 mm tweeter
200 mm woofer
POWER HANDLING (RMS/MAX.)
100 / 180 watts
SENSITIVITY (2.8V/1M)
91 dB
IMPEDANCE
4 – 8 Ohms
FREQUENCY RESPONSE
32 - 35000 Hz
CROSSOVER FREQUENCIES
3500 Hz
RECOMMENDED AMPLIFIER OUTPUT
20 - 180 Watts
OUTER DIMENSIONS Ø
272 mm
CUTTING OUT Ø
238 mm
MOUNTING DEPTH
100 mm
