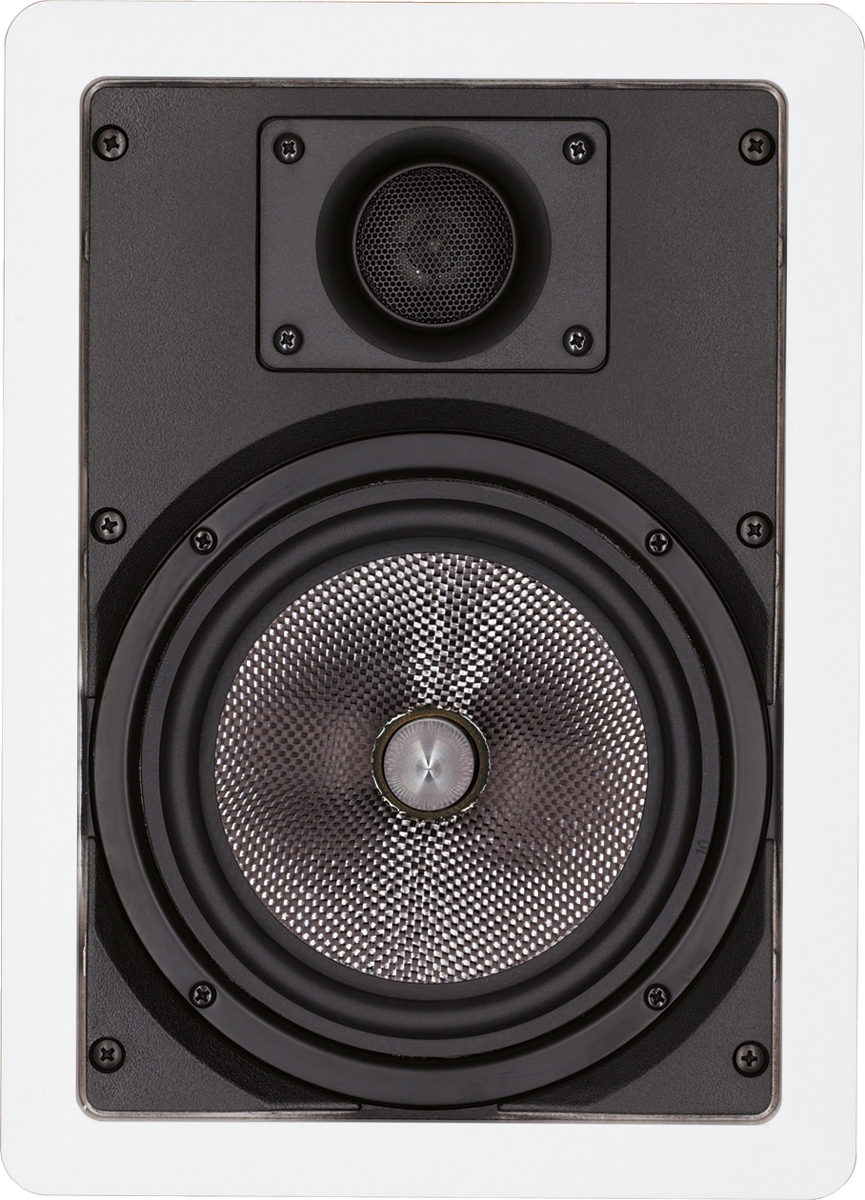

The IC 610 is the smaller of two strong-sounding built-in loudspeakers in the Interior series. As with all models in the series, the bass/mid-range cone has been manufactured from a carbon-glass-fibre mix – which guarantees extremely high stability and a very clear and dynamic sound.
A 25 mm fabric dome tweeter – which may be adjusted horizontally and vertically – has been fitted into the front. Which means that the emitted sound may be perfected to suit even very different room conditions. A sophisticated fastening system allows the loudspeaker to be quickly installed with extreme ease.
PRINCIPLE
2-way in-wall/in-ceiling loudspeaker
DRIVERS
160 mm woofer
1" tweeter
POWER HANDLING (RMS/MAX.)
75 / 140 watts
SENSITIVITY (2.8V/1M)
90 dB
IMPEDANCE
4 – 8 Ohms
FREQUENCY RESPONSE
35 – 32000 Hz
CROSSOVER FREQUENCIES
3500 Hz
RECOMMENDED AMPLIFIER OUTPUT
30 - 140 watts
MOUNTING DEPTH
85 mm
OUTER DIMENSIONS (WXH)
220 x 306 mm
CUTTING OUT (WXH)
188 x 275 mm
