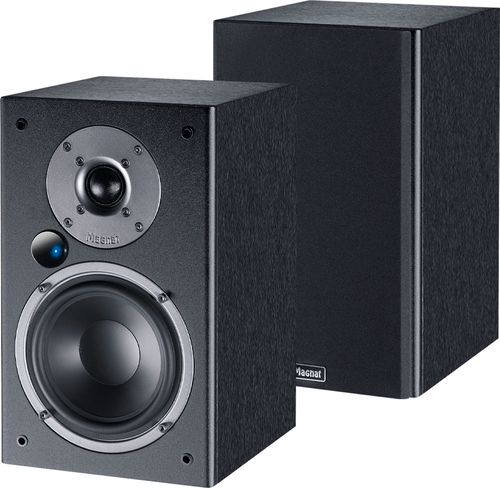

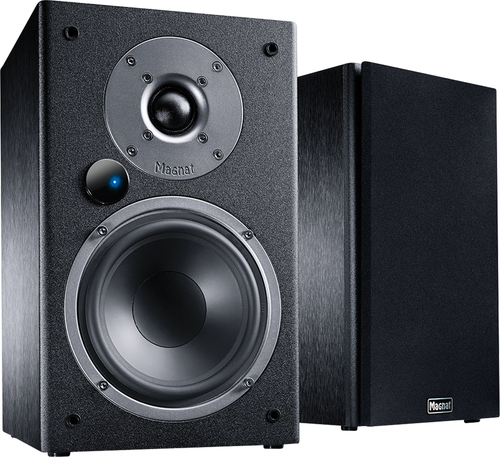

Monitor Reference 2A
THE MOST COMPACT VERSION - A 2-WAY BASS REFLEX SPEAKER WITH COMPLETE ACTIVE TECHNOLOGY
Compact, powerful 2-way active speaker system
aptx® Bluetooth® input (version 5.0) for optimum sound reproduction
Integrated amplifier with 2 x 35 watts of continuous power (RMS) or 2 x 75 watts of peak power

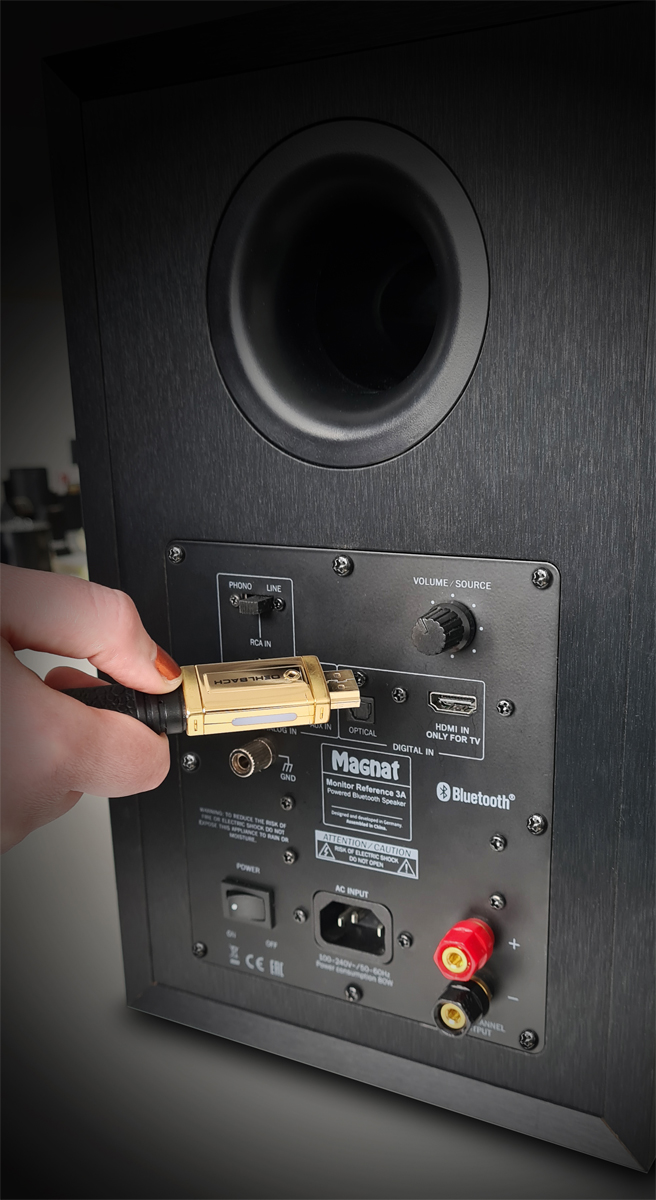

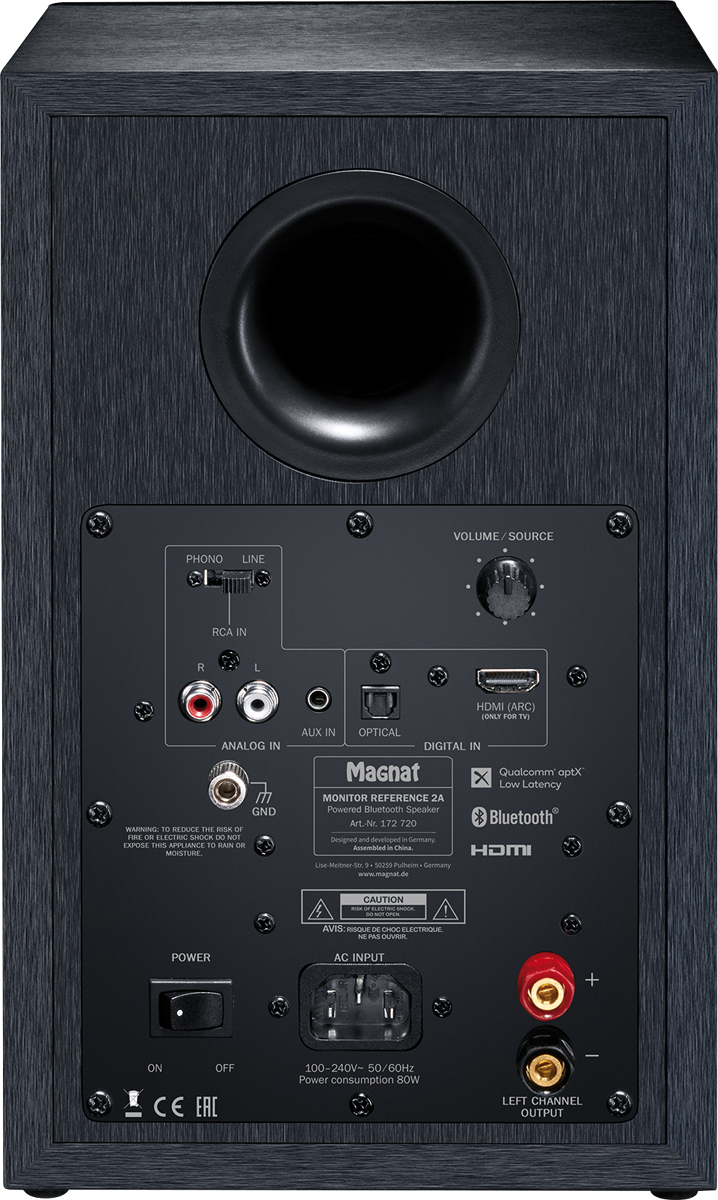

HDMI® input with ARC capability for playback of TV audio and all connected sources
Phono input for turntables with MM system
Solid wooden housing for precise sound reproduction
Measuring just 175mm wide and 290mm tall, the Reference 2A monitor is slimmer than an A4 sheet of paper. Despite this, it still offers the full range of possibilities of this series. With aptx® Bluetooth® input (version 5.0), HDMI® input with ARC function, phono input and other analog and digital inputs, it quickly replaces a complete stereo system and, of course, also creates an excellent acoustic impression when used with a computer.
COMPACT, BUT WITH THE SOUND OF MUCH LARGER MODELS

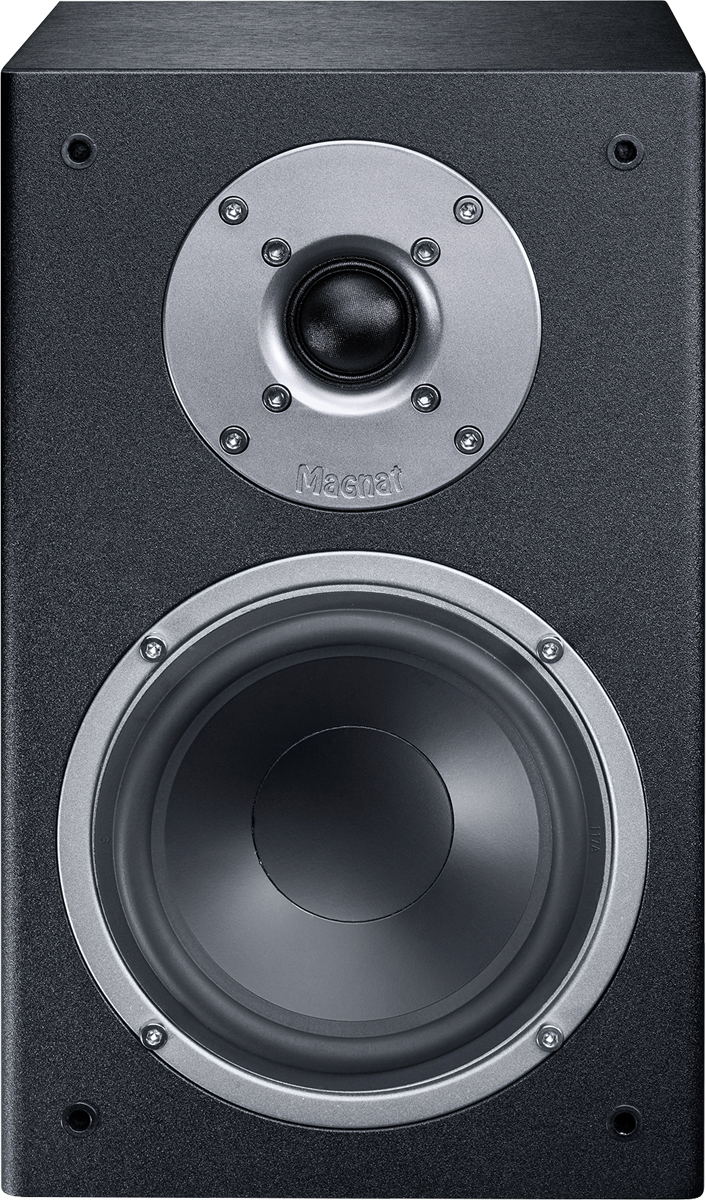

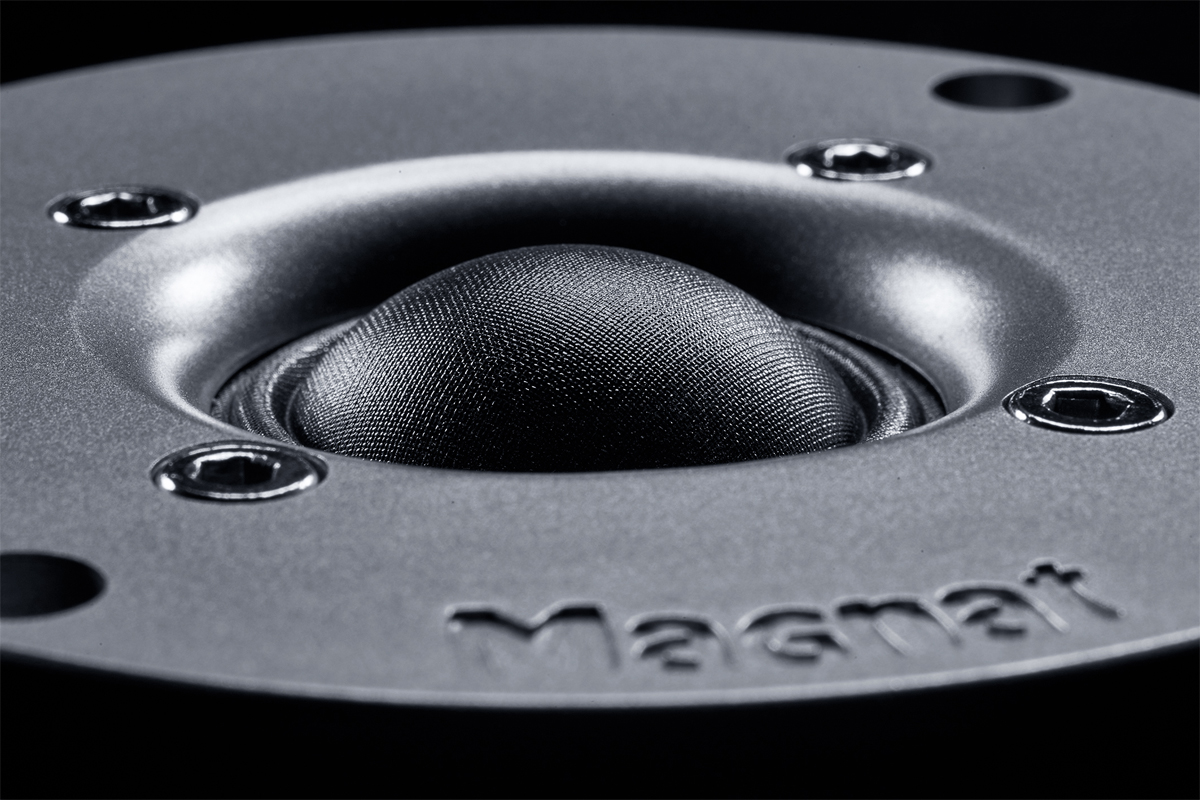

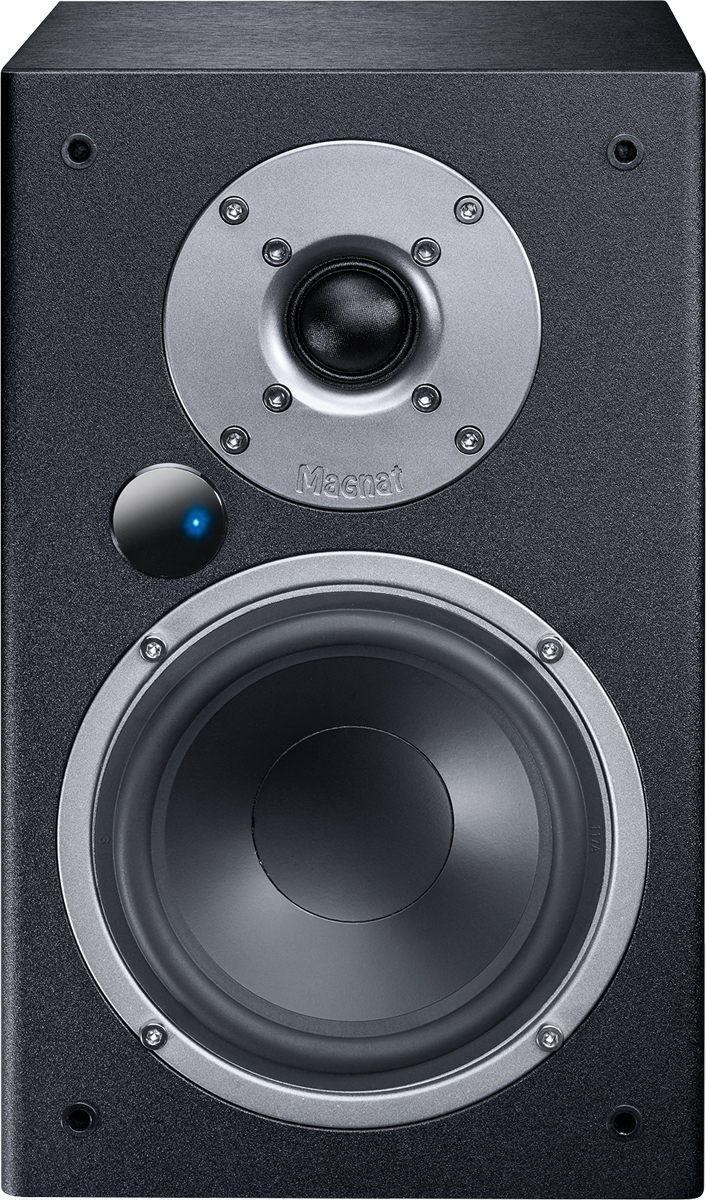

Although it shares a 25mm tweeter with its siblings, it also features a powerful 125mm mid-bass driver. It reaches up to a frequency of 38 Hz, which should be more than sufficient in many cases. At the other end of the frequency band, it reaches 40,000 Hz. As a result, the Reference 2A renders details incredibly accurately.

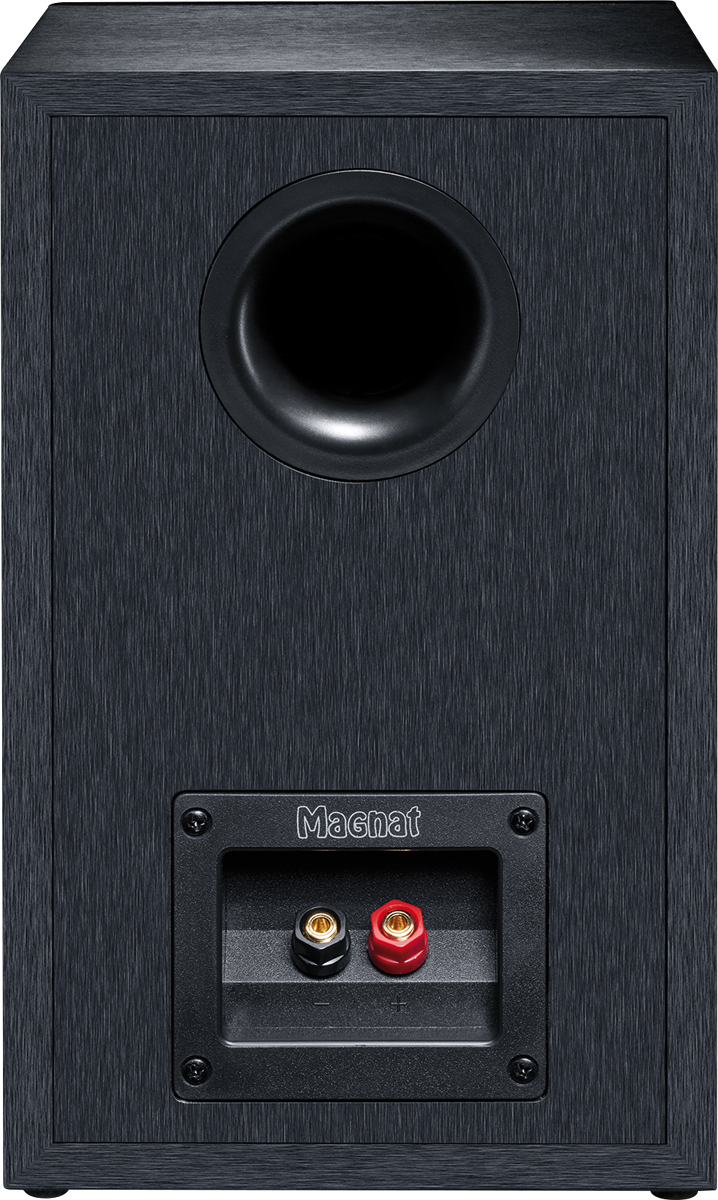

The integrated amplifier in the active speaker provides 2 x 35 watts of continuous power (RMS) or 2 x 75 watts of peak power. The elaborately equipped crossover sorts the music signal at 3,500 Hz. Because both amplifiers are housed in one speaker, you only need one outlet for power; the passive speaker simply connects to the active unit using the supplied cable.
PRINCIPLE
2-way bass reflex, fully active
IMPEDANCE
Powered
POWER HANDLING (RMS/MAX.)
active
MAINS VOLTAGE
100-240 V
DRIVERS
1 x 1” dome tweeter
5" woofer- midrange
OUTPUT POWER (RMS/MAX.)
2 x 35 / 2 x 75 W
FREQUENCY RESPONSE
38 - 40.000 Hz
38 - 40.000 Hz
CROSSOVER FREQUENCIES
3500 Hz
DIMENSIONS (WXHXD)
175 x 290 x 205 mm
175 x 290 x 205 mm
WEIGHT
Active Speaker: 4,4 kg
Passive speaker: 3.8 kg
CABINET SURFACE
Front panel: matt black / housing: black textured veneer
