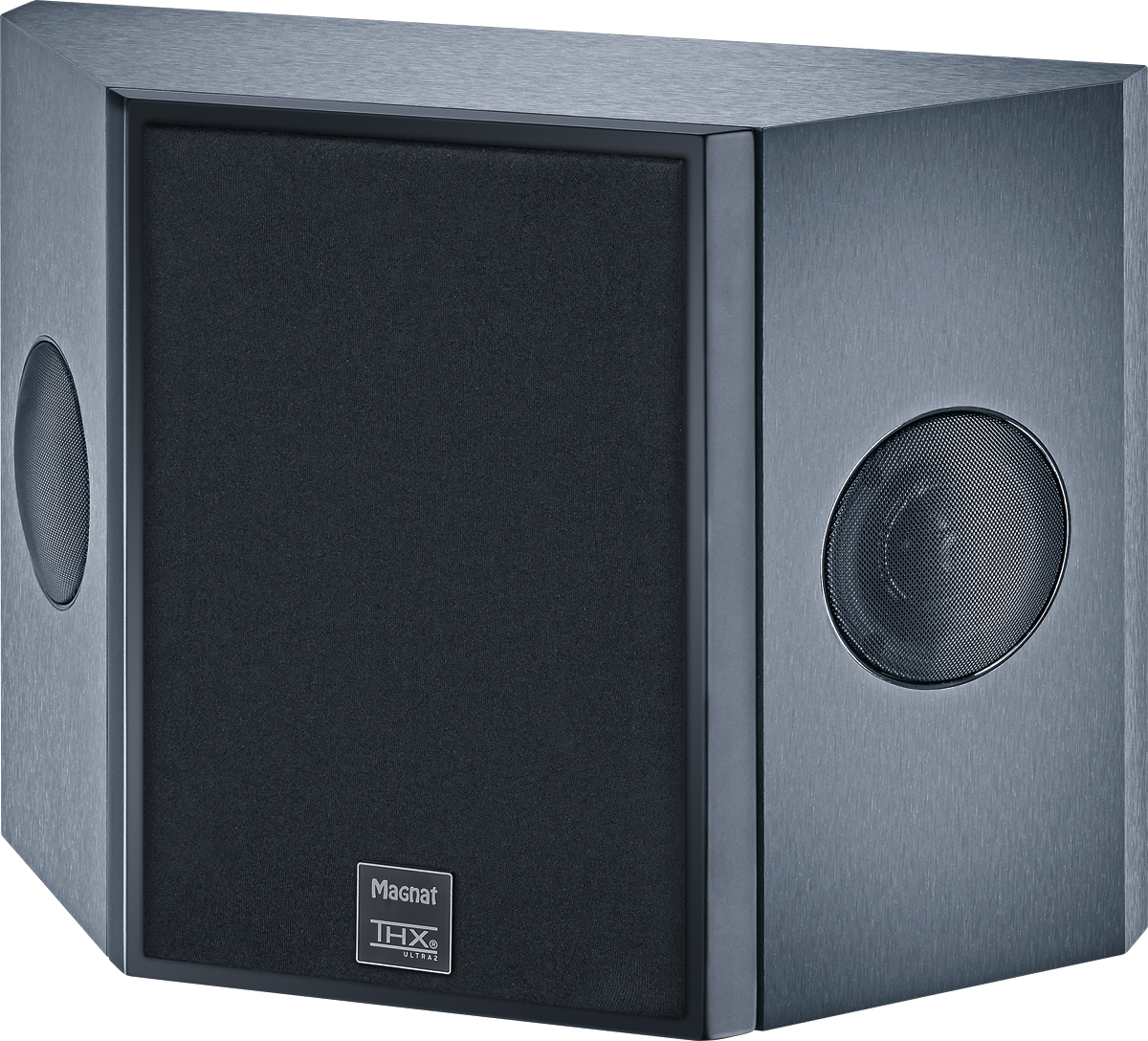

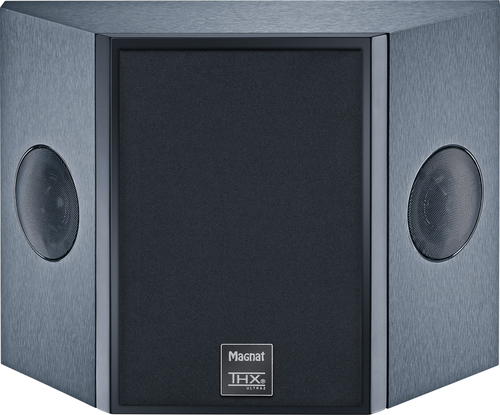

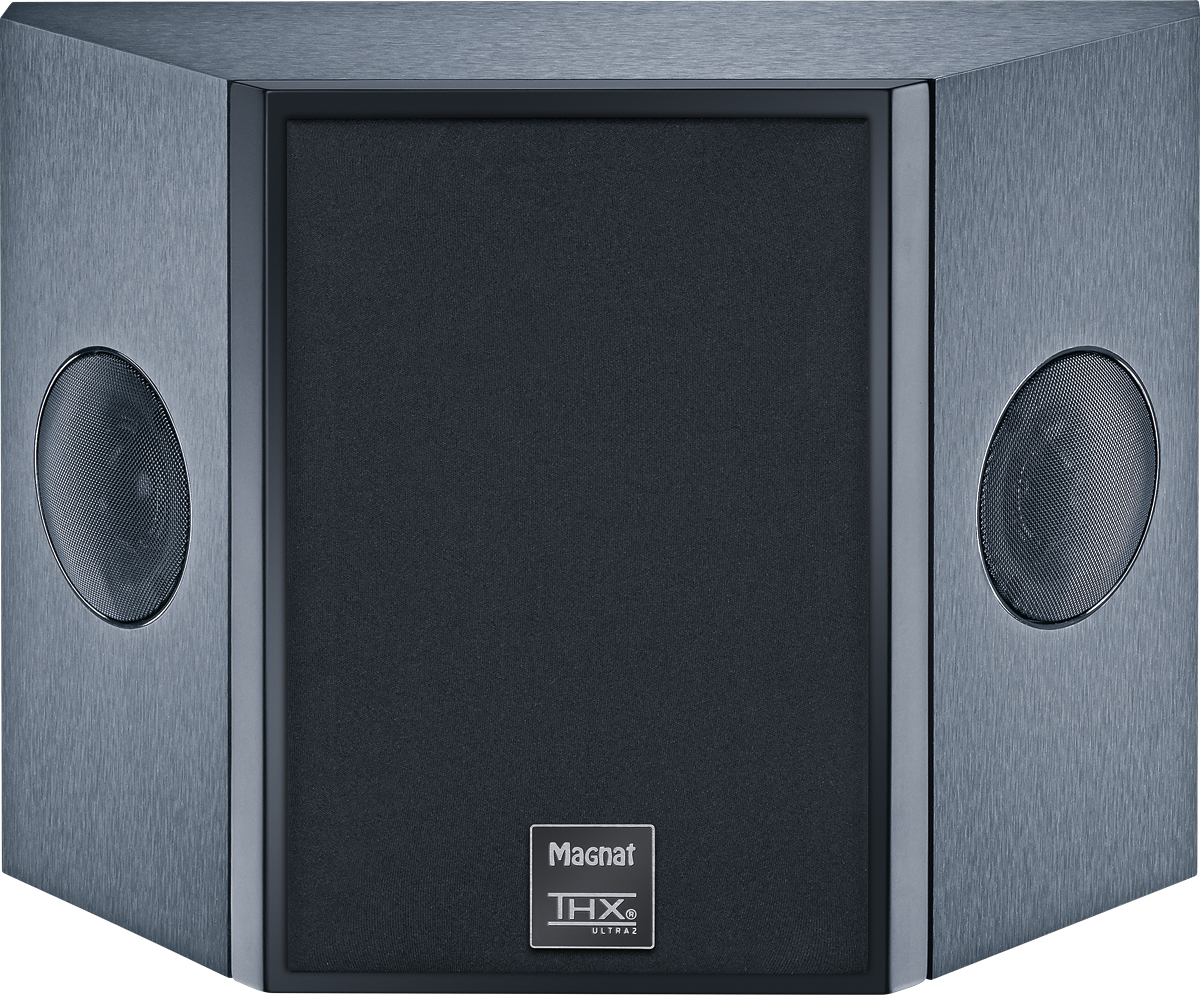

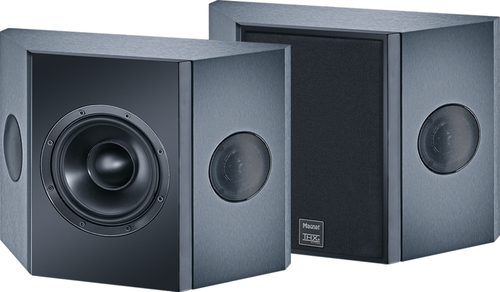

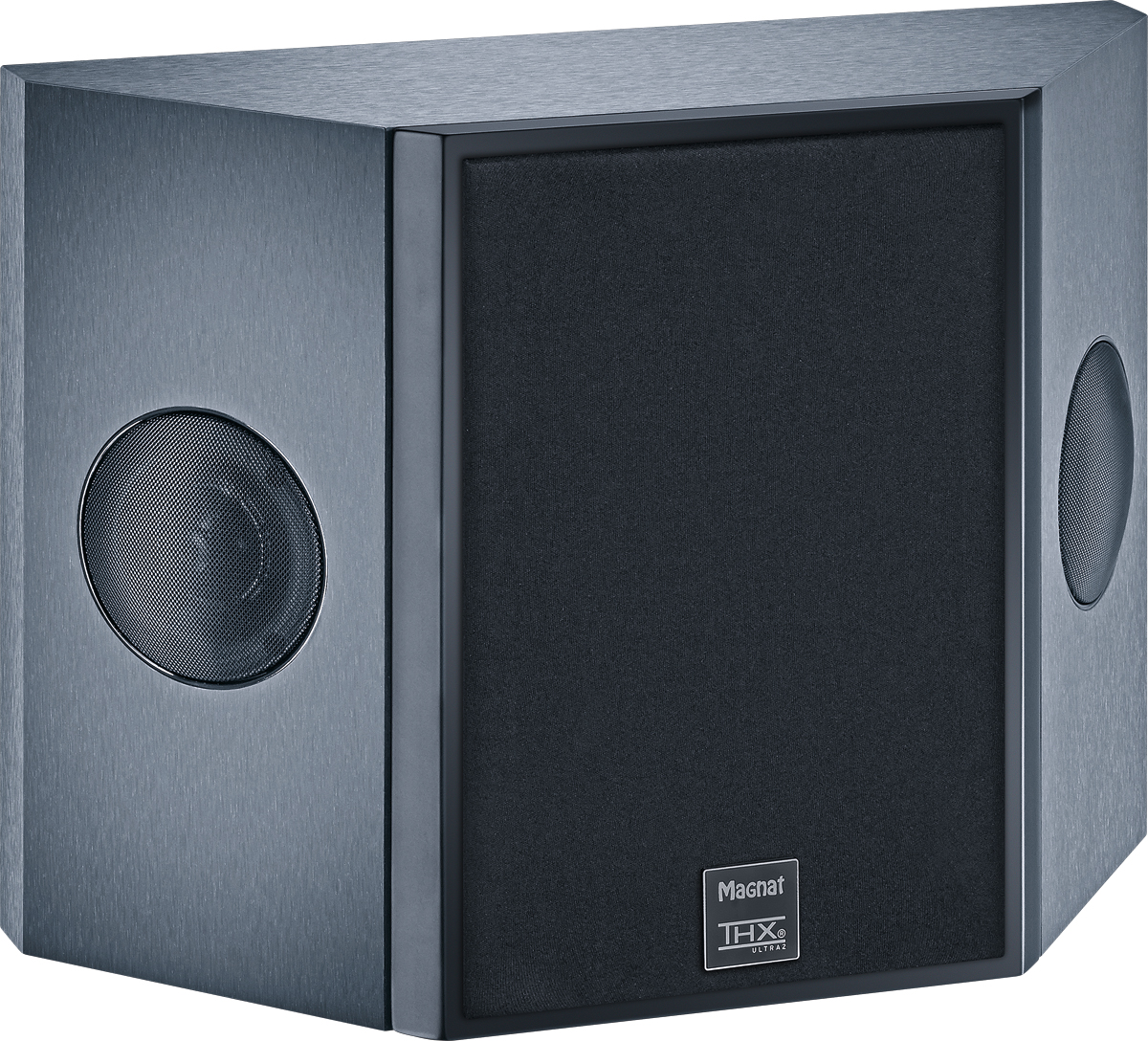

Cinema Ultra RD 200-THX
HIGH POWER PERFORMANCE WITH GREAT SPATIAL REPRESENTATION
Outstanding surround sound in cinema quality thanks to the dipole design
Two high-performance 42 mm dome tweeters in dipole configuration for authentic surround sound
Extremely powerful 17 cm woofer for punchy, dynamic surround sound reproduction
Flat trapezoid cabinet for practical wall mounting

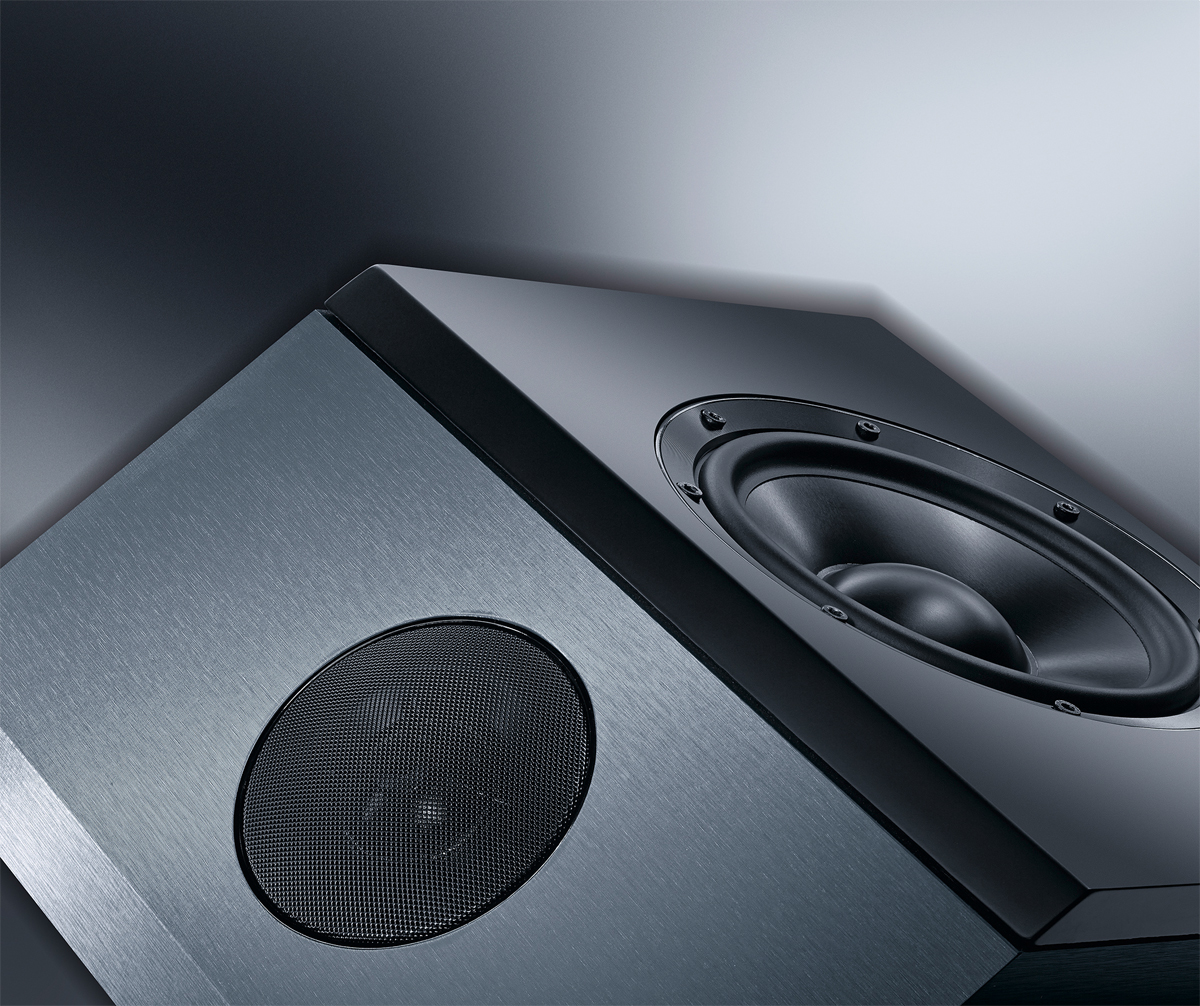

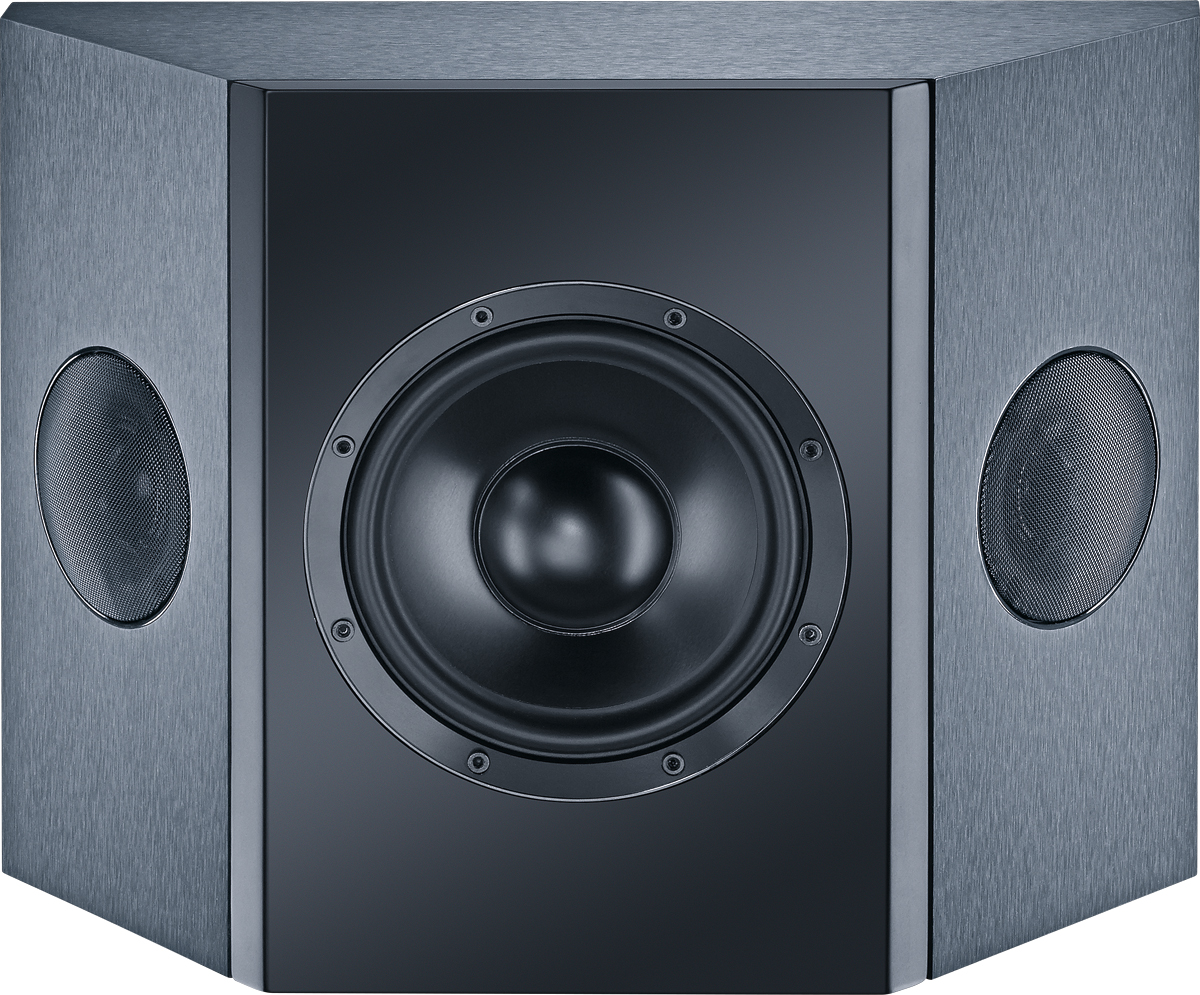

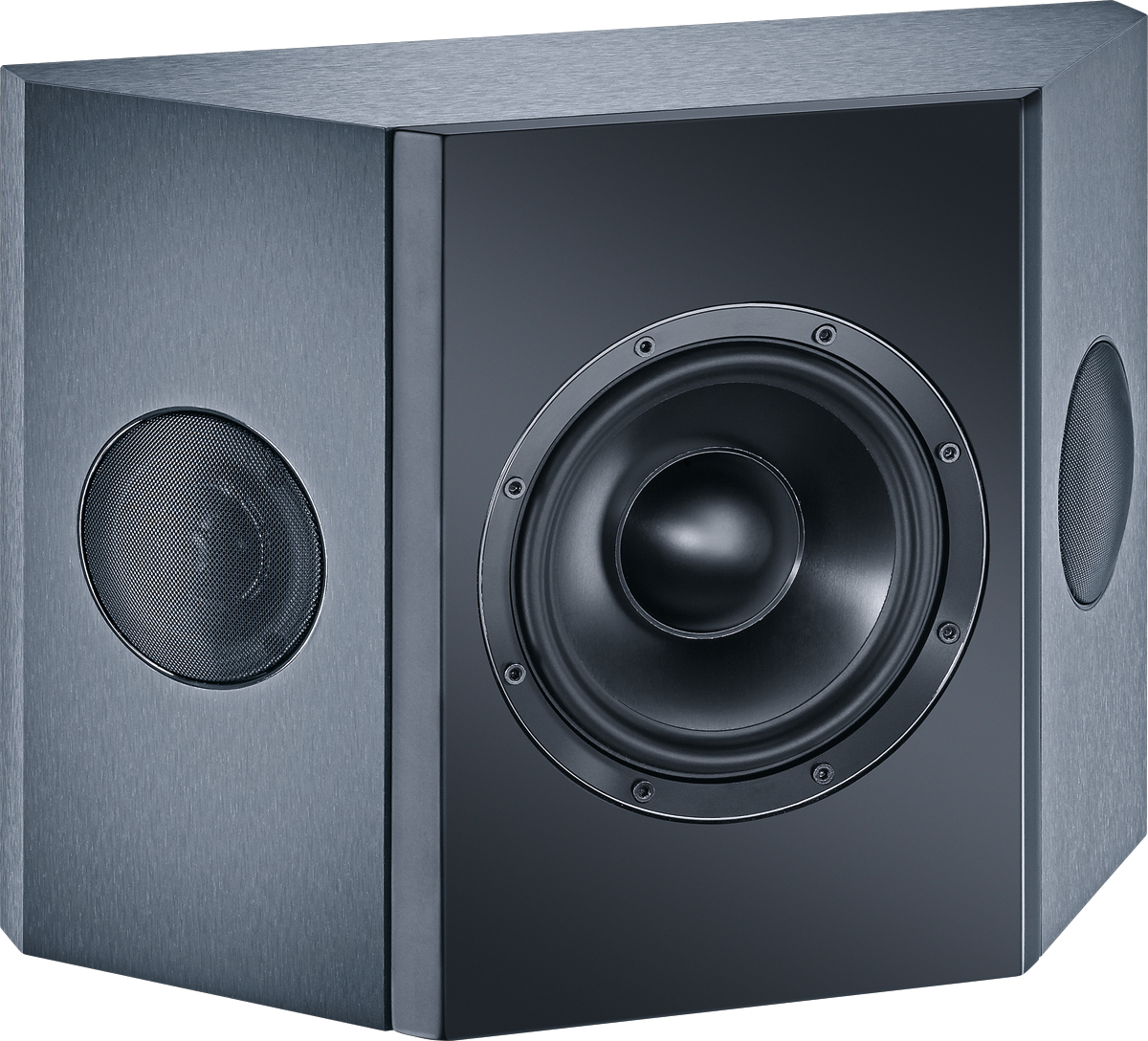

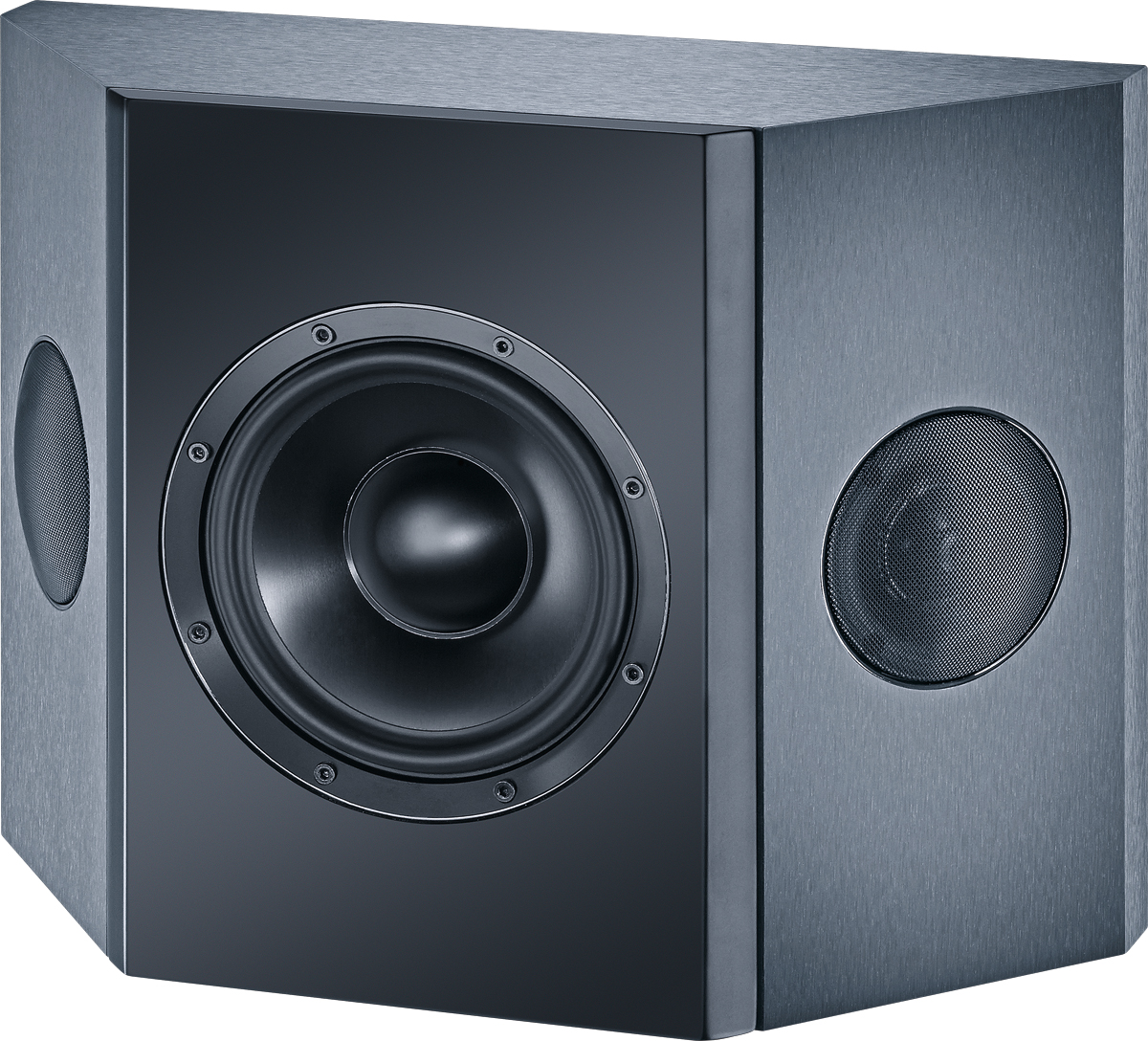

One of the 42 mm tweeter cones is located on each sloping side at the centre of the powerful 17 cm subwoofers: The Cinema Ultra RD 200-THX follows the ideal structure of classic dipole speakers. The two tweeters are – as stipulated by THX® – connected together with reversed polarity to produce a diffuse, very three-dimensional soundscape. Because our cone operates in an extremely wide band, the Cinema Ultra RD 200-THX creates this desired diffuse sound field from as low as 1500 hertz. Despite its small size and moderate overall depth of just 16 centimetres, the effect speaker is capable of impressive sound levels - an important factor for the best cinema sound. And optimum installation is also child´s play thanks to the large number of wall-mounting options, including VESA brackets.
PRINCIPLE
2 way, sealed
THX Ultra2-certified dipole surround Speaker
DRIVERS
2 x 1.65" dome-tweeter
6.5“ woofer-midrange
POWER HANDLING (RMS/MAX.)
150 / 240 watts
SENSITIVITY (2.8V/1M)
89 dB
IMPEDANCE
4 – 8 Ohms
FREQUENCY RESPONSE
80 - 27.000 Hz
CROSSOVER FREQUENCIES
1.500 Hz
RECOMMENDED AMPLIFIER OUTPUT
> 40 Watts
DIMENSIONS (WXHXD)
400 x 300 x 160 mm
WEIGHT
7.6 kg
