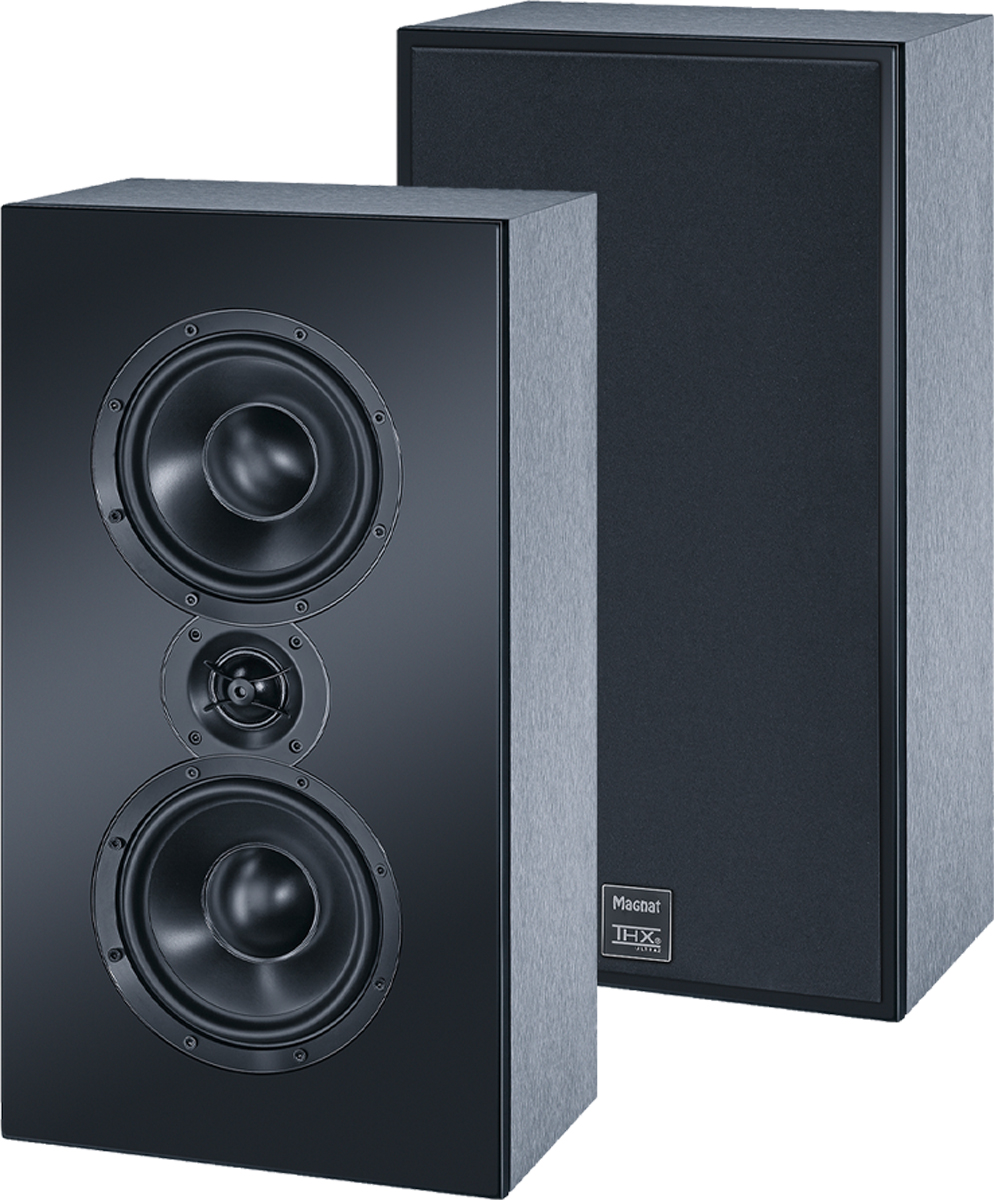

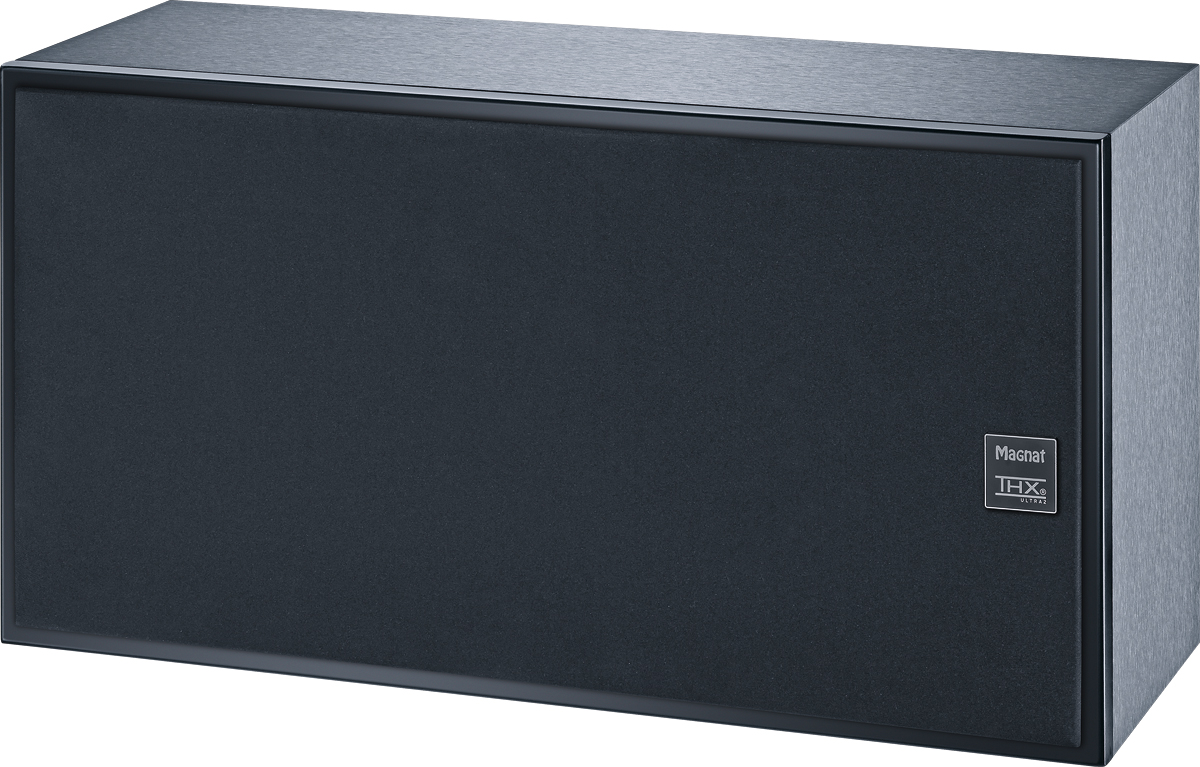

Cinema Ultra LCR 100-THX
HORIZONTAL OR VERTICAL: THE BEST THX FRONT LOUDSPEAKER OF ITS CLASS
Perfection for home cinema enthusiasts thanks to THX Ultra 2 certificationq

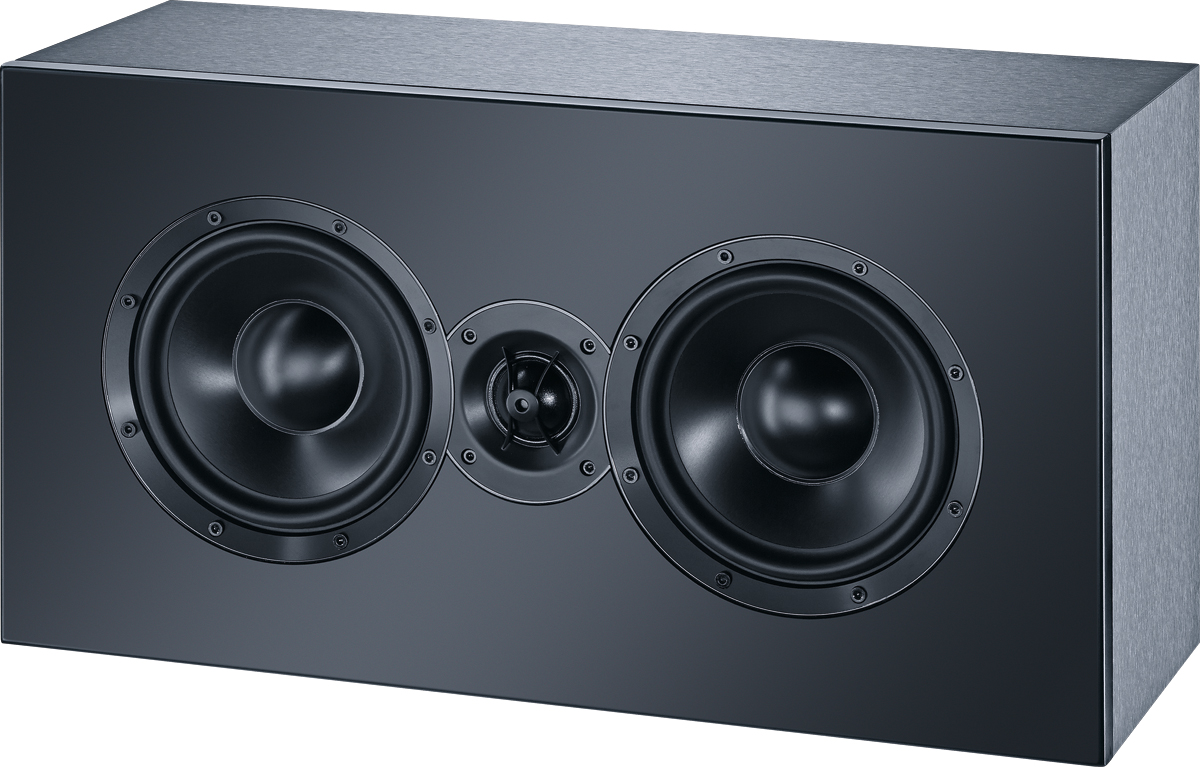

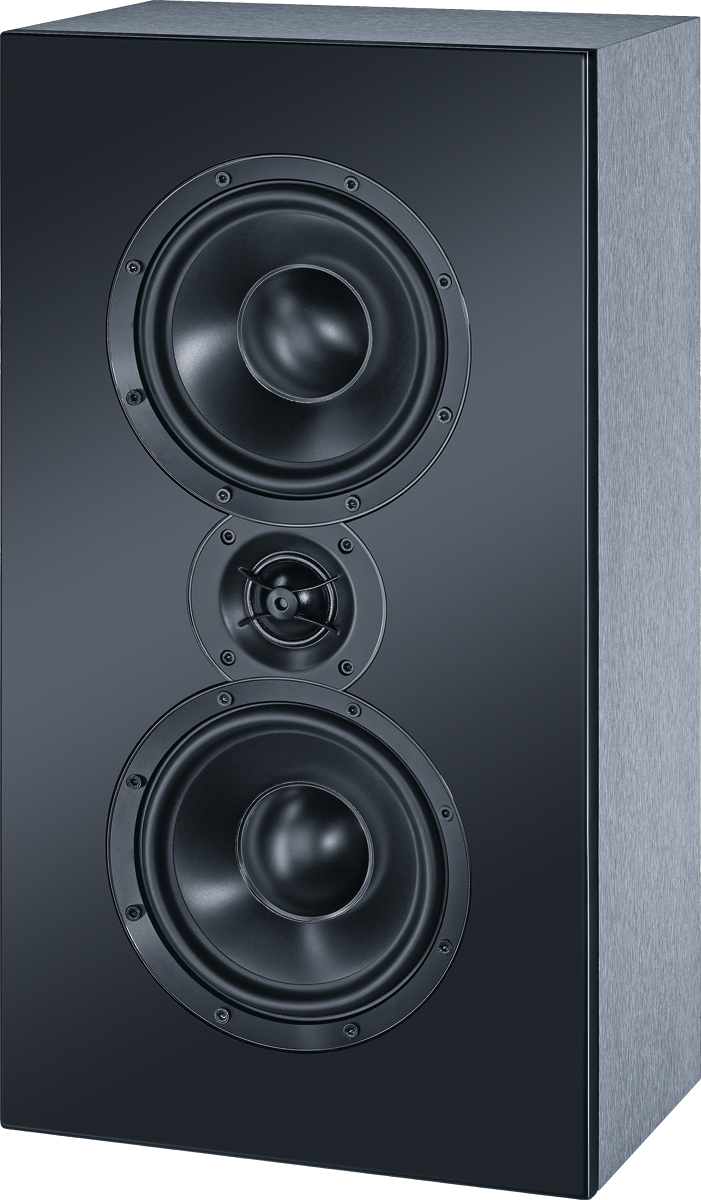

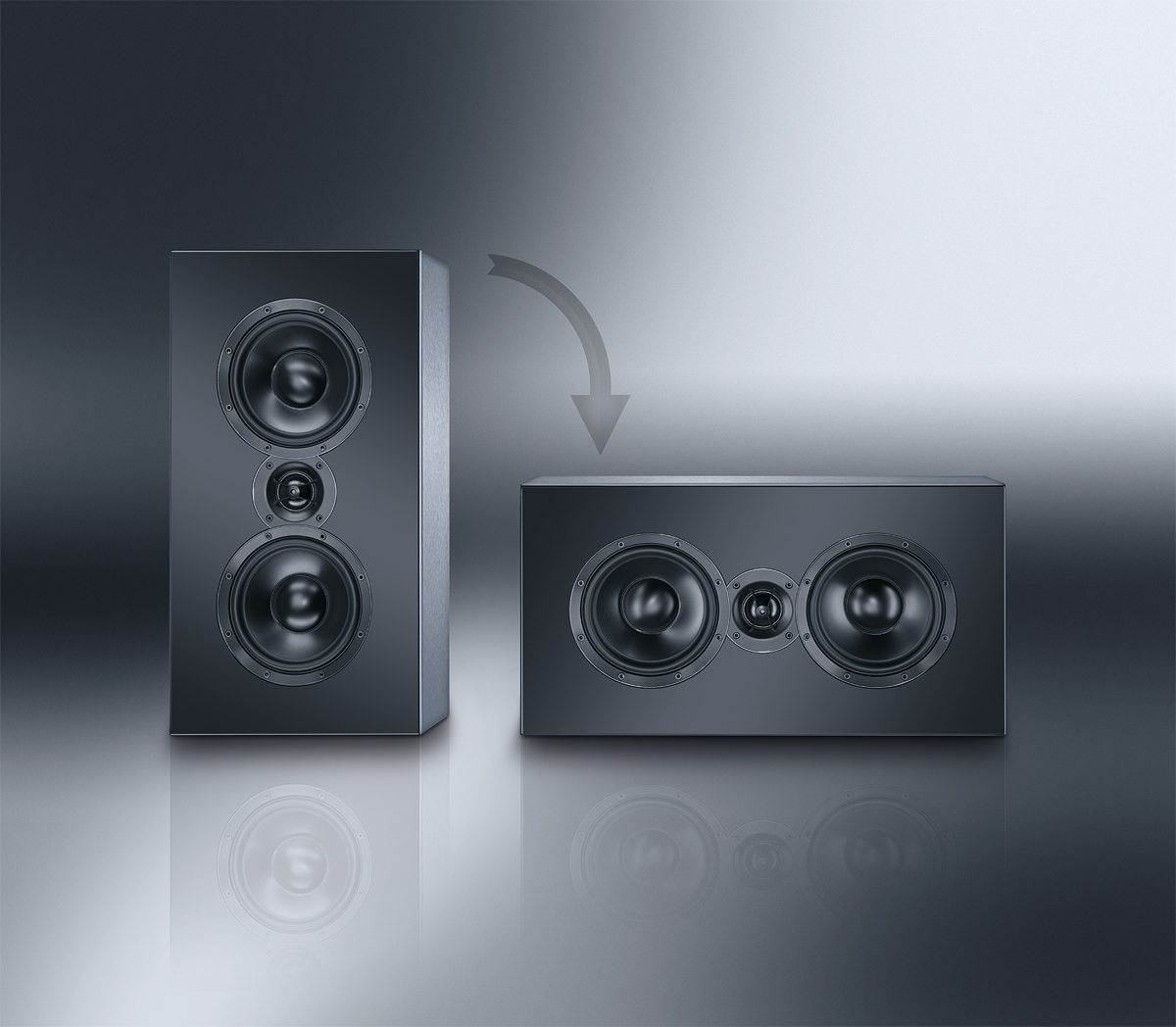

The only front speaker in the world with THX Ultra 2 certification for both horizontal and vertical operation
Extremely large 42 mm high-performance dome tweeter with a wave guide front panel for ideal dispersion characteristics

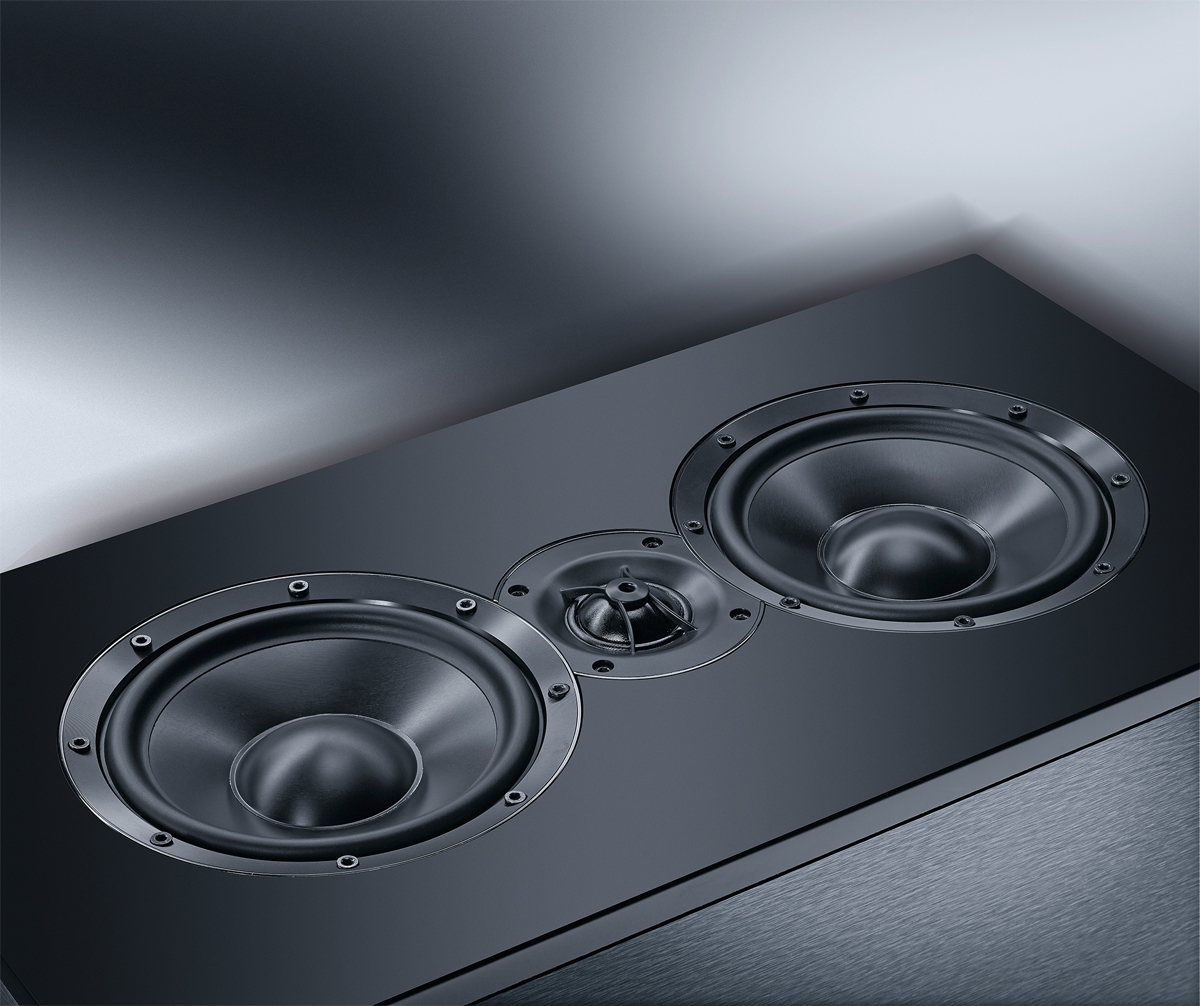

Two exceptionally powerful 17 cm woofers for maximum dynamics, precision and performance
Extremely sturdy MDF cabinet with low-resonance 30 mm baffle

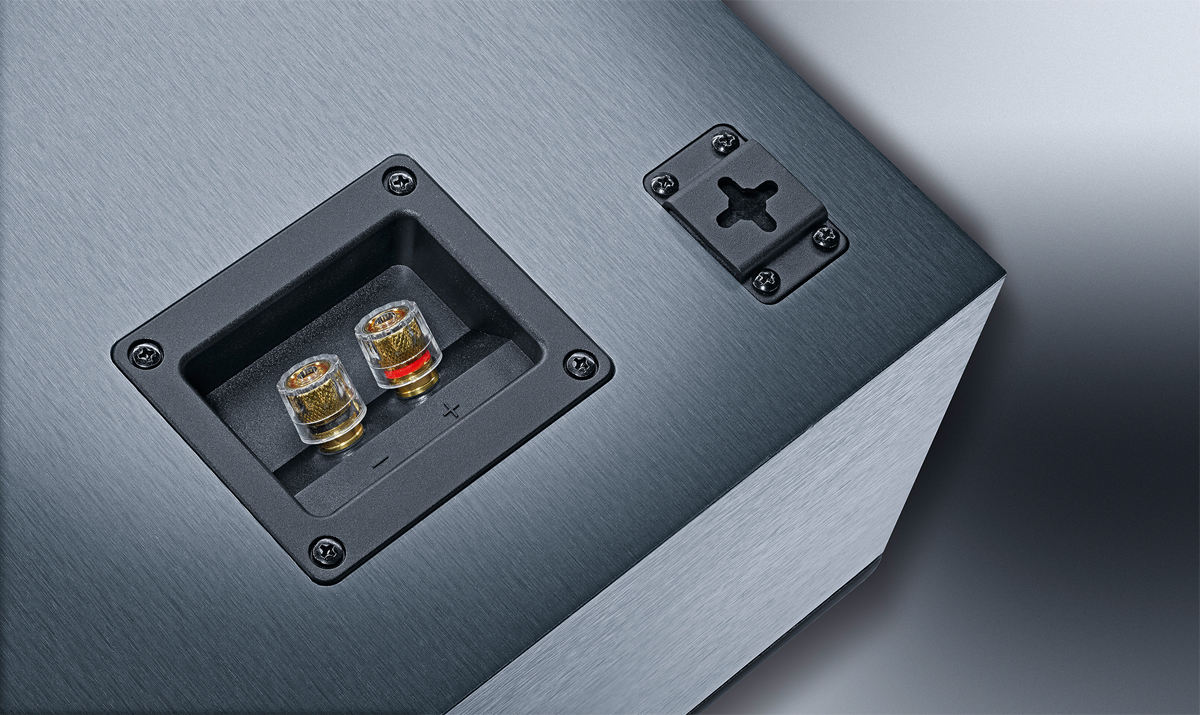

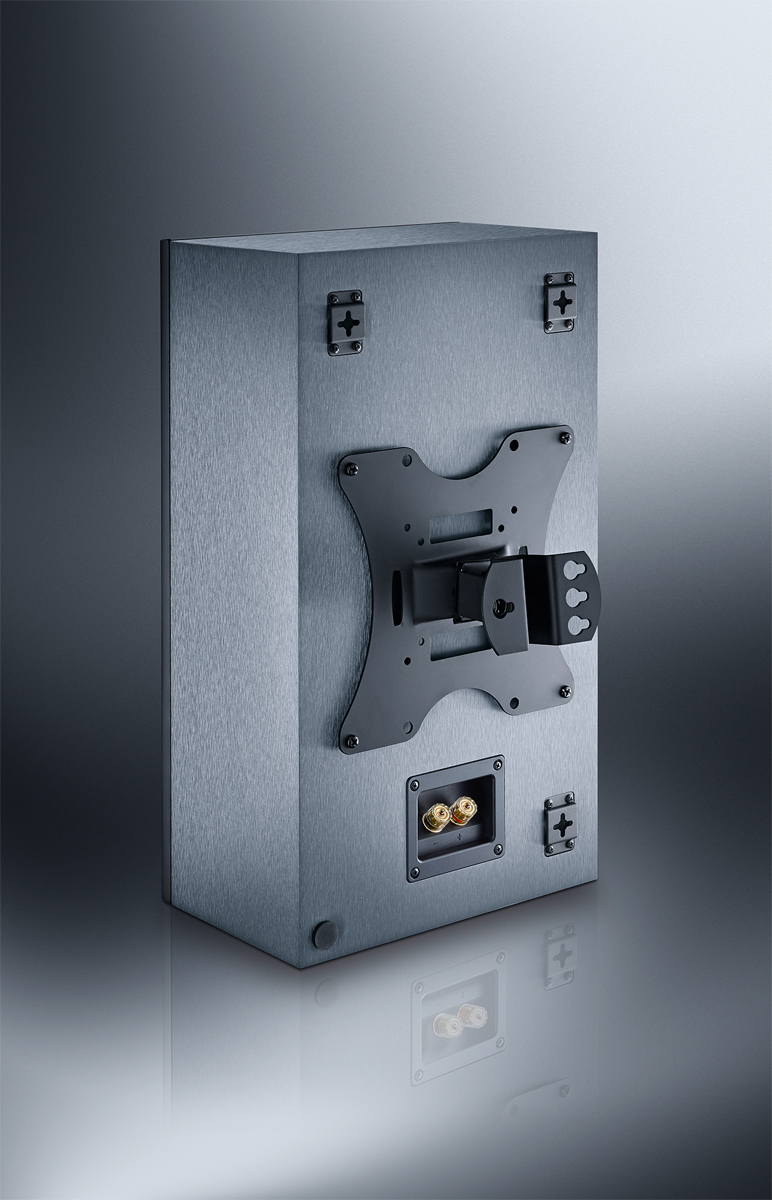

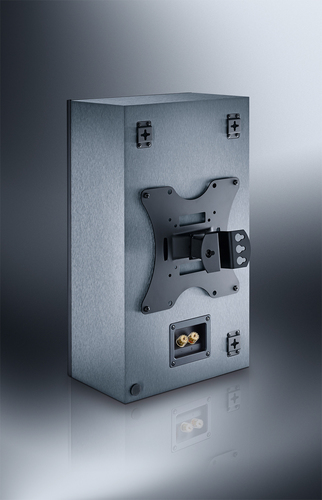

Despite the strict requirements regarding dispersion characteristics, the LCR 100-THX was granted the coveted THX Ultra2™ certification for both horizontal and upright operation. Two 17 cm subwoofers as well as the large tweeter cone ensure distortion-free levels up to beyond 110 decibels as well as outstanding purity of sound. The 42 mm tweeter cone runs in an optimally linear way from 1,500 – 27,500 hertz thanks to the installed horn (Waveguide) and sound distribution lens. This helps the LCR 100-THX to achieve a level of efficiency far in excess of 90 decibels. In other words: Even smaller AV receivers make it possible to experience a great cinema feeling with Cinema Ultra. The enclosure of the LCR 100-THX is flat and is perfectly suitable for unobtrusive wall mounting via wall brackets and VESA fittings.
PRINCIPLE
2 way, sealed
THX Ultra2-certified LCR Speaker
DRIVERS
1.65" dome-tweeter
2 x 6.5“ woofer-midrange
POWER HANDLING (RMS/MAX.)
220 / 350 Watts
SENSITIVITY (2.8V/1M)
93 dB
IMPEDANCE
4 – 8 Ohms
FREQUENCY RESPONSE
80 - 27.000 Hz
CROSSOVER FREQUENCIES
1.550 Hz
RECOMMENDED AMPLIFIER OUTPUT
> 50 Watts
DIMENSIONS (WXHXD)
280 x 520 x 188 mm
WEIGHT
12.5 kg
