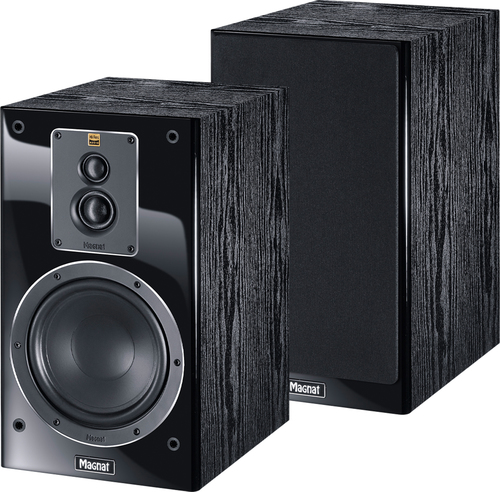

Signature 503
3-WAY SHELF-TOP MODEL FOR ENTRY INTO THE SIGNATURE WORLD
Hi-Res certified dual tweeter module with two fmax domes
Three-way speaker with bass reflex technology
Klippel-optimized bass-midrange unit
Ventilated voice-coil unit for maximum resilience and dynamics
3-way shelf-top model for entry into the Signature world

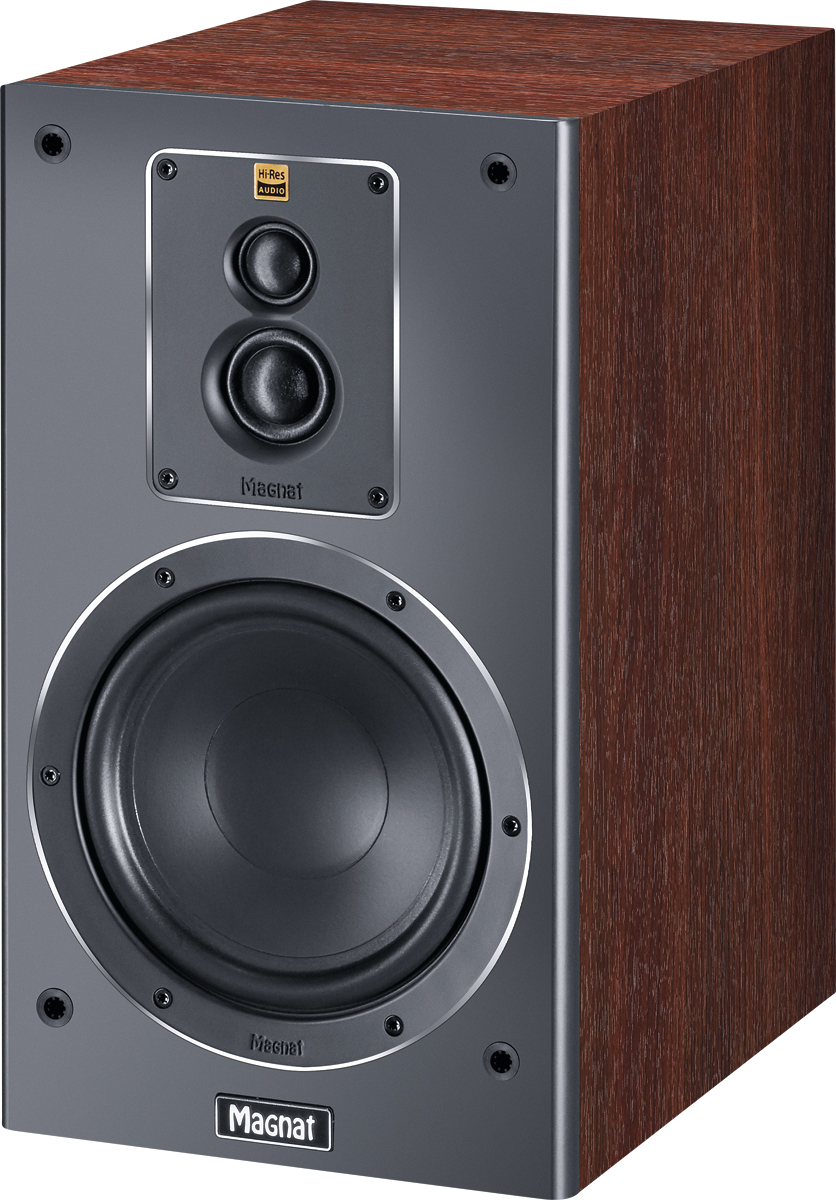

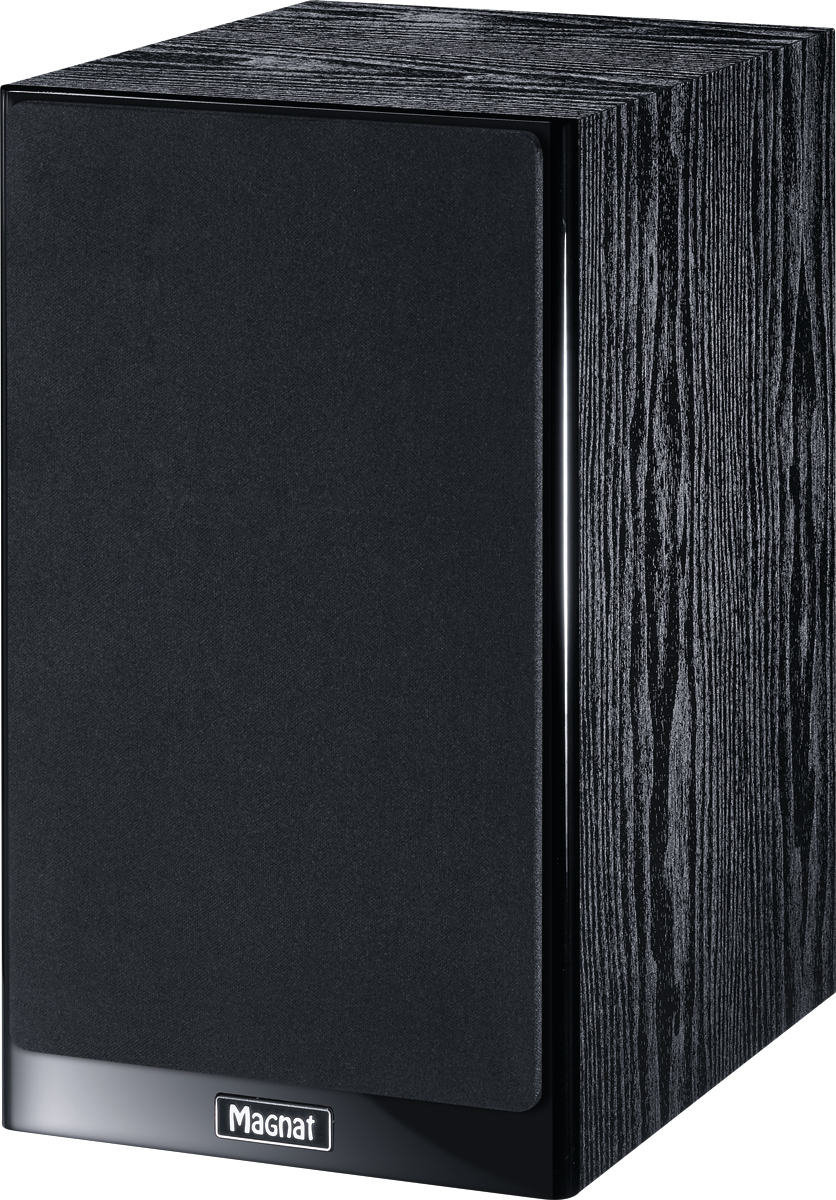

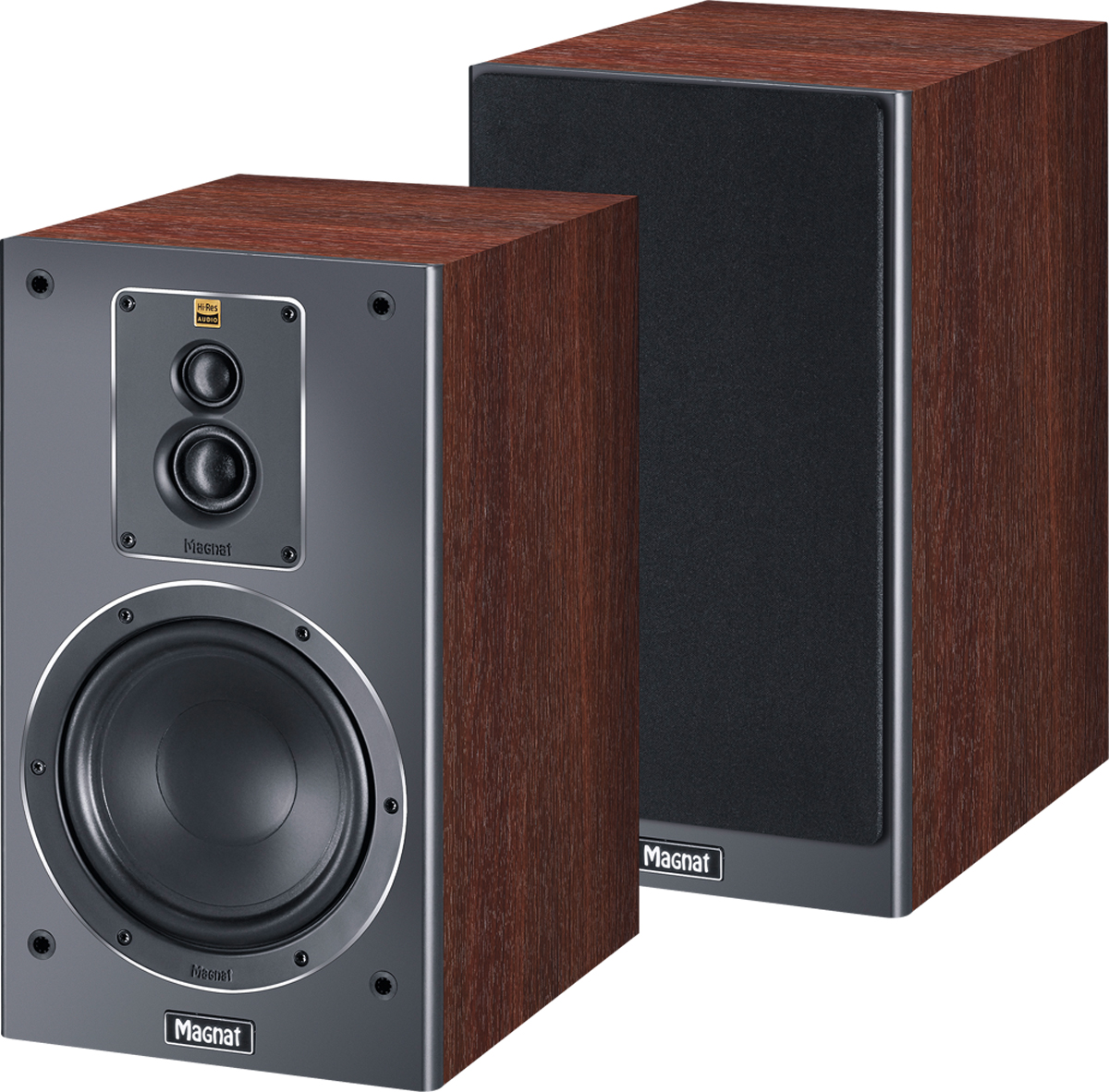

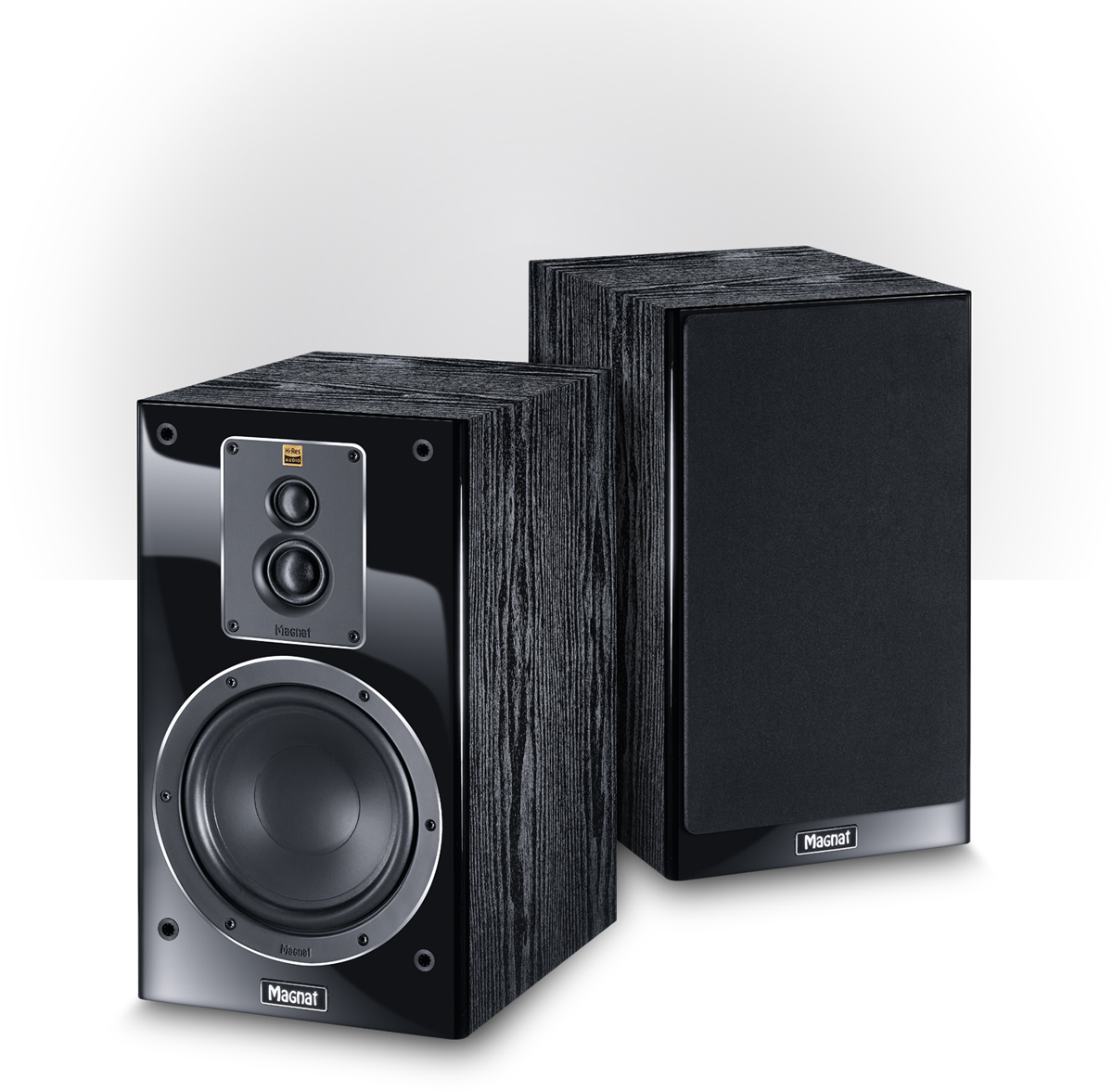

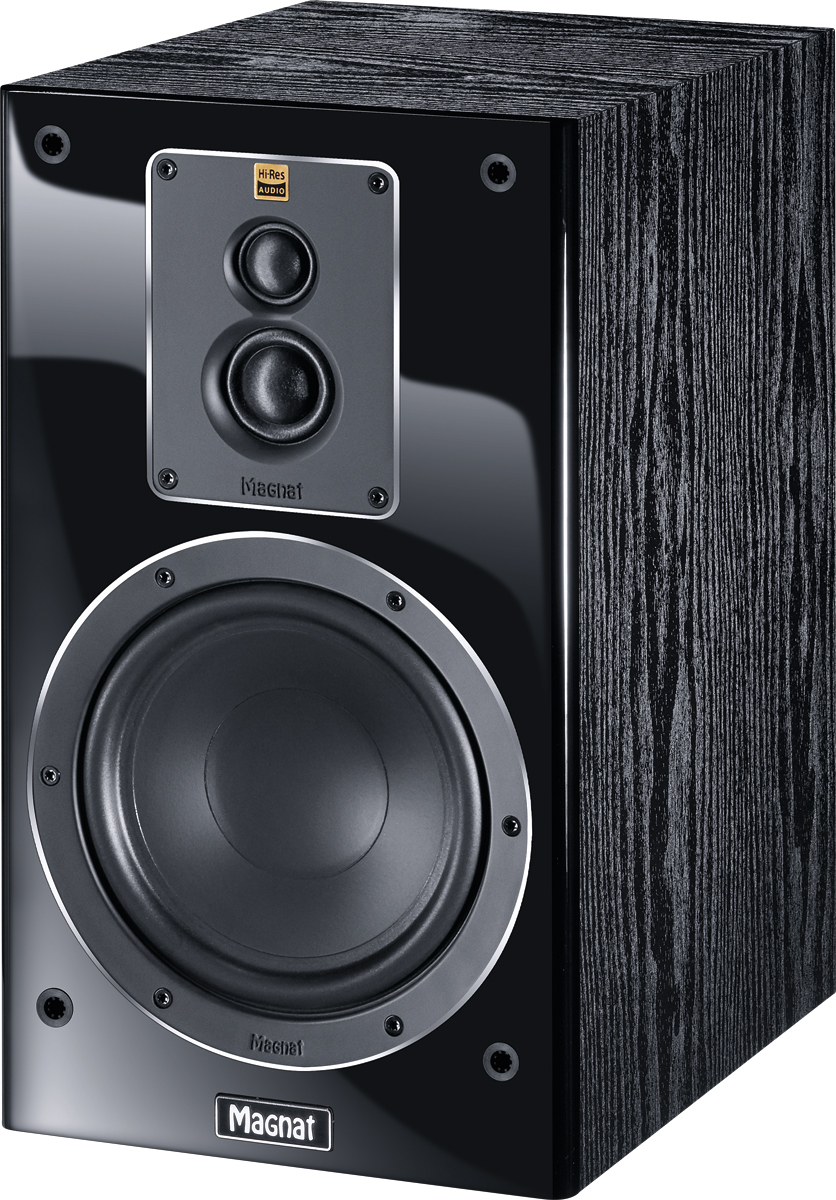

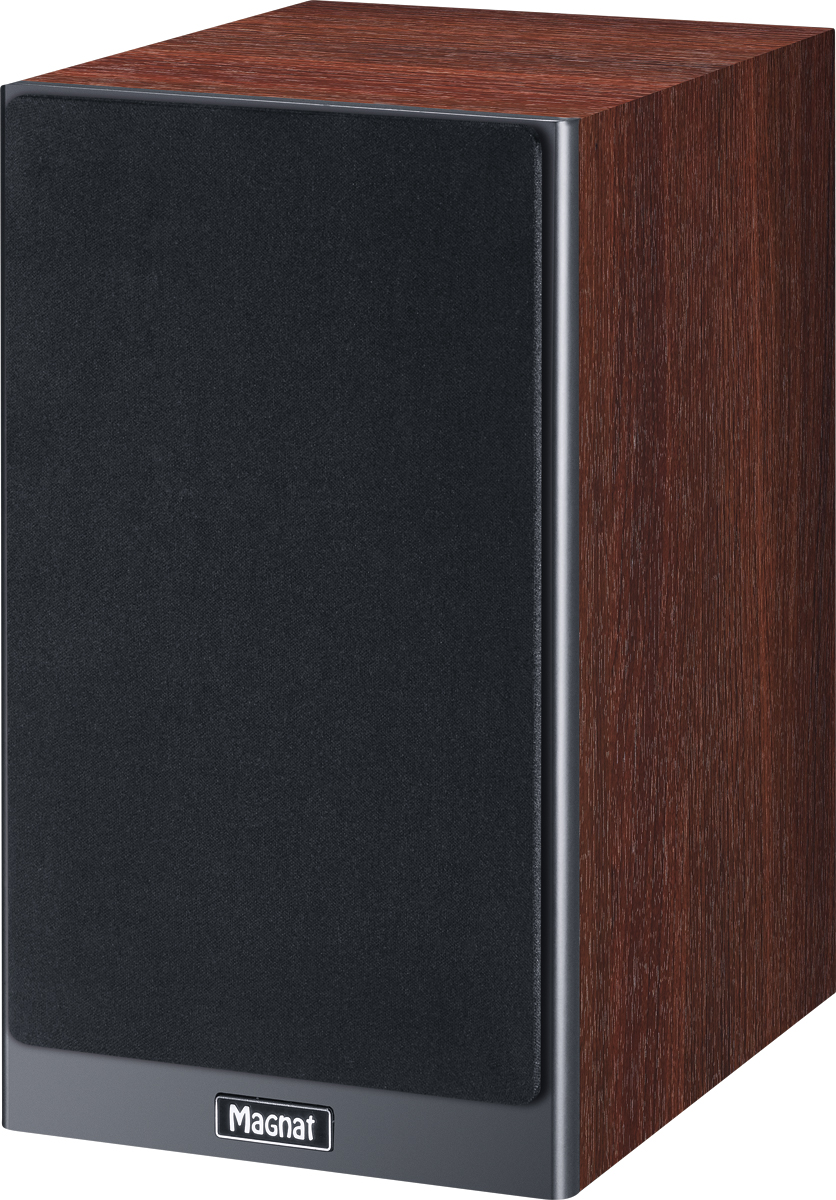

The Signature 503 is, as a shelf-top speaker, the most compact representative of the new 500 range. As a three-way system, it combines the hi-res dual tweeter module with a 17 cm bass-midrange unit. It unites all this in a footprint smaller than an A4 sheet of paper and a height of 365 mm. The sturdy MDF housing is available in two elegant finishes: black ash or mocca. It is just as practical as a compact stereo solution as it is when using it as a surround sound speaker in a home cinema set-up. Thanks to identical components like the front panel systems, it delivers an absolutely homogeneous soundscape. The Signature 503 is the best proof that perfect sound does not necessarily require huge speakers.
PRINCIPLE
3 way bass reflex
DRIVERS
0.75" super-tweeter
1.2" dome-tweeter
6.5“ woofer-midrange
POWER HANDLING (RMS/MAX.)
100 / 170 watts
SENSITIVITY (2.8V/1M)
91 dB
IMPEDANCE
4 – 8 Ohms
FREQUENCY RESPONSE
32 - 53000 Hz
32 - 53000 Hz
CROSSOVER FREQUENCIES
2800 Hz / 17500 Hz
RECOMMENDED AMPLIFIER OUTPUT
> 20 Watts
DIMENSIONS (WXHXD)
205 x 365 x 282 mm
