SLIM FLOOR-STANDING MODEL WITH 3.5-WAY COMPONENTS
Hi-Res certified dual tweeter module with two fmax domes
3.5-way speaker with bass reflex technology
Klippel-optimized bass-midrange unit and woofer
Ventilated voice-coil unit for maximum resilience and dynamics
Spikes for secure positioning and acoustic decoupling
lim floor-standing model with 3.5-way components

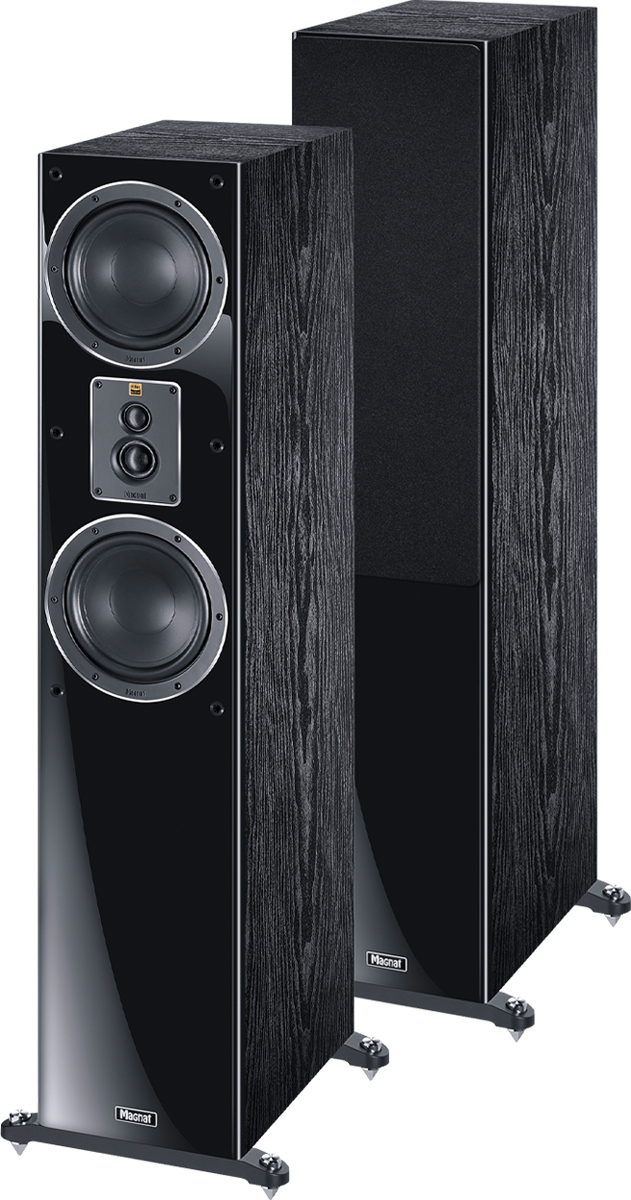

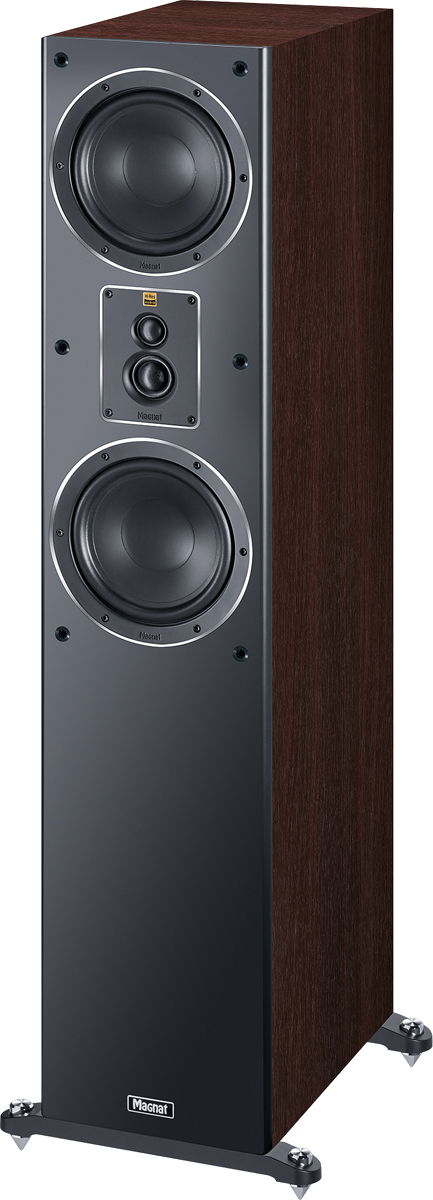

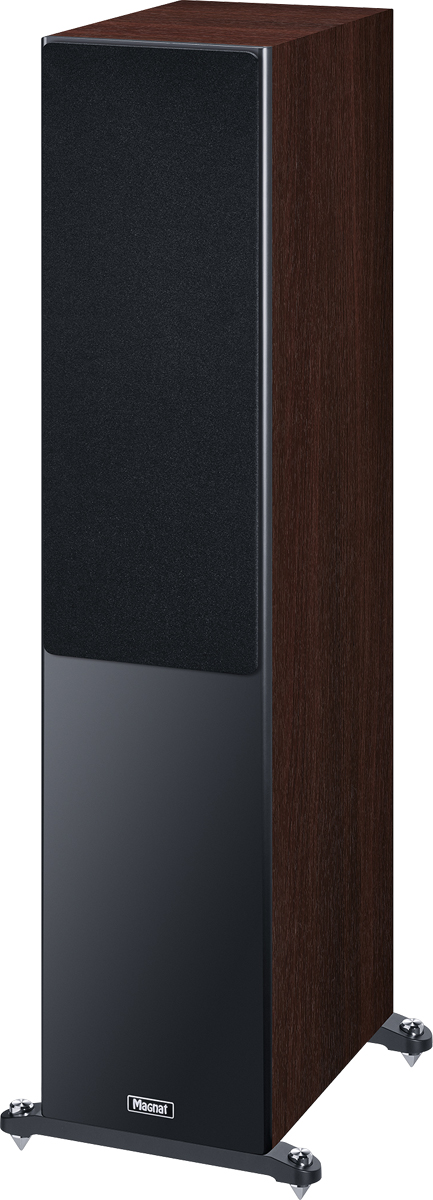

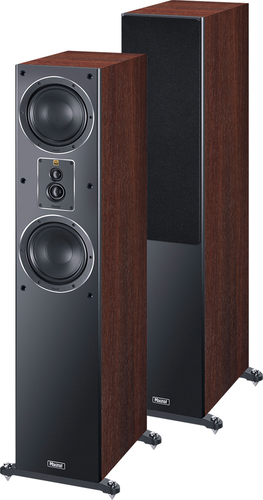

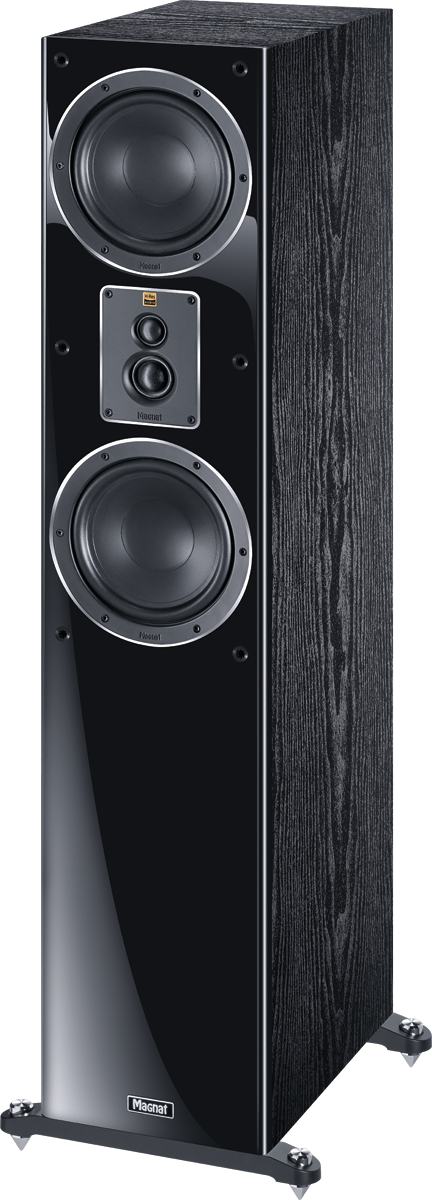

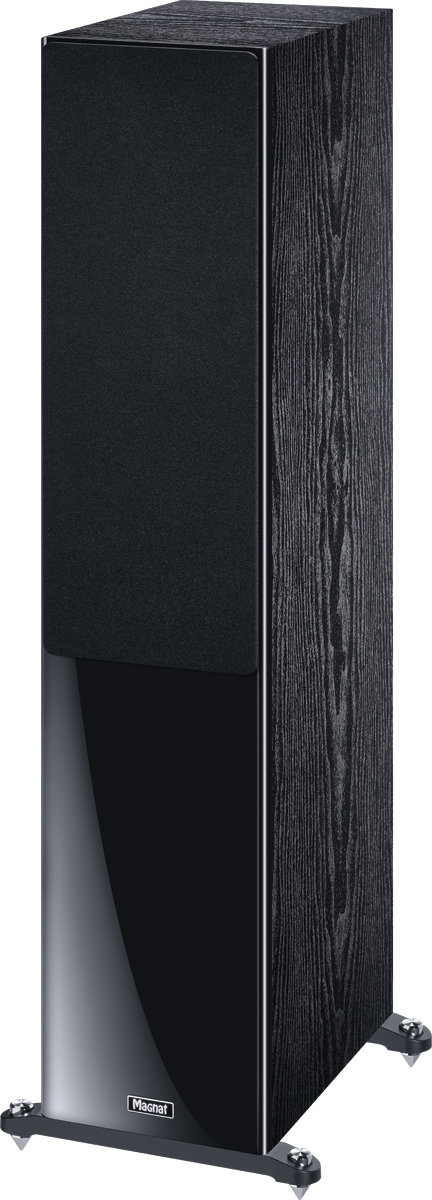

The Signature 505 is the more compact of the two floor-standing speakers, but still fully grown at a height of 930 mm. It is equipped with the Hi-Res certified dual tweeter module with two fmax domes and also features a 170 mm bass-midrange unit as well a further 170 mm woofer. The front panel with its integrated wave guides also optimizes the dispersion characteristics. The spikes supplied with the package not only ensure secure positioning of the Signature 505, they can also be used for acoustic decoupling. As a stereo speaker, it cuts an equally outstanding figure in terms of sound as it does in its role as a front channel in a home cinema system.
PRINCIPLE
3.5 way, dual 6.5" woofer-midrange, bass reflex
DRIVERS
1.2" dome-tweeter
0.75" super-tweeter
6.5“ woofer
6.5“ woofer-midrange
POWER HANDLING (RMS/MAX.)
170/300 Watts
SENSITIVITY (2.8V/1M)
92 dB
IMPEDANCE
4 – 8 Ohms
FREQUENCY RESPONSE
24 - 53000 Hz
CROSSOVER FREQUENCIES
330 Hz / 2800 Hz / 17500 Hz
DIMENSIONS (WXHXD)
Enclosure: 205 x 930 x 332
Enclosure incl. Spikes: 286 x 970 x 332 mm
