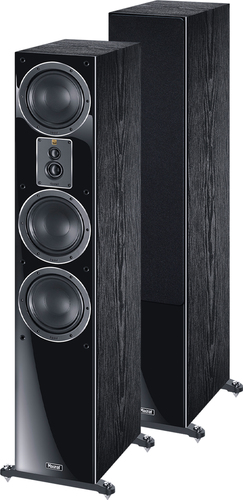

Signature 507
TOP MODEL WITH 4-WAY COMPONENTS
Hi-Res certified dual tweeter module with two fmax domes
4-way speaker with bass reflex technology
Klippel-optimized bass-midrange unit and subwoofer
Ventilated voice-coil unit for maximum resilience and dynamics
Spikes for secure positioning and acoustic decoupling
The Signature 507 is just as slim as the 505, but a bit higher at 1030 mm. The increased size is due to the dual woofer used, with the result that the 507 has a 170 mm bass-midrange unit as well as woofers of the same size, enabling it to reproduce correspondingly lower frequencies. It does, of course, also have the Hi-Res certified dual tweeter module with 2 fmax domes. The front panel with its integrated wave guides also optimizes the dispersion characteristics. Like all the speakers in the Signature 500 range, the sturdiest possible connection terminals are used, which allows the best cables to be used, as well as facilitating bi-wiring or bi-amping operation. It goes without saying that the 507 is suitable both as a stereo speaker and as a front channel in a home cinema system.
PRINCIPLE
Floorstanding Speaker, 4 way, double bass, bass reflex
DRIVERS
0.75" super-tweeter
2 x 6.5“ woofer
1.2" dome-tweeter
1 x 6.5" midrange
POWER HANDLING (RMS/MAX.)
200 / 350 Watts
SENSITIVITY (2.8V/1M)
92 dB
IMPEDANCE
4 – 8 Ohms
FREQUENCY RESPONSE
23 - 53000Hz
CROSSOVER FREQUENCIES
400 Hz / 2800 Hz / 17500 Hz
RECOMMENDED AMPLIFIER OUTPUT
> 30 watts
DIMENSIONS (WXHXD)
Cabinet: 205 x 1030 x 332 mm
Enclosure incl. Spikes: 286 x 1070 x 332 mm
WEIGHT
18.8 kg
