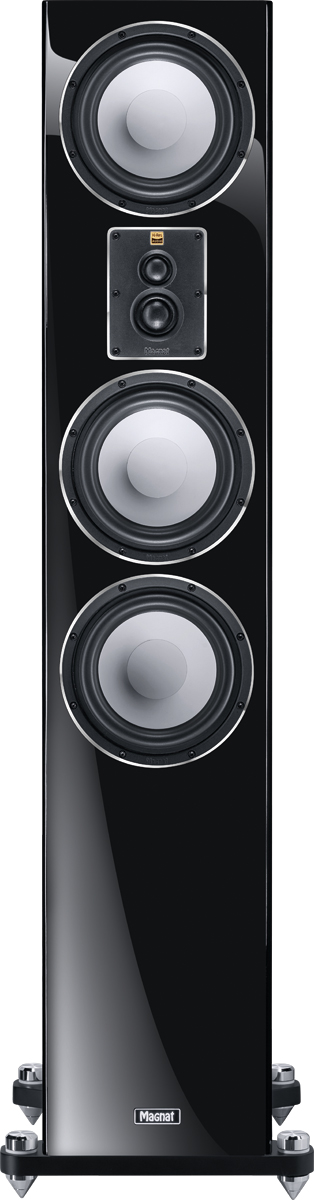

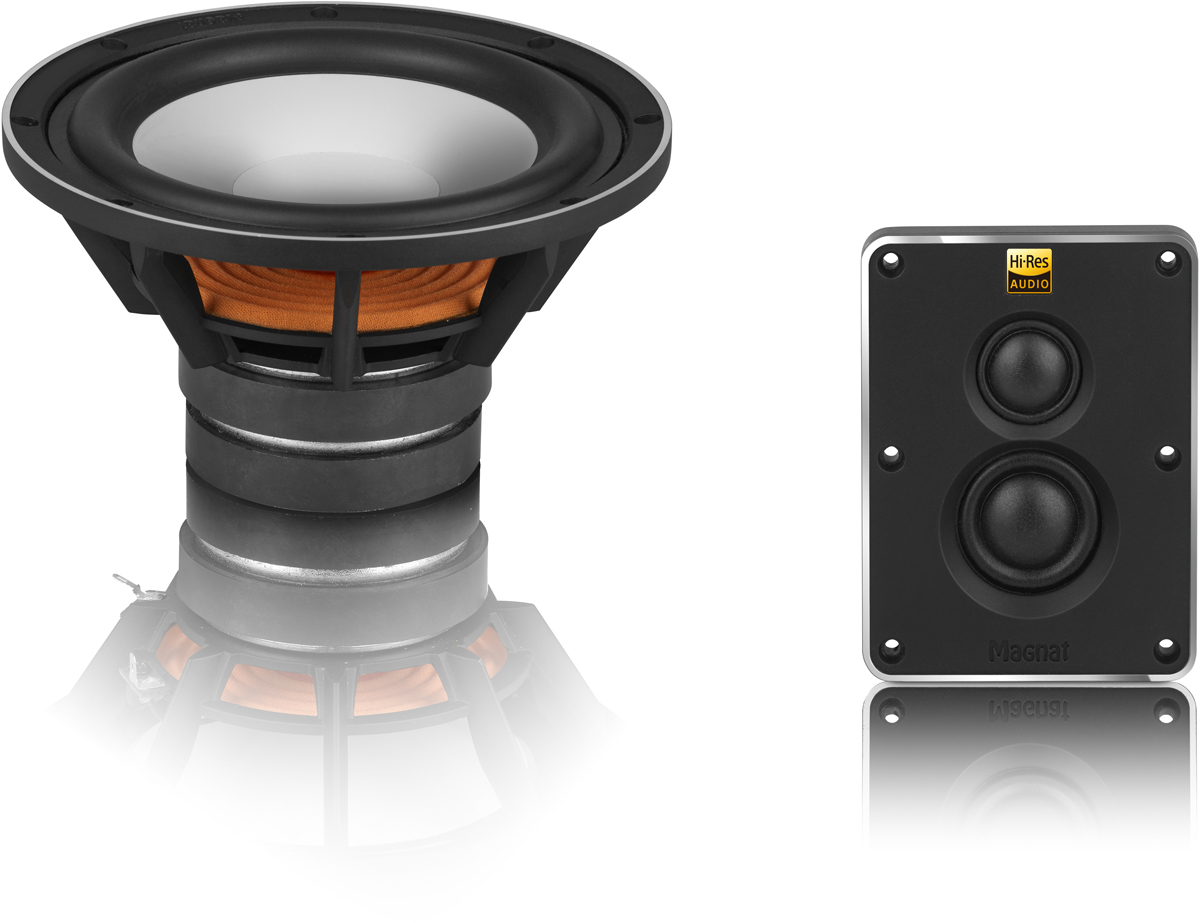

Hi-Res certified dual tweeter module with two fmax domes
4-way speaker with bass reflex technology

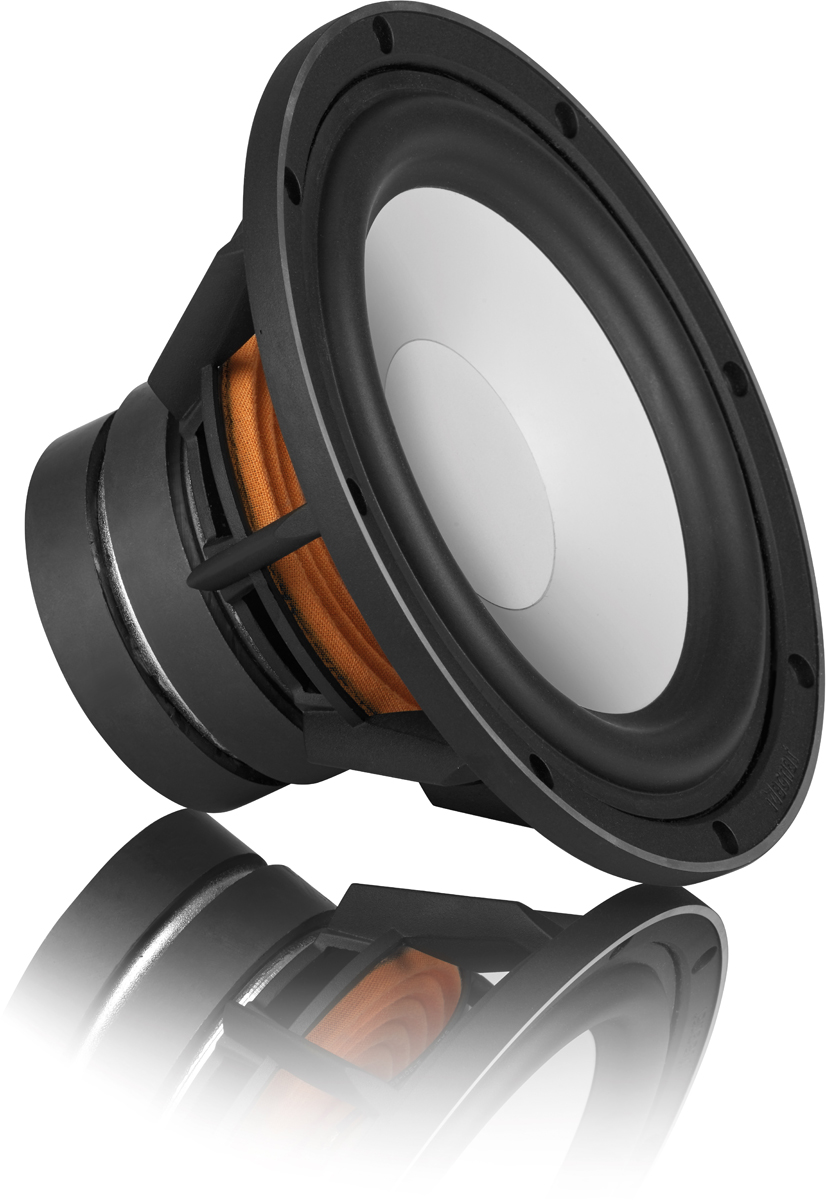

Bass-midrange driver with ceramic/aluminum cone

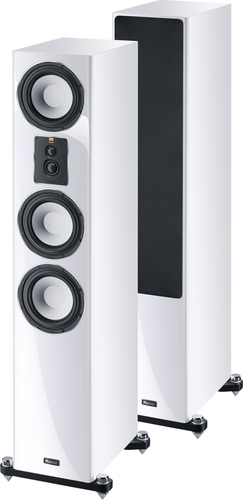

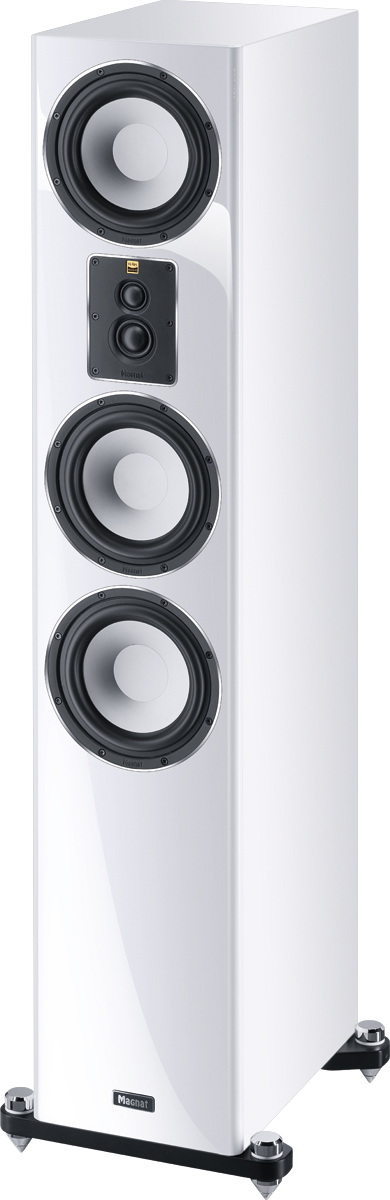

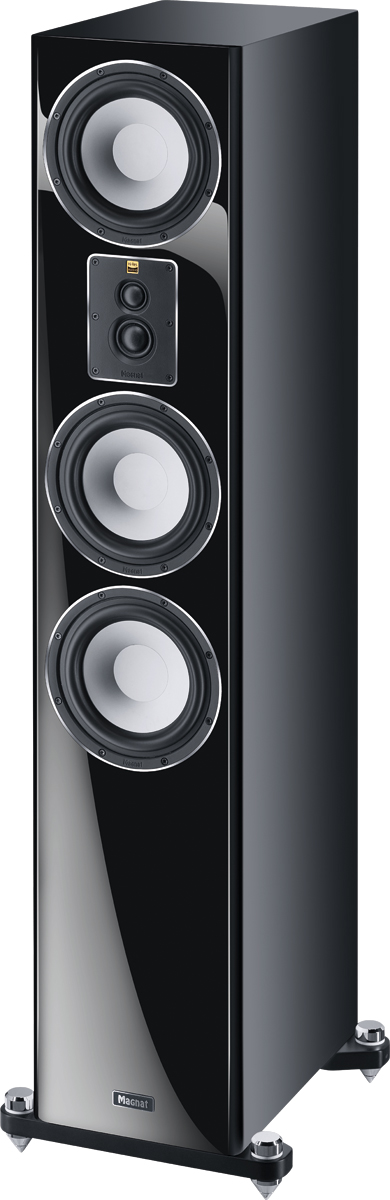

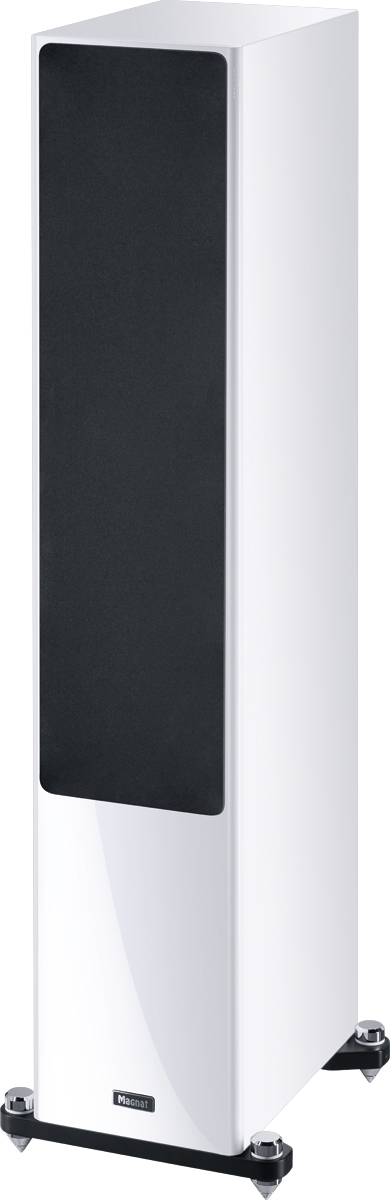

Finish: White or black with a high-gloss baffle and satin cabinet
PRINCIPLE

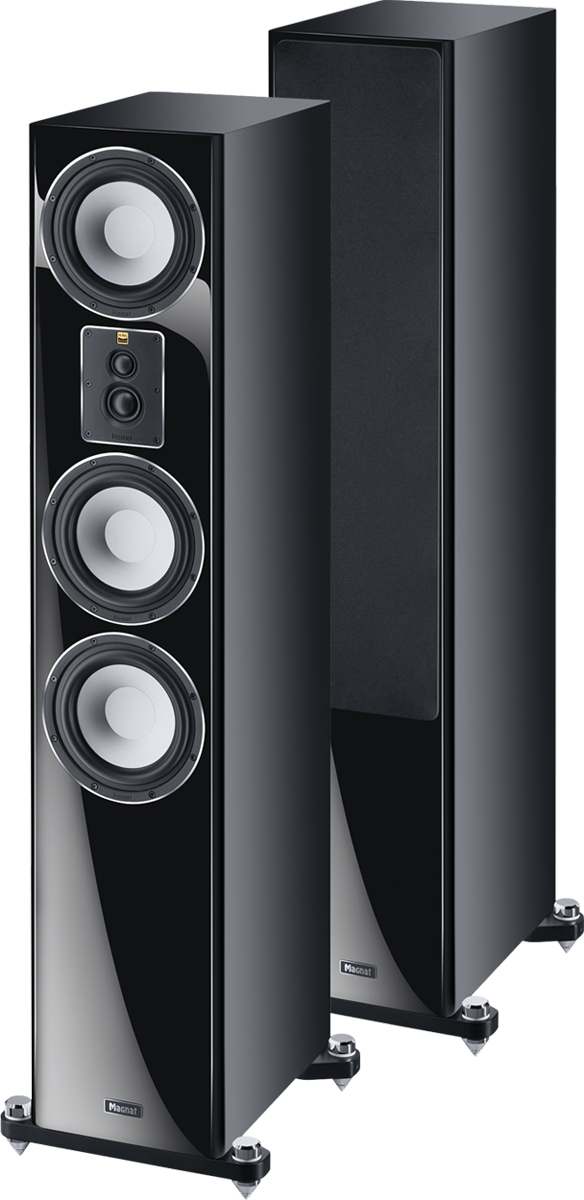

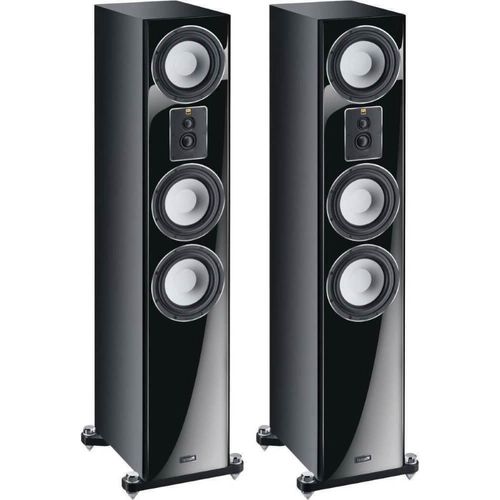

Floorstanding Speaker, 4 way, double bass, bass reflex
DRIVERS
0.75" super-tweeter
6.5“ midrange
2 x 6.5“ woofer
1.2" dome-tweeter
POWER HANDLING (RMS/MAX.)
220 / 380 watts
SENSITIVITY (2.8V/1M)
92 dB
IMPEDANCE
4 – 8 Ohms
FREQUENCY RESPONSE
22 -54000 Hz
CROSSOVER FREQUENCIES
350 Hz/2700 Hz/17000 Hz
RECOMMENDED AMPLIFIER OUTPUT
> 30 watts
DIMENSIONS (WXHXD)
Cabinet: 210 x 1055 x 345 mm
Enclosure incl. Spikes: 290 x 1070 x 345 mm
WEIGHT
23.4 kg
Powerful neodymium ring magnet systems for best dynamics

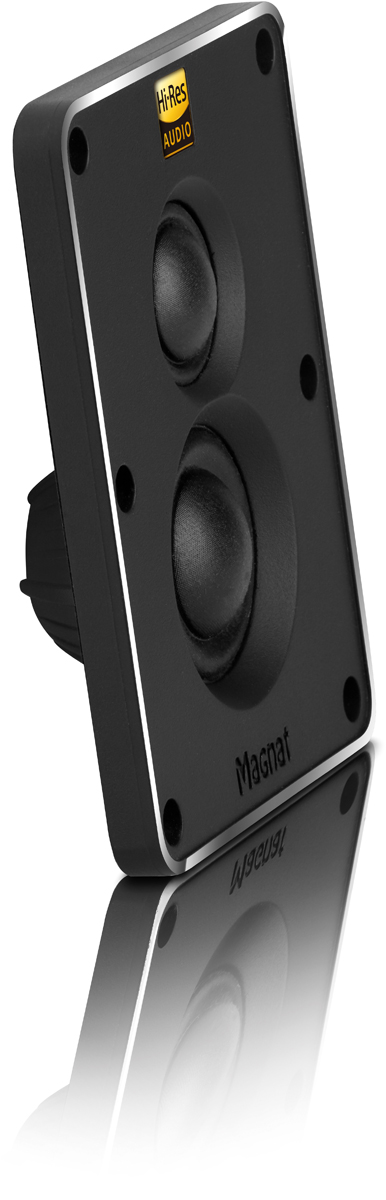

Newly developed high-res tweeter module with two fmax dome tweeters 1.2″ dome tweeter with extra-thick surround for low frequency coupling to the midrange Additional 0.75″ super dome tweeter for ideal omnidirectional sound distribution and extended reproduction up to 50 kHz
Front panel secured by six screws, special sound guides for optimum dispersion properties
Klippel® optimised construction
Ceramic-aluminium sandwich membranes with high rigidity and optimum internal damping, optimised by inverse dust caps
Generously vented die-cast aluminium baskets to prevent turbulence and compression effects
Sophisticated voice-coil ventilation for high efficiency
Amplitude and phase-optimised crossover with acoustical 24dB filters and high-quality components

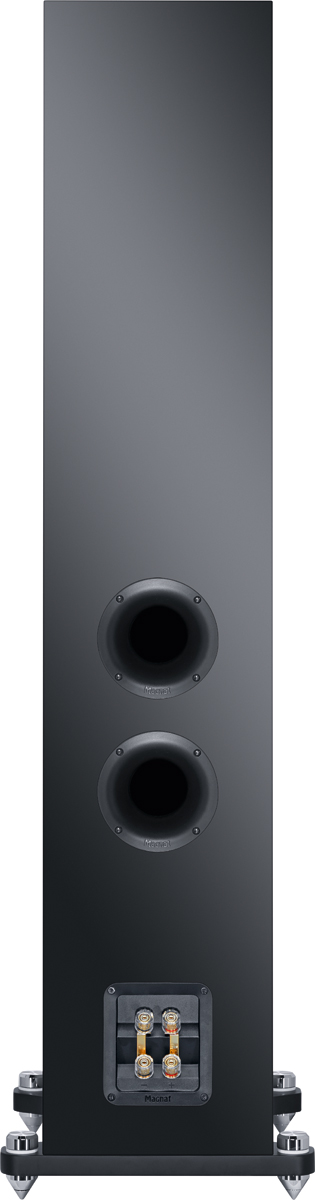

Big Bi-Wiring/Bi-Amping connecting terminal with big screw connectors and gold-plated contacts
Height-adjustable, counter-locked solid metal spikes with replaceable tips for optimum stability on all floors
Decoupling silicone feet and metal spikes included
Very sturdily constructed, multi-braced MDF enclosure in a timeless-modern design
Two-Airflex ports with rounded reflex opening for reducing wind noises

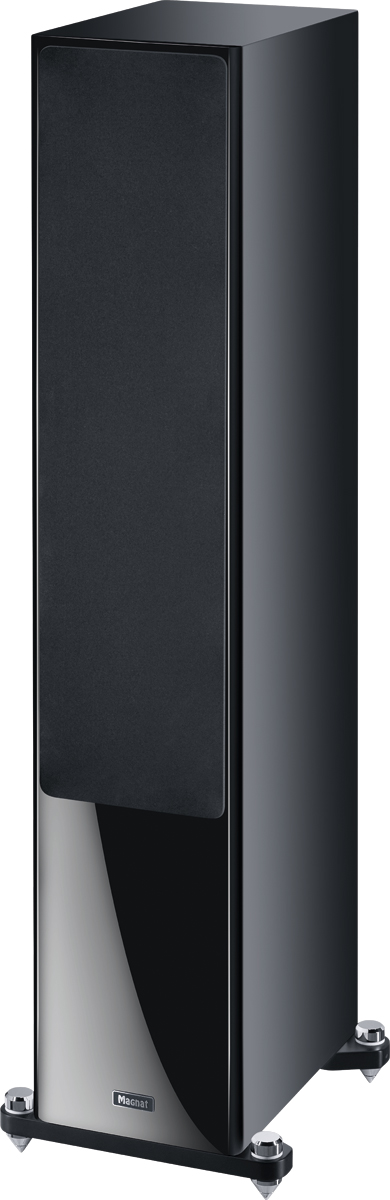

Detachable cloth grille with optimized acoustic transmissivity and hidden magnetic fixing
High-gloss lacquered baffle combined with noble satin matte lacquer (body)
