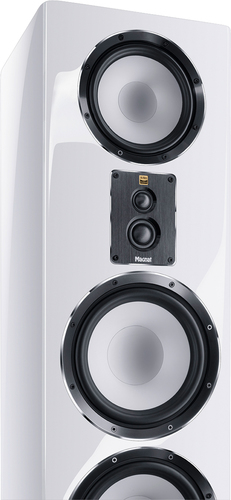

Hi-Res certified dual tweeter module with two fmax domes
4-way speaker with bass reflex technology
Woofer and midrange driver with ceramic-aluminium diaphragm + aluminium die-cast baskets
Spikes for secure positioning and acoustic decoupling
OUTSTANDING SOUND FOR
MUSIC AND HOME CINEMA
Handpicked components, unique Magnat
technologies as well as a meticulous, elaborate development process guarantee
unrivalled quality. Here, elaborate chassis with the latest technologies are combined with production quality that is second to
none in this class
Finish: Black piano lacquer or Macassar veneer
WOOFER & MIDRANGE:
Generously vented die-cast aluminium baskets to prevent turbulence and compression effects
Distortion-optimised magnet systems
Ceramic-aluminium sandwich membranes with high rigidity and optimum internal damping, optimised by inverse dust caps
Sophisticated voice coil ventilation for a particularly high degree of resilience
Klippel®-optimised overall design
Solid ABS/aluminium decorative ring, fixed by eight screws

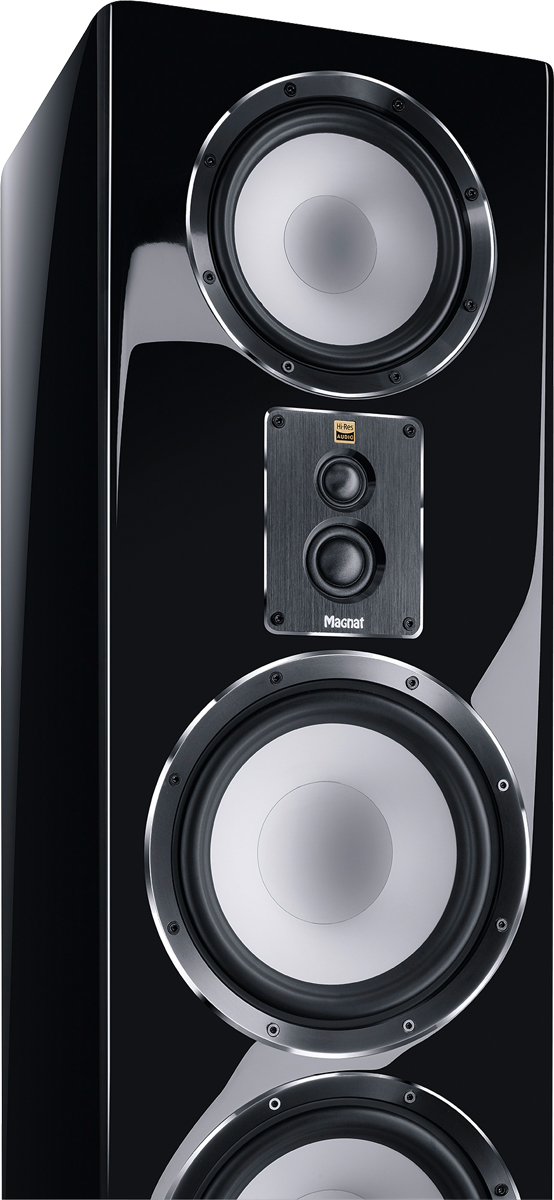

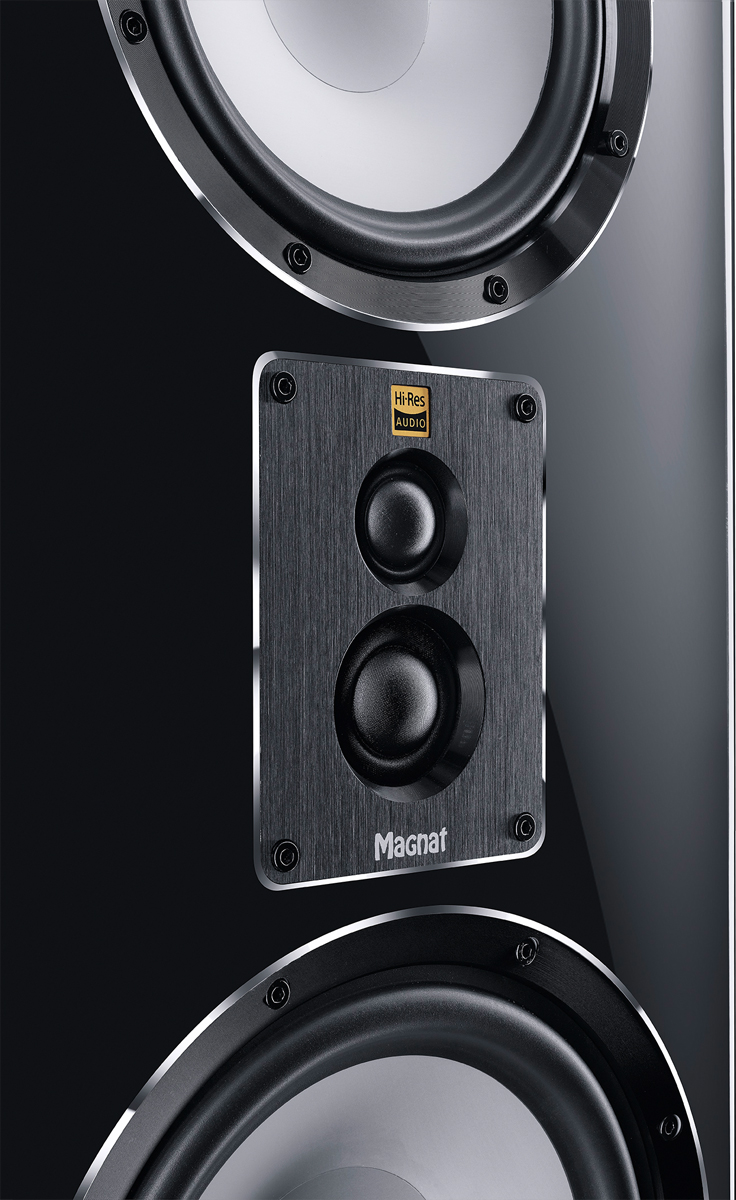

TWEETER & SUPER-TWEETER:
Newly developed high-res tweeter module with two fmax Signature dome tweeters
30 mm dome tweeter with coupling volume, long-excursion drive and particularly wide surround for especially deep
mid-tone coupling
Additional 20 mm super dome tweeter for ideal omnidirectional sound distribution and extended reproduction up to 55 kHz
Powerful neodymium ring magnet systems for excellent dynamics
Special sound guides in the solid ABS/aluminium front panel for optimum dispersion characteristics
ENCLOSURE:
Very sturdily constructed, multi-braced MDF enclosure in a
timeless-modern design Noble high-gloss lacquered body (black version) or
high-gloss lacquered real wood veneer (macassar version)

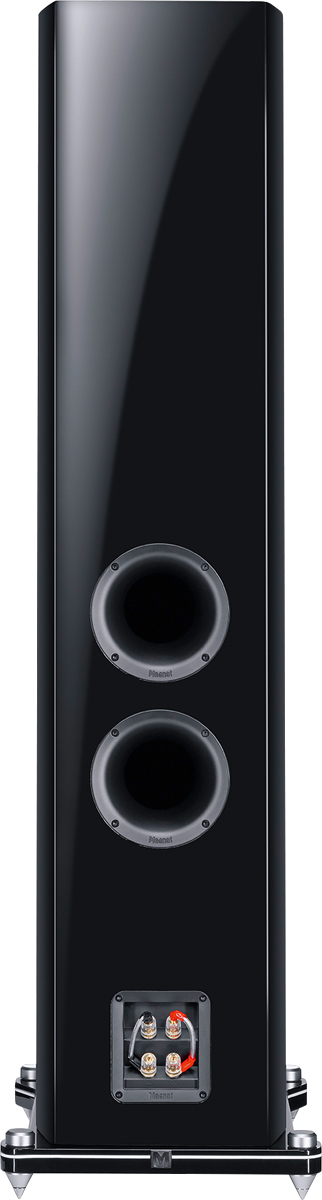

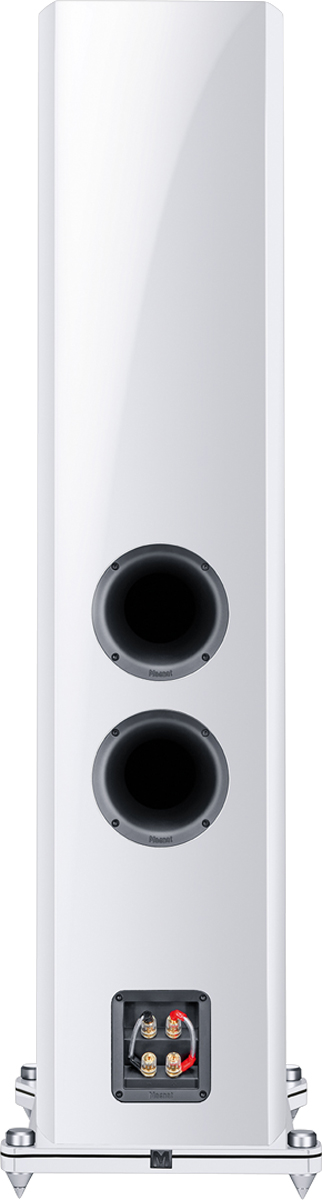

Magnat Airflex port with large openings ensure an optimum
bass response without ambient noise

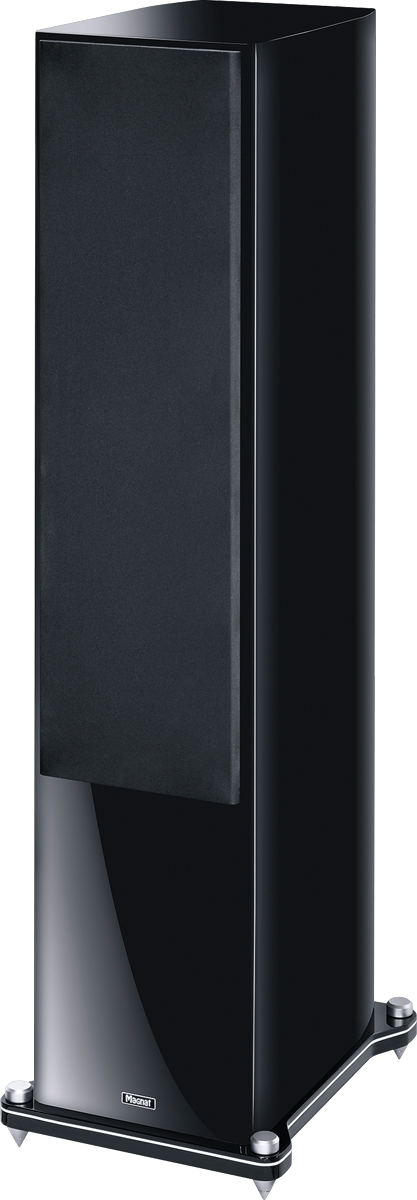

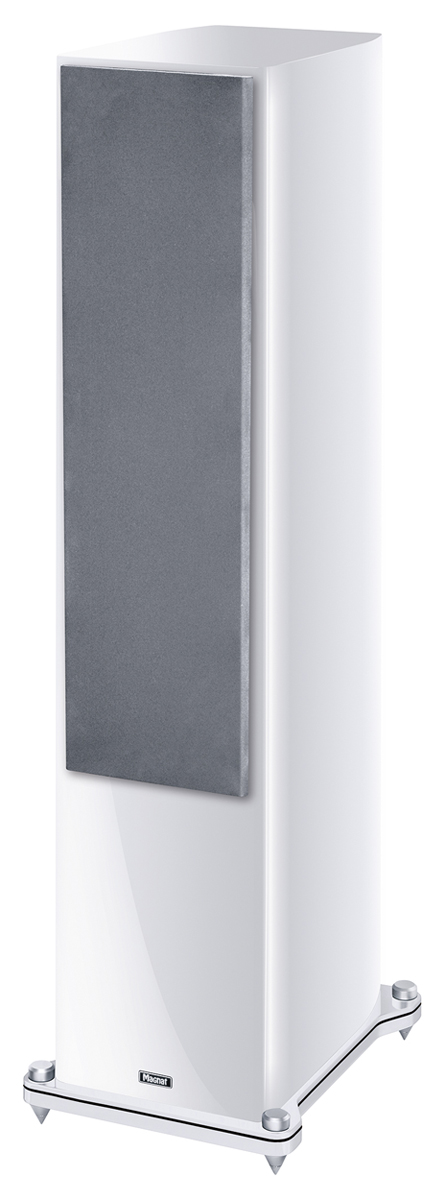

Removable fabric protection grille with optimum sound
transmission and invisible magnet attachment height-adjustable,
counter-locked solid metal spikes with replaceable tips for
optimum stability on all floors Solid MDF base plate with black high-gloss lacquer
Decoupling silicone feet and metal spikes included
CROSSOVER:
Elaborate phase and amplitude-optimised APOC crossover
High-quality interior cabling

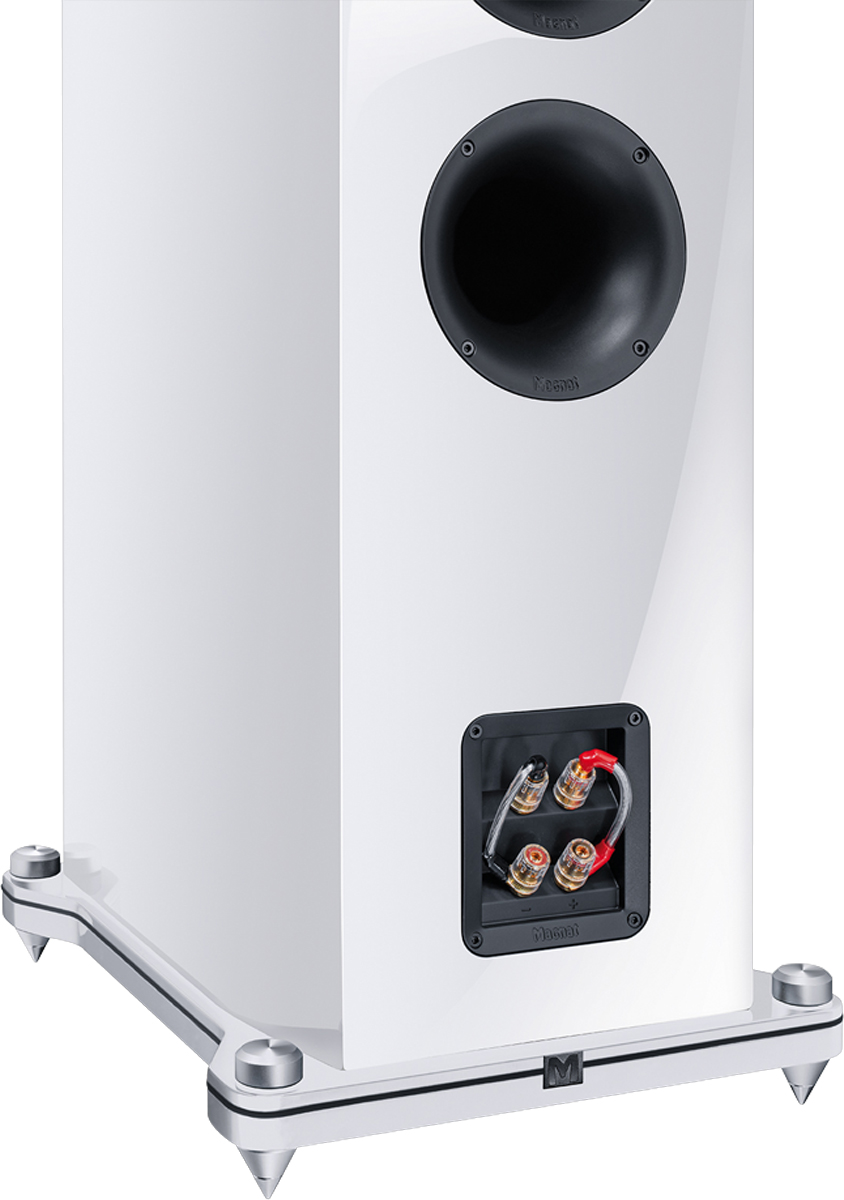

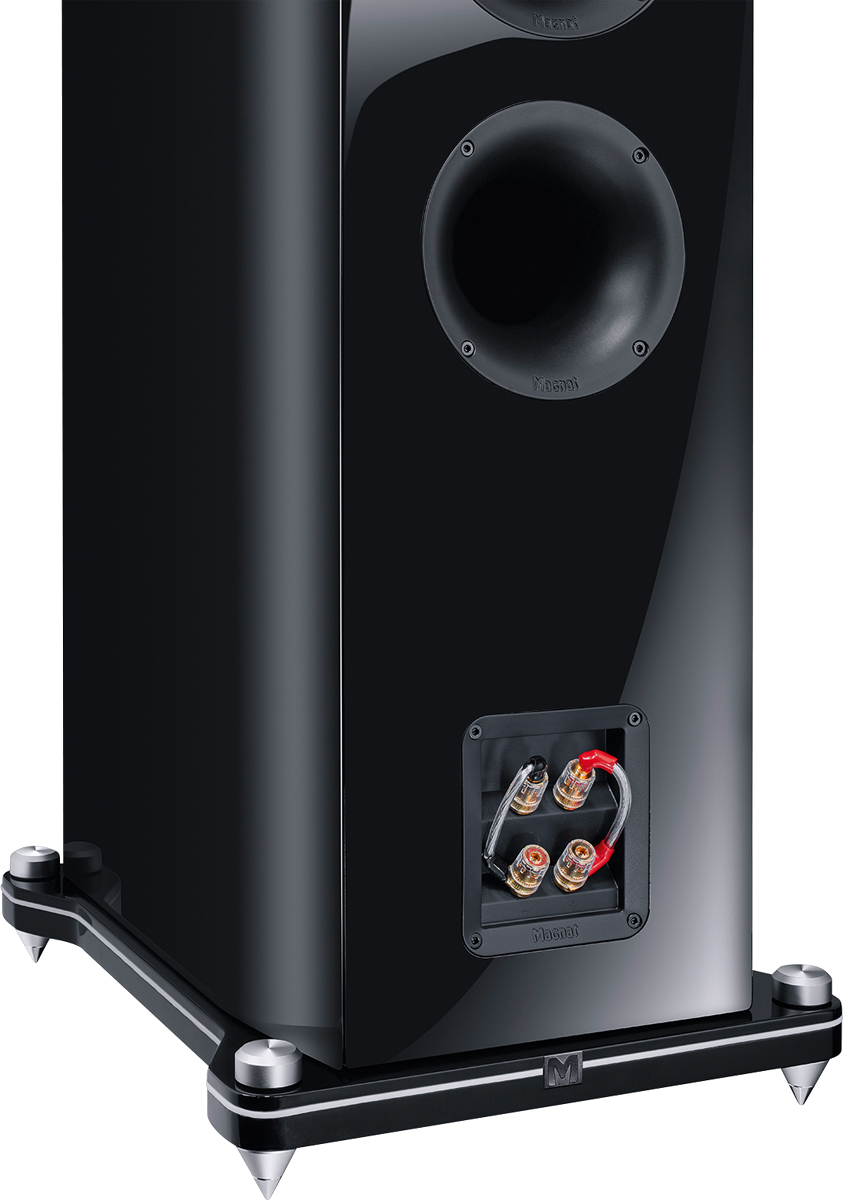

Large connection panel with sturdy and encapsulated terminals to
guarantee reliable contact even with high-quality cables possessing
large cross-sections Bi-wiring/bi-amping option, pre-installed cable bridges for single wiring

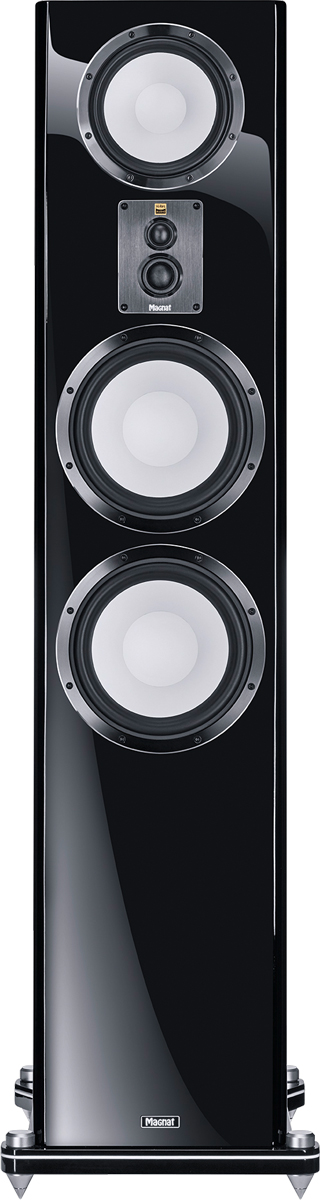

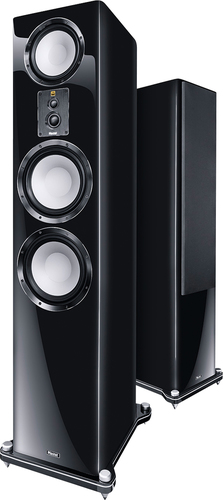

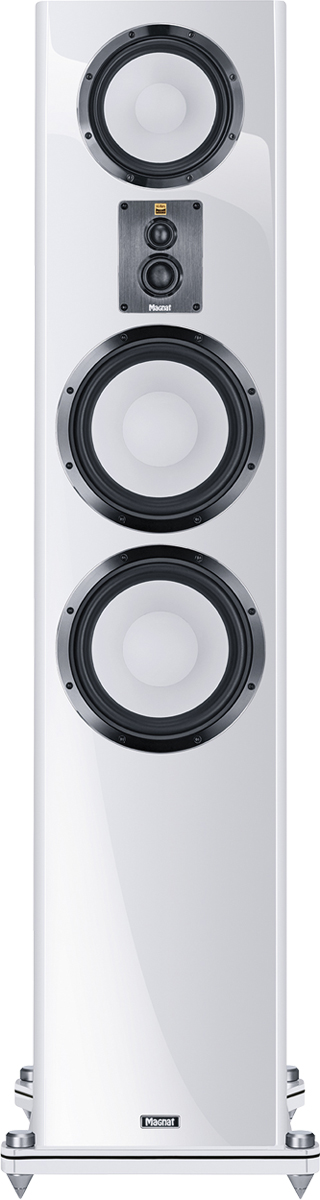

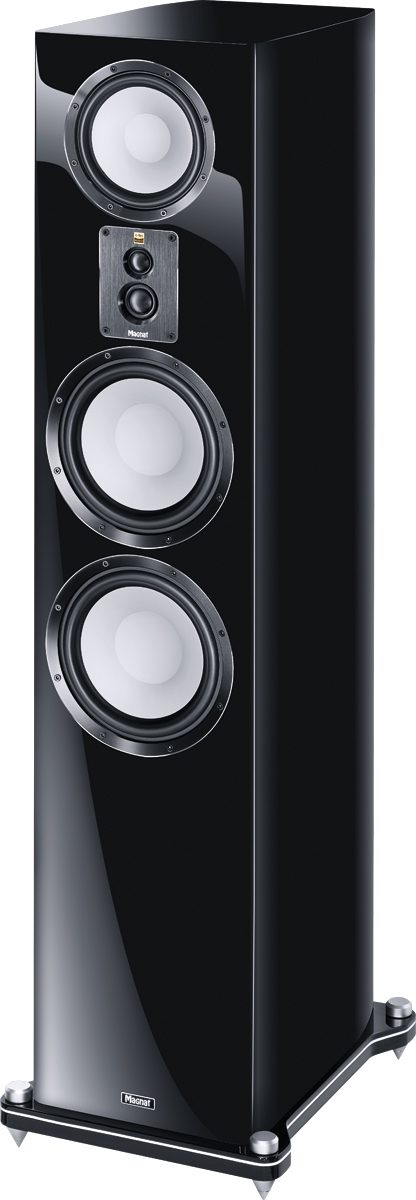

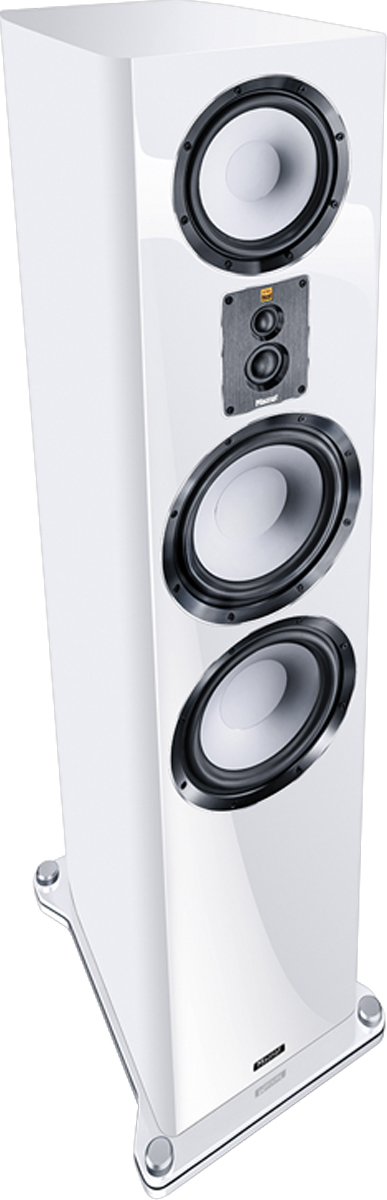

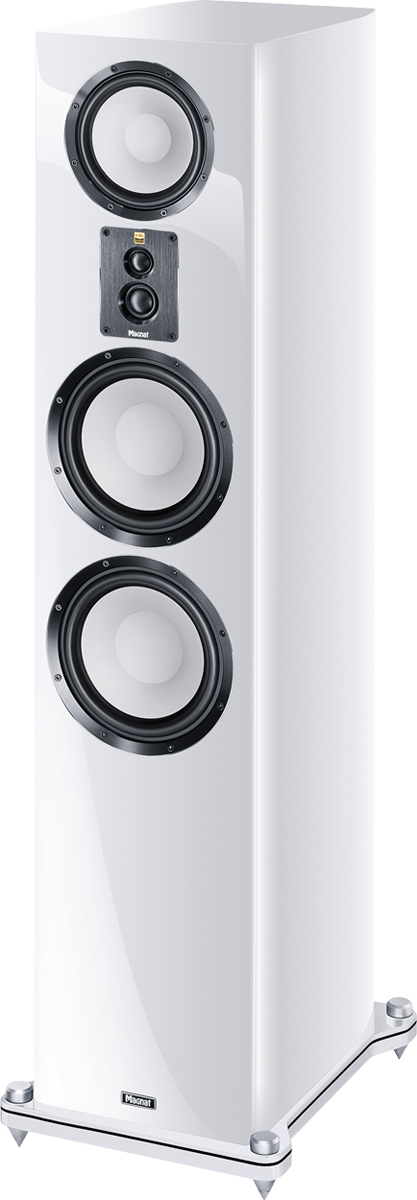

Floorstanding Speaker, 4 way, double bass, bass reflex
DRIVERS
6.5“ midrange
2 x 8” woofer
0.75" super-tweeter
1.2" dome-tweeter
POWER HANDLING (RMS/MAX.)
280 / 500 Watts
SENSITIVITY (2.8V/1M)
93 dB
IMPEDANCE
4 – 8 Ohms
FREQUENCY RESPONSE
22 - 55000 Hz
CROSSOVER FREQUENCIES
380 Hz / 2400 Hz / 17500 Hz
RECOMMENDED AMPLIFIER OUTPUT
> 30 watts
DIMENSIONS (WXHXD)
Cabinet; 260 x 1175 x 402 mm
Enclosure incl. Spikes: 335 x 1225 x 420
