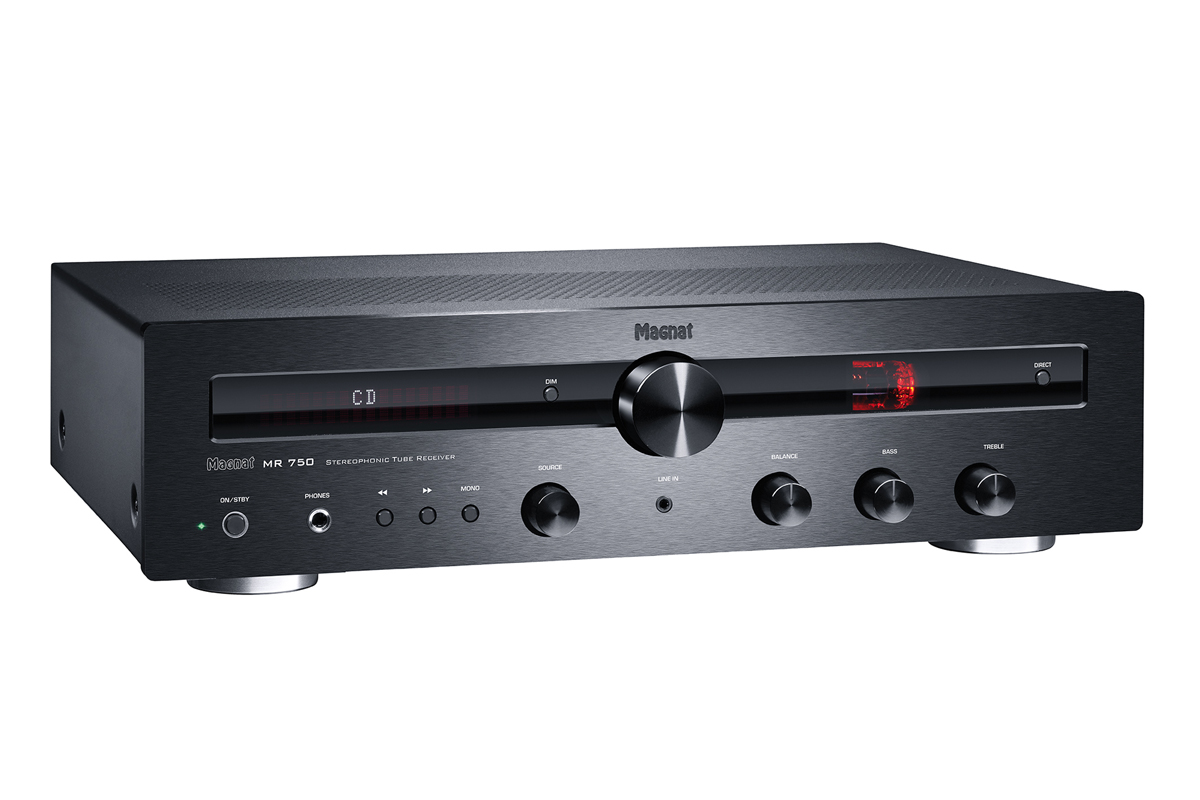

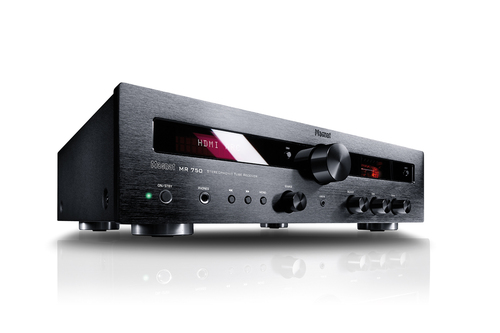

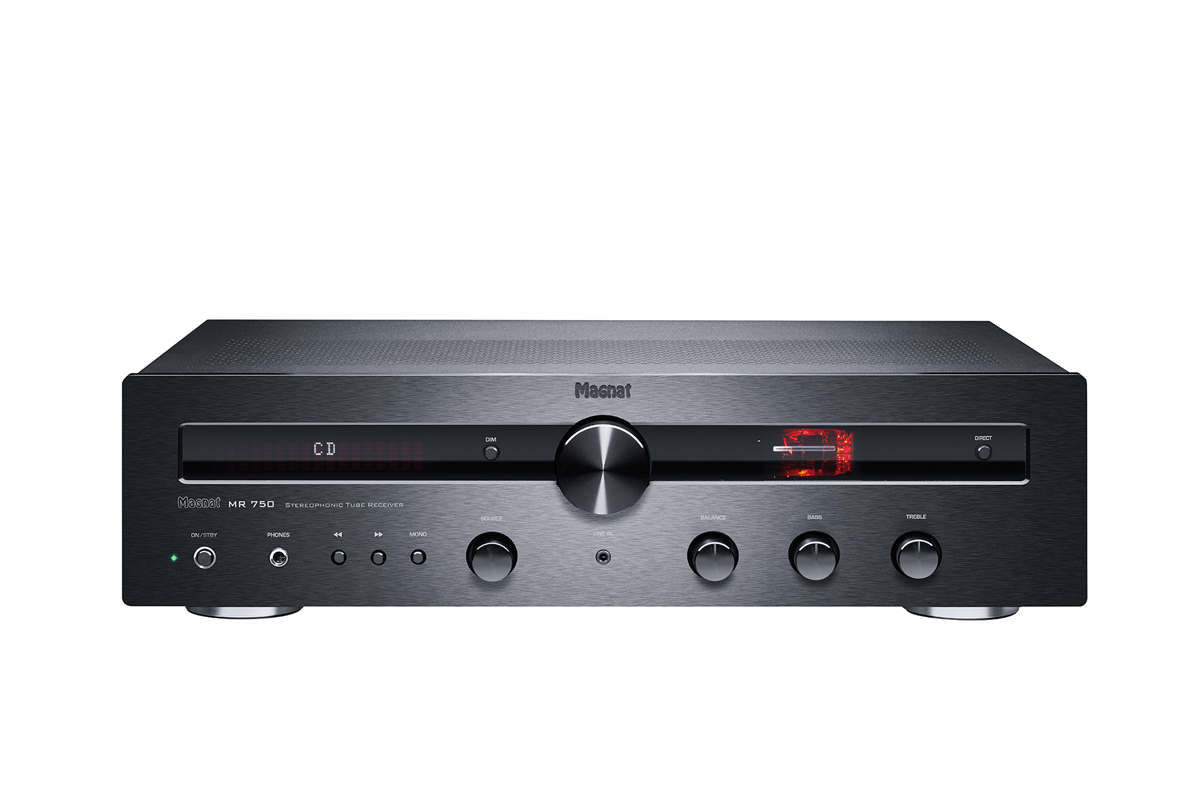

Stereo high-end hybrid receiver
The MR 750 finally opens up the combination of tube and transistor technology to all conceivable media. Here you can finally find an all-in-one solution for fans of classic 43 cm components, which can be perfectly combined with Magnat hi-fi components.
SENSITIVITY AND POWER
With carefully selected ECC81 tubes already burned in, the MR 750 delivers exactly the sound that connoisseurs appreciate. Thanks to the downstream power transistors, you don't have to do without an impressive output line.

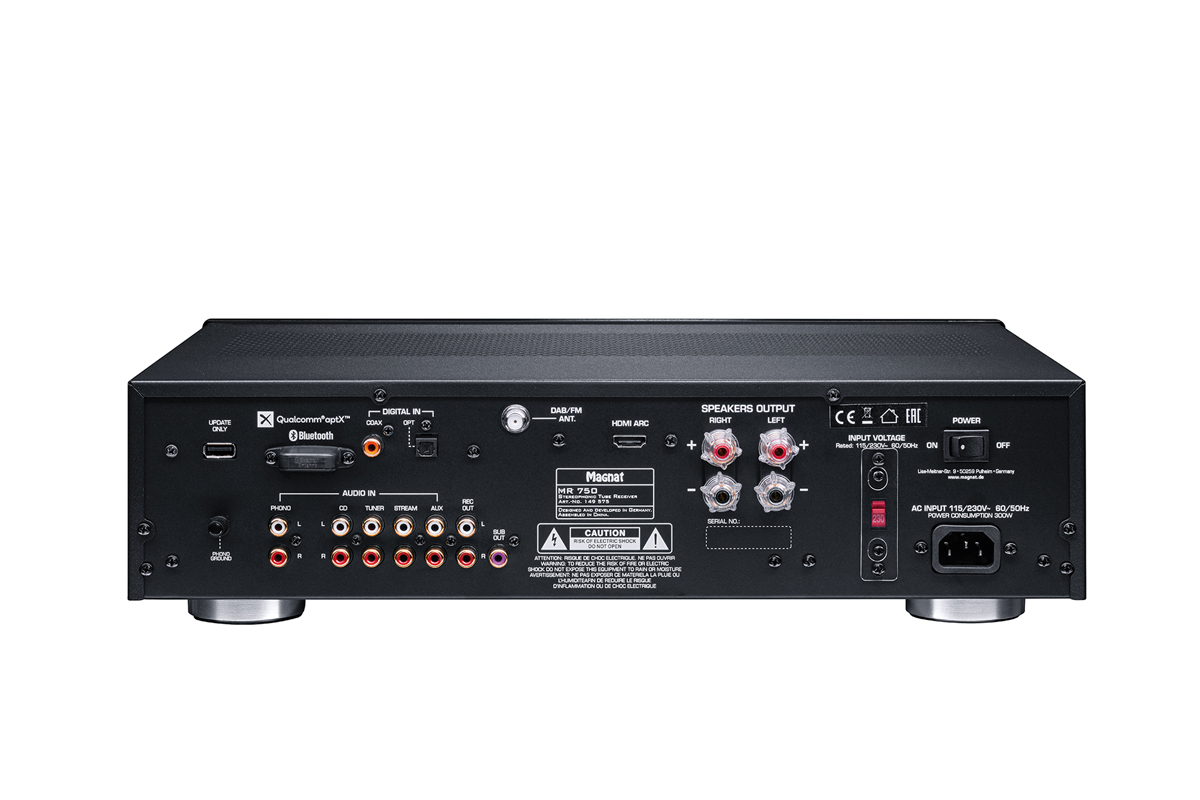

Five analogue high-level inputs, 4 digital inputs plus a phono input for MM systems are the basis for also being able to connect large systems without any difficulty. On top of this, Bluetooth is included with the lossless aptX standard for the best sound from smartphone, tablet or computer. The tuner with FM and DAB+ opens up a whole variety of analogue and digital stations to fans, who can store them on up to 40 station memory locations.
MAGNAT MR 750 - HDMI AND BLUETOOTH ON BOARD

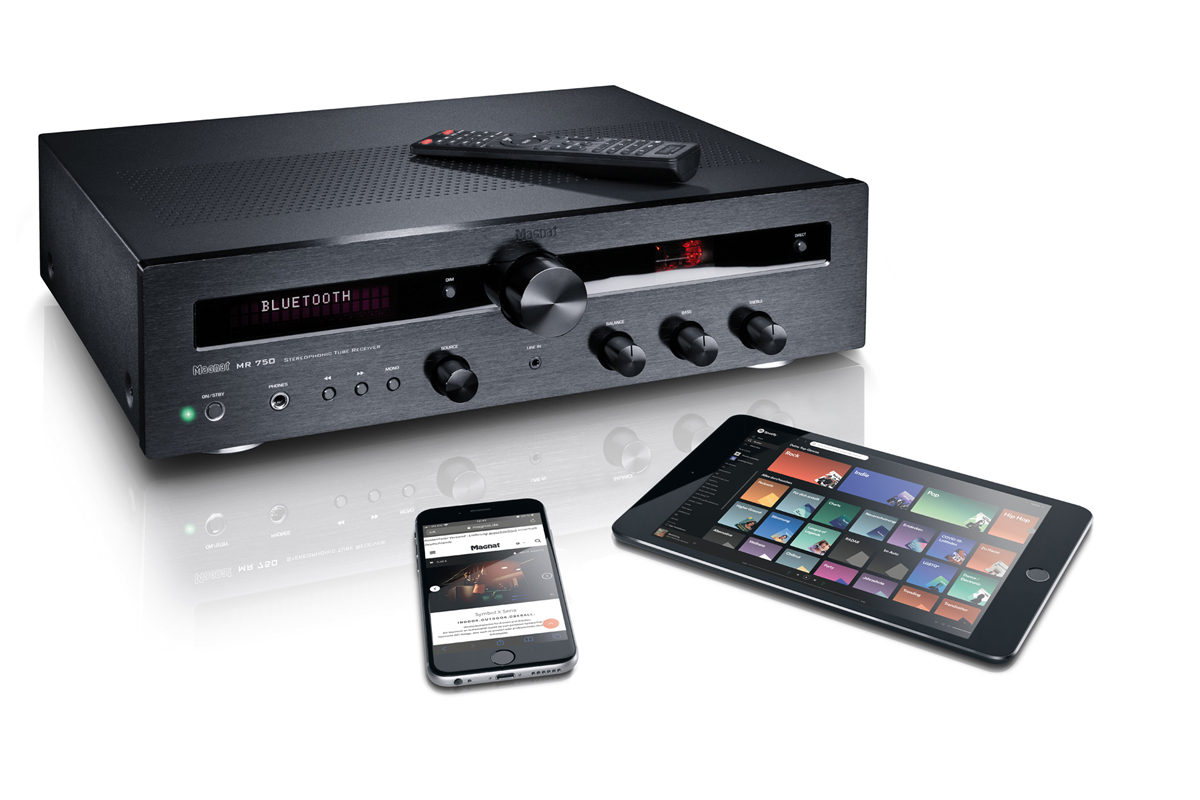

The number of exciting sources for music and sound is growing constantly. You are well equipped for this with the MR 750 because, in addition to a wide range of analogue and digital, it also enables the direct connection of turntables, communicates with smartphones and tablets via Bluetooth and creates a seamless connection to the TV set and all connected sources via HDMI. With the latter, the volume can be easily adjusted using the television's remote control. For all other sources, this is done using the system remote control provided.
DISCREETLY INFORMED

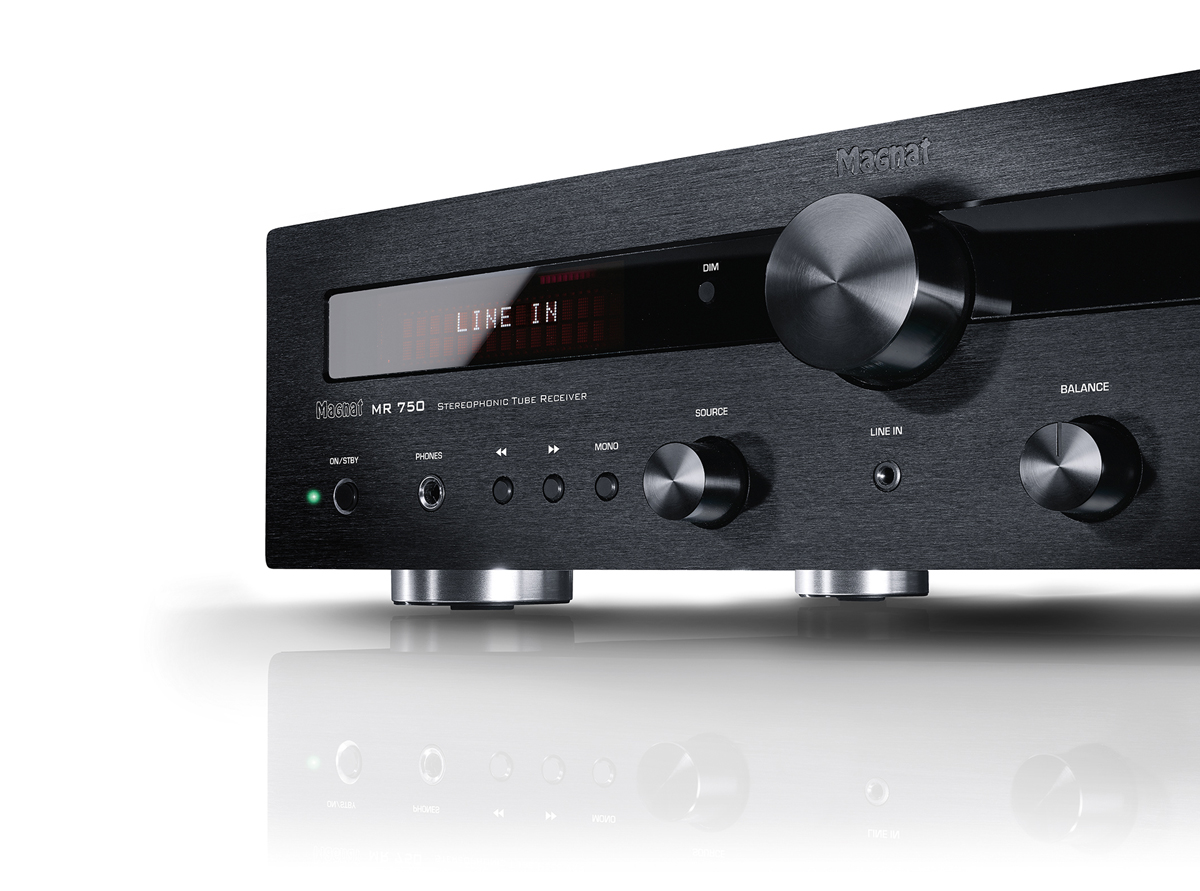

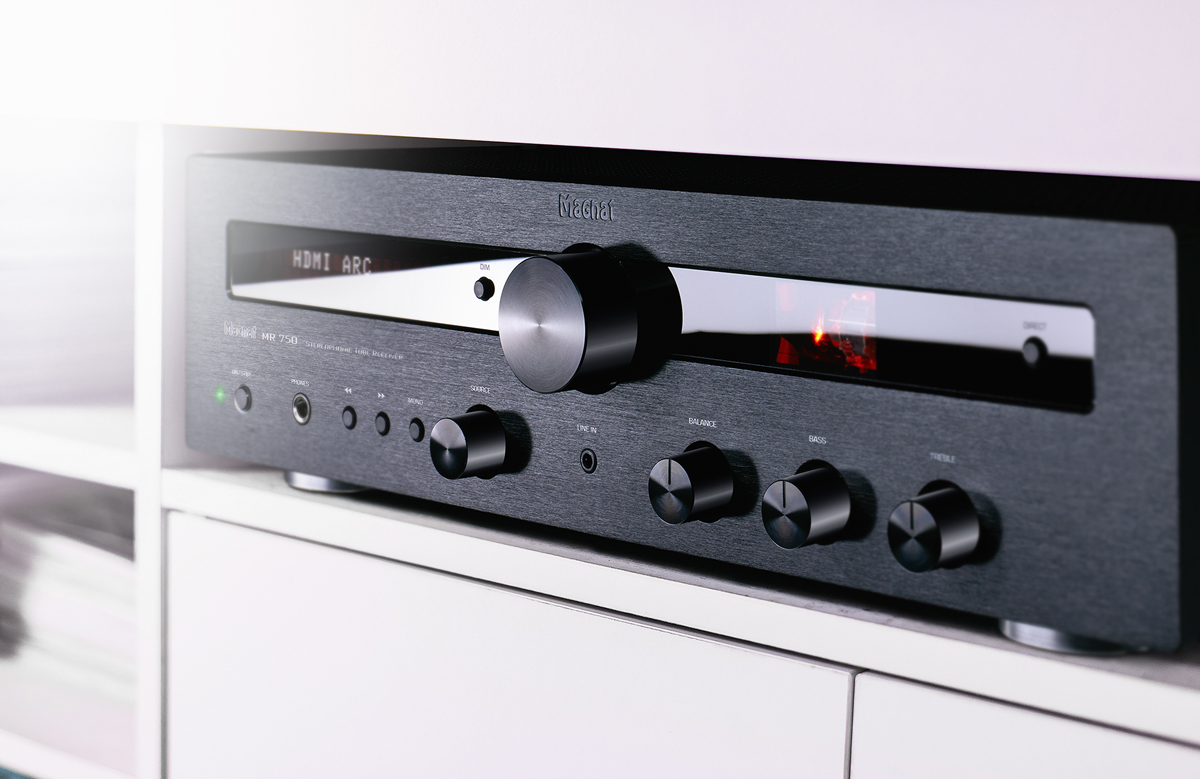

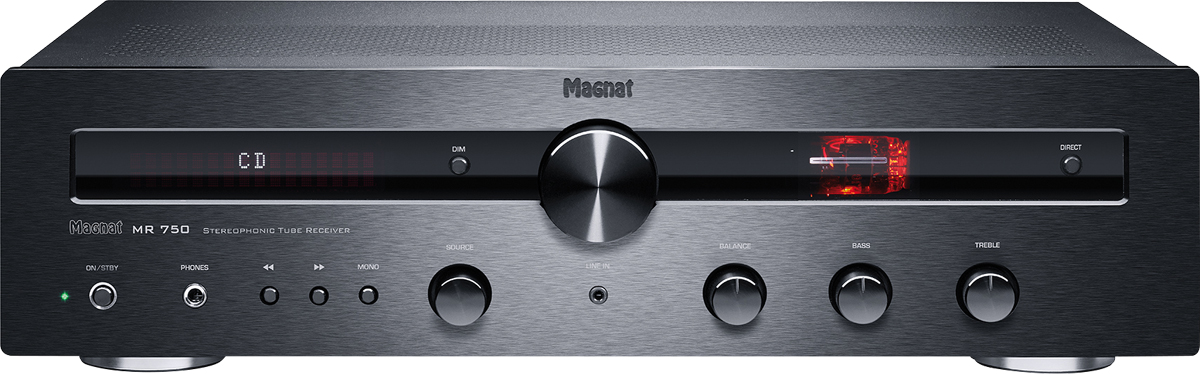

A metal housing and a solid aluminum front panel and controls speak for themselves every time you touch them and give you a feel for what acoustic delights the MR 750 has to offer. The elegant display announces input sources and station names. Apart from that, simply let yourself be captivated by the irresistible glow of the tubes, while enjoying music, films and other media from almost any source in previously unimaginable quality.
Power output: 70 watts of sine power per channel at 4 ohms and 250 watts of maximum pulse power
Standby power supply for low power consumption in standby mode
High-capacity filter/electrolytic capacitors
Standby power supply for low power consumption in standby mode < 0,5 watts
Discrete Class A/B power amplifier
Shielded toroidal transformer
Elaborate mains adapter with separately stabilised supply voltage for the individual circuits
FREQUENCY RANGE DAB/DAB+
174.928 – 239.2 MHz (Band III)
FREQUENCY RESPONSE
CD/Tuner/Aux/Line/Tape: 6 Hz – 90 kHz (-3,0 dB) 20 Hz – 20 kHz (+/-0,3 dB) Phono: 20 Hz – 20 kHz (+/-0,8 dB) Subsonic Filter : 16 Hz, 18 dB/Oct.
OUTPUT POWER / NOMINAL
POWER CONSUMPTION
Maximal 300 W
1 kHz, 4 Ohm 2 x 125 W
FREQUENCY RANGE FM
87.5 – 108 MHz
DIGITAL INPUTS
Supported sampling frequencies: 44.1/48/88.2/96/176.4/192kHz
optical (Toslink™)
coaxial (cinch)
Supported bit depth: 16/24bits
BLUETOOTH® INPUT
Bluetooth® 5.0 / Qualcomm aptX®
MAINS VOLTAGE
230 VAC / 50 Hz
S/N RATIO
CD/Streamer/Aux/Line 102 dB (A), Phono MM 82 dB (A)
DIMENSIONS (WXHXD)
Main unit: 433 x 116 x 300 mm
COLOR
Black
WEIGHT
7.6 kg
