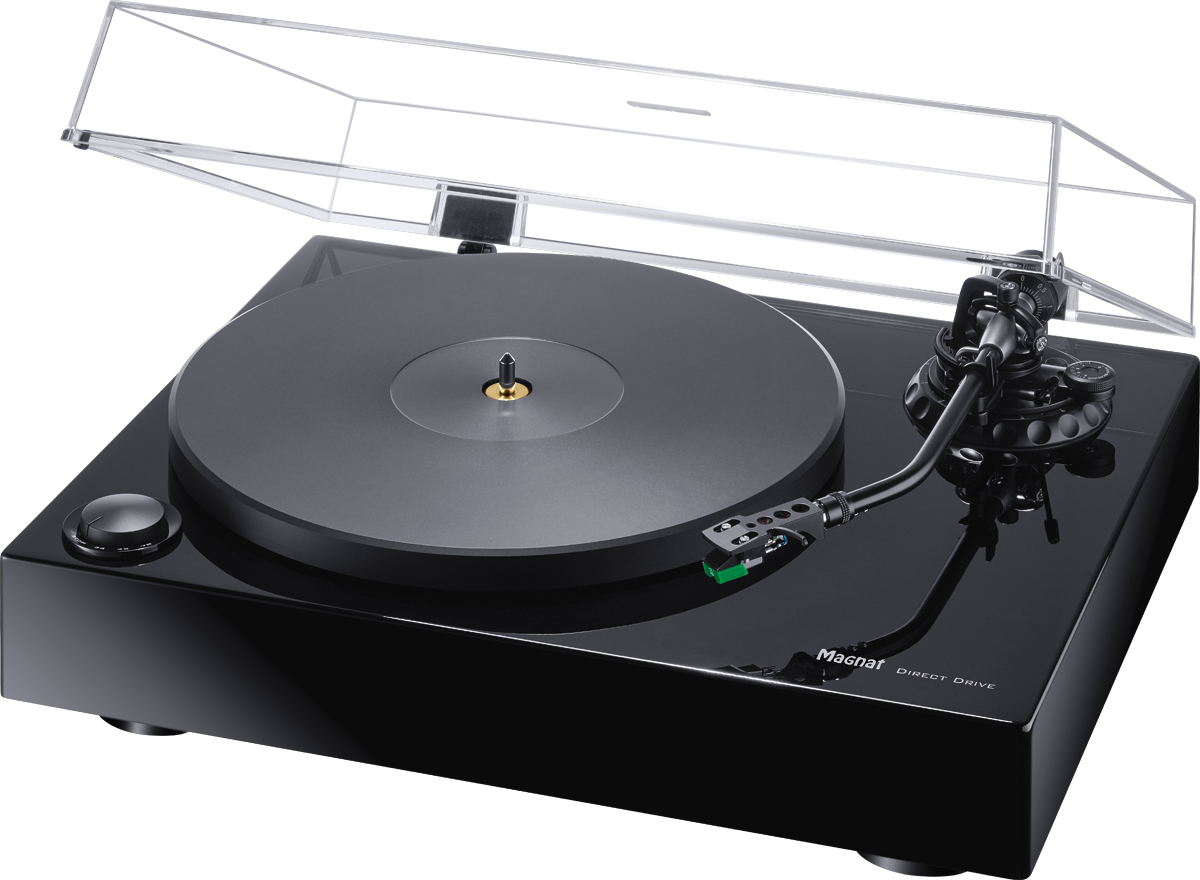

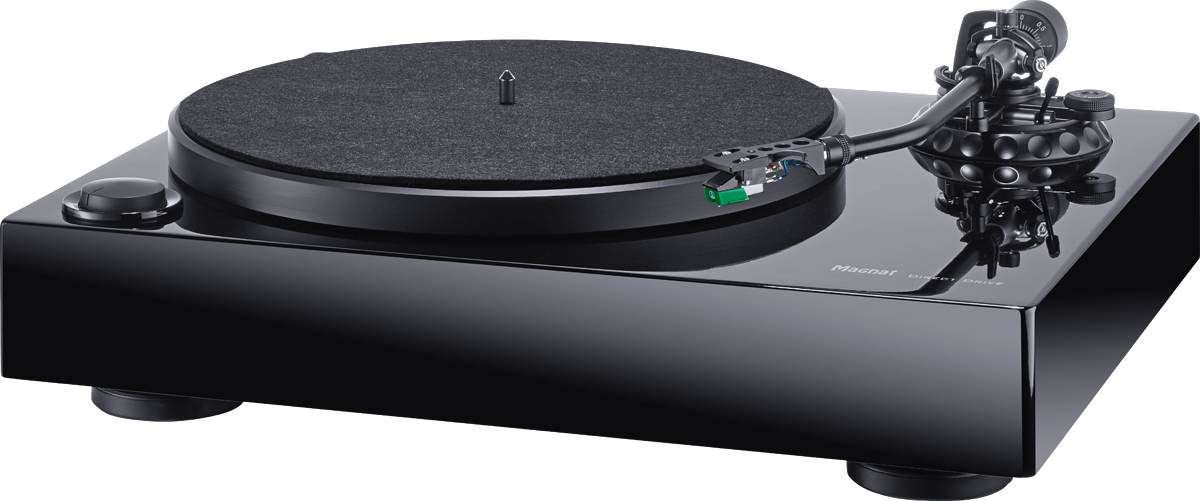

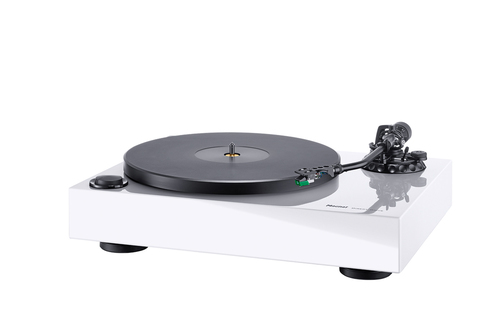

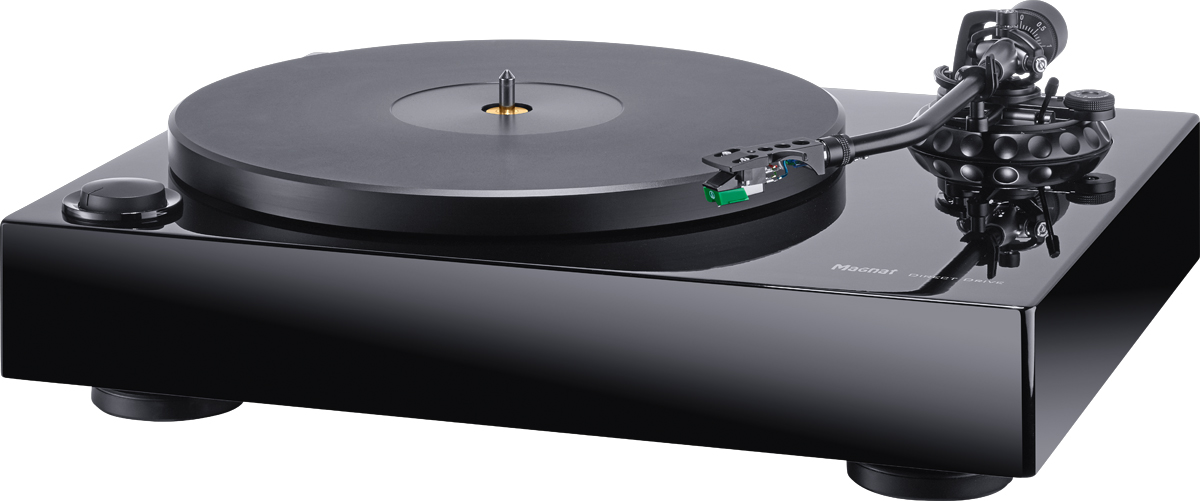

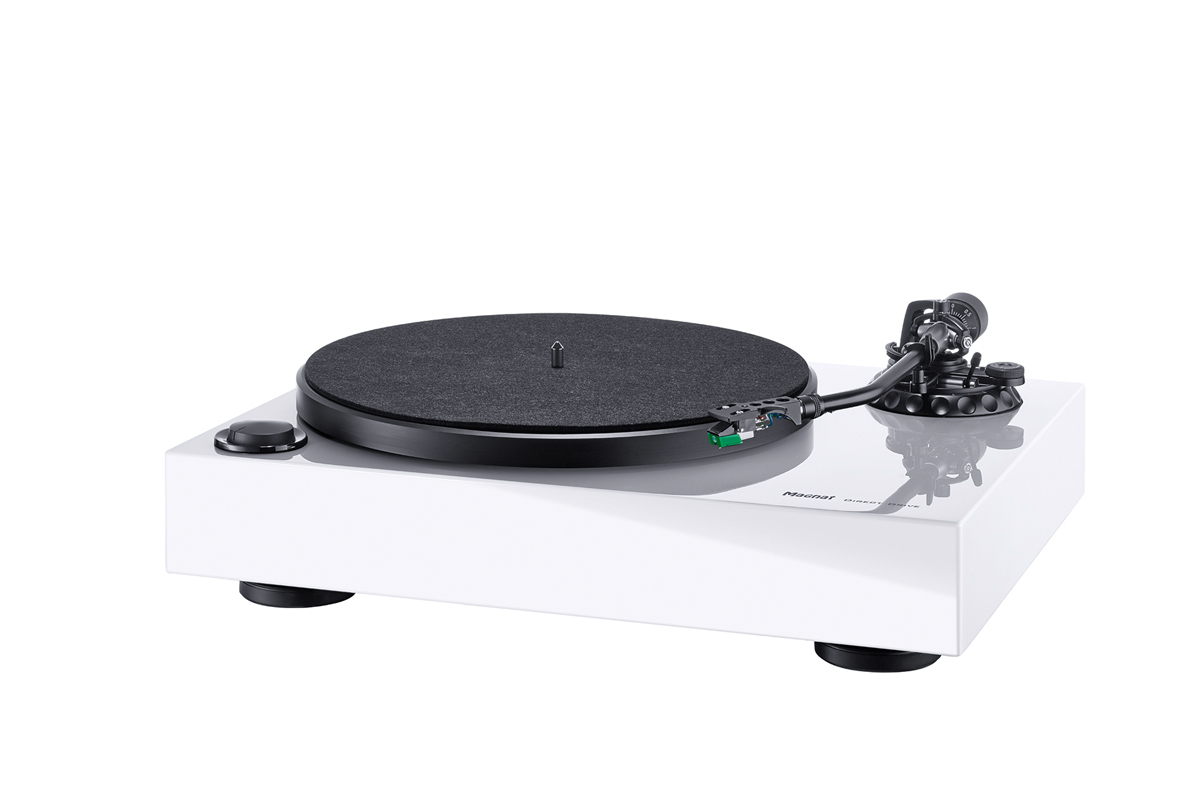

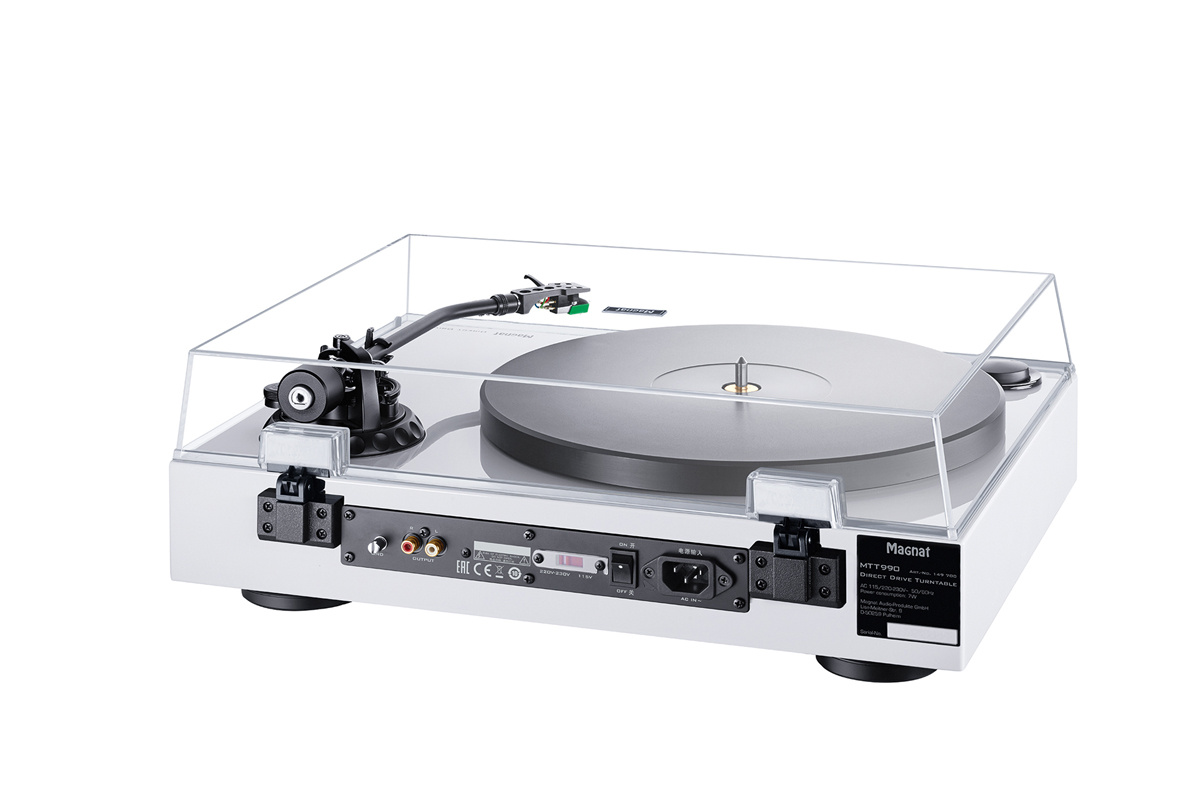

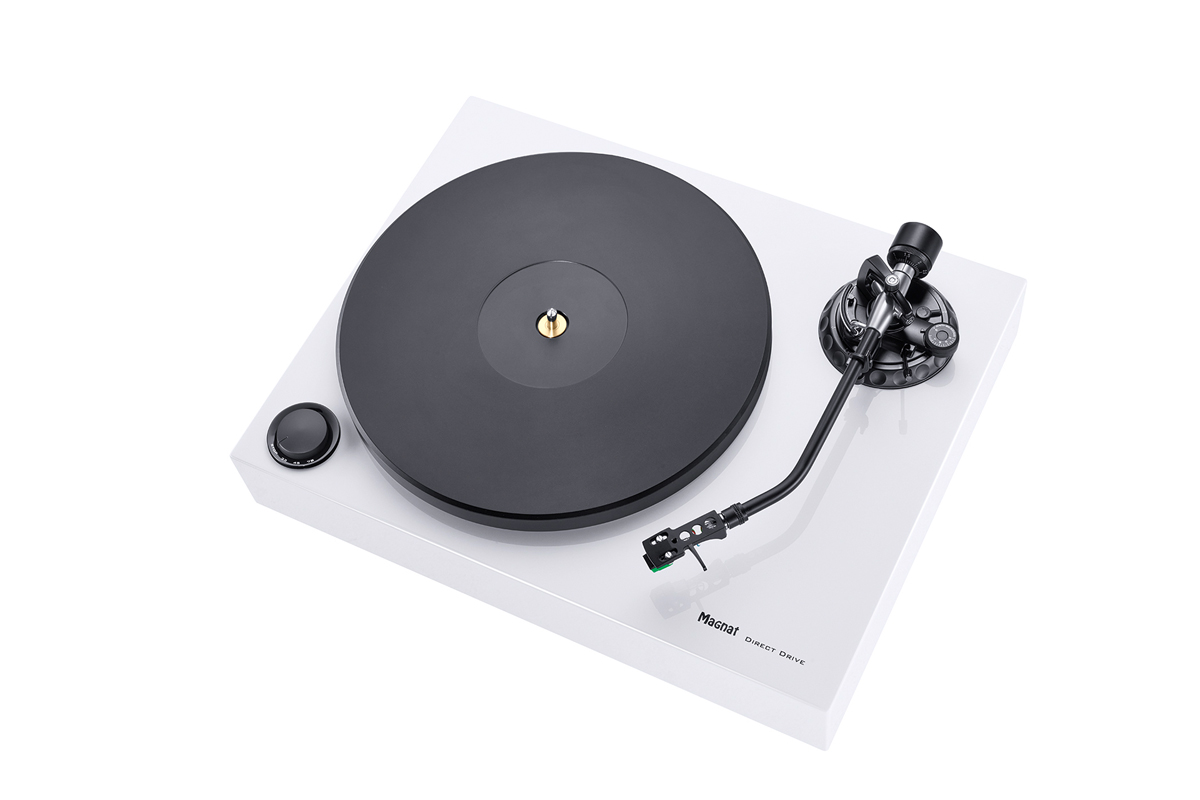

The Magnat MTT 990 is the first record player in Magnat´s company history. It was created with all our knowledge gathered from 45 years of hi-fi development and the expertise of proven analogue specialists. And because our standards are so high, the first Magnat record players just had to have a direct-drive system.
The goal was to combine the reliability of studio and DJ turntables with audiophile acoustic characteristics.
Quartz-controlled direct drive with high torque motor

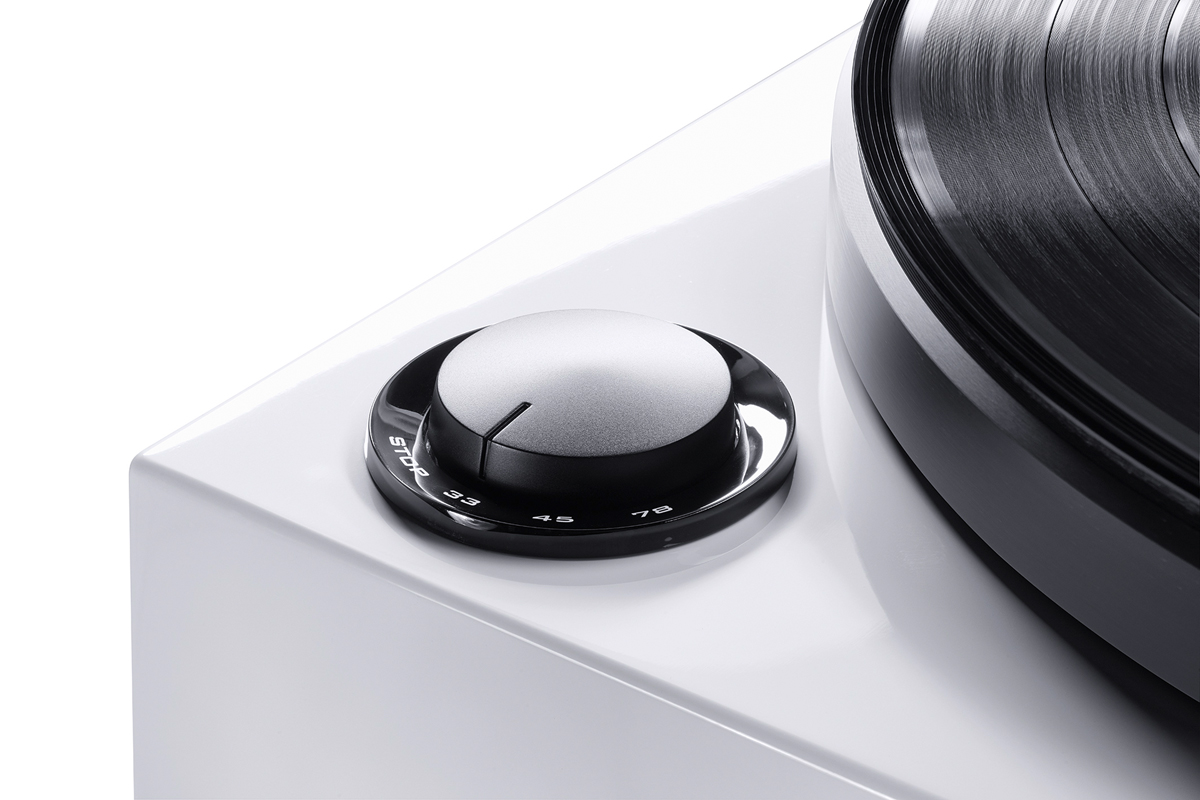

Comfortable one-button control
Speed selection: 33 1/3, 45, 78 rpm
Low standby power consumption: <0.5 Watt

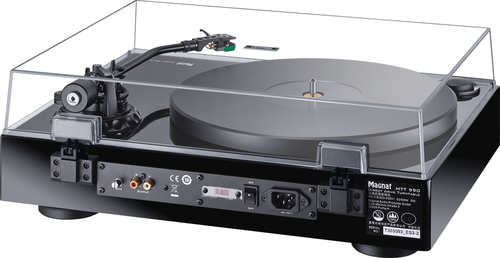

Power supply 115 / 230 VAC 50/60Hz (switchable)
PRINCIPLE
Quartz-controlled direct drive
SPEEDS
33 1/3
45
78 rpm
WOW & FLUTTER
< 0.08% (33 1/3 rpm)
SIGNAL/NOISE RATIO (A-WEIGHTED)
> 72 dB
TORQUE
> 2.2 kgf cm
SIGNAL/NOISE RATIO (UNWEIGHTED)
> 65 dB

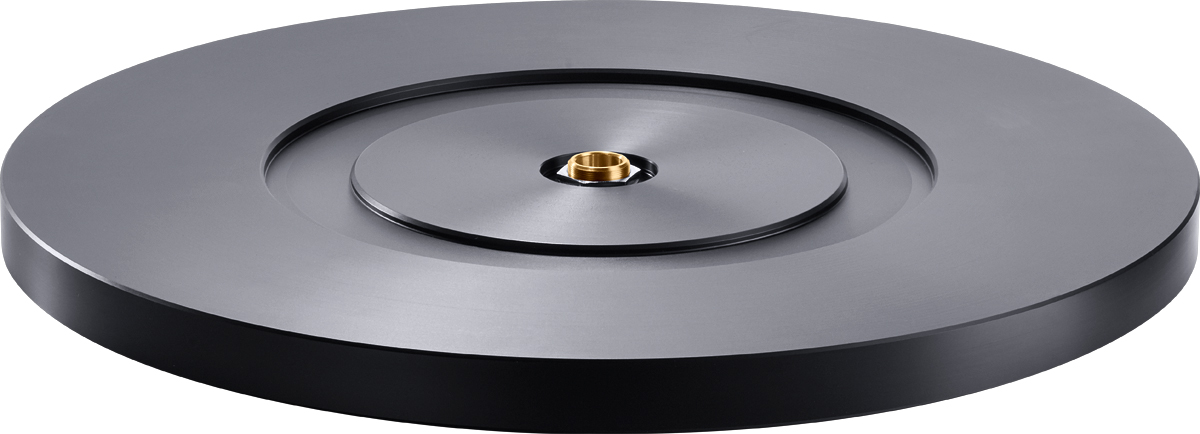

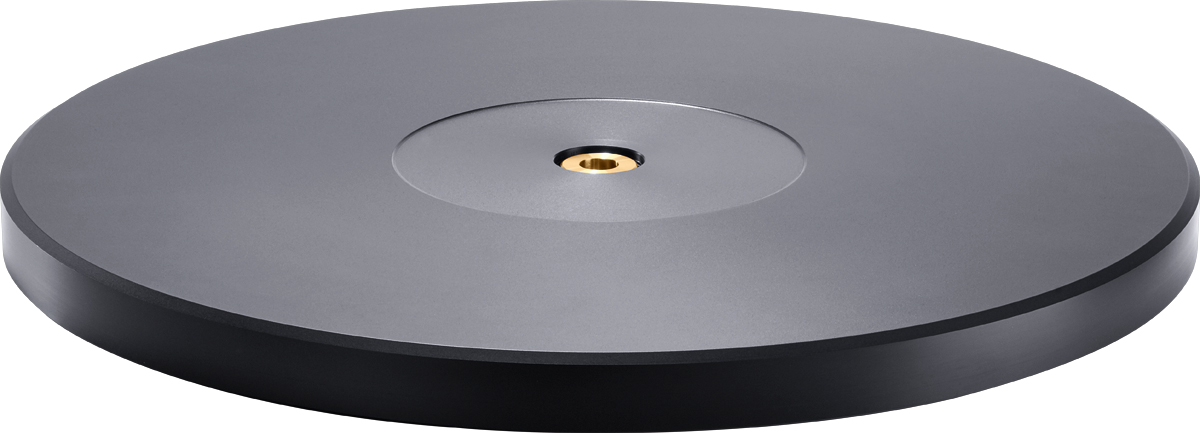

PLATTER DIAMETER
305 mm
PLATTER WEIGHT (NET)
1.9 kg

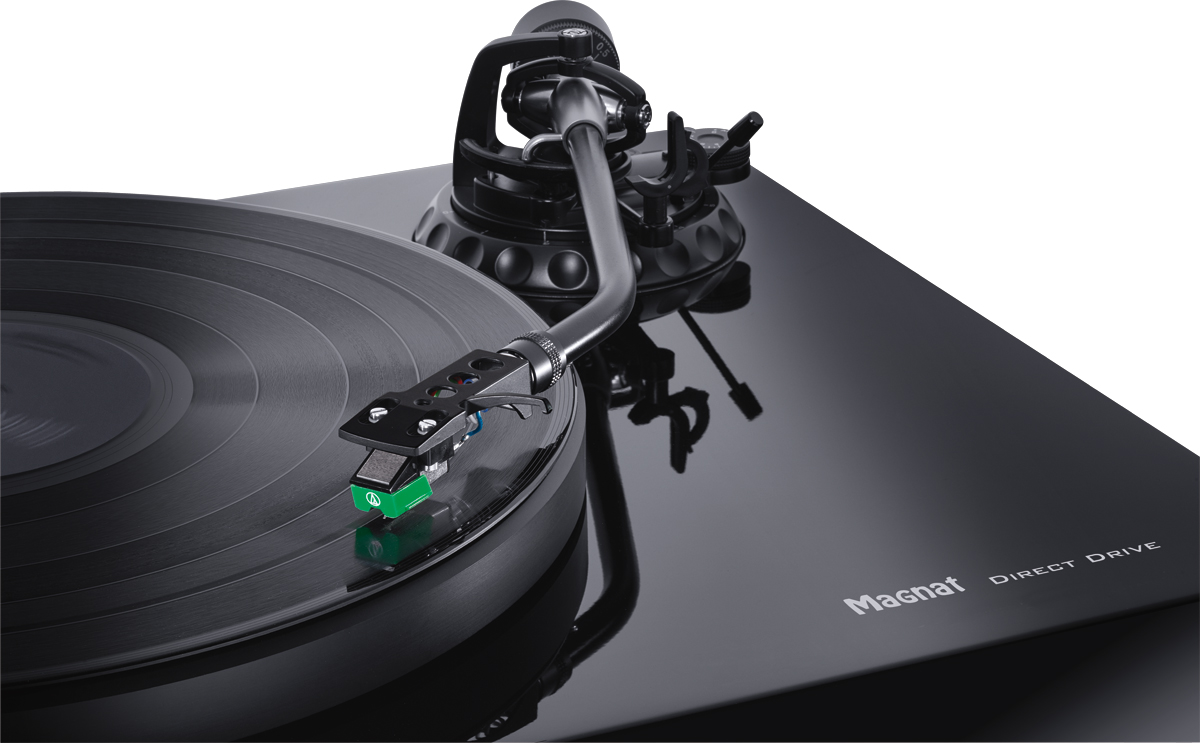

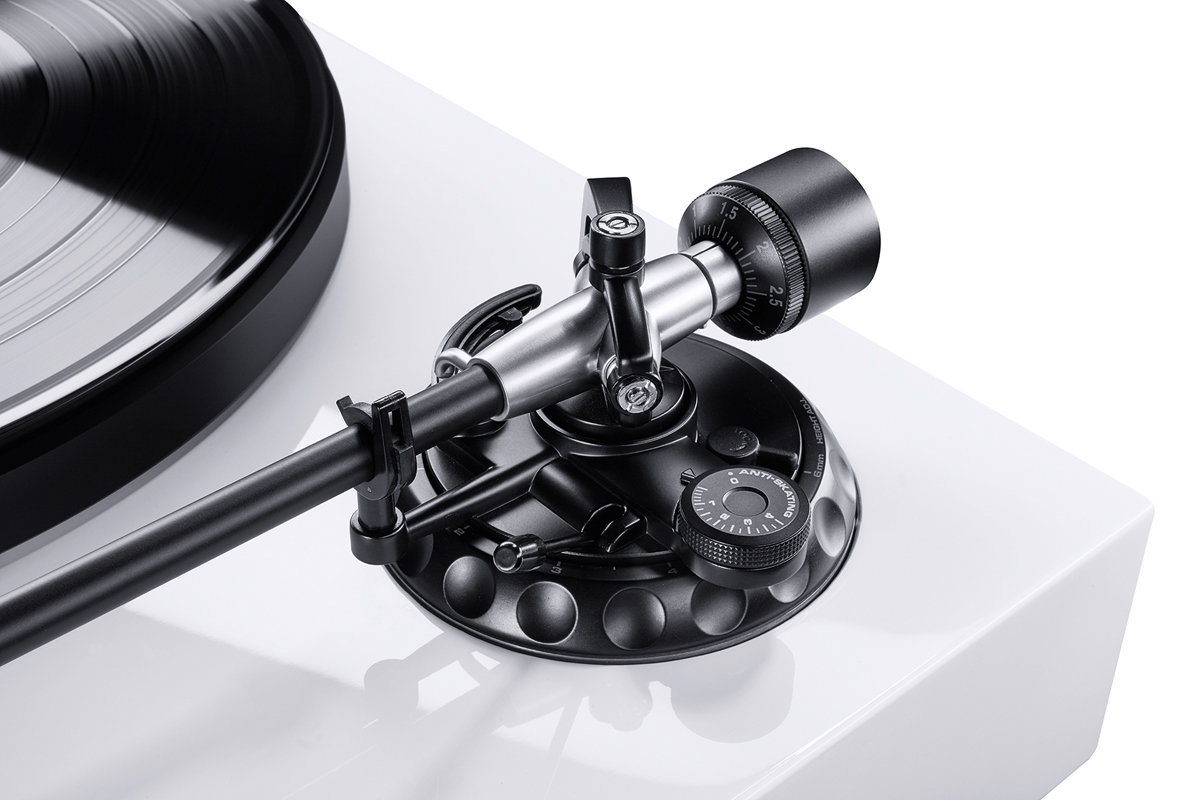

TONEARM LENGTH
10“
FOR CARTRIDGES WITH A DYNAMIC COMPLIANCE OF
Medium – medium-stiff
OVERHANG
15.3 mm
OFFSET ANGLE
21.4 °
WEIGHT OF HEADSHELL
9 g
ADJUSTMENT RANGE OF TRACKING FORCE
0 – 40 mN / 0 – 4.0 g
ADJUSTMENT RANGE OF ANTISCATING
Analogue to tracking force
VTA (HEIGHT ADJUSTMENT)
6 mm
CABINET SURFACE
Piano black
DIMENSIONS (WXHXD)

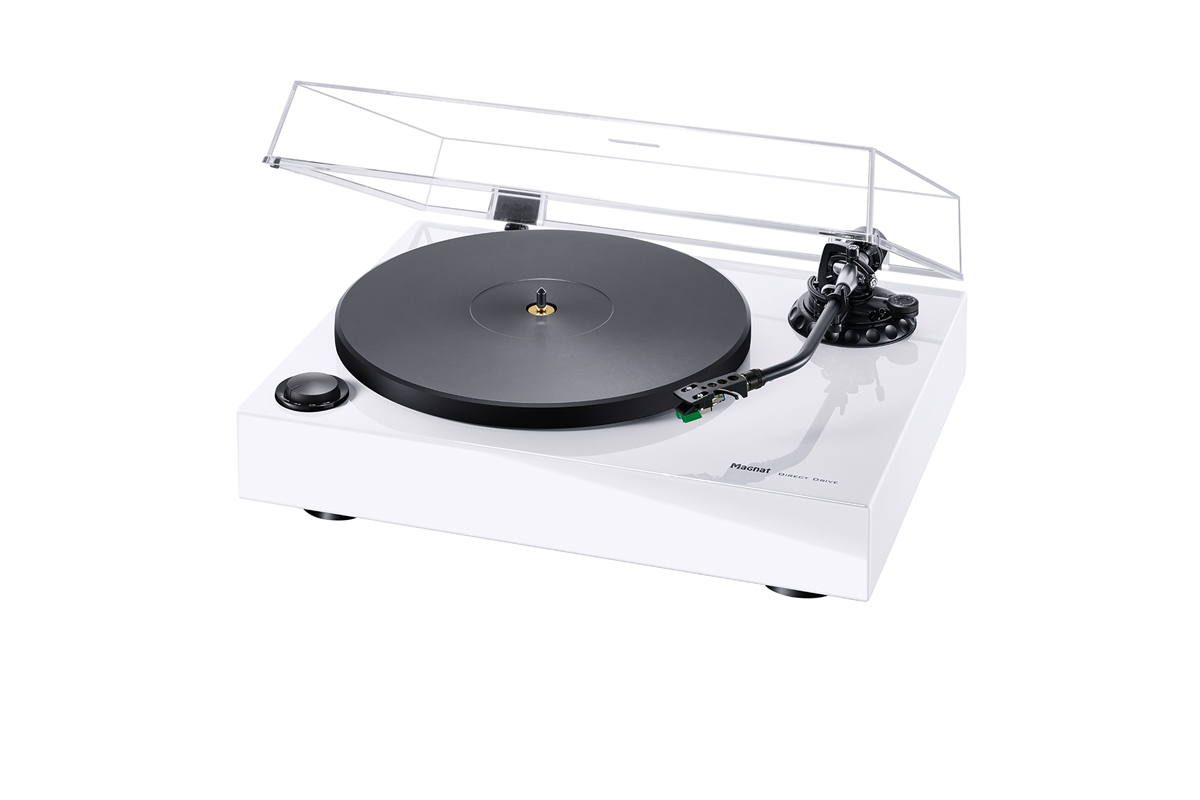

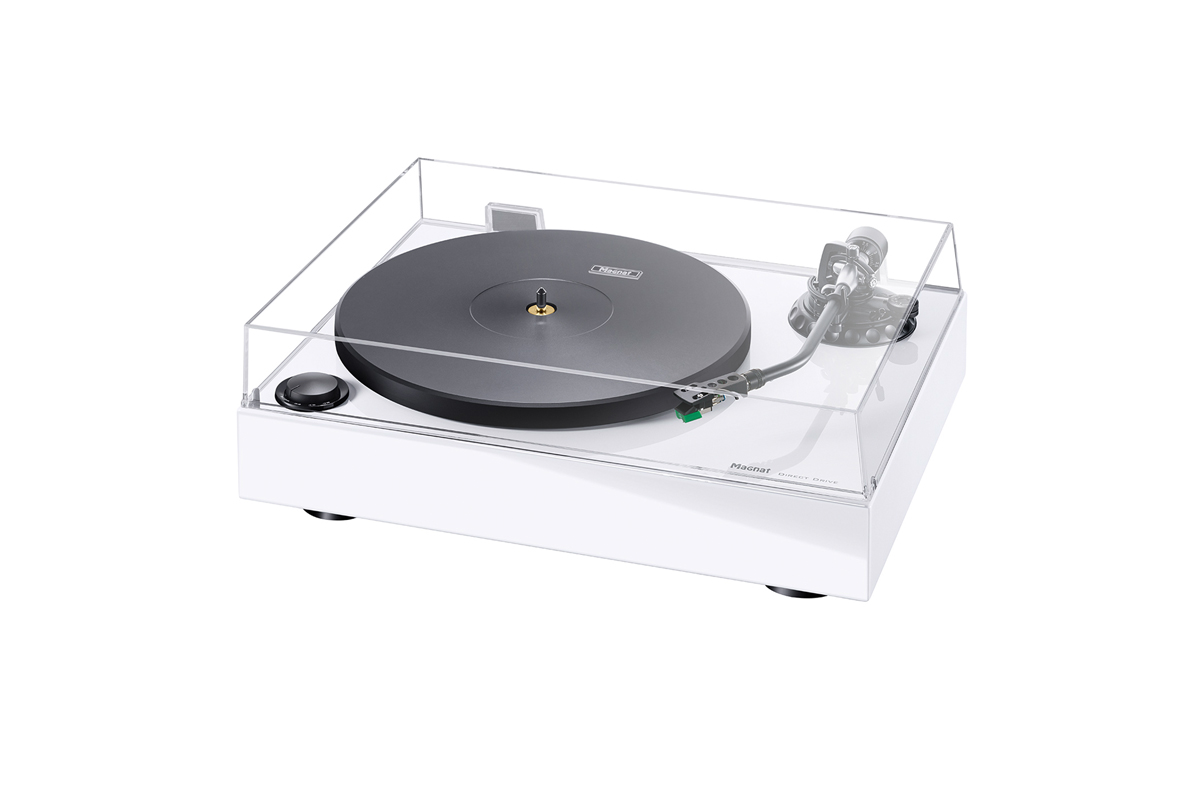

Cover closed: 450 x 162 x 367 mm
Cover open: 450 x 412 x 412 mm
WEIGHT
11 kg
