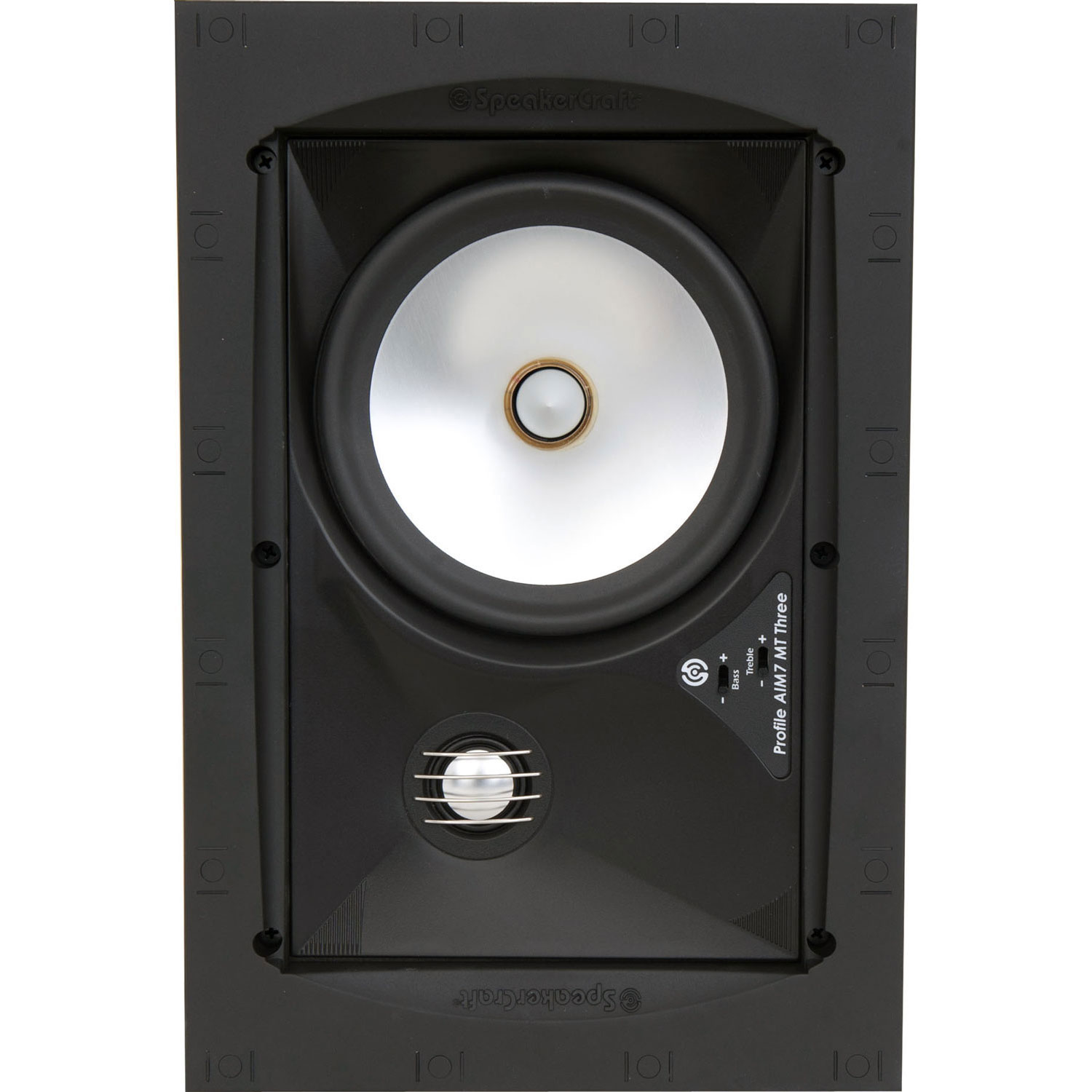

AIM Series in-ceiling speakers were the first to feature an aimable woofer/tweeter module that aims the sound in any direction you choose. No longer are you bound by the design of your room. Just mount the speakers wherever it’s convenient and point them wherever you want sound. Profile grilles are available in AIM8, AIM7 and AIM5 models.

These speakers are L & R specific and only sold in pairs
Flangeless Appearance
7″ Aluminum Cone Woofer with Dual Voice Coil and Rubber Surround with Phase Plug
Pivoting 1″ Aluminum Dome Tweeter
Front-Mounted Switches Allows for up to ±3dB of Bass and Treble Adjustment

General

FamilySpecialty

Woofer Size7 (Inches)

Woofer ConstructionAluminum Cone Woofer with Dual Voice Coil and Rubber Surround with Phase Plug

Frequency Response40Hz – 20kHz

Impedance86 (Ohms)

Power Handling125 (Watts)

Sensitivity91 (dB)

TimbreTimbre-Matched to All Three Series Speakers

SwitchesFront-Mounted Switches Allows for up to Â±3dB of Bass and Treble Adjustment

Dimensions(H x W x D) 14″ x 9 1/2″ x 4″ (at Full Pivot) (356 mm x 241 mm x 102 mm) (with Grille)

Hole Cutout Dimensions(H x W) 12 Â¾” x 8 1/16″ (324 mm x 206 mm)

Shipping Info

Length16.8 (Inches)

Width13 (Inches)

Height12.3 (Inches)

Weight13 (Lbs)

Unit of MeasurePair

Master Pack Qty4

Other Specifications

These speakers are L & R specific and only sold in pairs

Flangeless Appearance

7″ Aluminum Cone Woofer with Dual Voice Coil and Rubber Surround with Phase Plug

Pivoting 1″ Aluminum Dome Tweeter

Front-Mounted Switches Allows for up to Â±3dB of Bass and Treble Adjustment
