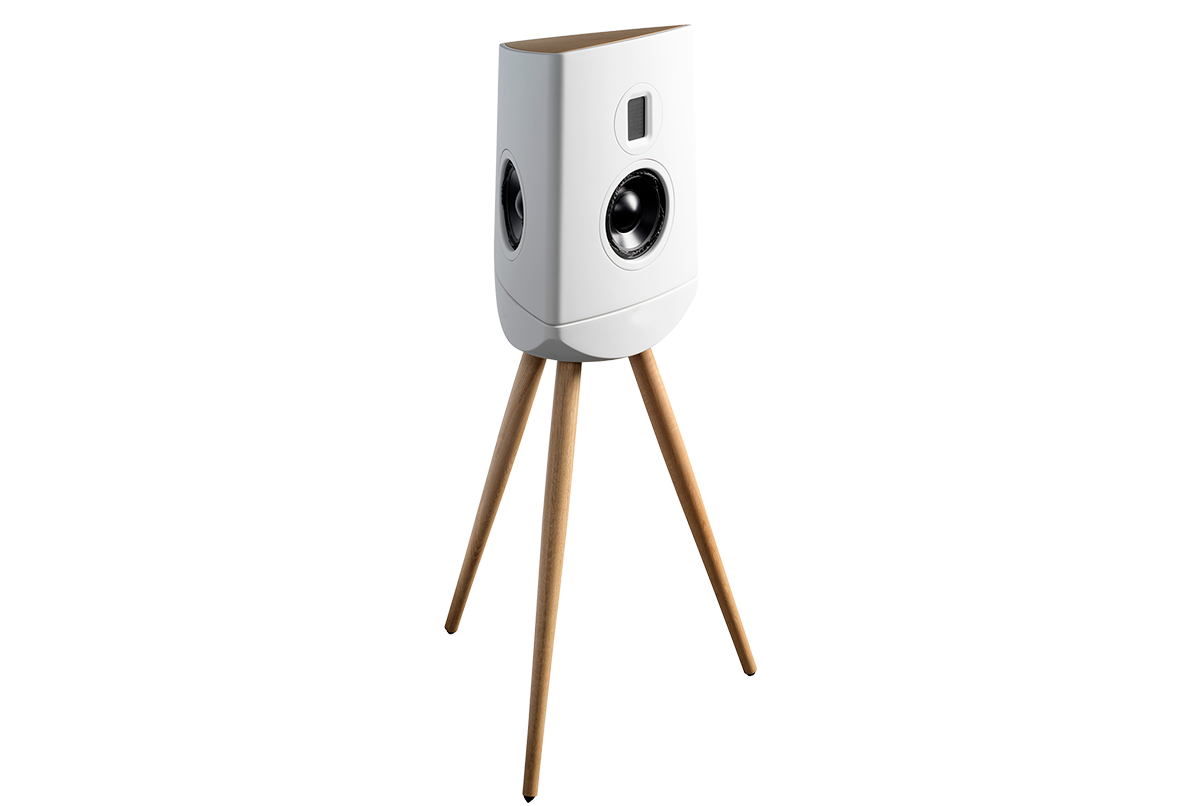

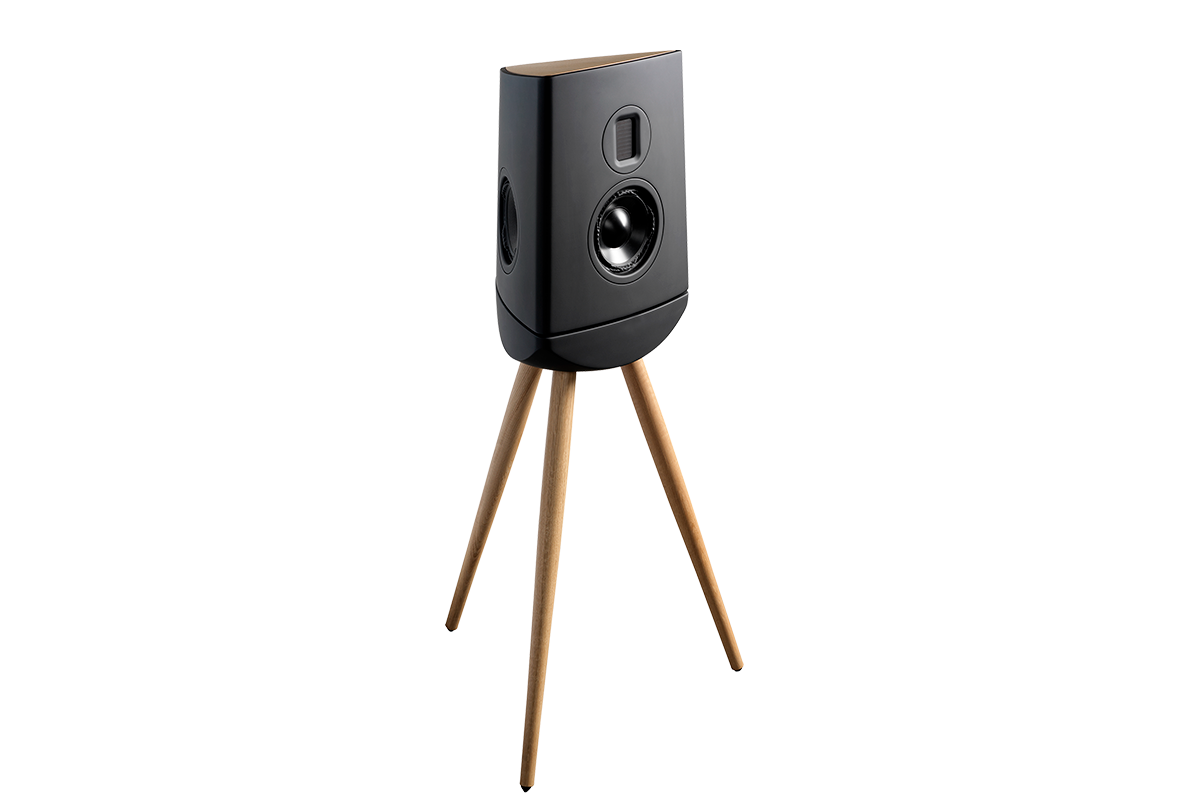

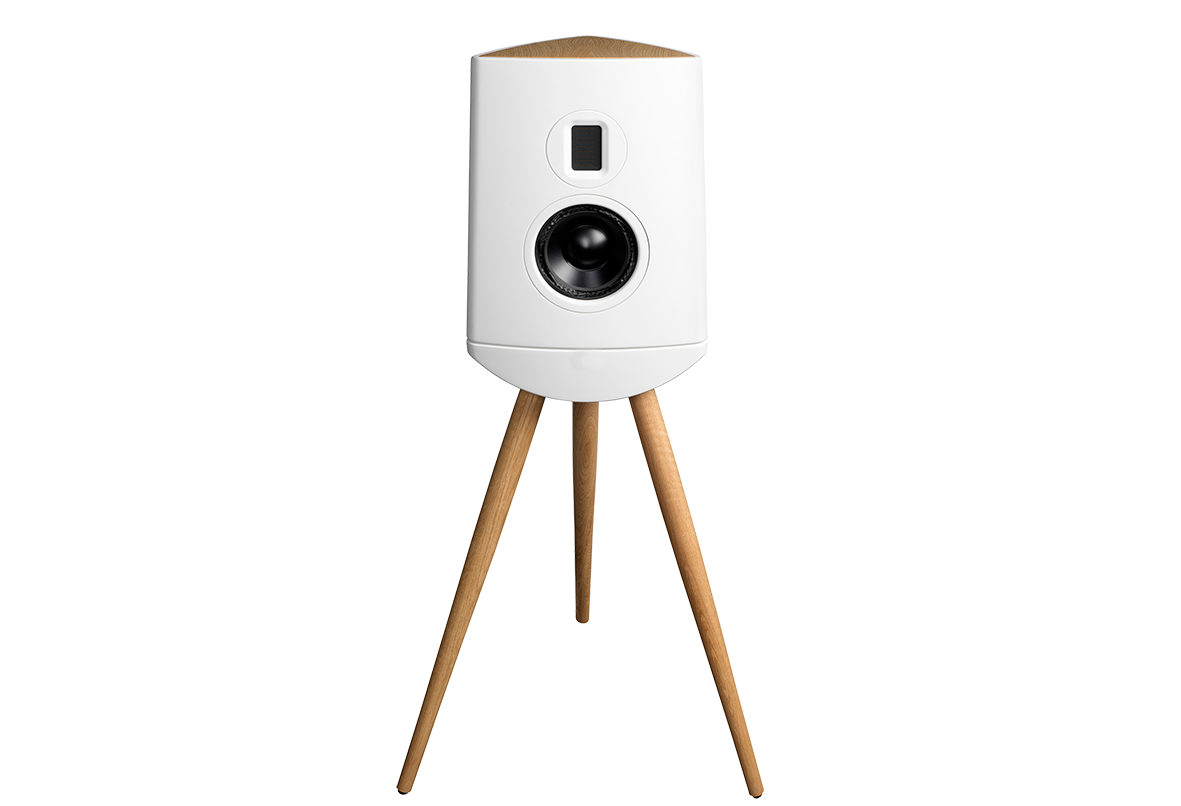

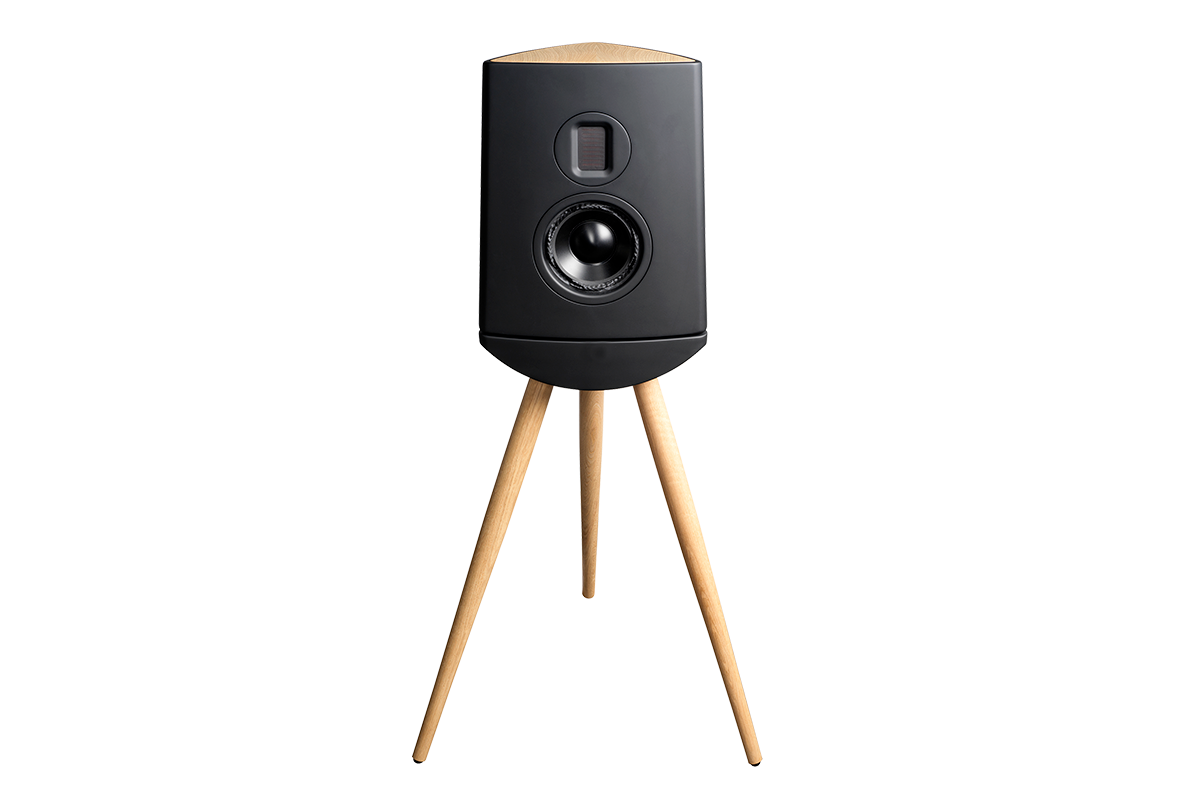

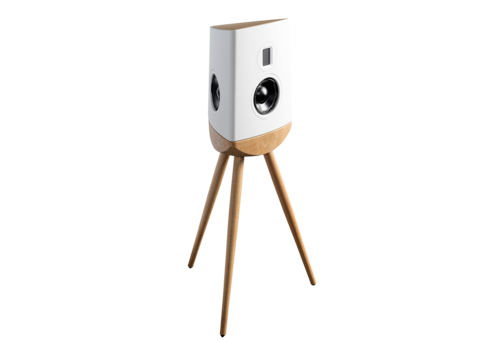

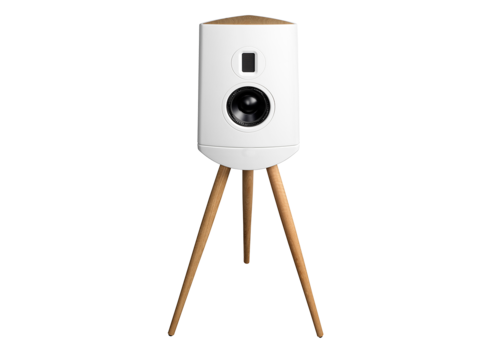

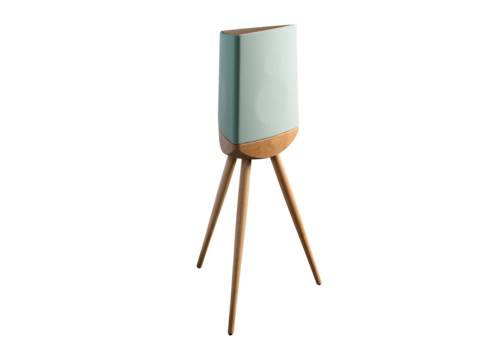

A high-end design loudspeaker from Lyngdorf Audio
While digital amplifiers are the DNA of Lyngdorf Audio, loudspeakers are part of the company since its foundation. The Cue-100 is another milestone in Lyngdorf Audio’s speaker history. This high-end audio loudspeaker merges modern Danish design with the latest and best speaker technology. Designed and made at Lyngdorf Audio in Skive, Denmark, the Cue-100 is the perfect loudspeaker for audiophile enthusiasts as well as design-conscious music lovers.
Benchmark-setting Purifi technology
Purifi from Denmark has set new benchmarks in speaker technology by creating ultra-low-distortion long-stroke woofers. Purifi achieves the market’s lowest distortion, highest sound purity, and overall best measured performance. Several innovative technologies were developed to achieve this result. The most recognizable is the Neutral Surround Geometry, where the ring shape consists of alternating mountain ridges. The result of such ultra-low-distortion: Outstanding sound purity and a detail resolution never heard before. Lyngdorf’s own Air Motion Transformer extends this level of sound performance to the highest frequencies.
Advanced acoustic design and solid wood base

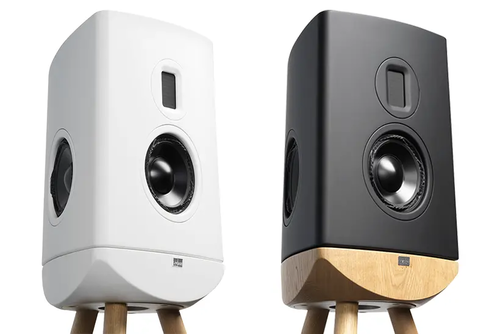

The unique triangle shape consists of three tapered and slightly rounded sides machined from 35mm thick, CNC-machined MDF. This design reduces resonance and internal standing waves, while giving the speaker a slender appearance when viewed from the listening angle. The base is machined from solid oak or MDF and increases the rigidity further. With four different cabinet combinations and five different optional fabric covers made by Gabriel from Denmark, the Cue-100 is customizable in 24 different color combinations.
The perfect match for any room shape or size
When using the Cue-100 together with a Lyngdorf TDAI amplifier or MP multichannel processor, the company’s own RoomPerfect™ technology acoustically adapts the Cue-100 to the room, always achieving the best possible sound performance in a given room. RoomPerfect™ also allows an unusually high degree of freedom when placing the speakers in the room, meeting the highest demands in interieur design as well as high-end-audio.
Lyngdorf Cue-100 features
Purifi loudspeaker technology
The Purifi engineers developed several innovative technologies to achieve lowest distortion, for example the recognizable Neutral Surround Geometry, a current-breaking die-cast basket, a cone stiffness ring, and a four-layer copper-clad aluminum voice coil with variable winding pitch on fiberglass former.
Fabric covers from Gabriel

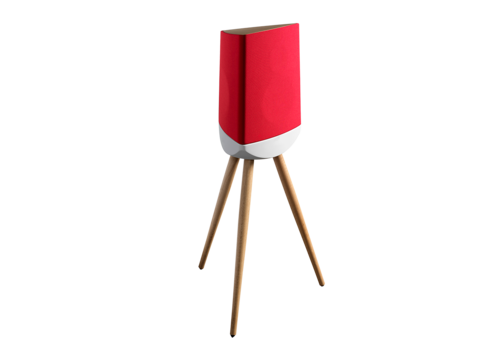

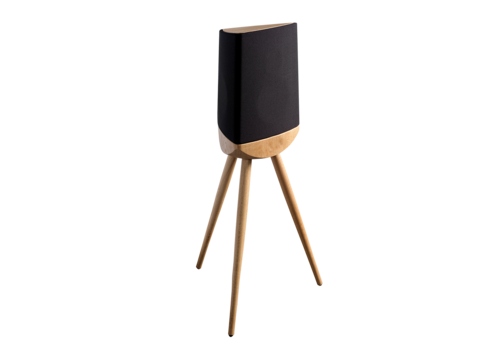

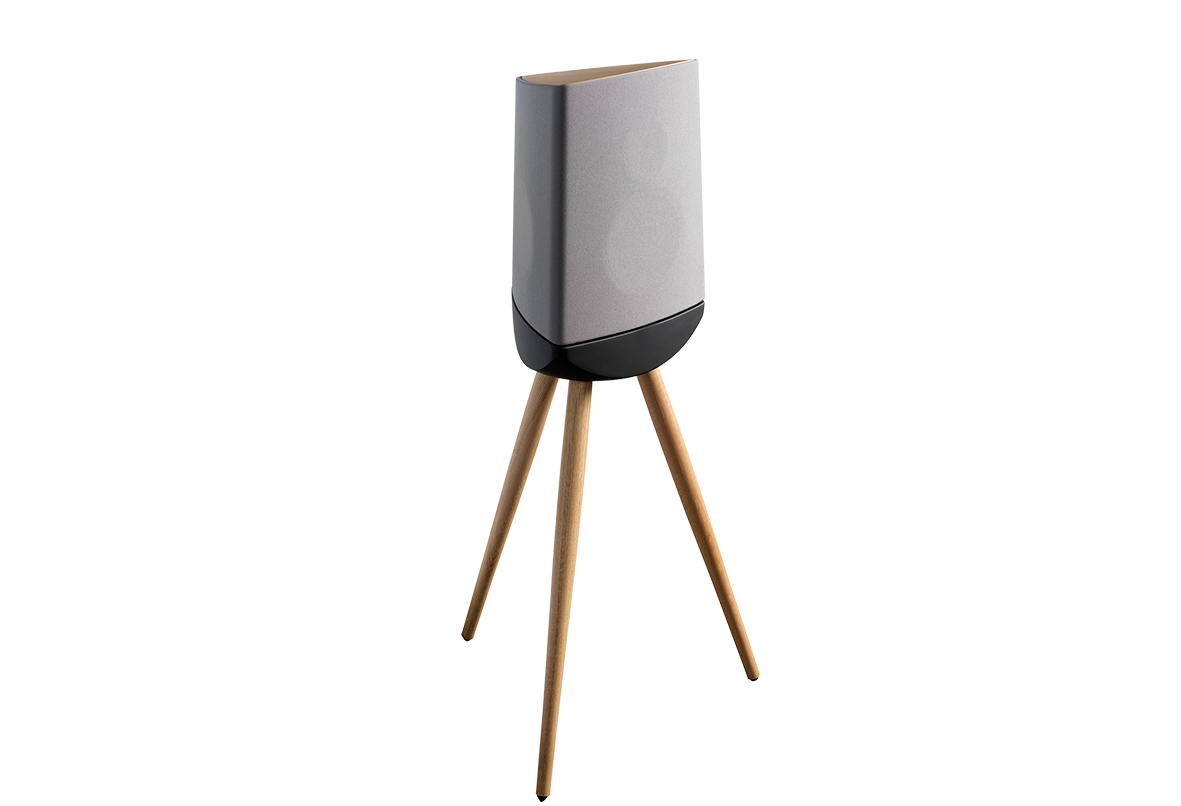

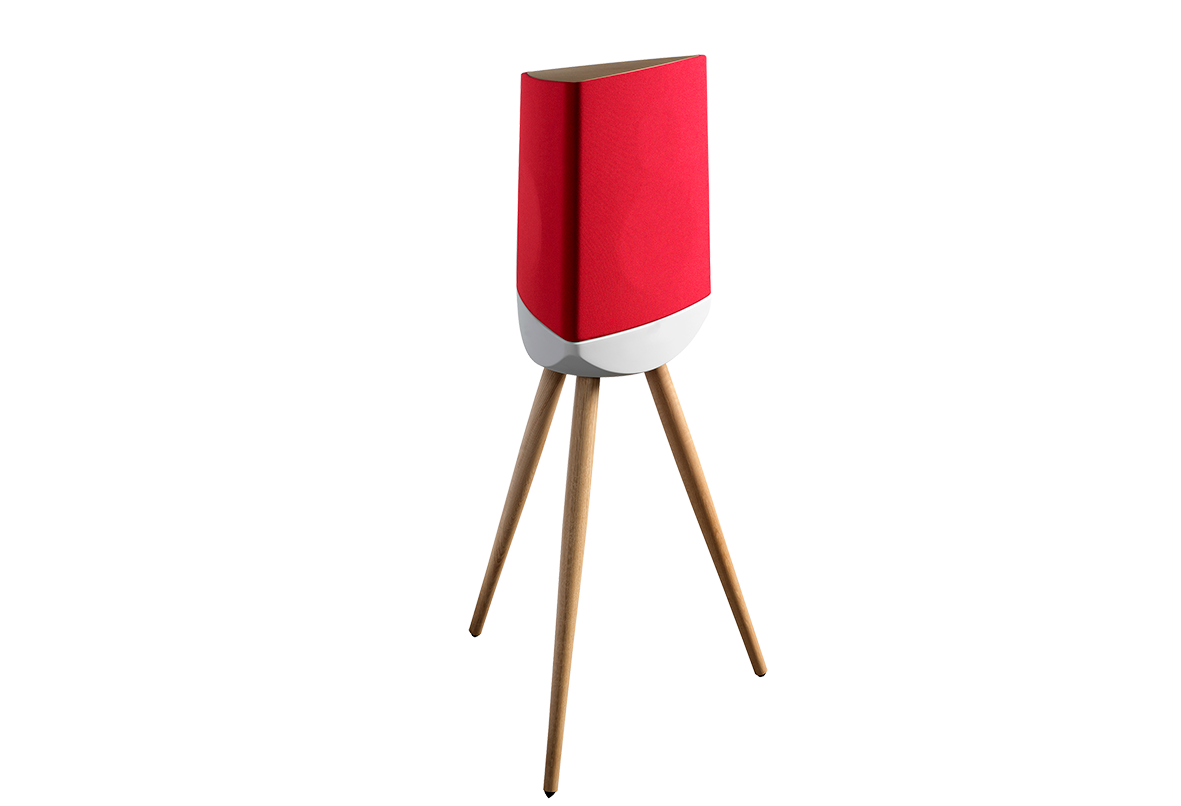

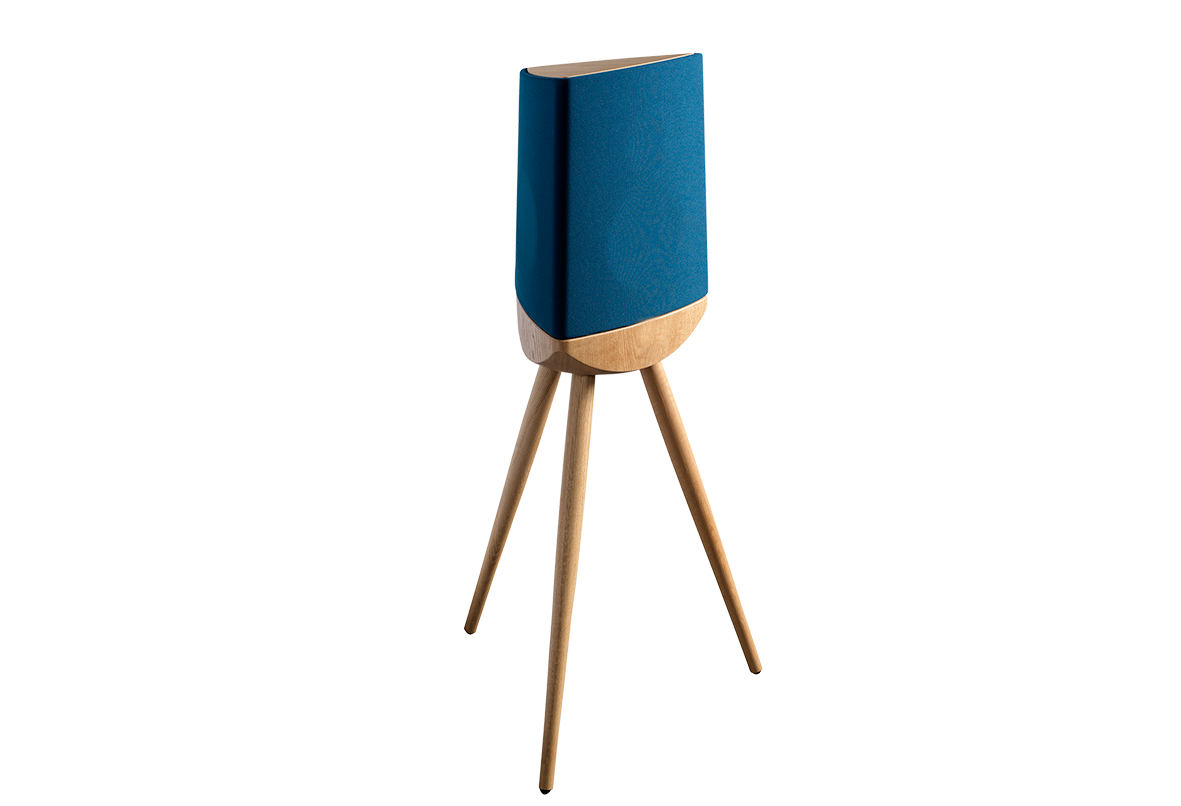

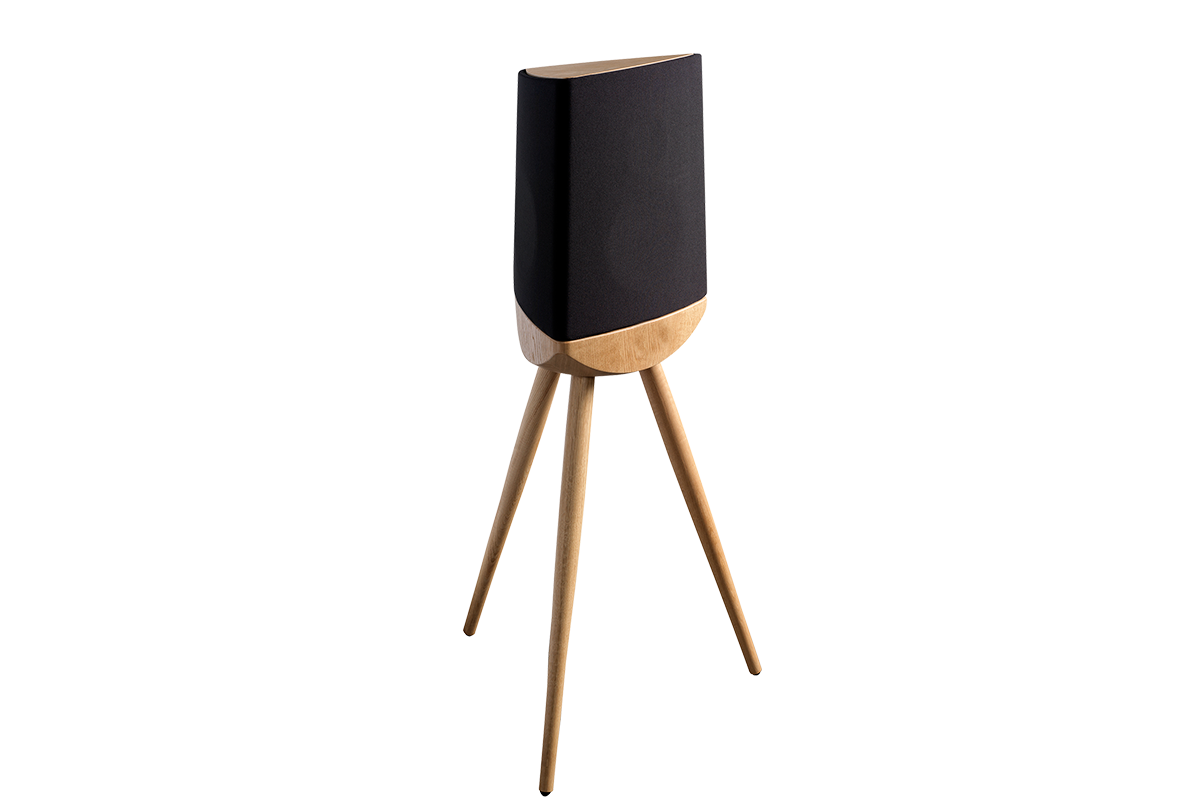

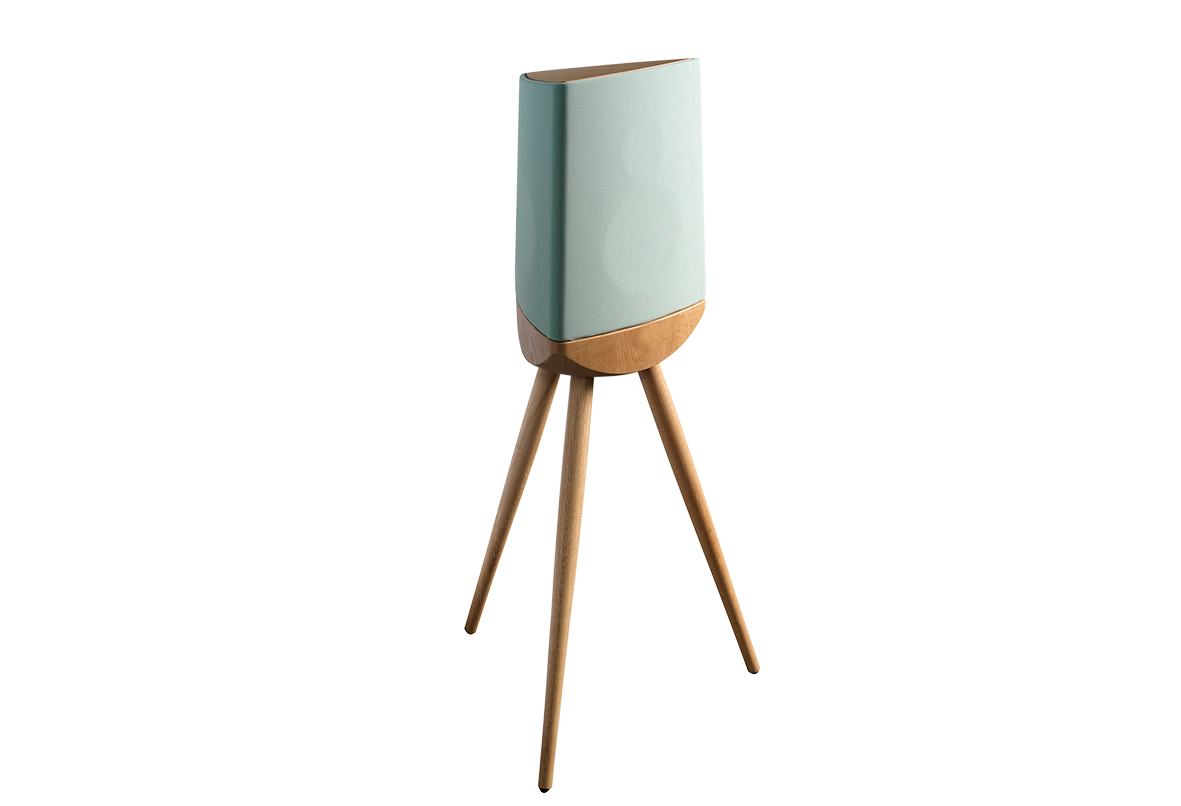

Gabriel from Denmark is one of the leading fabric specialists since 1851. Gabriel creates the finest fabrics for furniture, interiors, and acoustics. For the Cue-100 an all-around speaker cloth was designed, available as an optional accessory in grey, black, petrol blue, dusty green, and red. It is OEKO-TEX® STANDARD 100 certified.
See the fabric color options here:
Specifications
Description: Standmount loudspeaker
Power handling: 250 W
Tweeter: Air Motion Transformer, Kapton foil, Neodymium magnet
Midrange/woofer: 18 cm / 6.5-inch Aluminum cone, 39 mm 4-layer copper-clad aluminum voice coil on fiberglass former, Neutral surround geometry, Die-cast vented basket
Woofer: 2 x 18 cm / 6.5-inch passive radiator, Aluminum cone, Neutral surround geometry, Die-cast vented basket
Enclosure: MDF, oak
Frequency response: 35 – 22,000 Hz (-3 dB)
Nominal impedance: 4 Ohm
Sensitivity: 83 dB 2.83 v/ 1 m
Crossover frequency: 2300 Hz
Connections: Gold-plated speaker binding posts
Recommended placement: On stand (included)
Dimensions (W x H x D): 350 x 513 x 329 mm /13,8 x 20,2 x 13 inches
597 x 1196 x 520 mm / 23,5 x 47,1 x 20,5 inches (including stand)
Weight: 13,8 kg / 30.4 lbs
16,2 kg / 35.7 lbs (including stand)

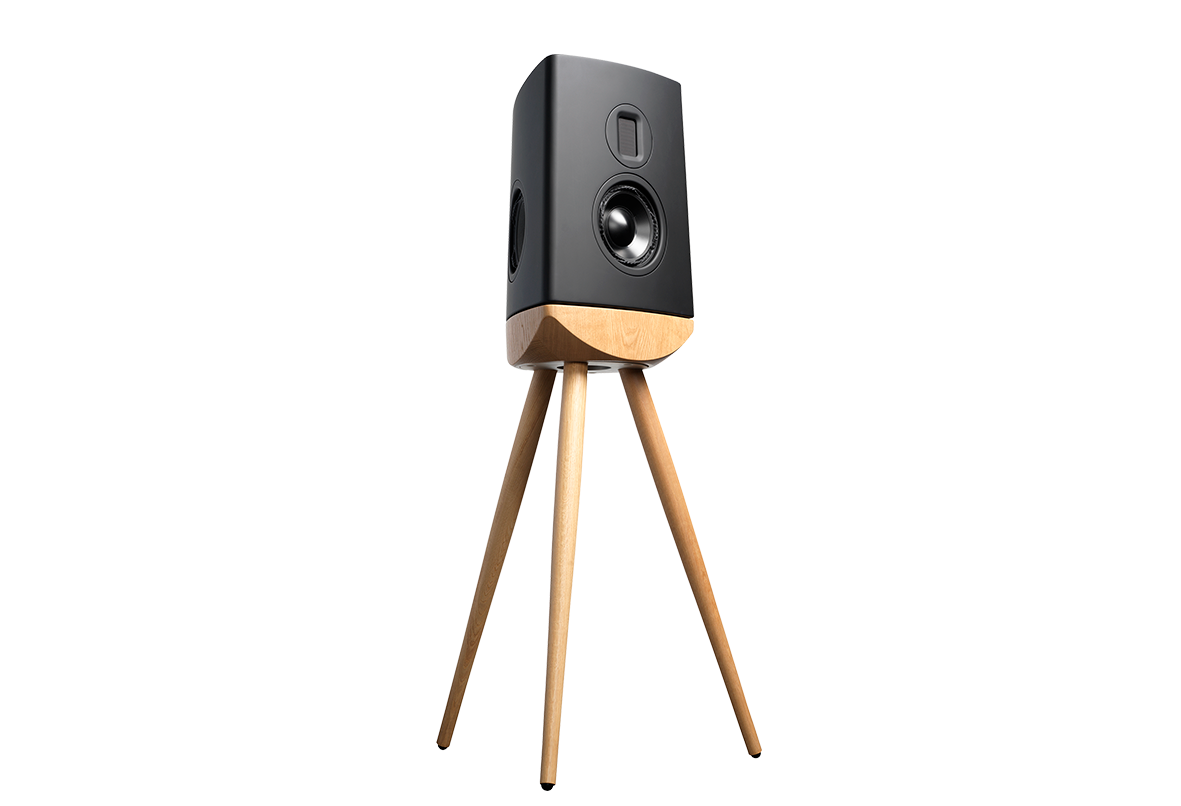

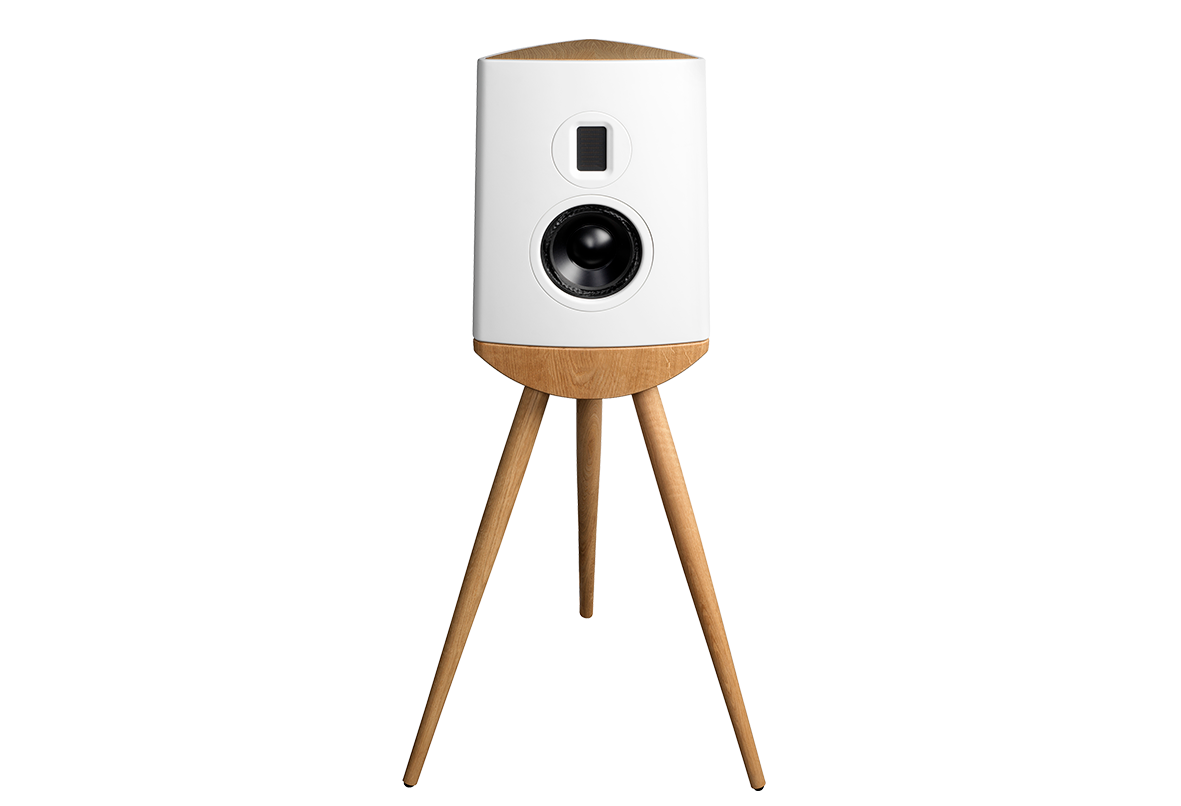

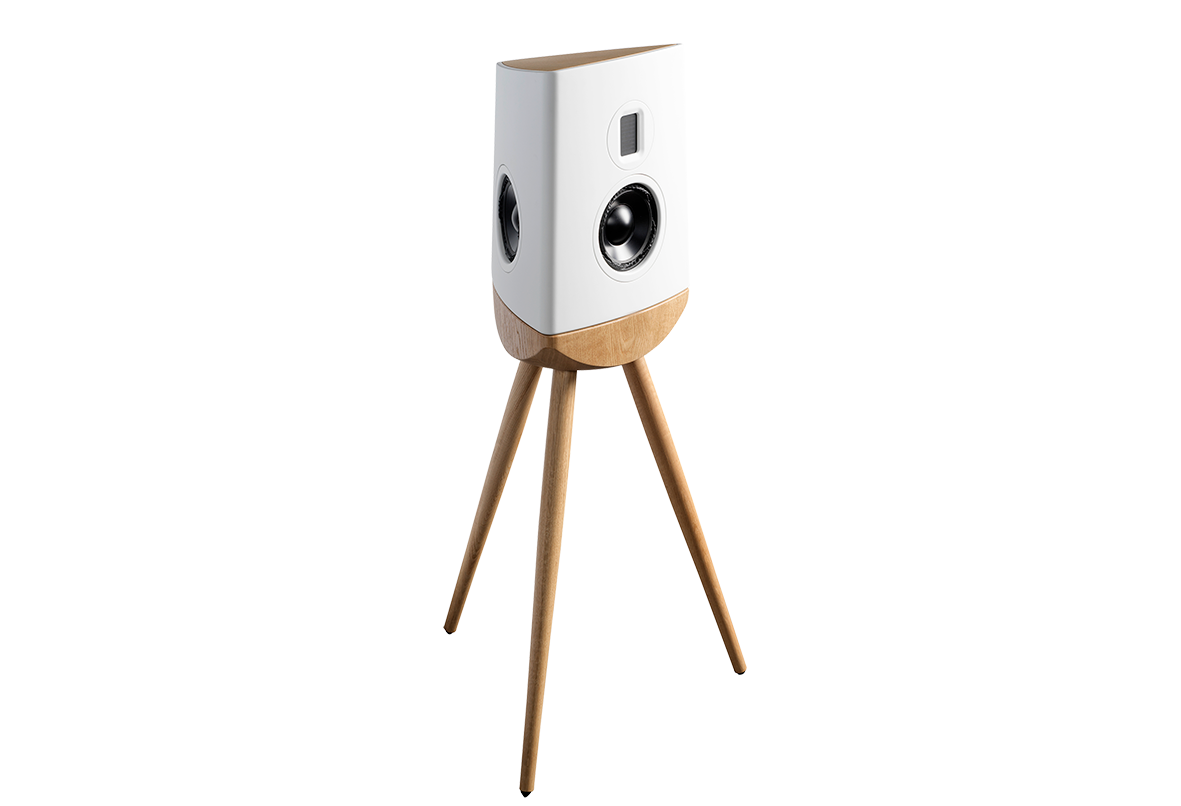

Standard finishes: white/oak base, black/oak base, white/white base, black/black base, stand legs in oak, optional fabric covers in different colors
