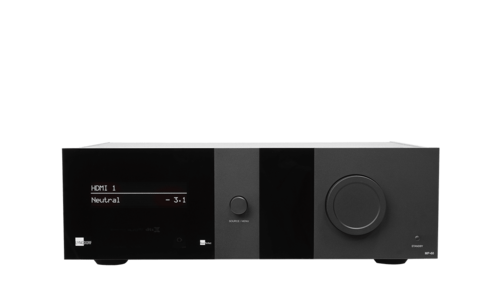

MP-60 2.1 is equipped with all the advanced technologies for which Lyngdorf Audio is known, including the renowned room correction system RoomPerfect and the unsurpassed quality in digital signal processing. Together with the Steinway Lyngdorf version, the P300, the MP-60 2.1 is developed at the group headquarters in Skive, Denmark.
State-of-the-art HDMI processing
The MP-60 2.1 processor is intuitive to use and offers extraordinarily easy installation. It decodes up to 16 native audio channels which can be mapped out intelligently through the sleek website interface. The MP-60 2.1 offers full support of the latest immersive surround formats including Dolby Atmos®, DTS:X® Pro and AURO-3D®.
With five HDMI inputs and two outputs, this new masterpiece from Lyngdorf Audio now supports HDMI 2.1 including features eARC, Dynamic Lip-Sync and QMS (Quick Media Switching) as well as the latest decoding and post-processing formats. The MP-60 2.1 supports 40 Gbps fixed rate link (FRL) and 18 Gbps transition minimized differential signaling (TMDS) video rates. The MP-60 2.1 supports Variable refresh rate (VRR), Quick Frame Transport (or Fast Vactive), and auto low latency mode (ALLM) support and high dynamic range (HDR) metadata passthrough for HDMI dynamic HDR, HDR10+, and Dolby Vision™.
eARC will allow for a full Dolby Atmos audio bitstream being returned to the processor from the television, ensuring full audio quality from the TV’s built-in media players.
Specifications
Decoding: 16 decoding/upmixing channels, Dolby Atmos®, DTS:X Pro (14 channels), AURO-3D® (14 channels), all legacy codecs
Post processing options: Dolby Surround, AURO-MATIC®, DTS Neural:X

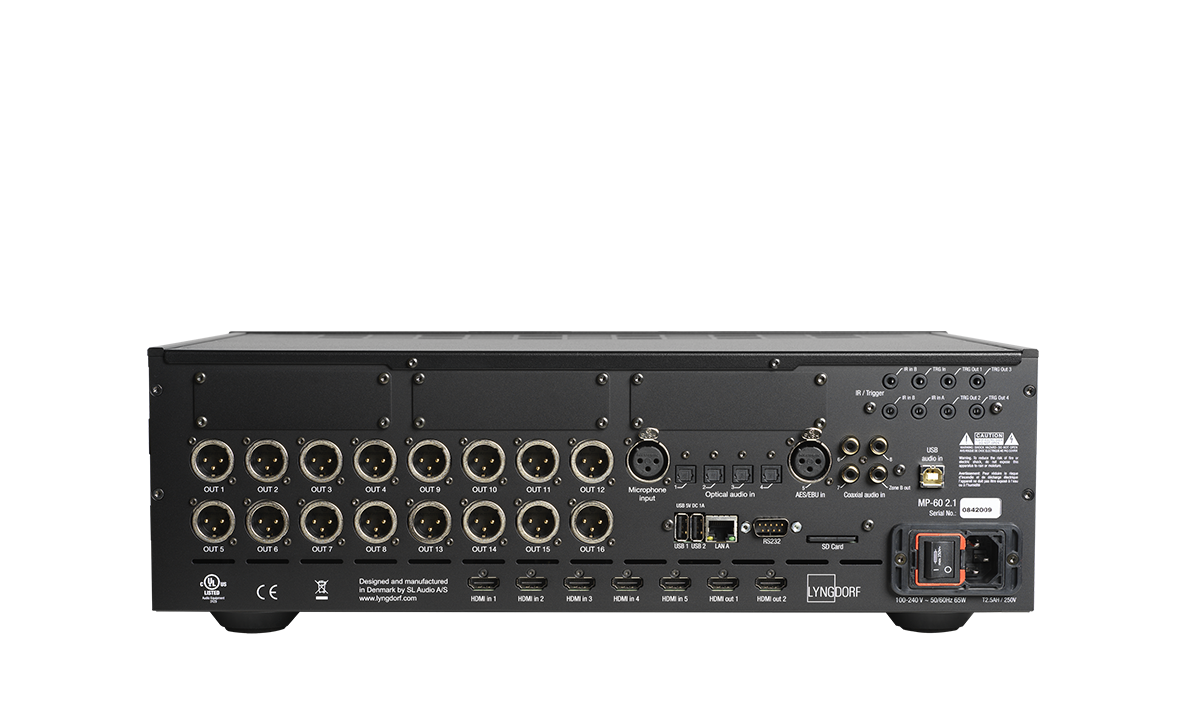

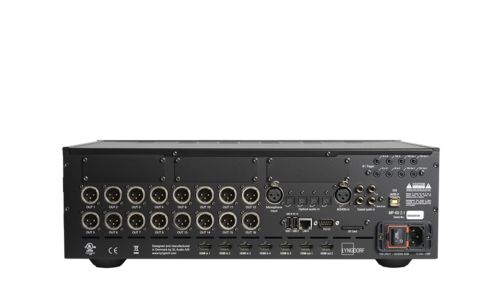

Audio inputs: 5 x HDMI™, 1 x HDMI™ eARC (≤192kHz/24bit), 1 x AES/EBU S/P-DIF input (≤192kHz/24bit), 3 x S/P-DIF coaxial inputs (≤192kHz/24bit), 4 x S/P-DIF optical inputs (≤96Hz/24bit), 1 x USB audio input (≤192kHz/32bit), 1 x microphone input (XLR) for RoomPerfect™
Audio outputs: 16 x XLR analog outputs (16 Vrms), 1 x SPDIF coax digital ZONE output (Fix 96kHz/24bit)
Audio specifications: Frequency response: ±0,5dB from 20 to 20,000 Hz, Total harmonic distortion: 0.005% max from 20 to 20,000 Hz
EQ: RoomPerfect, Subwoofer level assistant, 32 x adjustable voicings holding ≤8 shelving, high/low pass or parametric filters with adjustable gain and Q
Media player: Internet radio (vTuner), AirPlay, Spotify Connect, Roon Ready, DLNA Support of FAT32 based media storage (uPnP/see DLNA formats)
Video inputs: 5 x HDMITM (2.1 – HDCP 2.3), accepts 8k30 RGB/YCbCr 4:4:4 10-bit video, 8k60 YCbCr 4:2:0 10-bit high definition video, and 4k120 4:4:4 10-bit high frame rate video, Variable refresh rate (VRR), fast vactive (FVA), and auto low latency mode (ALLM) support. accepts HDR, Dolby VisionTM and HLG
Video outputs: 2 x HDMI (HDCP 2.3)
Video scaling: Upscaling of all video to 4K ultra high definition, no downscaling of 4K video
Control interfaces: 1 x DB9 RS232 connector, 2 x IR sensor inputs, 1 x IR output (loop from one of the sensor inputs), 1 x trigger input, 4 x trigger outputs, 1 x RJ45 ethernet LAN connector, 2 x USB A connectors, 1 x SD card slot , (Backup – storage for system software and settings)
Accessories included: RoomPerfect microphone, Microphone stand, Microphone cable, RF remote control
Optional module: 16 channel DCI-compliant digital AES/EBU input for movie servers (supports up to 32bit/192kHz), 16 channel digital AES/EBU output module (always 24bit, 48kHz or 96kHz Selectable), 16 channel AES67 digital input/output module (supports up to 32bit/192kHz input, output is always 24bit/48kHz)
Remote control: Infrared/RF
Placement options: Rack mount and freestanding
Heat dissipation value: 340 BTU
Dimensions (H x W x D): 14.7 x 45.0 x 37.0 cm, 5.8 x 17.7 x 14.6 in
Weight: 9 kg / 19 lbs
