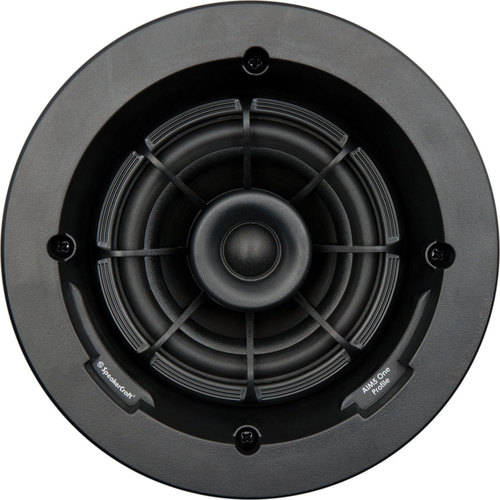

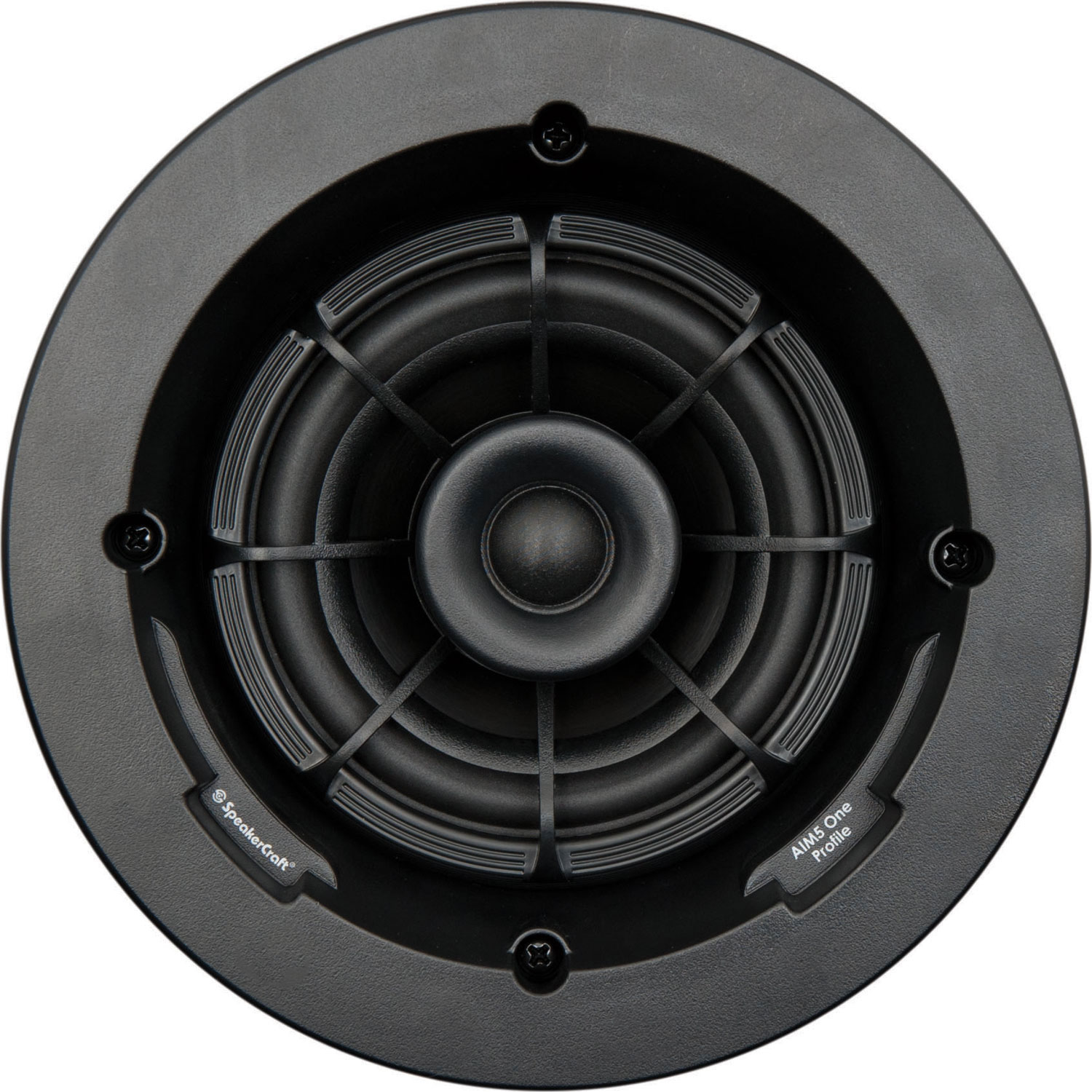

AIM Series in-ceiling speakers were the first to feature an aimable woofer/tweeter module that aims the sound in any direction you choose. No longer are you bound by the design of your room. Just mount the speakers wherever it’s convenient and point them wherever you want sound. Profile grilles are available in AIM8, AIM7 and AIM5 models.
Flangeless Appearance
Pivoting and Rotating 5 ¼” Injection Molded Polypropylene Cone Woofer
Pivoting ¾” Treated Silk Dome Tweeter
U.S. Patent No. D419,561 & 6,101,262General
FamilyProfile AIM
Woofer Size5.25 (Inches)
Frequency Response55Hz – 20kHz
Impedance8 (Ohms)
Power Handling75 (Watts)
Sensitivity88 (dB)
TimbreTimbre-Matched to All One Series Speakers
Dimensions7-15/16″ x 4-1/2″ (201 mm x 114 mm)
Hole Cutout Dimensions6-5/8″ (168 mm)
