Frequency Response / Acoustic Data:
Frequency Response: 42Hz – 25kHz (±3 dB)
Active Speaker Cabinet Dimensions:
295mm (H) X 180mm (W) X 228mm (D)
11.61" (H) X 7.09" (W) X 8.96" (D)
Passive Speaker Cabinet Dimensions:
295mm (H) X 180mm (W) X 225mm (D)
11.61" (H) X 7.09" (W) X 8.85" (D)
Package Dimensions:
390mm (H) X 465mm (W) X 296mm (D)
15.35" (H) X 18.31" (W) X 11.73" (D)
Weight:
Active Speaker Weight Unboxed: 12.3 lbs (5.58kg)
Passive Speaker Weight Unboxed: 11.68 lbs (5.3kg)
Packaged Weight System Pack: 28.0 lbs (12.7kg)
Driver Specs:
1” Aluminum Dome Tweeter:
FEA-optimized diffuser for airy and unveiled presentation
Aluminum dome for exceptional transient response
5.25" Mid-bass Driver:
Polypropylene cone for excellent stiffness/mass ratio and pistonic behavior
Aluminum shorting ring to reduce gap inductance, lower distortion, and enhance high frequency response
Cast ABS-fiberglass composite basket ensures precision component alignment and excellent thermal transfer
Vented voice coil former minimizes air compression artifacts
Amplifier Specs:
Dual Class-D Power Amps for Discrete Driver Bi-amplification
200 watt (50 watt x 4) RMS Power
Digital controlled tweeter-to-woofer crossover: 2kHz (12dB/octave slope)
Speaker Cabinet Specs:

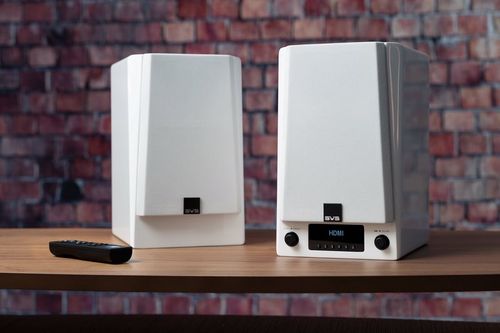

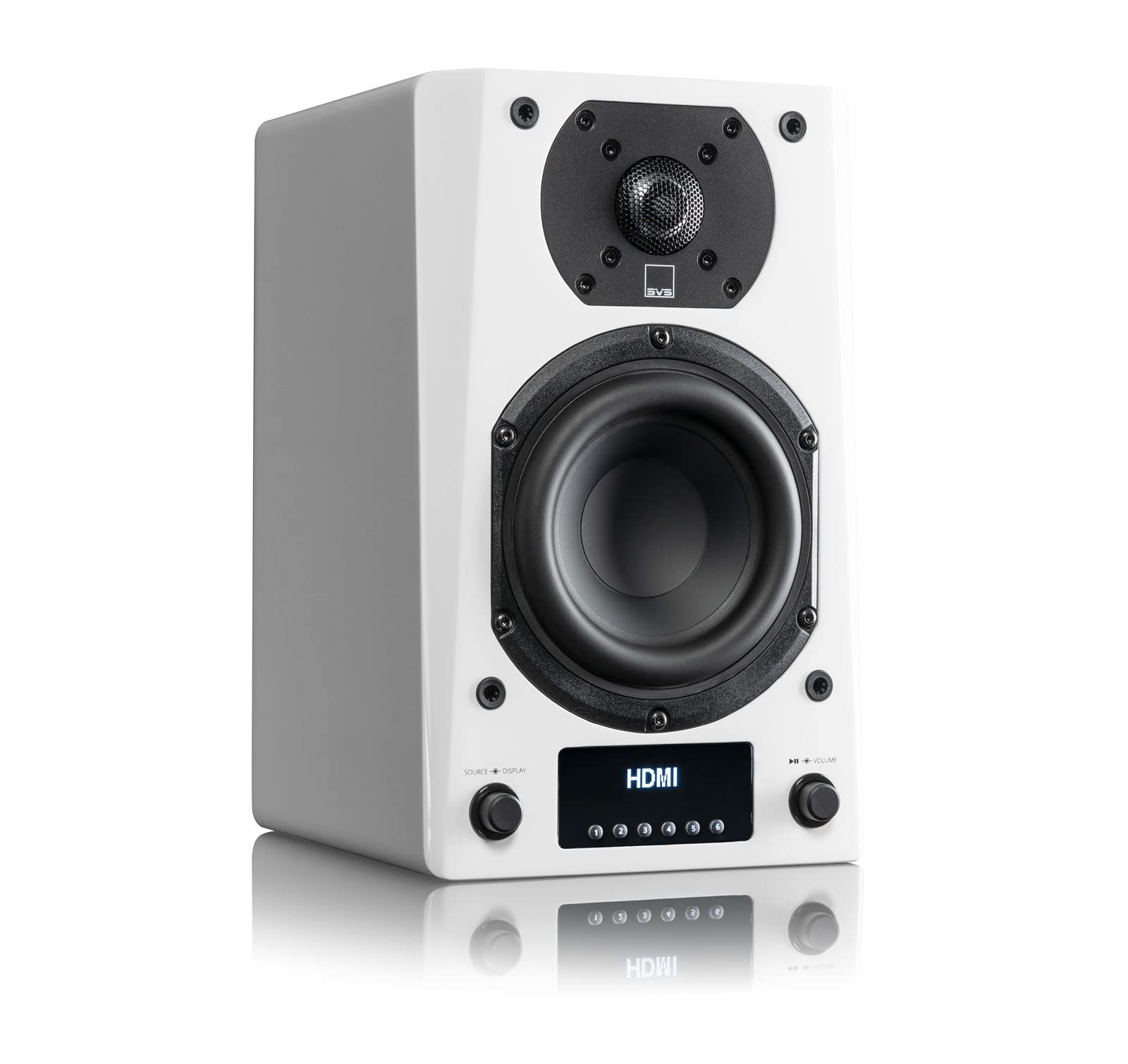

Finish Options: Piano Gloss Black and Piano Gloss White

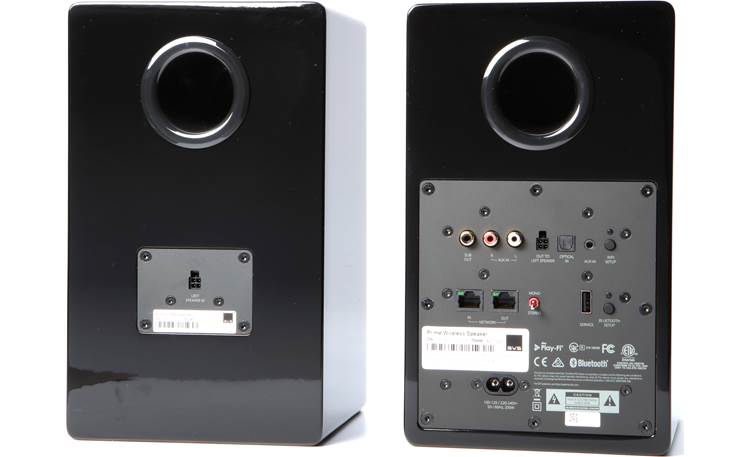

2.36" wide-flared rear-firing port

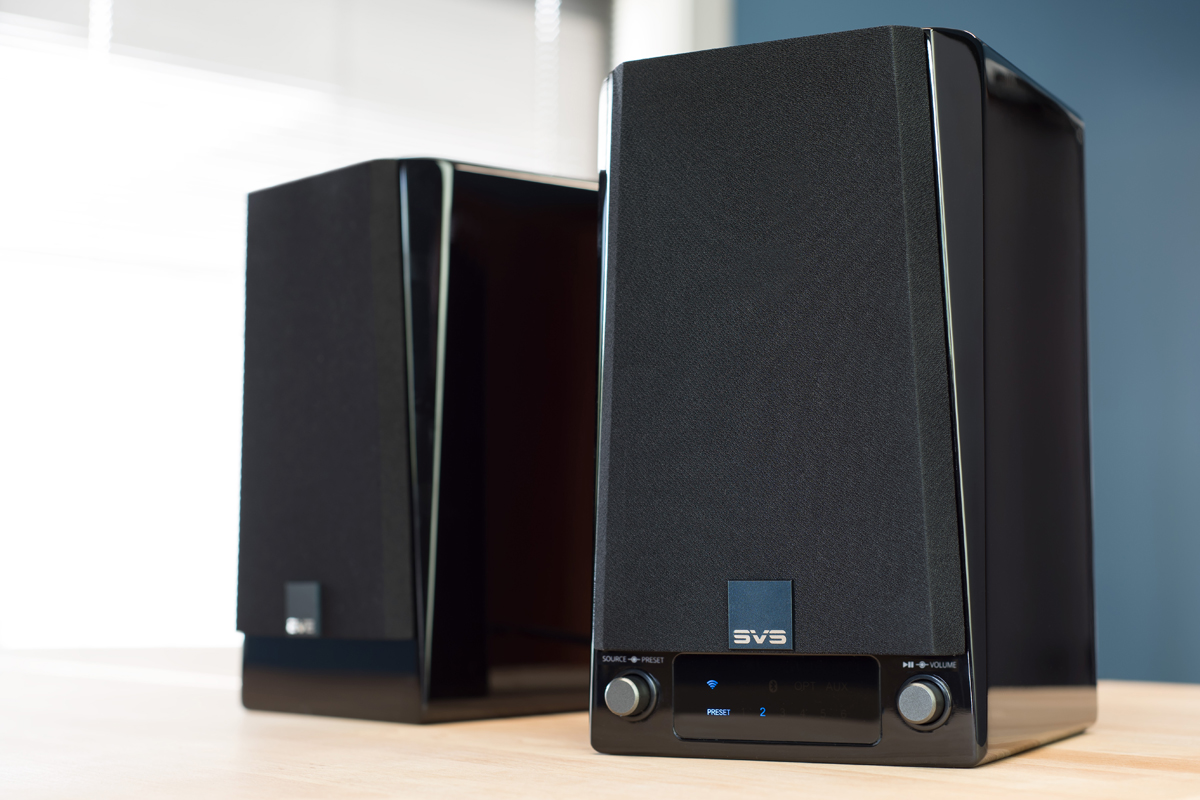

Protective cloth grille with pin/cup retention system
Elastomer stick-on bumper feet (adds 3mm to height)
Acoustically transparent and FEA optimized grilles minimize diffraction
FEA-optimized cabinet and bracing eliminates resonances
Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improved on-axis high frequency response
Wireless Streaming Options
DTS Play-Fi - Lossless 192kHz/24-bit via Critical Listening Mode over WiFi
Apple Airplay 2 for iPhone and iOS Devices, Chromecast for Android phones and Devices: CD Quality
Bluetooth 5.0 with AAC and aptX
Spotify Connect

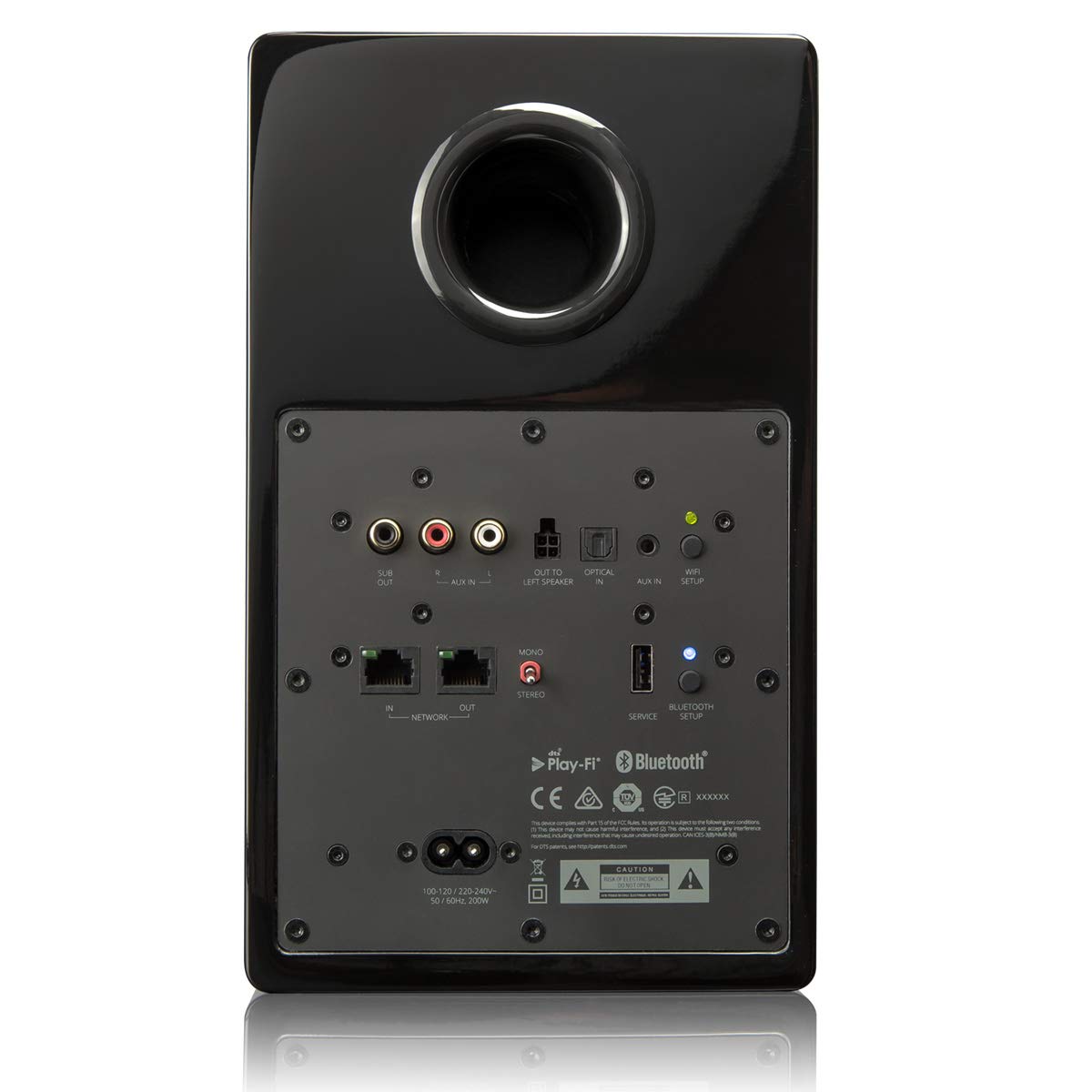

Input Specs:

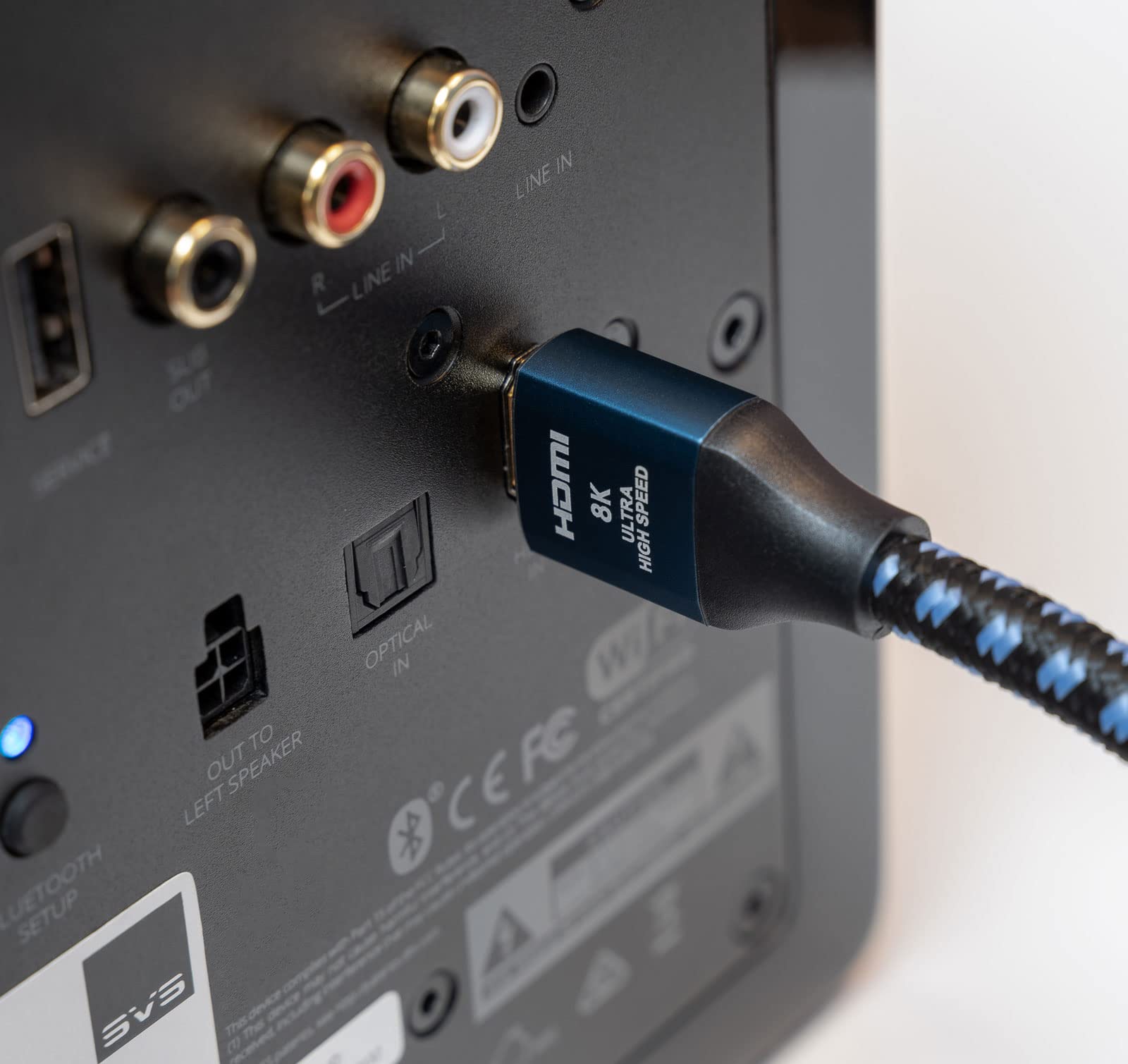

HDMI audio input. Supports ARC and eARC
Left/Right RCA Input: Input Impedance: 20K
3.5mm Aux Input: Input Impedance: 20K
Toslink Optical Input: S/PDIF receiver works at a wide range of sampling frequencies up to 96kHz
Bluetooth 5.0 with AAC and aptX
6 front panel presets for one-touch access to music services and playlists
Ethernet
USB service port also for powering wireless accessories: See SoundPath Wireless Audio Adapter
Output Specs:
Subwoofer Output: 2V MAX - Auto Detecting Low Pass Filter: Activates Low Pass Filter at 80Hz on the speakers when subwoofer detected
Ethernet
General Specifications:
3.15” wide Front Panel OLED display: Displays Source, Artist Name, Song Title, Volume and Rich meta data from Wi-Fi and Bluetooth audio sources
Switch Mode Power Supply: Auto Switching 100 – 120V / 220 – 240V, 50/60Hz
Fuse: 15A/250V
Detachable Power Cord

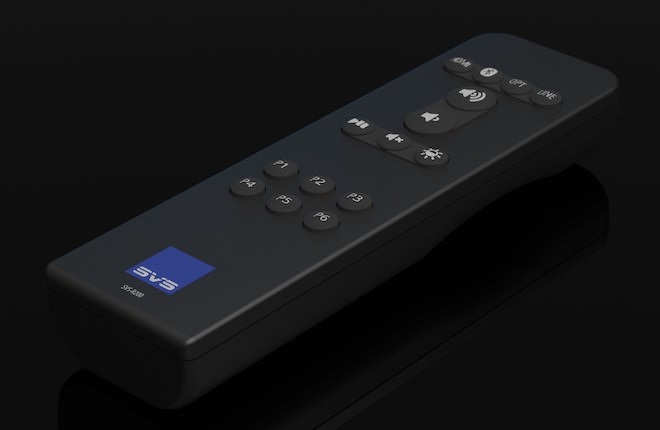

IR Remote control and 2 AAA batteries included
8 x Elastomer stick-on bumper feet included
Active-Passive Speaker Interconnect Cable: 3m / 10ft Included
15 ft and 20 ft Prime Wireless Speaker System interconnect cables are available upon request. Please call (877.626.5623) or email us for pricing and to place an order.
Warranty:
Unconditional 2-Year Warranty
