The SpeakerCraft SC-OG-6 features durable weatherproof design that ensures years of reliable performance. The new speakers incorporate nickel-plated brass fittings that address a common failure point among other landscape speakers that use plastic-plated fittings. The Satellites can operate in traditional 8ohm mode, but also have adjustable 70V/100V tap switch settings. This enables installation and amplification modes favored by many installers, and allows users to set the volume of each speaker individually. The 110-degree wide dispersion ensures wide audio coverage in all outdoor spaces.
6″ (152mm) Polypropylene Cone Woofer with NBR Surround
3/4″ (20mm) Aluminum Dome Tweeter
Weather-Resistant Fiberglass-Reinforced ABS Enclosure
Sensitivity: 87dB
Frequency Response: 100Hz-20kHz +/- 3dB
Power Handling: Up to 120W
Nominal Impedance: 8 ohms (in Bypass Mode)
Tap Settings: 70V/100V: 3.75W (70V only), 7.5W, 15W, 30W, 8 Ohm (Bypass)
110-degree wide dispersion

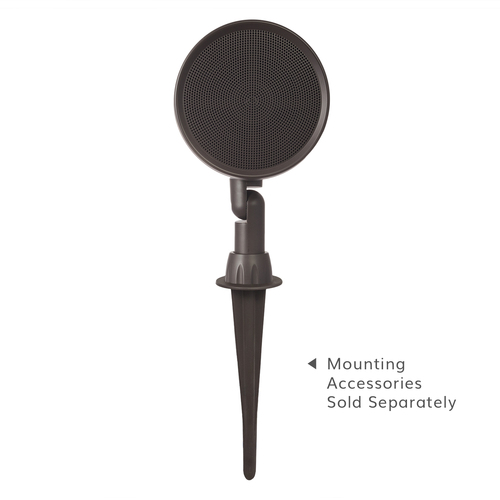

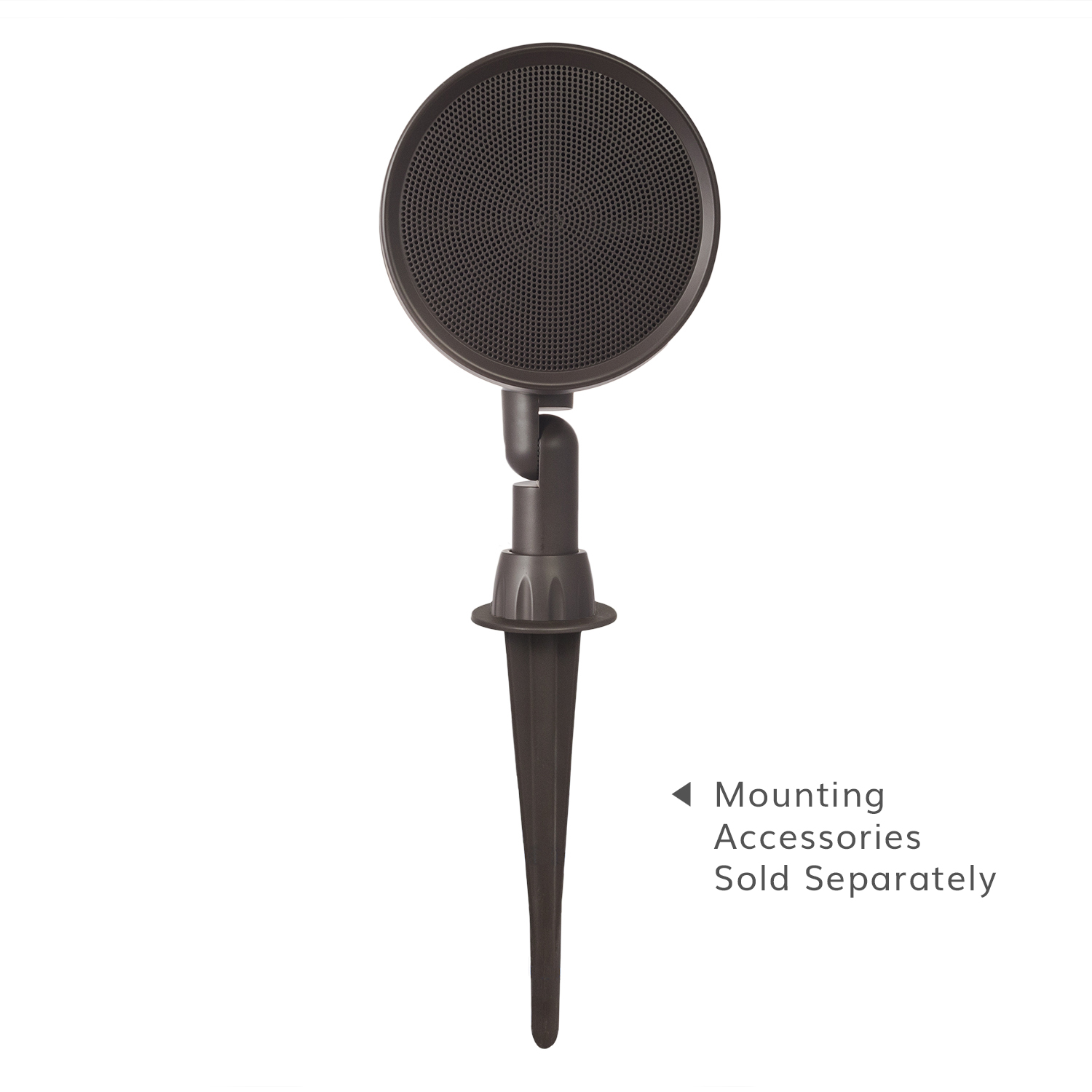

Mounting accessories not included
General
Woofer Size6 (Inches)
Woofer ConstructionPolypropylene Cone Woofer with NBR Surround
Frequency Response100Hz- 20Khz
Impedance8 (Ohms)
Power Handling120 (Watts)
Sensitivity87 (dB)
Crossover2.8kHz
DimensionsLxWxH, in/mm: 11.8 x 7.7 x 12 / 300 x 195.6 x 307 with arm extended
Shipping Info
Length11.7 (Inches)
Width12.2 (Inches)
Height14.2 (Inches)
Weight10.1 (Lbs)
Unit of MeasureEach
UPC664254021589
Master Pack Qty4
Other Specifications
Line Voltage:70V/100V
Transformer Tap Settings:3.75W (70V only), 7.5W, 15W, 30W, 8 Ohm (Bypass)
