16-channel power amplifier - 200 Watts Per Channel
Trinnov’s most versatile Power Amplifier yet.

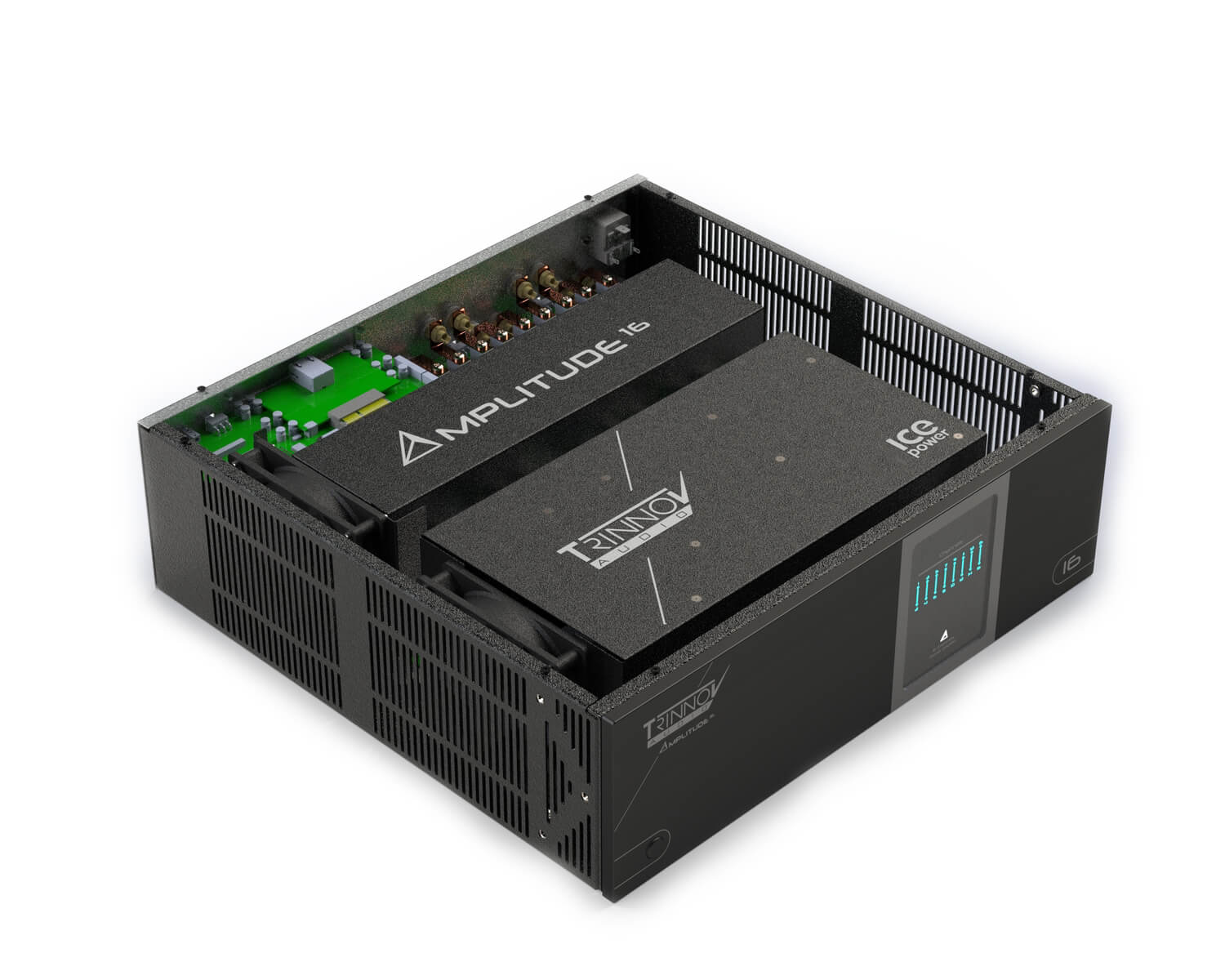

16-channel power amp with a dual 8-channel design, Dual power supply and 2 AC mains inlets.
200W/ch RMS @8Ohms (160W/ch all 16 channels driven <0.1% THD+N)
400W/ch RMS @4Ohms (160W/ch all 16 channels driven <0.1% THD+N)
8 channels bridged:
800W/ch RMS @8Ohms (320W/ch with all 8 channels driven <0.1% THD+N)
1000W/ch RMS @4Ohms (320W/ch with all 8 channels driven <0.1% THD+N)

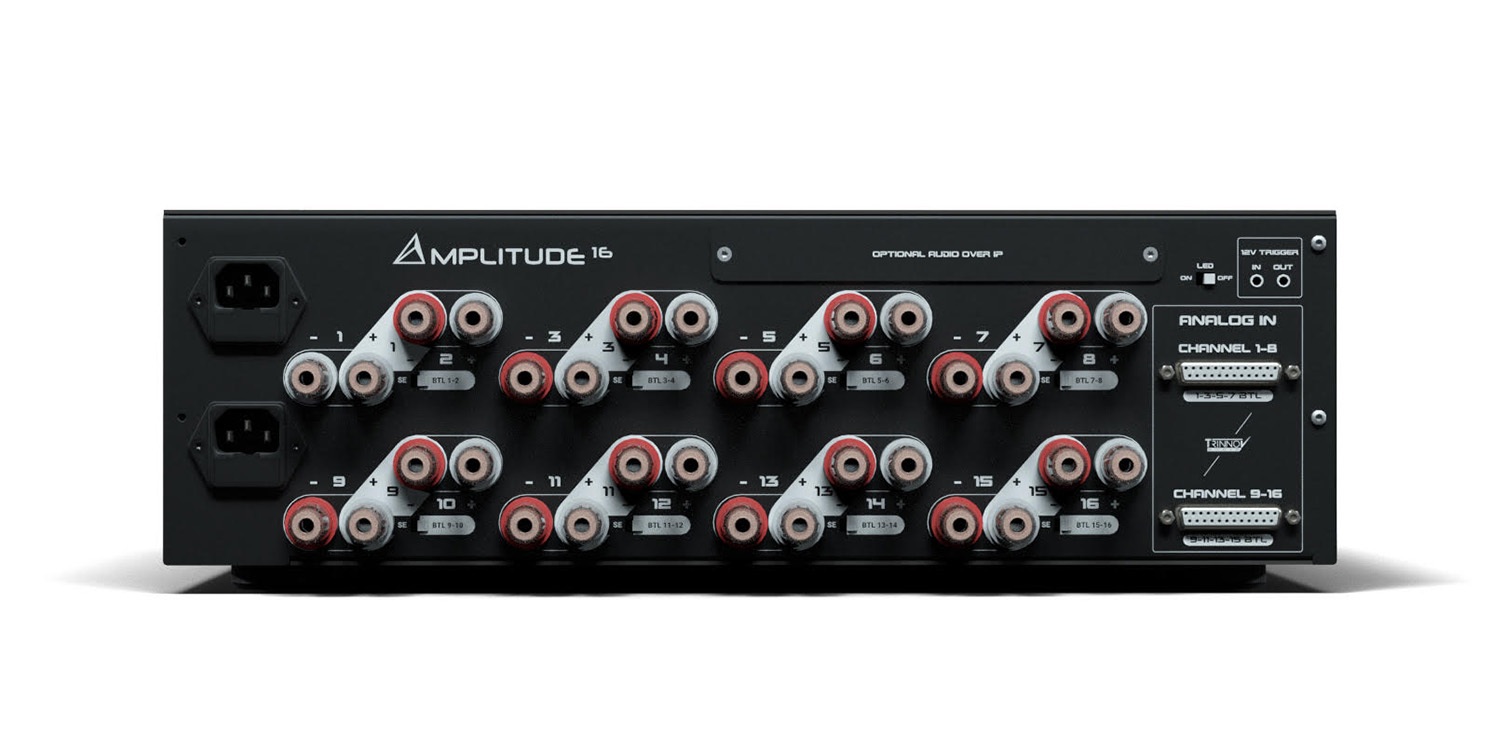

2x DB25 connectivity.
Trigger input/output for daisy-chaining amplifiers.
Input level sensitivity matches perfectly the Altitude output level to maximize dynamic range and signal-to-noise ratio.

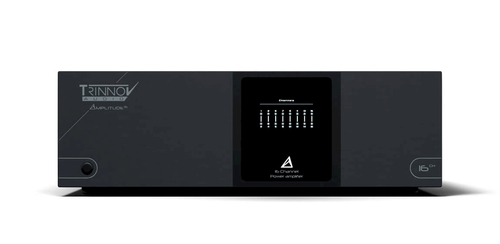

All in a 3U chassis, designed to match the Altitude’s aesthetics.
INTEGRATE EASILY
With analogue DB25 connectivity and triggers, the Amplitude16 integrates seamlessly with the Trinnov range of AV Processors.
The Optional Dante board further facilitates the integration for high-channel count systems.
DESIGNED FOR IMMERSIVE SOUND
Immersive Sound Home Theatres require more amplification channels, with varying requirements within the system.
The Amplitude 16 is the most versatile power amplifier ever, designed to address the varying needs of your home cinema.
POWER ANY SPEAKER
The Amplitude 16 delivers 16 channels of power amplification and each channel can easily drive most loudspeakers. For more demanding screen channels or subwoofers, pairs of channels can be bridged to increase the power and adapt to the specific needs of your theatre.
AUDIO POWER & GAIN
One Channel 8Ω:200W (1kHz, 0,1% < THD+N)
One Channel 4Ω:400W (1kHz, 0,1% < THD+N)
One Channel Bridged 8Ω:800W (1kHz, 0,1% < THD+N)
One Channel Bridged 4Ω:1000W (1kHz, 0,1% < THD+N)
Total Output Power (120 VAC):2800W all channels driven SE or BTL
Total Output Power (230 VAC):3200W all channels driven SE or BTL
Peak Power:6080W all channels driven SE or BTL
Gain:16 dB single ended / 22 dB bridged
AUDIO PERFORMANCE
THD+N Single Ended:0.0015% - 8Ω, 5W (2dBu)
THD+N Bridged:0.0015% - 8Ω, 20W (8dBu)
Frequency Response:+0/- 0,6 dB, 20 Hz to 20 kHz, load-independent
Damping Factor:2340 at 100Hz / 1820 at 1kHz / 354 at 10kHz
Signal to noise ratio:126 dB ref to rated 1% THD output (A-Weighted)
Crosstalk:96dB single ended 200W 8Ω
Intermodulation Distortion:Less than 0.05%
AUDIO INPUTS & OUTPUTS
Input Connectors:2x DB25 Female, Tascam Analog Pinout
Input Impedance:47 kΩ, each phase
Input Sensitivity:6.16V (+18dBu)
Output Connectors:1x 5 way binding post per channel
POWER SUPPLY
Power Requirement:2x 100/240V (auto-selecting)
Power Consumption:0,52W Standby; 125W idle; Max 2x 2000W
Power Input:2x IEC C14
Inrush current at startup:16A (<100ms, each inlet)
Thermal Conversion:683 BTU/h MAX
Mains Fuse:2x 10 Amp slow blow
12V Trigger Input:5-15 VDC; Steady State (mini-jack TS)
12V Trigger Output:8-10 VDC; Steady State (mini-jack TS)
WEIGHT & DIMENSIONS
Dimensions (W x H x D) mm, including rack ears:482 x 132 x 452
Dimensions (L x H x P) inches, including rack ears:19” x 5 1/5” x 17 4/5”
Shipping box dimensions (W x H x D) cm:54 x 53 x 22
Weight:20.5kg / 45.3 lbs
Shipping weight / volume:22.4kg / 0.064 M3
WARRANTY
Standard Warranty:5 year
Transferable:Yes
