UP TO 48 CHANNELS
Thanks to Altitude32’s unique hardware conception, Trinnov’s engineering has been able to find a solution to output even more discrete channels from the already state-of-the-art Altitude32, expanding the count to 48 real discrete channels by using its 32 analog outputs and its 16 AES outputs simultaneously.
FULL HOME ATMOS EXPERIENCE
It will allow – for the first time – users to experience the full Home Atmos experience with its 24.1.10 layout, while still allowing more possibilities in term of bass management or multi-amping and remapping. However, that solution requires an AES multi-channel High-end DAC that could compete with Altitude’s own renowned DAC: Trinnov’s solution to that problem is Trinnov Altitude48ext.
PERFECT COHERENCE IN THE RENDERING

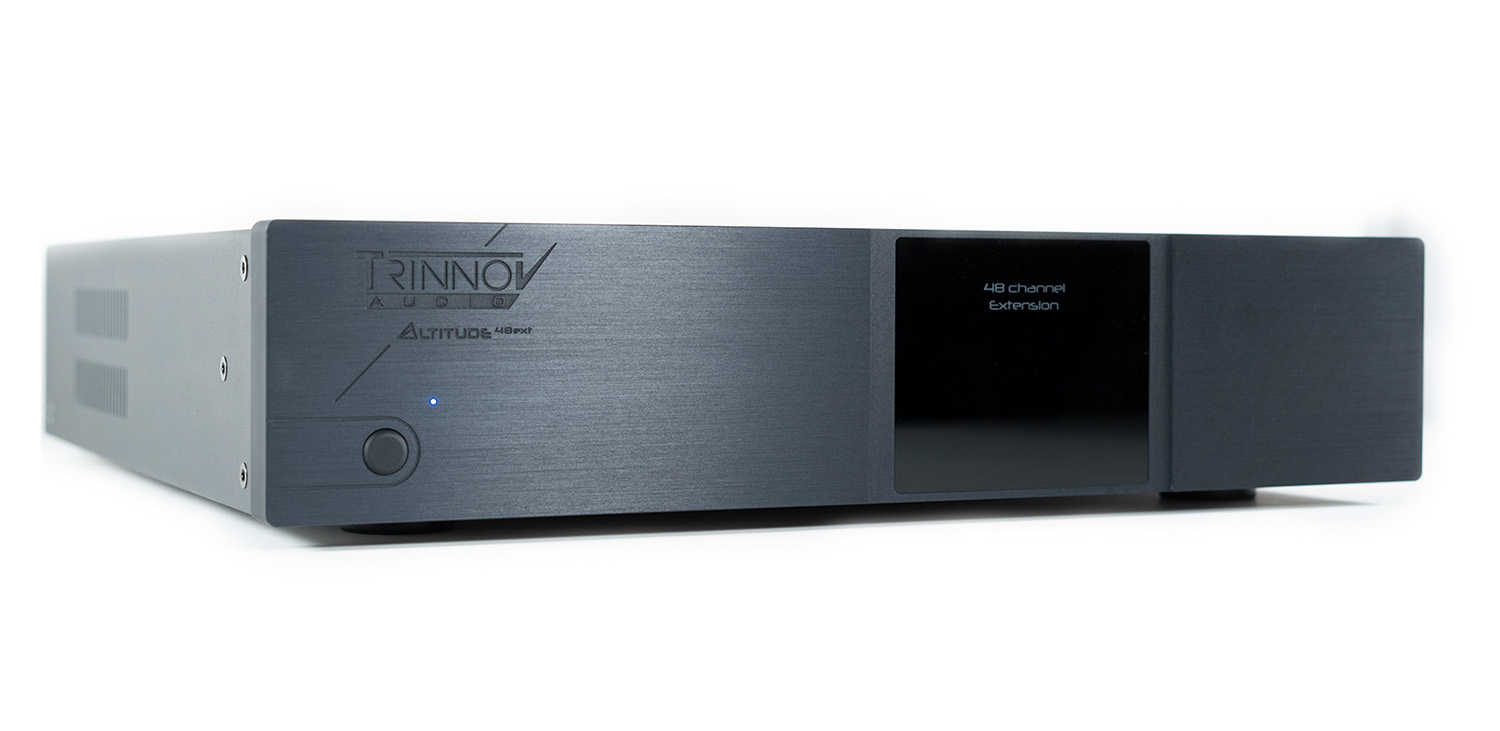

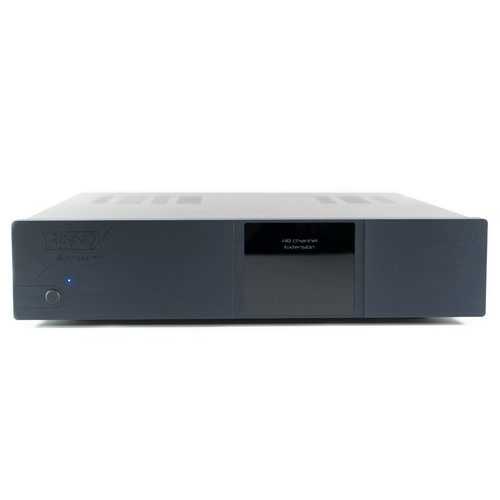

Based on Magnitude32, the Altitude48ext includes 16 channels of AES/EBU inputs and 32 channels of analog outputs using the same DAC used in the Altitude32, ensuring perfect coherence in the final rendering. But the Altitude48ext is not just a DAC; it is a fully capable Trinnov unit with processing power to perform tasks such as calibrated crossovers, bass management, and both third-octave and FIR EQ.
ALL-INCLUSIVE DECODING PACKAGE
The standard version of the Altitude16 natively decodes Dolby Digital Plus®, Dolby TrueHD®, DTS Digital Surround® and DTS-HD Master Audio® It also includes all immersive codecs by default so you can experience a new world of immersive sound with the latest technologies by Dolby Laboratories®, DTS Inc®, and Auro Technologies®.

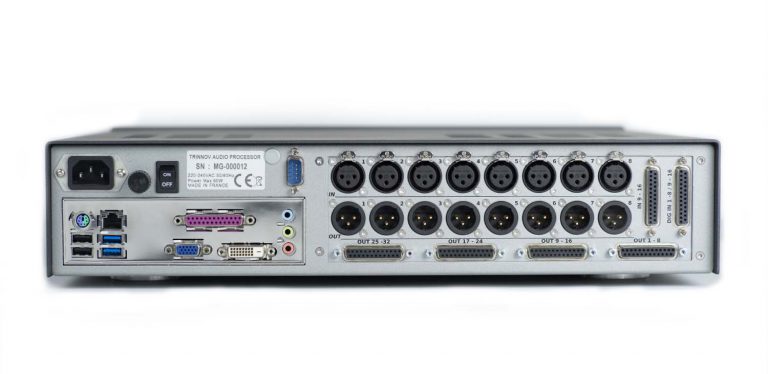

SPECIFICATIONS
DIGITAL INPUTS
DB25 (110 Ohms – Tascam Pinout)
ANALOG INPUTS
DB25 (20k Ohms – Tascam Pinout)
XLR (20k Ohms) for the first 8 channels
ANALOG OUTPUTS
DB25 (100 Ohms – Tascam Pinout)
XLR (100 Ohms) for the first 8 channels
HIGH-PERFORMANCE AUDIO
Resolution / Sampling Rate:
24 bits/96 kHz
A/D signal-to-noise ratio:
119 dB (A-Weighted)
THD+N ADC:
-103 dB
D/A signal-to-noise ratio:
118 dB (A-Weighted)
THD+N DAC:
-98 dB
Variations under 25ps are recovered, jitter attenuation superior to 50 dB is achieved above 100Hz
AntiPop relays on each analog output
Maximum Number Of Processing Channels:
32 channels at 96 kHz
DESIGN AND ASSEMBLY
All Audio boards designed and manufactured by Trinnov
Processor: Intel i5 Quad-Core
Cooling System: Custom heat sinks + additional slow fans
PHYSICAL CHARACTERISTICS
Wake on LAN capable
Chassis:
2U
Power supply:
240V AC / 50-60 Hz.
Option:
130V AC
Consumption:
90 W max.
Weight:
10,2kg
