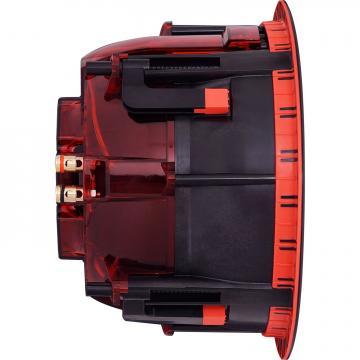

SpeakerCraft AIM7 SR Three Series 2

AIM7 SR Three Series 2 – Overview

The SpeakerCraft AIM 7 SR THREE Series 2 speaker has an 15 degree pivoting 7” aluminum cone woofer, 15 degree pivoting & 359 degree rotational, multi-axis ARC tweeter array incorporating (4) – 5/8” aluminum dome tweeters.

The Legend. ReCrafted.

More revolutionary than evolutionary, SpeakerCraft AIM Series 2 is 100% re-crafted to support sophisticated installations, demanding sonic performance, and advanced object-based surround audio platforms such as Dolby Atmos®, Auro-3D®, and DTS:X®. The re-crafting effort addresses every aspect of the speaker, from front to back, resulting in a sound solution you’ll have to hear to believe.

Defies All Conventions and Industry Norms

Inspired by the line arrays used in concert venues, the high frequency array in the AIM Series 2 family features up to four tweeters oriented along a pivoting arc. They are fed in phase to constructively interfere with each other, thus sending high frequency sound waves farther into the listening area than traditional loudspeakers, and with a more carefully defined sound output pattern as well.

Sound Placement Enhances the Experience

A typical single-tweeter “point source” in an architectural speaker radiates a very wide soundfield. This actually creates multiple reflections from the room’s periphery, presenting the listener with multiple delayed and out-of-phase versions of the original sound which reduce the clarity of that sound. The ARC Tweeter Array significantly enhances speech intelligibility by narrowing the sound output pattern in a manner that lets integrators precisely direct the soundfield to the listening area. By arraying the transducers closely together along a single arc, AIM Series 2 minimizes the disruption to the horizontal off-axis frequency response.

Description

For use as a surround effects speaker due to its wide dispersion characteristics

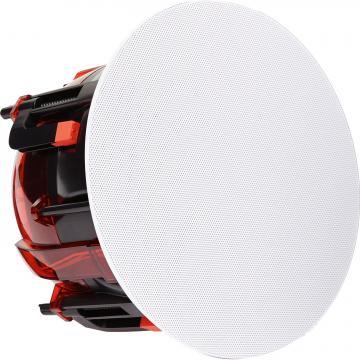

Flangeless appearance

7″ Aluminum Cone Woofer with 15 degrees Pivoting Capability

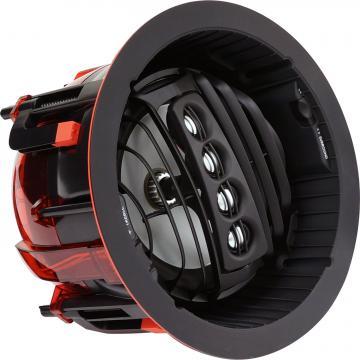

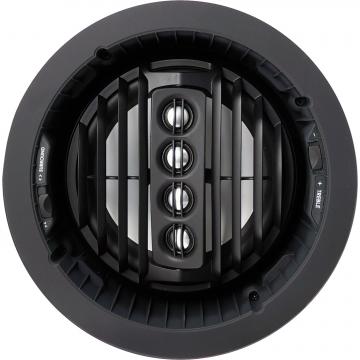

Multi-Axis ARC Tweeter Array incorporating four (4) – 5/8″ Aluminum Dome Tweeters with 15 degrees Pivoting & 359 degrees Rotational Capability

The Multi-Axis ARC Tweeter Array adds a “slight twist” to the ARC array putting two of the 5/8″ Aluminum Dome Tweeters on a slightly different axis than the other two

WavePlane Technology with Vortex Eliminators

Acoustic Isolation Technology to minimize acoustic energy transfer to mounting and surrounding surfaces

Front-Mounted Switches Allow for up to +/- 3dB of Treble Adjustment and for the selection of Direct or Diffuse Sound Characteristic

Timbre-Matched to all THREE Level Speakers

Sensitivity: 89db 1W/1m

Maximum SPL: 109dB

Power Handling: 150 Watts

Impedance: 8 Ohm Nominal

Frequency Response: 40Hz-20kHz

Diameter x Depth: 9 5/8″ x 5 1/2″ (244mm x 140mm) (with Grille)

Cut-Out Diameter: 8.27″ or 8 1/4″ (210mm)
