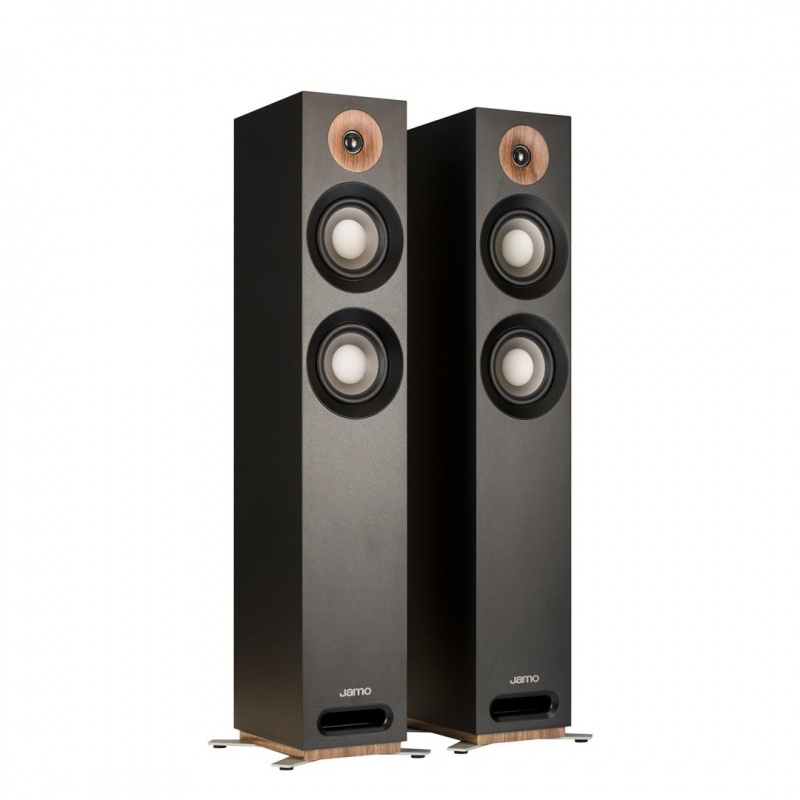

Jamo Studio S 807 Loudspeakers
The S 807 is a versatile loudspeaker with two impressive 5" Aluminized Polyfibre Woofers and a 1" Soft Dome Tweeter. Designed to deliver a stunning hi-fi performance, the S 807 also offer true cinematic sound, particularly when you add the S 8 ATM speaker via the patent-pending connection points atop the cabinet to deliver the overhead effect of Dolby Atmos.
PREMIUM PERFORMANCE
The 1” soft dome tweeter provides smooth, refined high frequencies, with two 5” aluminized polyfibre woofers for balanced, cinematic low end. The integrated WaveGuide focuses the high frequency sound for dynamic, true-to-life reproduction, while the front-firing tube port allows for better low frequency extension with placement flexibility.
SEAMLESS DOLBY ATMOS® INTEGRATION
Elegant metal fasteners atop the cabinet provide a chic, modern industrial look, but also serve as a connection point for the S 8 ATM Dolby Atmos elevation speaker.
This patent-pending design allows for all of the wire connections on the back of the floorstander, avoiding unsightly and messy speaker wire going all the way up to the Atmos module - for cinematic, completely immersive Dolby Atmos®sound while preserving the beautiful aesthetic of the Jamo Studio 8 Series.
The S 807's magnetic grille also slides up to cover the front of the S 8 ATM speaker, for a seamless visual experience.
COMPLETELY NEW, COMPLETELY MODERN
The new Jamo Studio 8 series has been completely reimagined to live seamlessly in modern, premium environments. Contemporary material and finish choices accentuate the clean, minimalist lines of this European design, while the compact cabinet designs with front-facing reflex ports are an ideal solution for urban living environments around the world.
KEY FEATURES:
Premium floor-standing loudspeaker
Front-facing reflex port for easy room placement
Dolby Atmos ready
Patent-pending seamless fastening system
Elegant, contemporary design

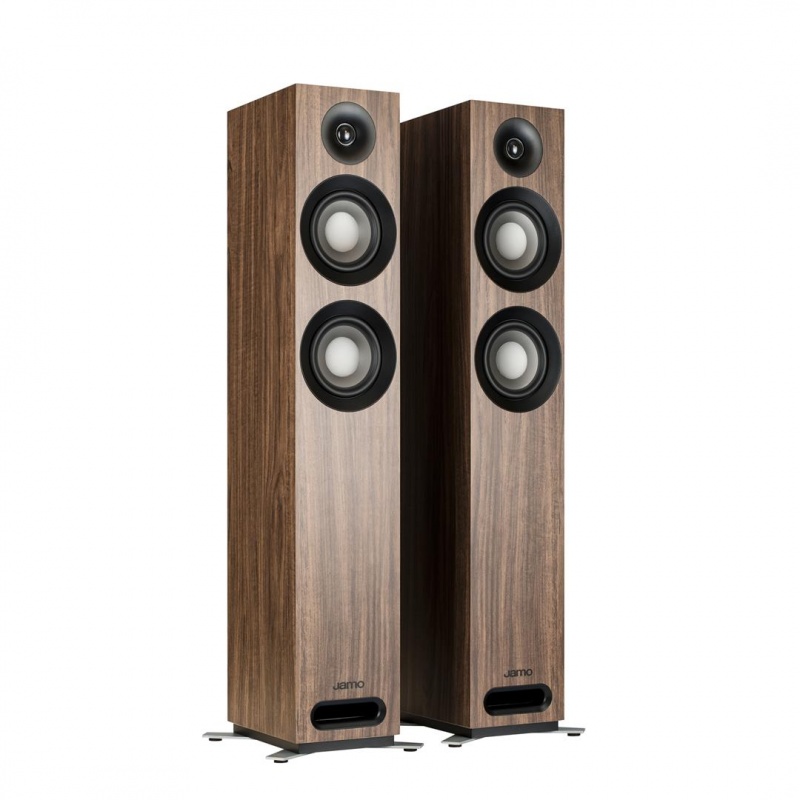

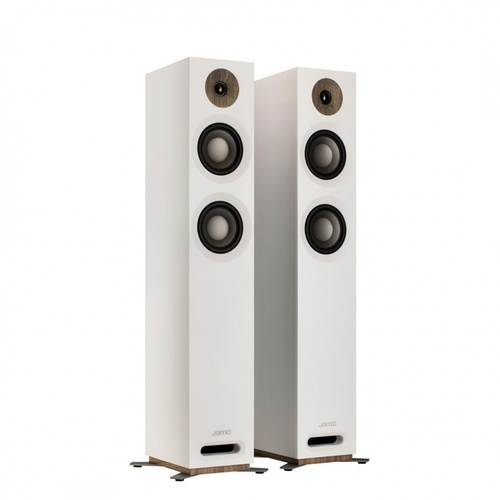

Black, Walnut and White finishes
WaveGuide acoustic technology
25mm (1") soft dome tweeter
Dual 127mm (5”) Aluminized Polyfibre Woofers
| Frequency Response: |
42Hz - 26kHz (± 3dB) |
| Sensitivity: |
90dB (2.83V @ 1m) |
| Power Handling: |
100W / 200W (peak) |
| Impedance: |
8Ω |
| High Frequency Driver: |
25mm (1”) Soft Dome Tweeter |
| Low Frequency Driver: |
2 x 127mm (5”) Polyfibre Woofers |
| Crossover: |
2kHz |
| Speaker Enclosure: |
MDF |
| Inputs: |
Single Binding Posts (Main / Height) |
| Top-Contacts: |
Dolby Atmos-ready with S 8 ATM speaker connected |
| Finishes: |
Black, Walnut or White |
| Dimensions (H x W x D): |
915 x 191 x 252mm |
