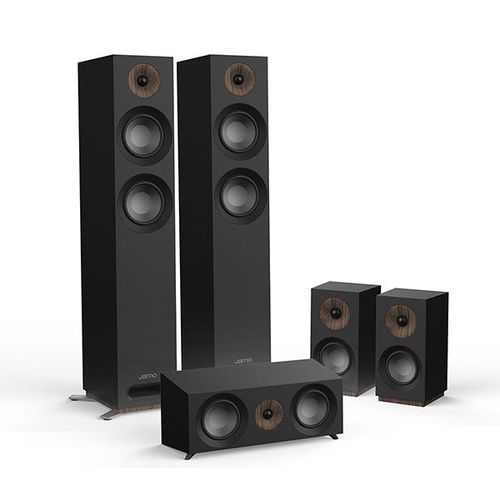

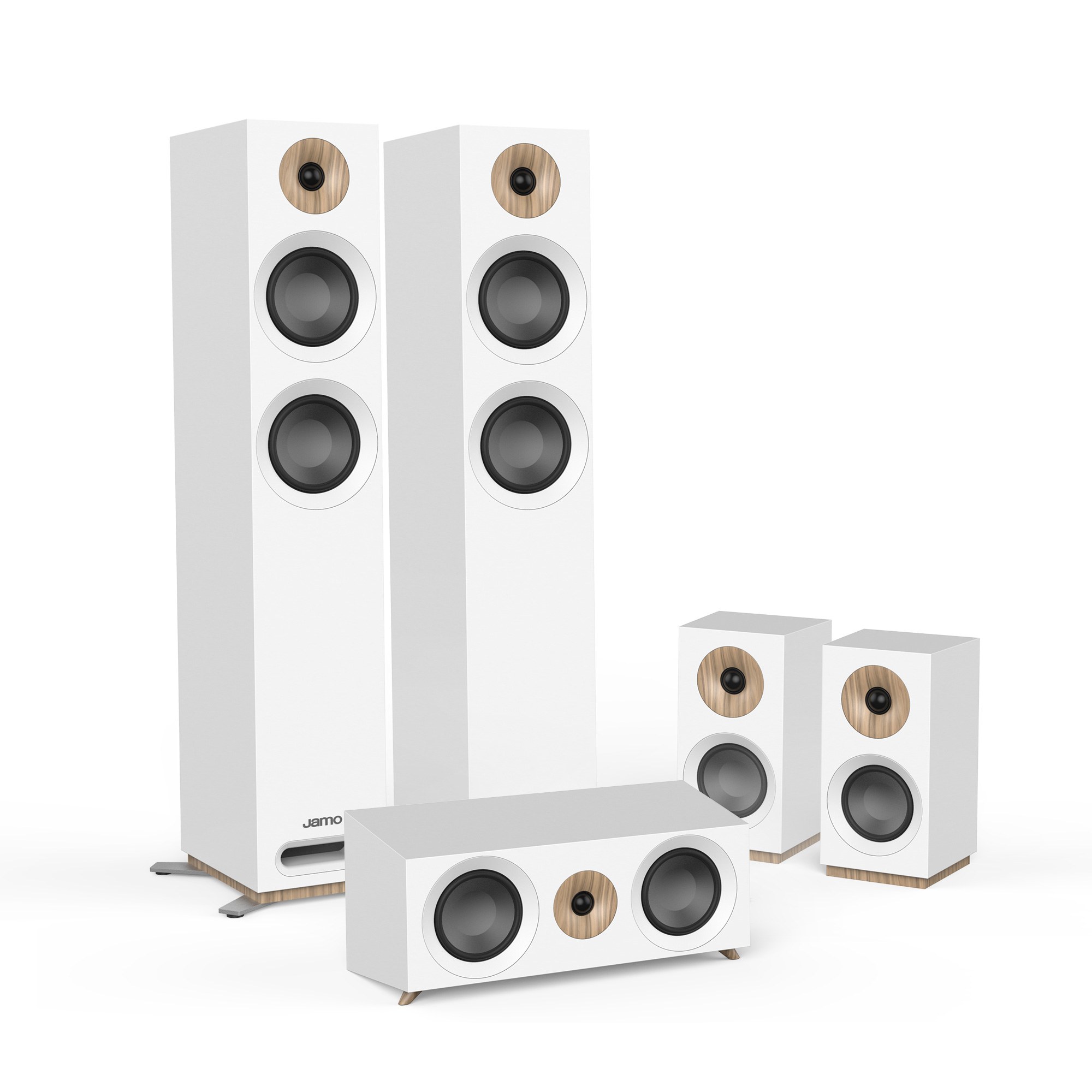

Jamo - S 807 HCS 5.0 System

Modern design meets high performance. S 807 Dolby Atmos ready home cinema system delivers incredible acoustic performance with an elegant design.

- Complete 5.0 Home Theater
- 2 x S 807 Tower Speakers
- 2 x S 801 Speakers for Surround Sound
- 1 x S 81 CEN Center Channel Speaker
- Dolby Atmos Ready for S 8 ATM Speakers
- S 809 HCS SPEAKERS
- COMPACT, YET POWERFUL
- Front-firing tube port allows for versatility in placement (in cabinets, against walls, etc.) and enhanced, cleaner bass response.

Studio 8 WaveGuide technology focuses high frequencies for dynamic, powerful sound.

BEAUTIFUL, CONTEMPORARY DESIGN
Fully magnetic grilles - no mounting holds or push pins - for a clean, minimalist front baffle design.

Large, woven pattern linen grilles create visual interest with heavy texture and come in two unique colors - charcoal gray for black.

Wood grain accents around the tweeters, at the bases and feet give a handcrafted, natural look.

A 3" taper on the cabinet accentuates the slim design aesthetic of Studio 8 speakers.

DOLBY ATMOS READY
Dolby Atmos ready speakers deliver sound that comes alive from all directions, including overhead, to fill any room with astonishing clarity, detail and depth.

S 8 ATM ATMOS MODULE
Dolby Atmos topper's metal feet innovatively align with patent-pending integrated conductive metal contacts on capable Tower and Bookshelf speakers, so the back of the Topper has a clean design, free from any inputs or wires.

What's in the box
1 x Jamo S 807 owner's manual
2 x Floorstanding loudspeakers
2 x Grilles
8 x Mounting feet
16 x Screws
1 x User Manual
1 x Important Safety Instructions
1 x Warranty Information
SPECIFICATIONS:
S807 Floorstanding Speaker
Frequency Response: 42Hz - 26kHz (+/- 3dB)
Sensitivity: 90dB (2.83V @ 1m)
Power Handling: 100W / 200W
Impedance: 8 Ohm
High Frequency Driver: 25mm (1”) Soft Dome Tweeter
Low Frequency Driver: 2 x 127mm (5”) Polyfiber Woofers
Crossover Frequency: 2kHz
Speaker Enclosure: MDF
Enclosure Type: Bass Reflex via Front Firing Slot Port
Inputs: Single Binding Posts (Main / Height)
Dimensions: 915mm x 191mm x 252mm
Features: Dolby Atmos Ready Connections Points, 2 Aluminized Polyfiber Woofers,1 Soft Dome Tweeter
Weight: 26 lb (11.8 kg)

S 801 Bookshelf Speaker
Frequency Response: 76Hz - 26kHz (+/- 3dB)
Sensitivity 85dB (2.83V @ 1m)
Power Handling: 60W / 120W
Impedance: 8 Ohm
High Frequency Driver: 25mm (1”) Soft Dome Tweeter
Low Frequency Driver: 102mm (4”) Polyfiber Woofer
Crossover Frequency: 2kHz
Speaker Enclosure: MDF
Enclosure Type: Bass Reflex via Rear Firing Slot Port
Inputs: Single Binding Posts
Finish: Black, Walnut, White
Dimensions: 285mm x 156mm x 163mm
Features: Compact Size, 1 Aluminized Polyfiber Woofers,1 Soft Dome Tweeter
Weight: 6 lb (2.7 kg)

S 81CEN Center
Frequency Response: 71Hz - 26kHz (+/- 3dB)
Sensitivity: 86dB (2.83V @ 1m)
Power Handling: 60W / 120W
Impedance: 8 Ohm
High Frequency Driver: 25mm (1”) Soft Dome Tweeter
Low Frequency Driver: 2 x 102mm (4”) Polyfiber Woofers
Crossover Frequency: 2kHz
Speaker Enclosure: MDF
Enclosure Type: Bass Reflex via Rear Firing Slot Port
Inputs: Single Binding Posts
Dimensions: 184mm x 435mm x 220mm
Features: Front-Row Acoustics for Enhance Voice
Weight: 11 lb (5.0 kg)

What's in the box
2 x Floorstanding loudspeakers (S 807)
1 x Rear bookshelf loudspeakers (S 801)
1 x Center-channel loudspeaker (S 81 CEN)1 x Jamo S 807 owner's manual
2 x Floorstanding loudspeakers
2 x Grilles
8 x Mounting feet
16 x Screws
1 x User Manual
1 x Important Safety Instructions
1 x Warranty Information
