Jamo S 809 HCS 5 Channel System
Bring your movies and music to life with the encompassing lifelike acoustics of a true surround sound home cinema system. Featuring WaveGuide technology that delivers dynamic, powerful sound - Jamo home theaters deliver cinematic performance with a contemporary, elegant aesthetic.
The flagship 5.0 Home Cinema System in the Studio 8 range includes two S 809 Dolby Atmos ready tower speakers so you can easily upgrade to the overhead effects of this latest advancement in home theater when your ready.
PREMIUM SOUND, AFFORDABLE COST
By purchasing as a Home Cinema System (HCS), you can make a significant saving against buying the component parts separately. The S 809 HCS system includes:
2 x S 809 floor-standing speakers
2 x S 801 bookshelf speakers
1 x S 81 CEN centre-channel speaker
COMPLETELY NEW, COMPLETELY MODERN
The new Jamo Studio 8 series has been completely reimagined to live seamlessly in modern, premium environments. Contemporary material and finish choices accentuate the clean, minimalist lines of this European design, while the compact cabinet designs with front-facing reflex ports are an ideal solution for urban living environments around the world. For this reason, the Studio 8 series loudspeaker range all employ thick, stylish, magnetic woven grilles.
KEY FEATURES:
Complete 5.0 channel home cinema system
S 809 are Dolby Atmos ready when adding the S 8 ATM (see Top Upgrades)
Elegant, contemporary design

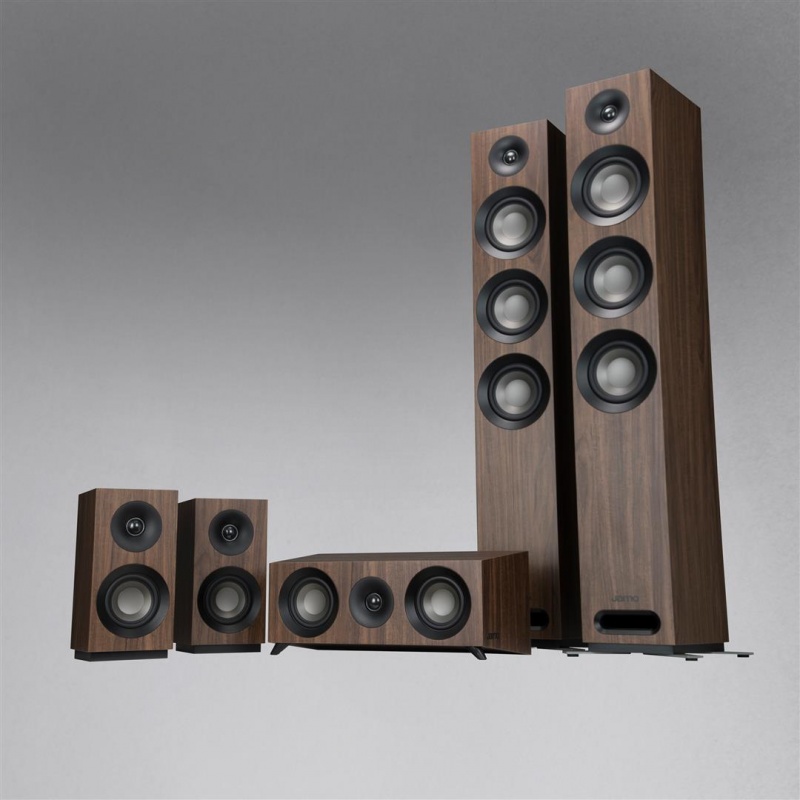

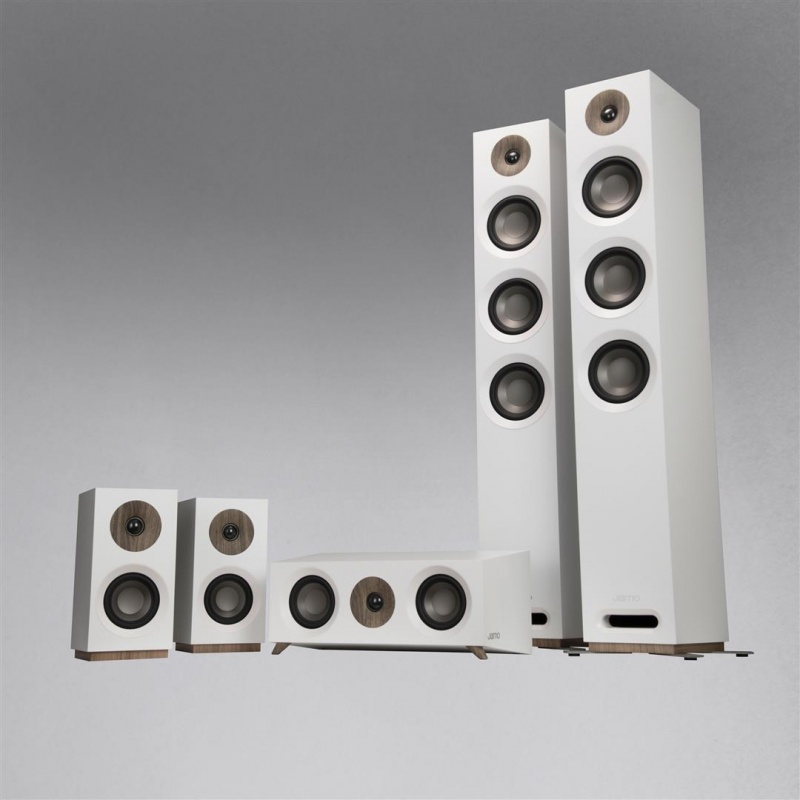

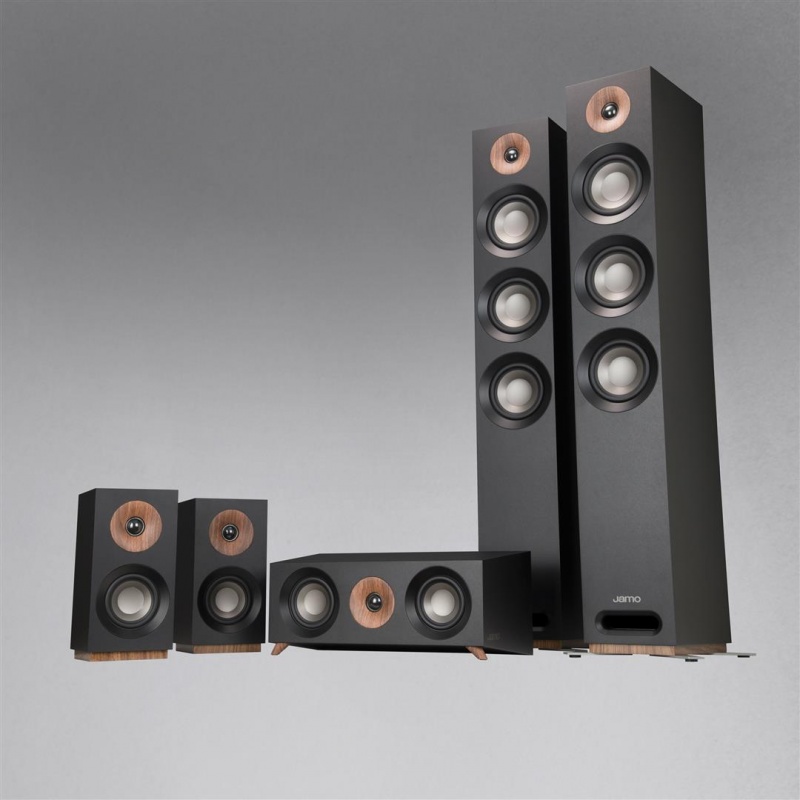

Black, Walnut and White finishes
S 809
| Frequency Response: |
37Hz - 26kHz (± 3dB) |
| Sensitivity: |
90dB (2.83V @ 1m) |
| Power Handling: |
120W / 240W (peak) |
| Impedance: |
8Ω |
| High Frequency Driver: |
25mm (1”) Soft Dome Tweeter |
| Low Frequency Driver: |
3 x 127mm (5”) Polyfibre Woofers |
| Speaker Enclosure: |
MDF |
| Inputs: |
Single Binding Posts (Main / Height) |
| Top-Contacts: |
Dolby Atmos-ready with S 8 ATM speaker connected |
| Finishes: |
Black, Walnut or White |
| Dimensions (H x W x D): |
1042 x 191 x 252mm |
S 801
| Frequency Response: |
76Hz - 26kHz (± 3dB) |
| Sensitivity: |
85dB (2.83V @ 1m) |
| Power Handling: |
60W / 120W (peak) |
| Impedance: |
8Ω |
| High Frequency Driver: |
25mm (1”) Soft Dome Tweeter |
| Low Frequency Driver: |
102mm (4”) Polyfibre Woofers |
| Crossover: |
2kHz |
| Speaker Enclosure: |
MDF |
| Inputs: |
Single Binding Posts |
| Finishes: |
Black, Walnut or White |
| Dimensions (H x W x D): |
285 x 156 x 163mm |
S 81 CEN
| Frequency Response: |
71Hz - 26kHz (± 3dB) |
| Sensitivity: |
86dB (2.83V @ 1m) |
| Power Handling: |
60W / 240W (peak) |
| Impedance: |
8Ω |
| High Frequency Driver: |
25mm (1”) Soft Dome Tweeter |
| Low Frequency Driver: |
2 x 102mm (4”) Polyfibre Woofer |
| Crossover: |
2kHz |
| Speaker Enclosure: |
MDF |
| Inputs: |
Single Binding Posts |
| Finishes: |
Black, Walnut or White |
| Dimensions (H x W x D): |
184 x 435 x 220mm |
