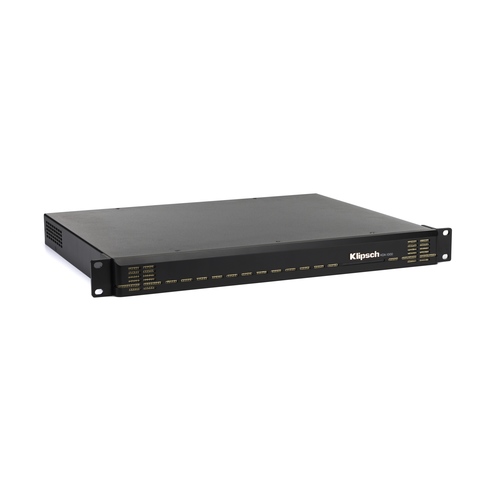

For outdoor systems requiring more output, the Klipsch KDA-1000 DSP Amplifier powers larger arrangements to deliver incredible performance from a 1000W, single-rack unit solution - all completely customizable through the web-based DSP menu.
Features:
- 1000W Total System Power (4 x 250W)
- High performance power platform
- 70V / 100V / Low Impedance Compatibility
- Flexible I/O
- State-of-the-art DSP control and set-up
SPECIFICATIONS
| Part Number |
120V: 1063258 230V: 1063261 |
| Amplifier Type |
High Efficiency Class G/H |
| Amplifier Power |
1000W Total System Power 4 x 250W Per Channel |
| Inputs |
Balanced: 4 x Phoenix Line Level (up to 12 AWG wire) Unbalanced: 4 x RCA Line Level |
| Outputs |
4 x Phoenix Speaker Level (up to 12 AWG wire) 4 x RCA Line Level (Throughs) |
| Input Sensitivity |
750mV Balanced, 0dBU |
| Input Impedance |
Balanced 40k |
| THD |
<1% @ Rated Output |
| Signal-To-Noise |
-100dB Below Rated Output |
| Enclosure Type |
Front Face: ABS Plastic Case: Machine Formed Steel |
| Rack Unit |
1RU |
| Product Dimensions |
1.73” x 19.02” x 14.29” (44mm x 483mm x 363mm) |
| Product Weight |
15 lbs (6.82 kg) |
| Mount Type |
Removable 1RU Rack Ears, Removable Rubber Feet |
| Built From |
2016 |
