ALL NEW 90° X 90° TRACTRIX HORN
TAKE YOUR MOVIES AND MUSIC TO NEW HEIGHTS
Our proprietary speaker technologies are ideal for delivering the most immersive,
impactful 360° Dolby Atmos® listening experience. Controlled directivity and highperformance have been an integral part of Klipsch acoustic design principals for the
better part of a century.

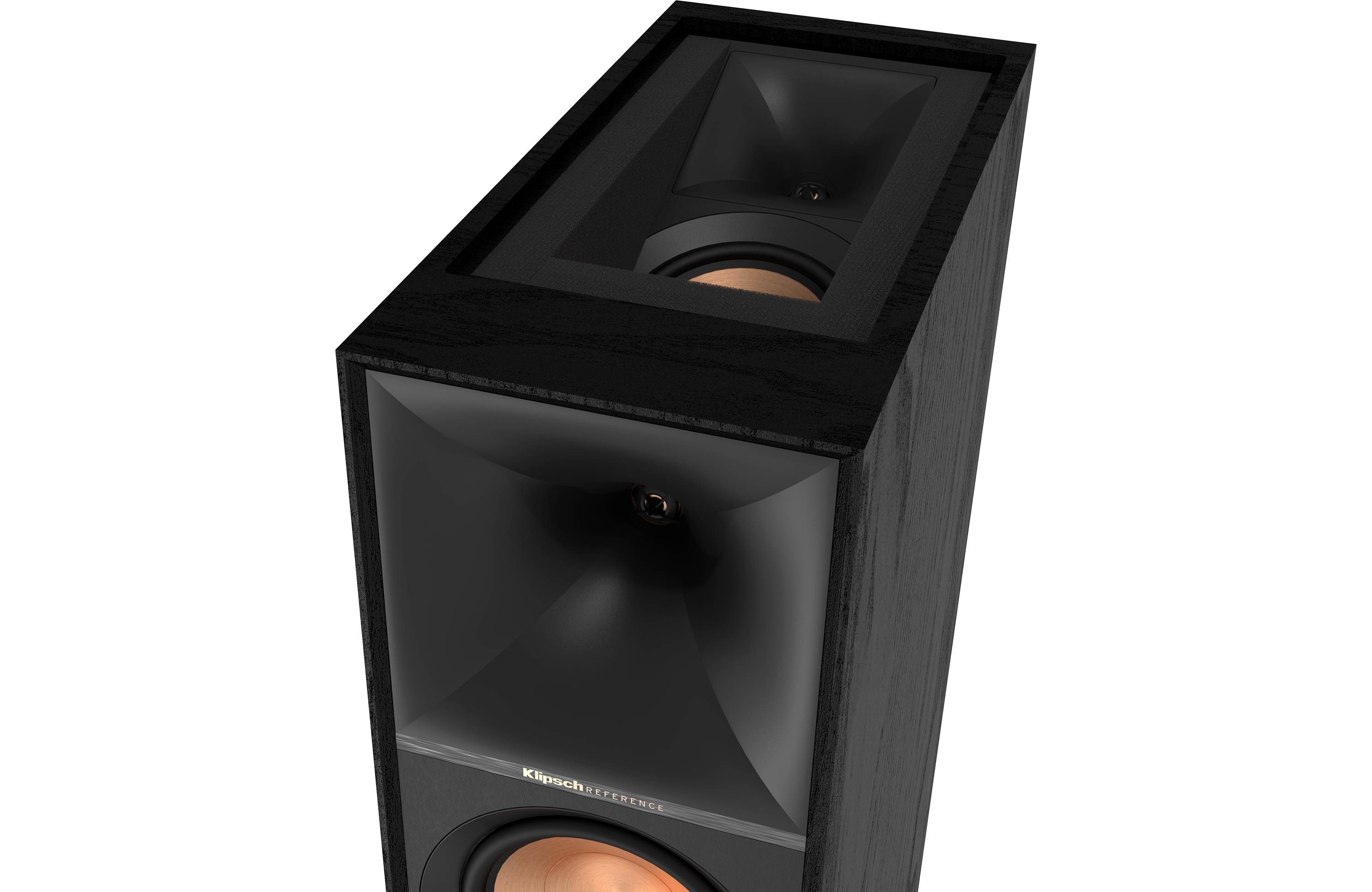

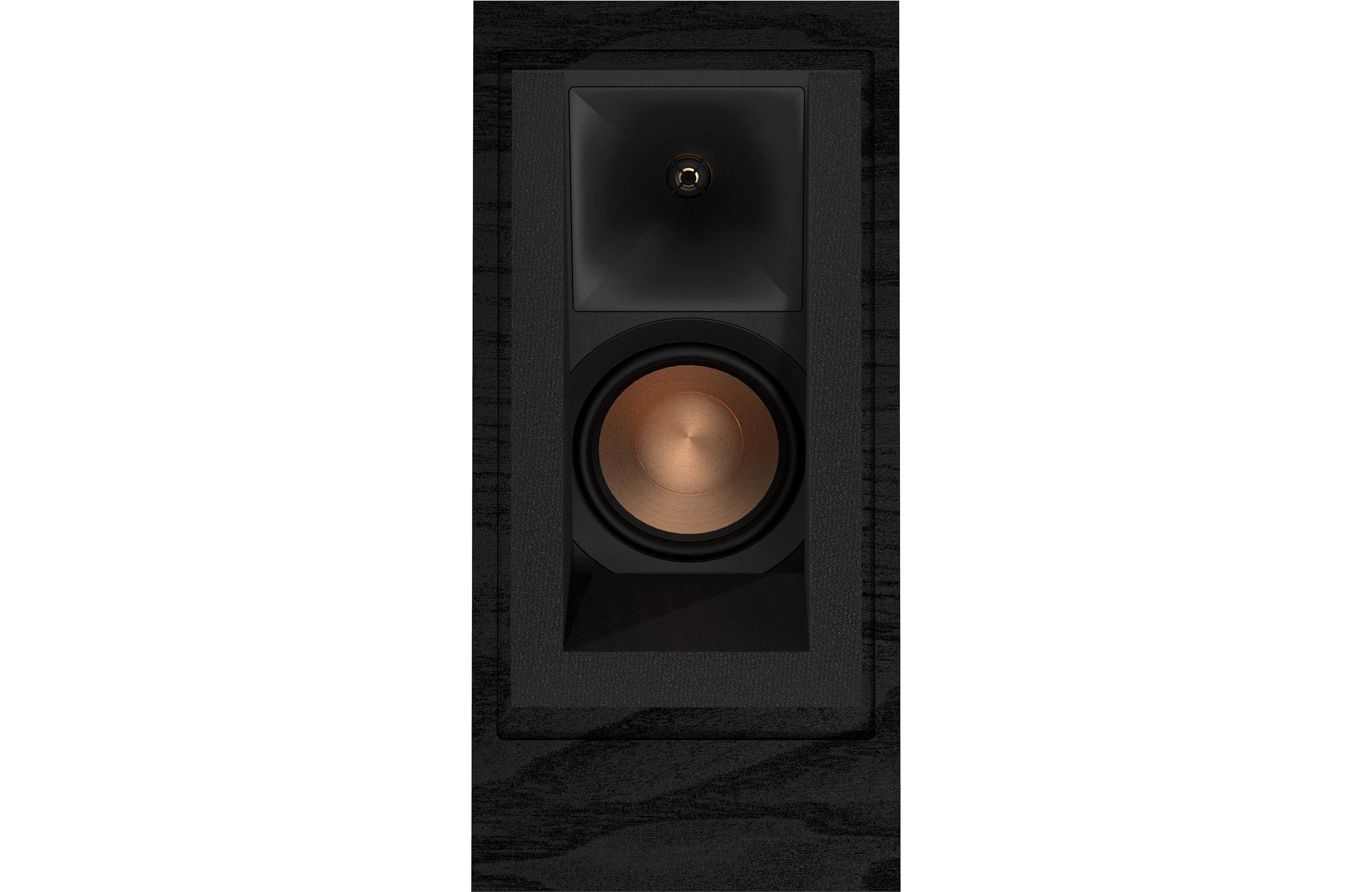

BUILT-IN ELEVATION SPEAKER
Not just your typical full-range tower speaker, the R-605FA features a high
performance up-firing Dolby Atmos speaker integrated in the top for an enveloping
soundstage. It’s a perfectly matched set up that virtually disappears.
ALL NEW 90° X 90° TRACTRIX HORN
Our exclusive Tractrix® horn technology delivers the power, detail and emotion
of the live music experience with the cleanest, most natural sound possible.
The increased outer horn dimensions allow for directivity control over a larger
bandwidth of frequencies, resulting in improved high frequency directivity and a
more accurate sound stage.
LINEAR TRAVEL SUSPENSION (LTS) ALUMINUM TWEETER WITH
KAPTON SUSPENSION
The exclusive Linear Travel Suspension (LTS) minimizes distortion for enhanced,
detailed performances. Aluminum is an extremely light and rigid material used in
the tweeter assembly to provide high efficiency and improve resolution and detail.
LTS tweeters are a hallmark of Klipsch speakers, making it a core component of
some of the best speakers in the world.
SPUN-COPPER THERMOFORMED CRYSTALLINE POLYMER (TCP) WOOFERS
Utilizing trickle-down technology from Klipsch’s highly acclaimed Reference
Premiere series, the TCP woofers have steeper angling of the cones for a smoother
response and improved accuracy and transparency. The additional ribbing increases
the overall rigidity for less cone breakup at higher frequencies.

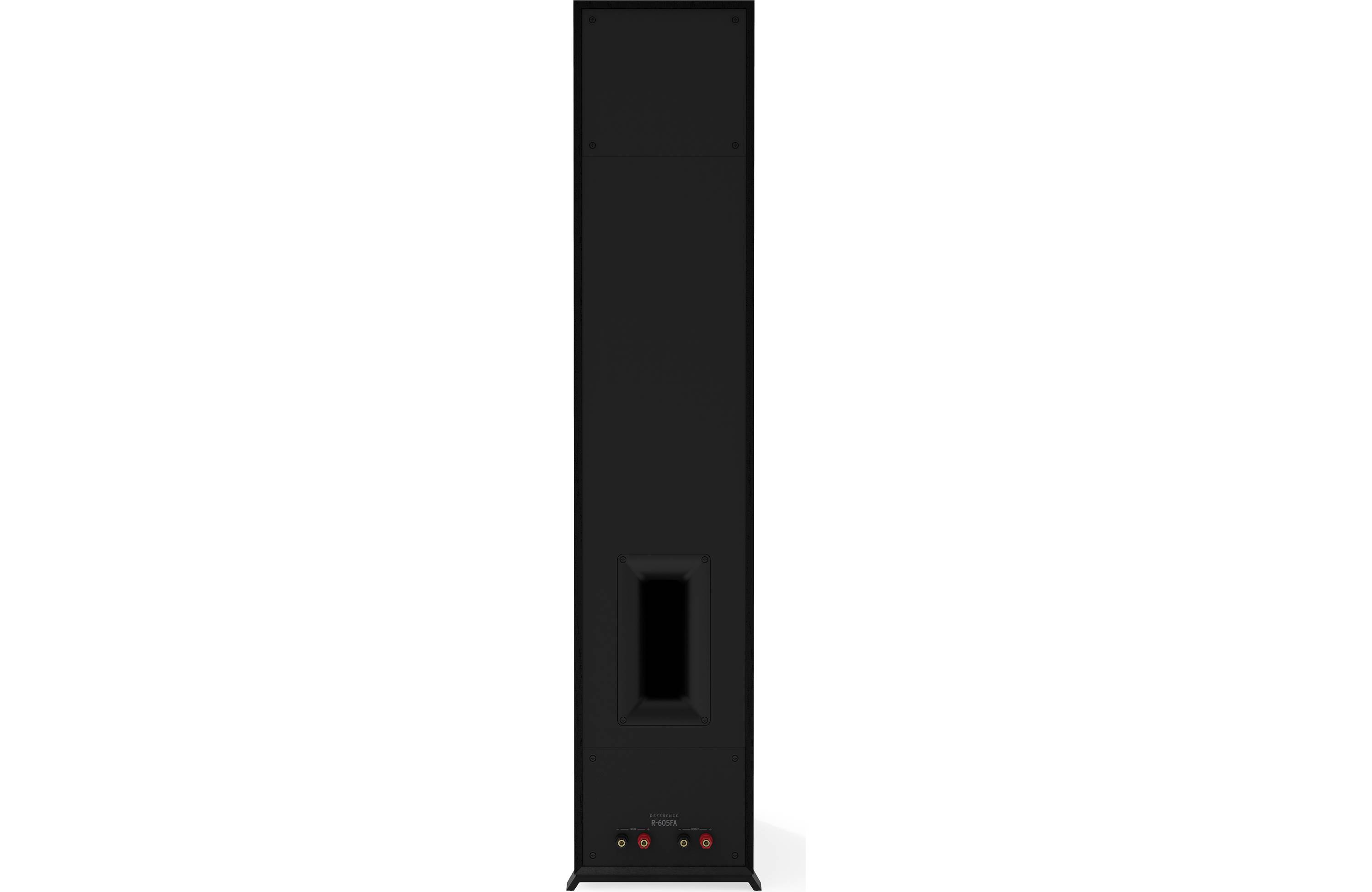

REAR TRACTRIX PORT
The rear Tractrix port is perfectly matched to the cabinet and woofers, creating
ideal airflow with minimal distortion or turbulence even at the lowest frequencies.

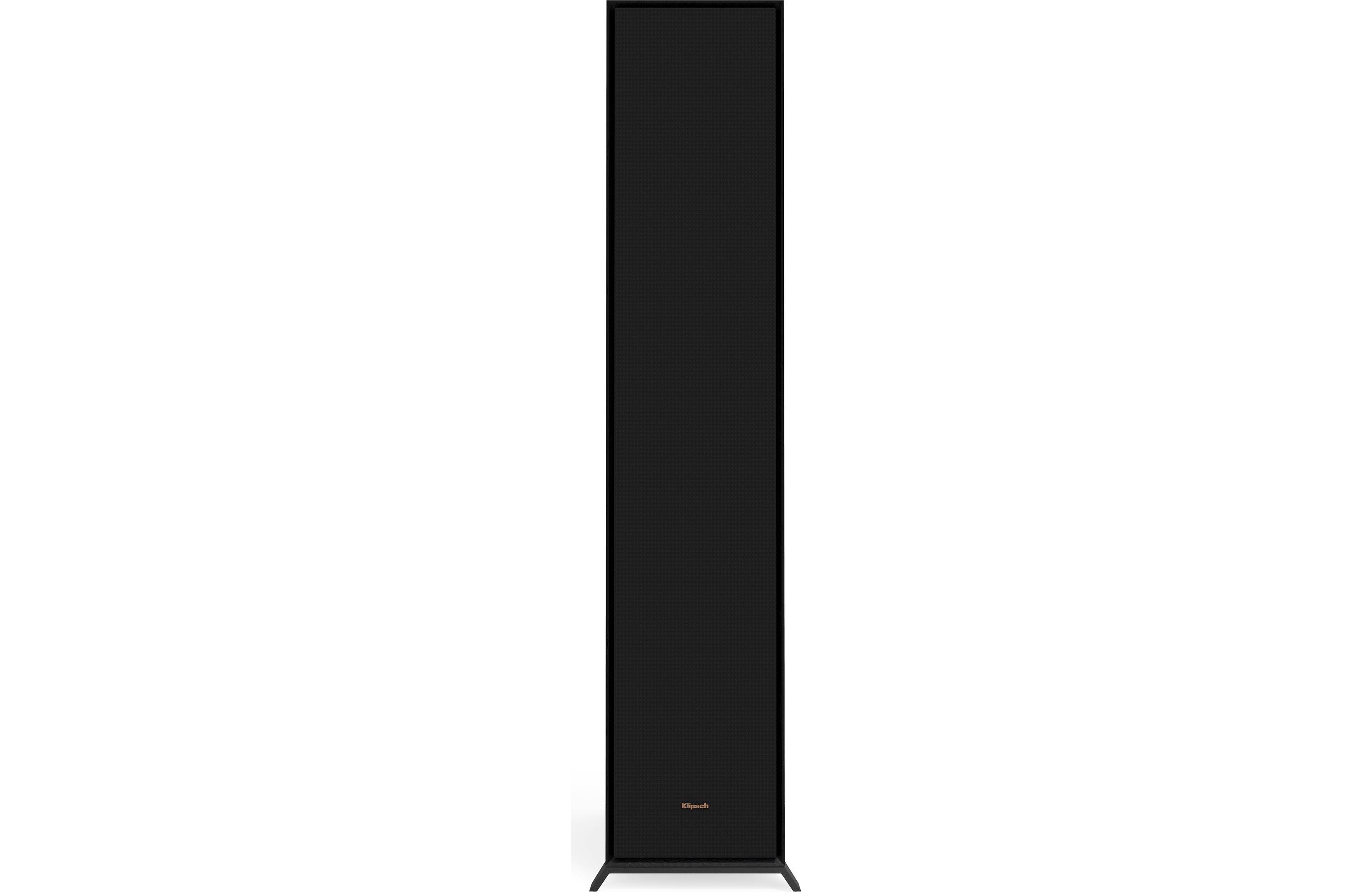

SLEEK, MODERN APPEARANCE
Hidden fasteners, edge-to-edge horn, and low-profile magnetic grilles give the
speakers a polished, modern appearance.
MDF CABINET WITH SCRATCH-RESISTANT, TEXTURED WOOD GRAIN VINYL
Stylish aesthetic with absolute durability that results in a seamless integration into
any décor.
HIGH QUALITY CABINET DESIGN
Reinforced 3/4” MDF construction with an all-new bracing design reduces cabinet
vibration for less audible coloration and improved sonic accuracy
FREQUENCY RESPONSE 38Hz - 21kHz +/- 3dB
SENSITIVITY* 96 dB (In-Room)
POWER HANDLING (CONT/PEAK) 100W/400W
NOMINAL IMPEDANCE 8 ohms Compatible
CROSSOVER FREQUENCY 1,440 Hz
HIGH FREQUENCY DRIVER 1" Aluminum LTS tweeter mated to a 90 x 90 square
Tractrix® Horn
LOW FREQUENCY DRIVER Dual 6.5" spun-copper TCP woofers
ENCLOSURE MATERIAL MDF
ENCLOSURE TYPE Bass-Reflex via rear-firing Tractrix®ports
INPUTS Single Gold Plated Binding Posts
HEIGHT INCHES (MM) 40" (1017 mm)
WIDTH INCHES (MM) 9.5" (240 mm)
DEPTH INCHES (MM) 18.2" (463 mm)
PRODUCT WEIGHT LBS (KG) 50 lbs (22.7 kg)
FINISH Black Textured Wood Grain Vinyl
INCLUDED ACCESSORIES Injection molded feet & screws
FREQUENCY RESPONSE Conforms to Dolby Atmos Specifications
SENSITIVITY Conforms to Dolby Atmos Specifications
POWER HANDLING 75W/150W
NOMINAL IMPEDANCE 8 ohms Compatible
HIGH FREQUENCY DRIVER 1" Aluminum LTS tweeter mated to a 90 x 90 square
Tractrix® Horn
LOW FREQUENCY DRIVER 5.25" spun-copper IMG woofer
ENCLOSURE TYPE Acoustic Suspension
INPUTS Single Gold Plated Binding Posts
