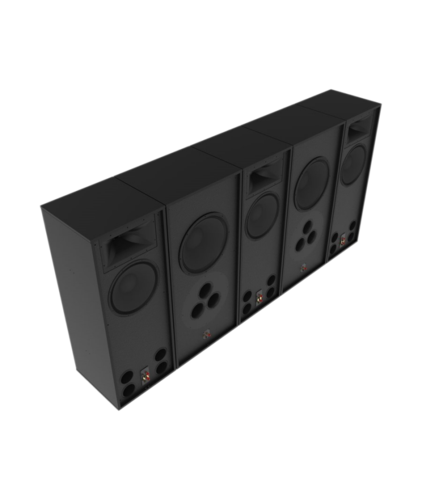

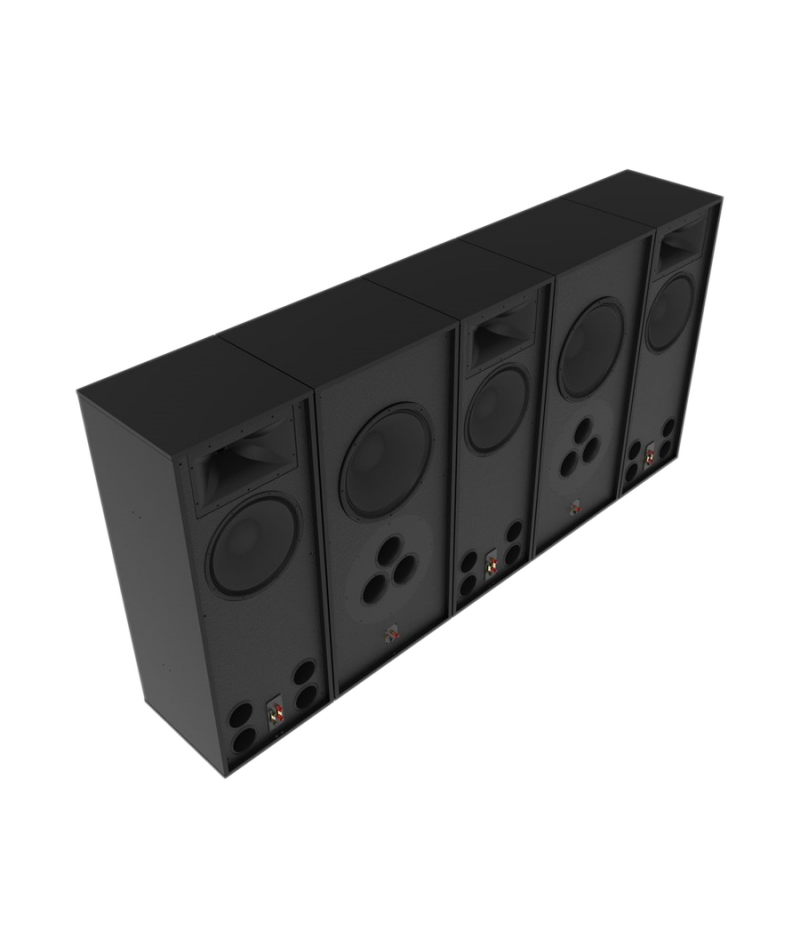

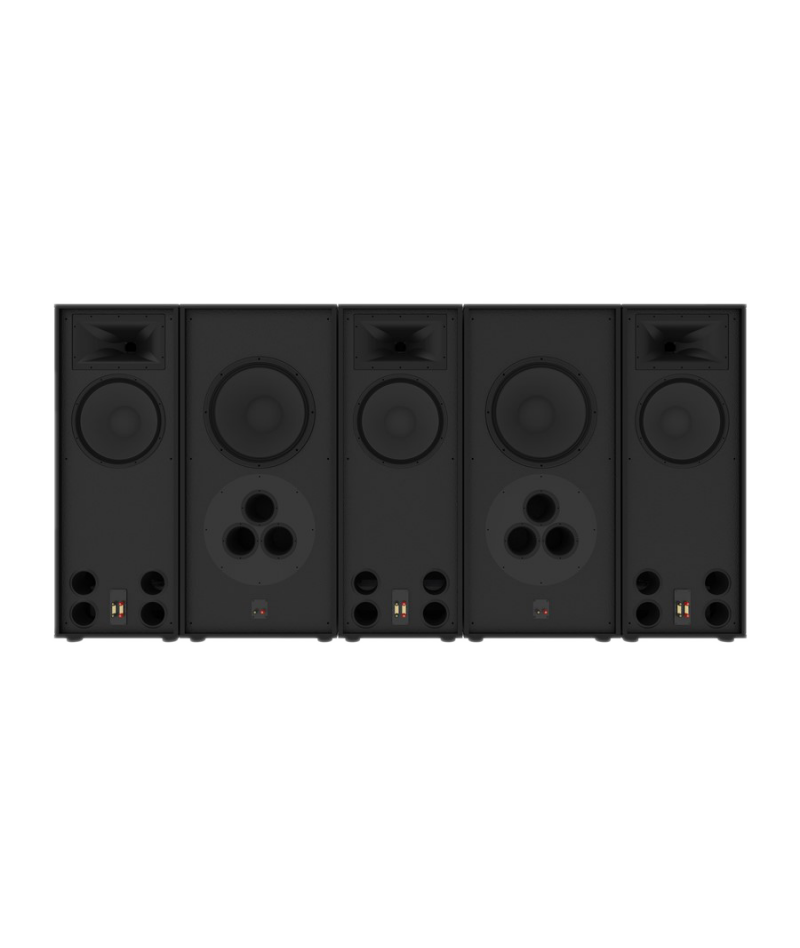

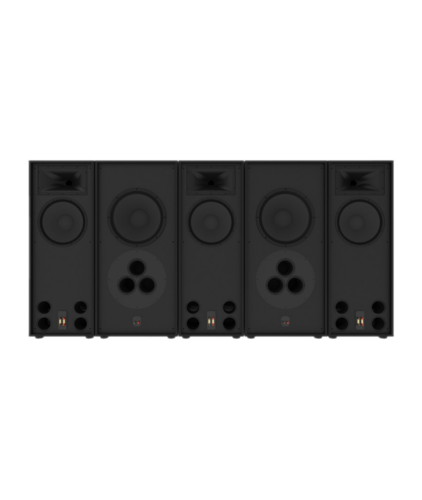

Klipsch RCC-112-BTS LCR Behind The Screen Home Theatre Speaker is a high performance, professional-grade cinema speakers for your home. RCC-112-BTS LCR speaker is loaded with bass-reflex by four circular vents which open onto the front face of the Klipsch RCC-112-BTS LCR speaker to optimize the bass response.

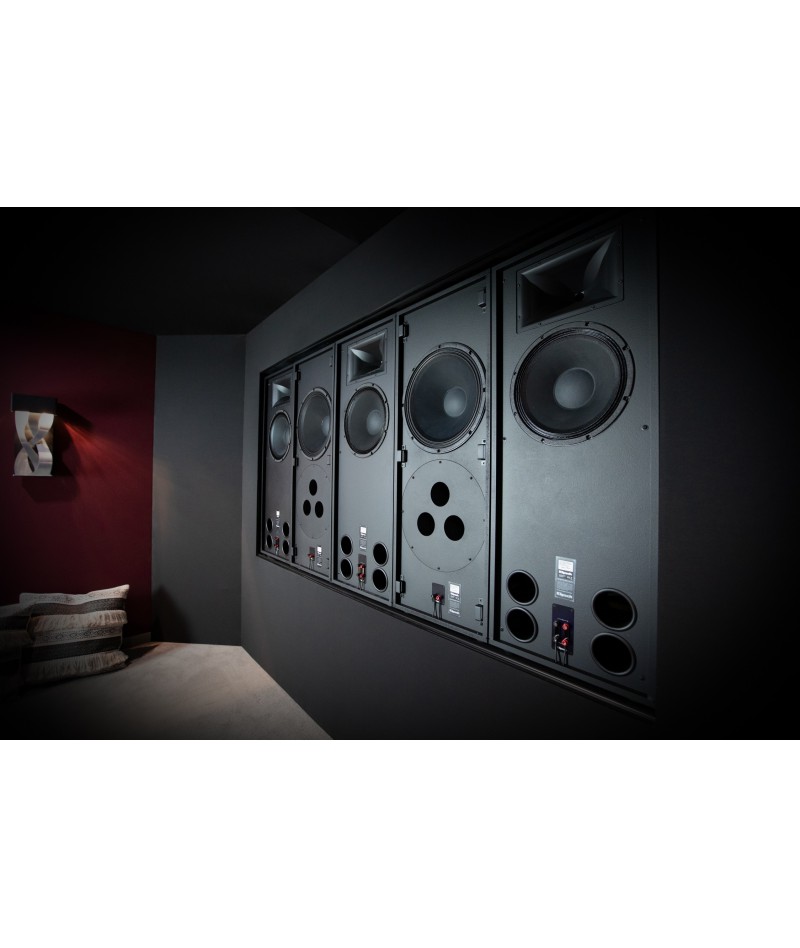

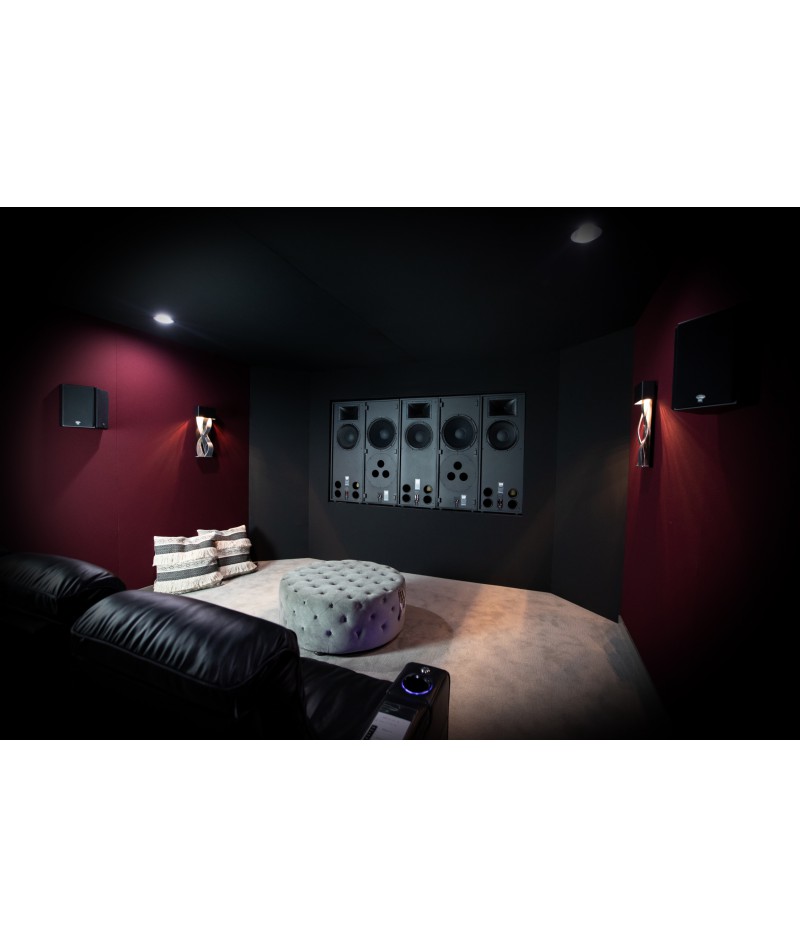

The modular false-wall design allows for incredibly easy system design and installation while eliminating light creep from behind the screen for a professional cinema experience - acoustically and visually.
The Klipsch RCC-112-BTS Home Theatre Speaker System consists of five different loudspeakers including three LCR loudspeakers for the reproduction of the front right and left channels, as well as the central and two subwoofers. This set provides unrivalled performance worthy of the best movie theatres and is ideal for 112 inches to 121 inches wide screens.
Bring the cinema home with Klipsch Real Custom Cinema Series
- High performance behind-the-screen cinema systems (3 LCRs + 2 Subs) allowing integrators to order system based on screen width.
- True pro cinema for the home: systems use drivers, crossovers, and horns used in the professional cinema space.
- Modular assembly eliminates light creep and provides perfect speakers placement.
Features
Behind-The Screen LCR/SUB System for screens 112"-121"+ in Width
K-691 3" Titanium diaphragm compressions drivers with 3" voice coils
K-510-M 90° x 60° Tractrix® Horn; Cinema Tractrix ports
K-45-ST 15" Polyfiber woofer cones with 3" voice coils
K-49-EP 18" Polyfiber woofer cones with 3" voice coils
Front mounted aluminum input panels with wire management channel
Specifications
MAX CONTINUOUS OUTPUT 130 dB
MAX PEAK OUTPUT 136 dB
SYSTEM FREQUENCY RESPONSE 17 - 20kHz
POWER HANDLING LCRs (Each): 400W Continuous, 1600W Peak
SUBs (Each): 600W Continous, 2400W Peak
SYSTEM SENSITIVITY 107 dB, 2.83V @ 1m, 1/2 space
HORIZONTAL COVERAGE 90° +/- 20 (1.1kHz - 20kHz)
VERTICAL COVERAGE 60° +/- 20 (2.2kHz - 20kHz)
NOMINAL IMPEDENCE 8 Ohm
MINIMUM RECOMMENDED AMPLIFIER POWER LCRs: 250W RMS
SUBs: 500W RMS
HIGH FREQUENCY DRIVERS (3) K-691 3” Titanum Compression Driver Mounted on a K-510-M Horn
LOW FREQUENCY DRIVERS (3) K-45-ST 15” Polyfiber Woofers
SUBWOOFER DRIVERS (2) K-49-EP 18” Polyfiber Woofers
ENCLOSURE TYPE Double Braced Dado and Rabbit MDF
INPUTS Dual 5-Way Binding Posts
SYSTEM HEIGHT 55” (139.7 cm)
SYSTEM WIDTH 111.5” (283.21 cm)
SYSTEM DEPTH 20.25” (51.44 cm)
SYSTEM WEIGHT 683 lbs (309.80 kg)
FINISH Textured Black Paint
RECOMMENDED SCREEN WIDTH 112” - 121”
RECOMMENDED SCREEN SIZE (DIAGONAL) 16:9: 128” - 140”
1:2.35: 122” - 132”
