For decades, Klipsch has ruled the professional cinema space with exceptional sounding, high output cinema speakers designed and built at our factory in Hope, Arkansas. Now the same components used in those speakers all over the world can now bring movie night home.
Utilizing the same acoustic and network components as our legendary professional cinema speakers, the all new Real Custom Cinema systems are specifically designed to bring the exceptional performance and power of these professional speakers to the home theater.

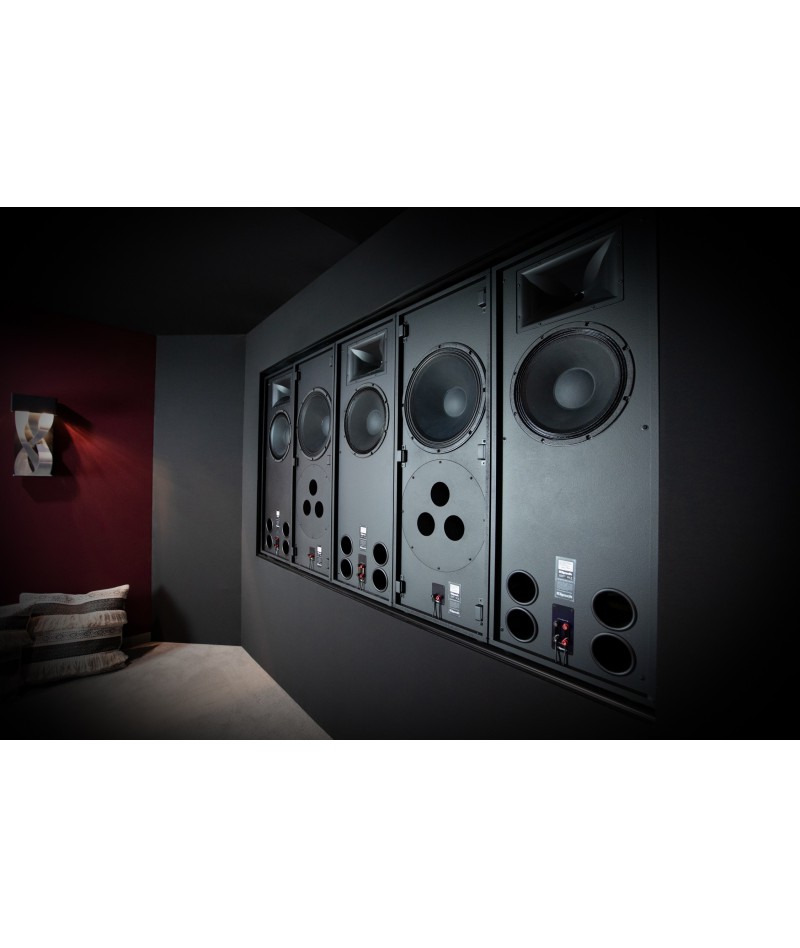

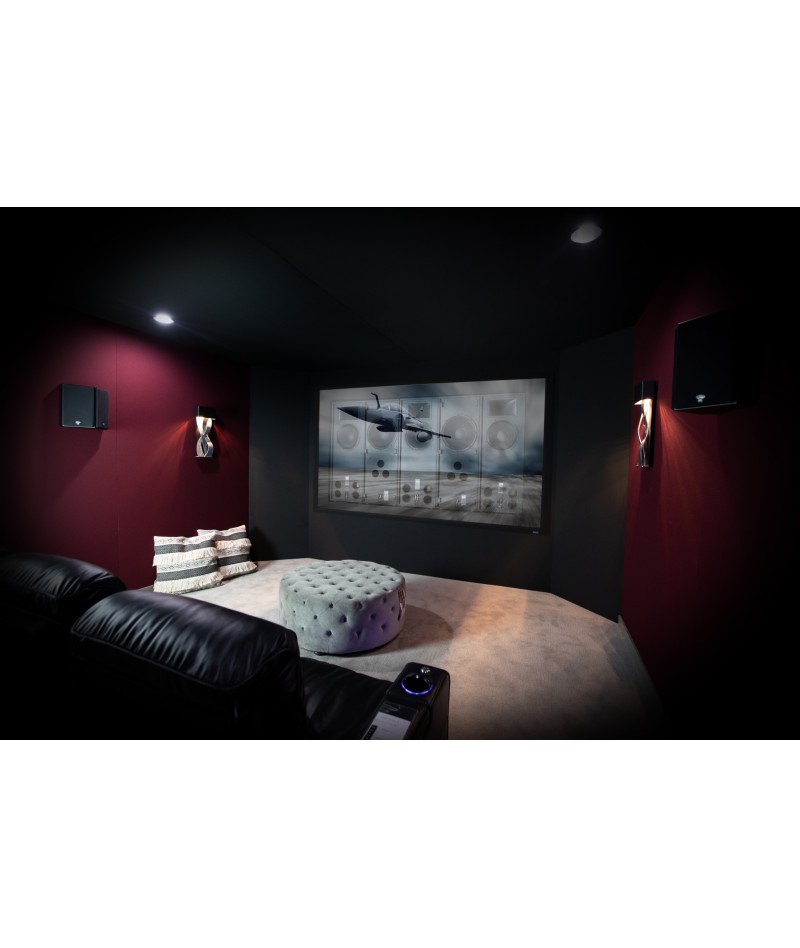

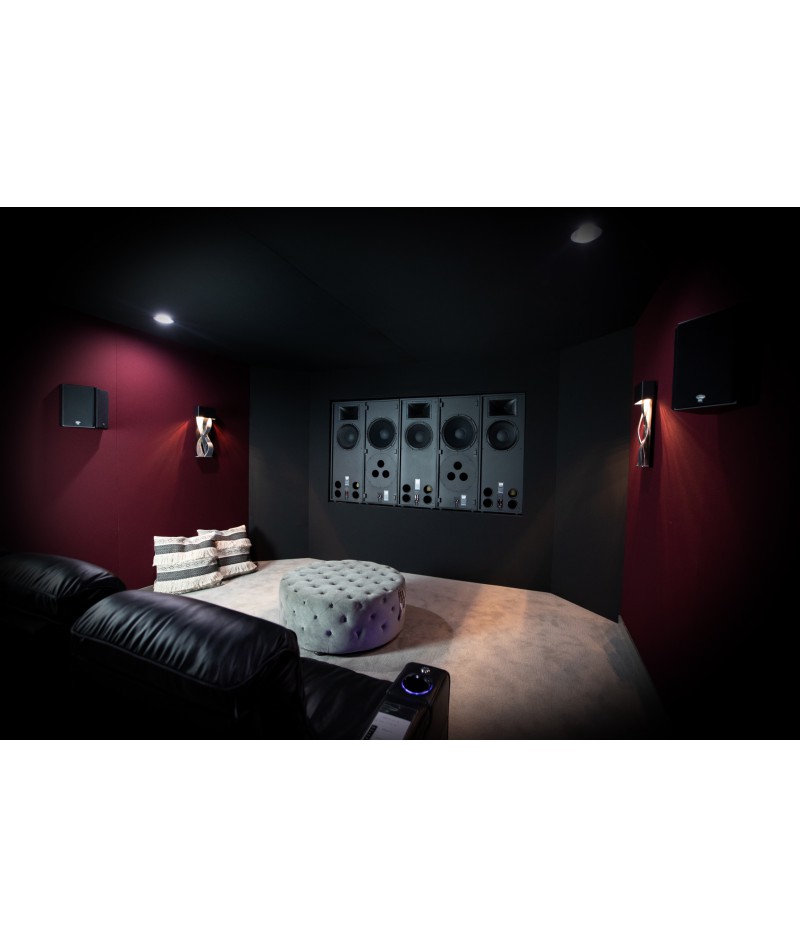

The modular false-wall design allows for incredibly easy system design and installation, while eliminating light creep from behind the screen for a professional cinema experience - acoustically and visually.
Introducing the Real Custom Cinema Series from Klipsch. High performance, professional grade cinema speakers for the home. Proudly designed, engineered, and built in Hope, Arkansas, USA
Features

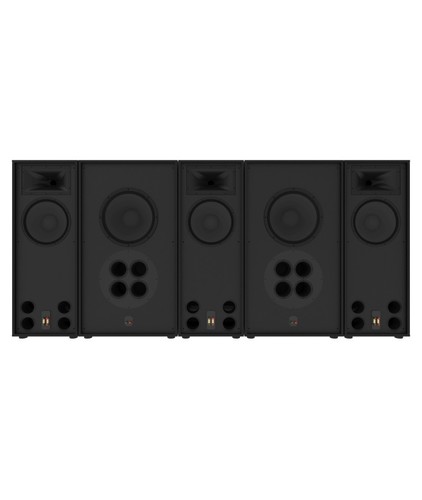

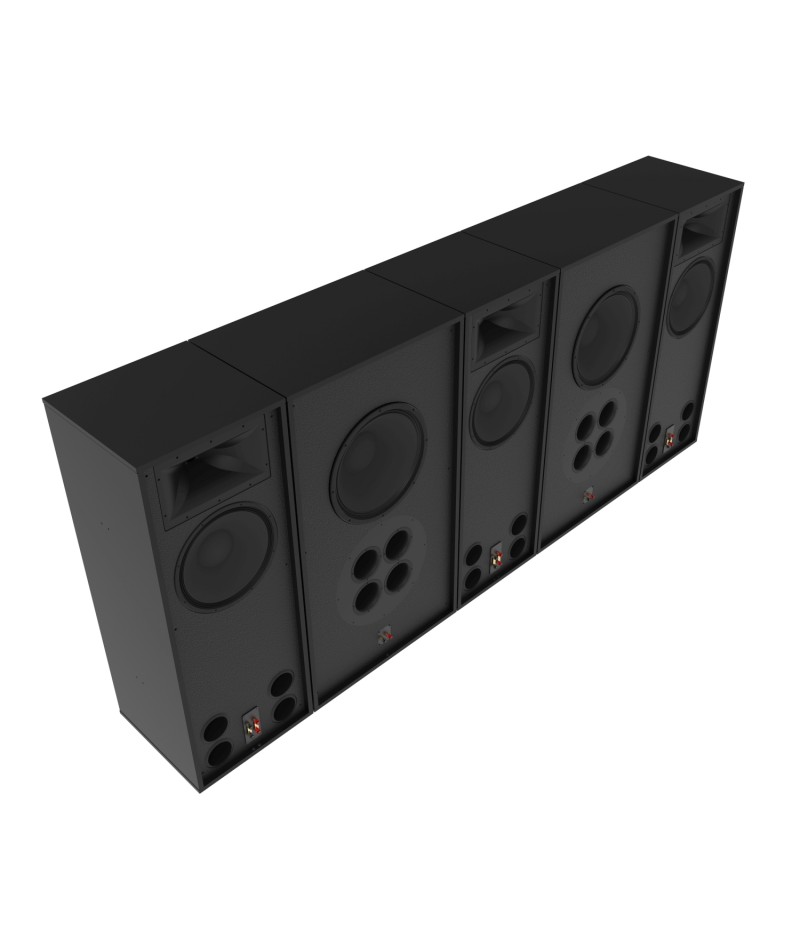

Behind-The Screen LCR/SUB System for screens 122"+ in Width
K-691 3" Titanium diaphragm compressions drivers with 4" voice coils
K-510-M 90° x 60° Tractrix® Horn; Cinema Tractrix ports
K-45-ST 15" Polyfiber woofer cones with 4" voice coils
K-472-EP 18" Polyfiber woofer cones with 4" voice coils
Front mounted aluminum input panels with wire management channel
Available in mono-amp for "traditional" internal crossover off one amp or bi-amp for external crossover for separating individual low and high-frequency amps
Specifications
MAX CONTINUOUS OUTPUT 133 dB
MAX PEAK OUTPUT 139 dB
SYSTEM FREQUENCY RESPONSE 16 - 20kHz
POWER HANDLING LCRs (Each): 800W Continuous, 3200W Peak
SUBs (Each): 1000W Continous, 4000W Peak
SYSTEM SENSITIVITY 108 dB, 2.83V @ 1m, 1/2 space
HORIZONTAL COVERAGE 90° +/- 20 (1.1kHz - 20kHz)
VERTICAL COVERAGE 60° +/- 20 (2.2kHz - 20kHz)
NOMINAL IMPEDENCE 8 Ohm
MINIMUM RECOMMENDED AMPLIFIER POWER LCRs: 250W RMS
SUBs: 500W RMS
HIGH FREQUENCY DRIVERS (3) K-691 3” Titanum Compression Driver Mounted on a K-510-M Horn
LOW FREQUENCY DRIVERS (3) K-45-ST 15” Polyfiber Woofers
SUBWOOFER DRIVERS (2) K-472-EP 18” Polyfiber Woofers
ENCLOSURE TYPE Double Braced Dado and Rabbit MDF
INPUTS Dual 5-Way Binding Posts
SYSTEM HEIGHT 55” (139.7 cm)
SYSTEM WIDTH 121.5” (308.61 cm)
SYSTEM DEPTH 20.25” (51.44 cm)
SYSTEM WEIGHT 744 lbs (337.47 kg)
FINISH Textured Black Paint
RECOMMENDED SCREEN WIDTH 122” and above
RECOMMENDED SCREEN SIZE (DIAGONAL) 16:9: 140” and above
1:2.35: 132” and above
