Intelligent design. An instant system, tailored for you.

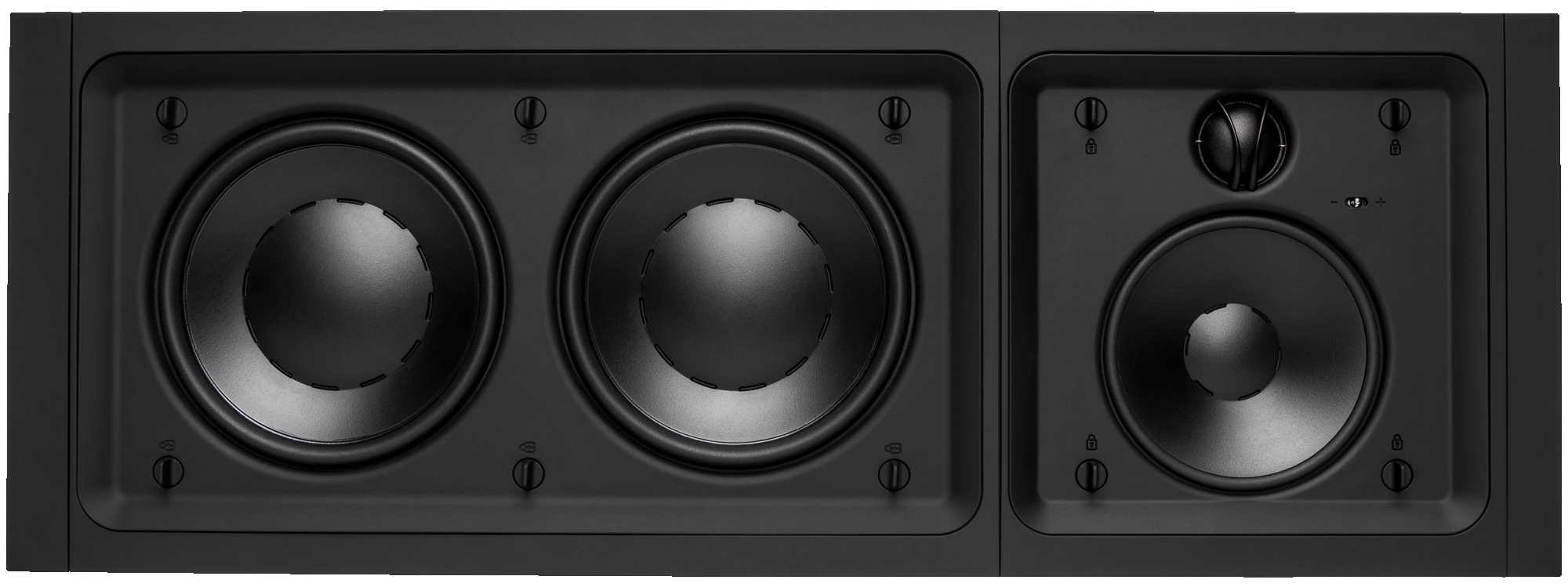

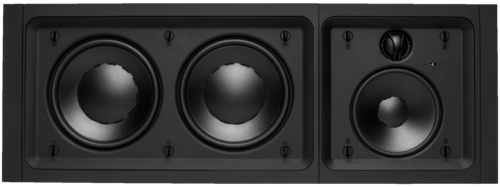

The Dynaudio Custom Studio S4-LCR65 system lets you create personalised vertically or horizontally oriented left, centre and right three-way speaker channels. And it’s a breeze to install… even between stud bays.

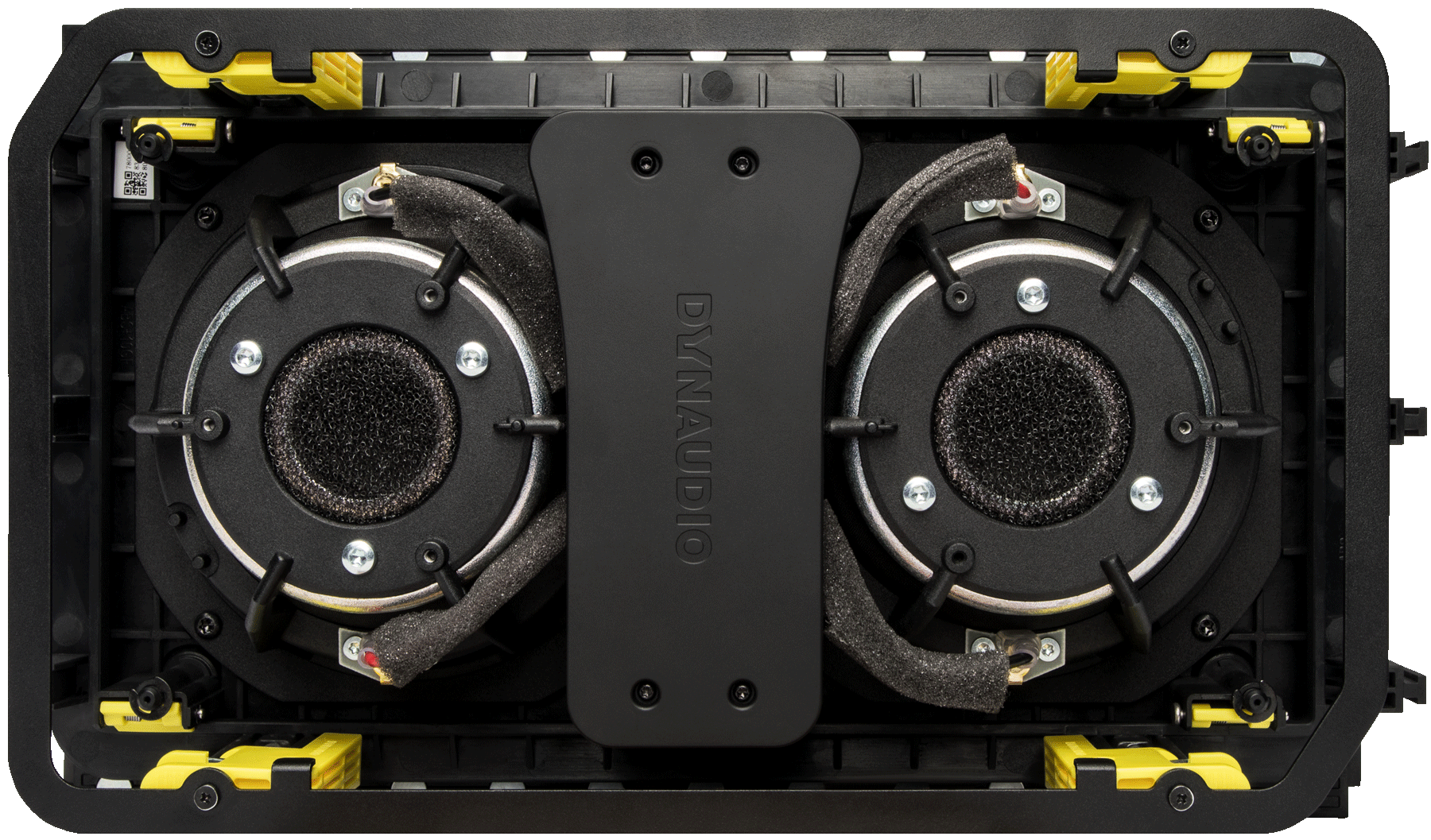

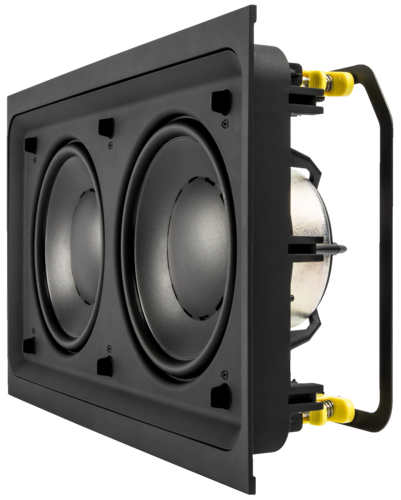

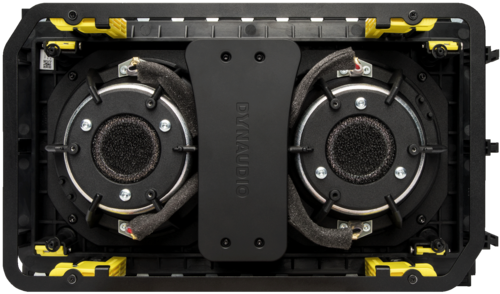

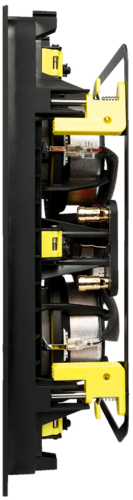

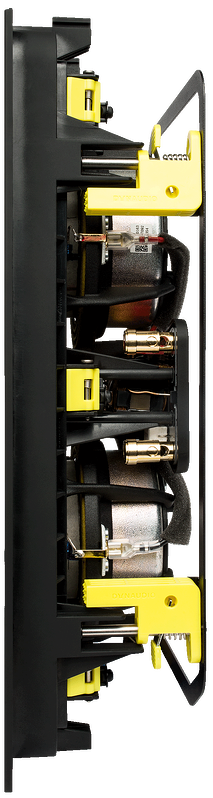

Its intelligent modular design means incredible flexibility: the S4-LCRMT mid/tweeter and S4-LCR65W woofer modules fit around standard 16in studs (so you don’t have to cut them away). You can position the tweeter either way up and at any height in the array (so the listener gets total focus). And the individual modules are easily connected using speaker wire, with their frames either connected together and installed in a single cut-out, or spaced apart in multiple cut-outs to create a bespoke single channel (so the possibilities are immense).
StatusCurrent
SegmentCustom Install
RangeStudio
TypeIn-wall bass module
Sensitivity (dB @ 2.83V/1m)86
Rated Power50
Long Term Power200
Rated Impedance (Ohm)8
Impedance (Minimum)4,6
Lower Cutoff (Hz @ +/- 3 dB)35
Upper Cutoff (kHz @ +/- 3 dB)300
CrossoverCustom
Woofer2x 16.5 cm MSP
Width mm395
Height mm213
Depth mm 90
Width inches15,5511811
Height inches8,385826772
Depth inches3,543307087
Width Cutout mm190
Height Cutout mm373
Height cutout inches7 4/8
Width cutout inches14 5/8
Grille materialPainted steel
Grille optionsRectangular
Grille attachmentMagnetic
Grille finishWhite (paintable)
CertificationsCE
EnvironnmentalRoHS
