Wall of sound. Simple installation, simple finishing, simply brilliant.
It isn’t fun cutting through studs in walls. It isn’t fun dealing with the extra bracing required. It isn’t fun cleaning up the sawdust. So don’t put yourself through it…
The Dynaudio Custom Studio series S4-LCR65 system is modular; its separate woofer and tweeter modules are designed to fit snugly in the spaces between standard American 16in on-center wall-studs. That means you can configure a full three-way LCR array with no modifications – and no more effort than it takes to spec the rest of the system.

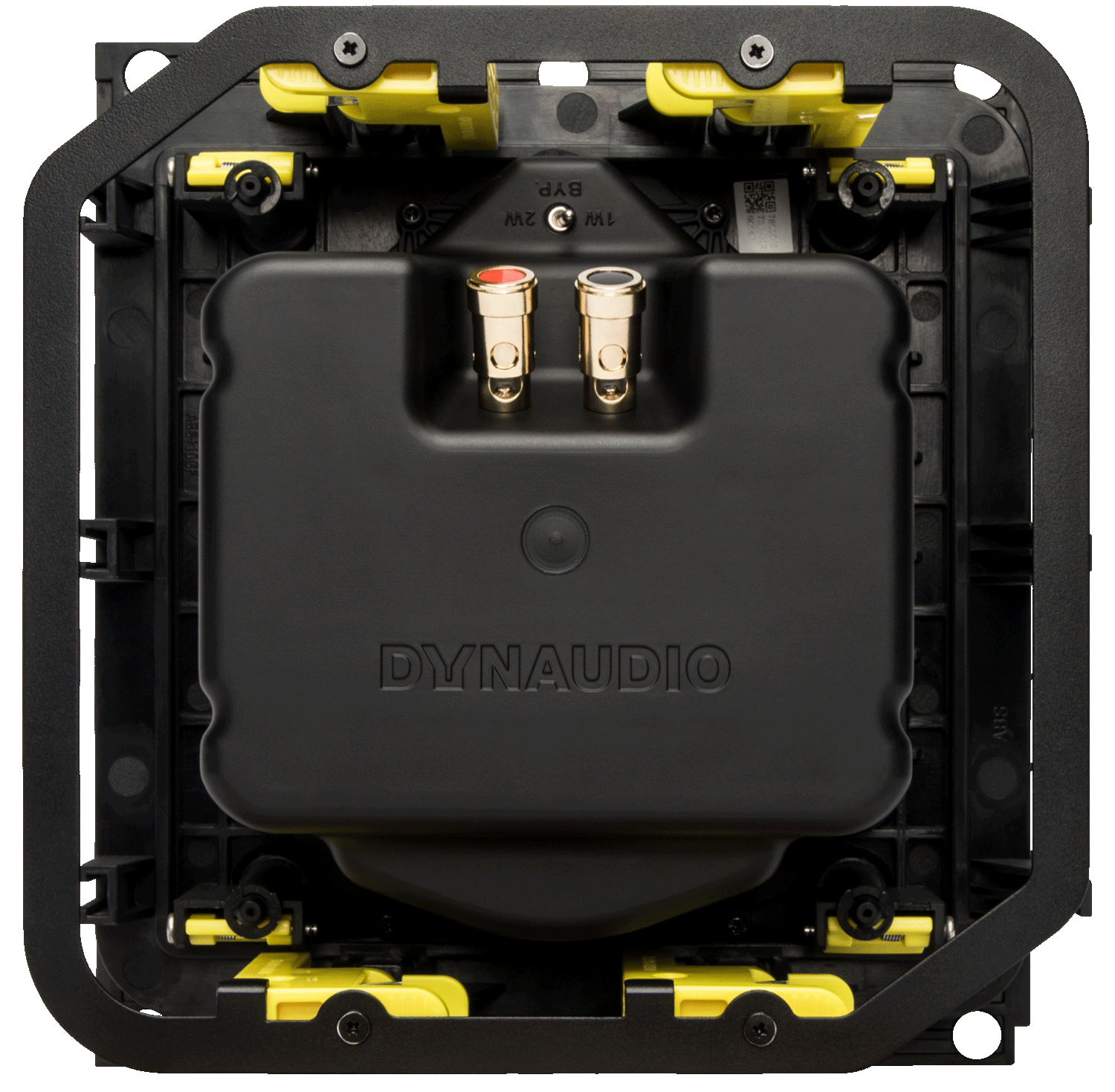

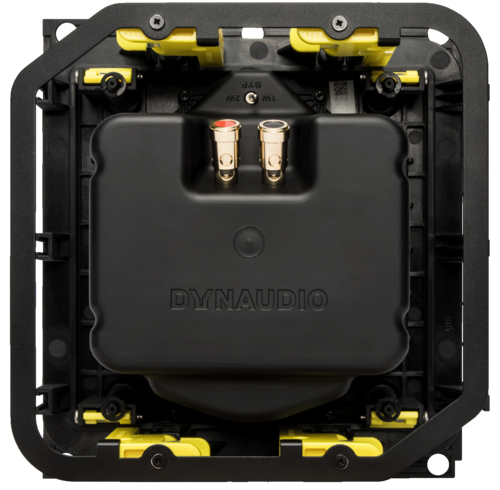

The tweeter modules can be placed either way up to optimize the system for the listening position, while a rear switch lets you match their power setting to the number of woofer modules you’ve chosen. There’s also a passive filter bypass setting to unlock an unlimited range of fully active LCR system configurations.
Our engineers wanted to make it as easy as possible to install a larger array in one go, which is why magnetic fastenings hold everything securely together if you’re not separating the modules. The S4-LCR65 system also uses the exact same unique clamp-and-lock mechanism as the rest of the Dynaudio Custom Studio range.
StatusCurrent
SegmentCustom Install
RangeStudio
TypeIn-wall tweeter/mid module
Sensitivity (dB @ 2.83V/1m)89
Rated Power50
Long Term Power150
Rated Impedance (Ohm)8
Impedance (Minimum)5
Lower Cutoff (Hz @ +/- 3 dB)250
Upper Cutoff (kHz @ +/- 3 dB)20
Crossover2-way
Tweeter28 mm soft dome
Midrange10 cm MSP
Tweeter level options-3dB, 0dB, +3dB
Width mm235
Height mm213
Depth mm 90
Width inches9,251968504
Height inches8,385826772
Depth inches3,543307087
Width Cutout mm190
Height Cutout mm213
Height cutout inches7 4/8
Width cutout inches8 3/8
Grille materialPainted steel
Grille optionsRectangular
Grille attachmentMagnetic
Grille finishWhite (paintable)
CertificationsCE
EnvironnmentalRoHS
