Give your room the sound it deserves, with the Studio range’s biggest in-wall speaker.

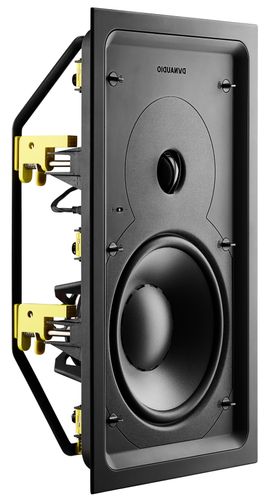

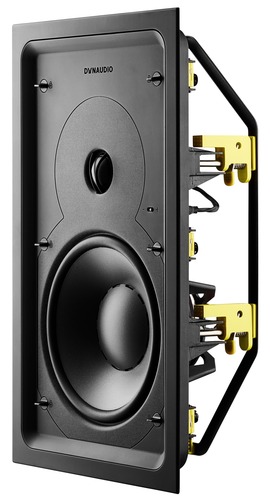

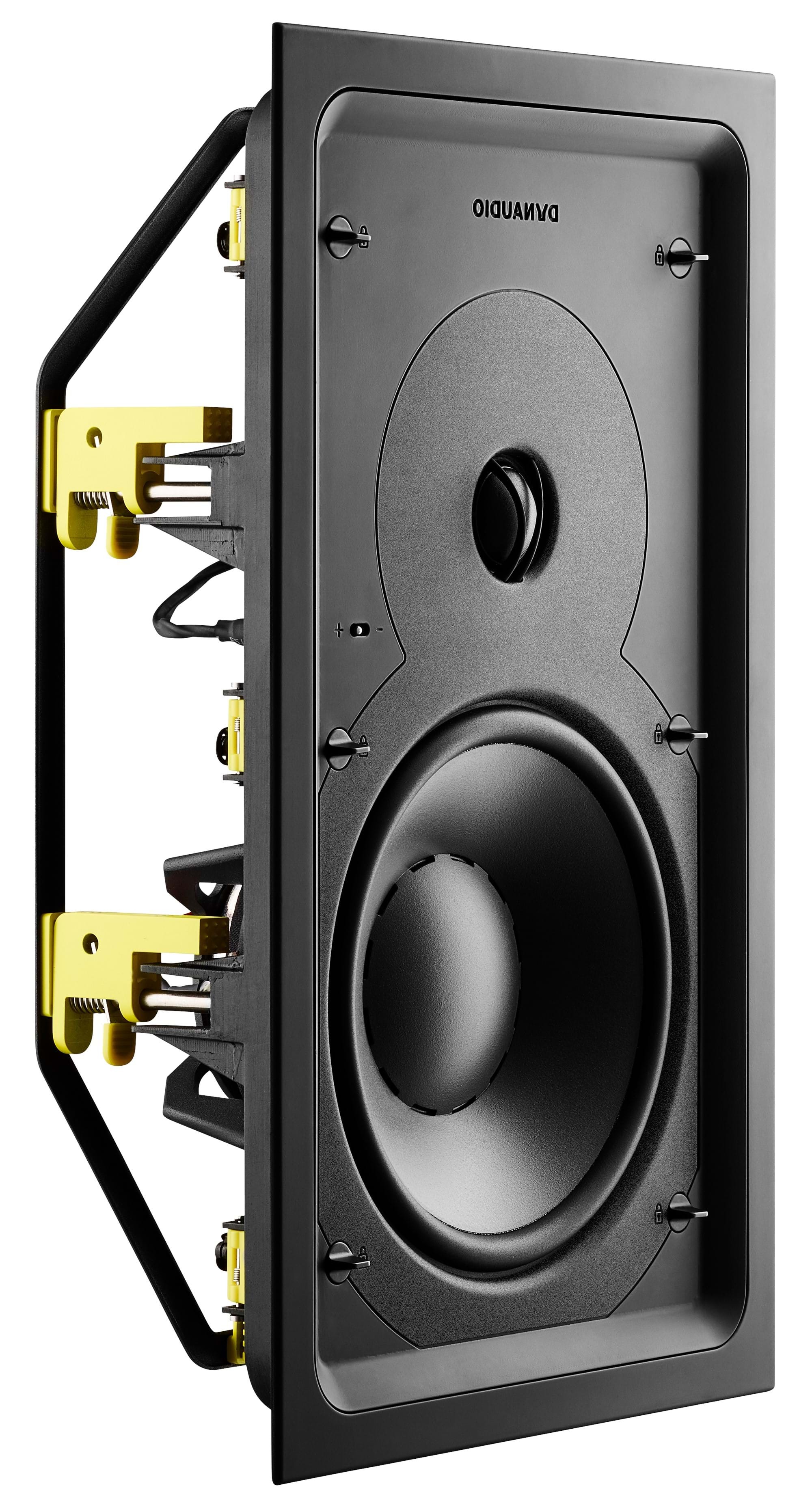

Just add music. Or movies, for that matter. Whatever you’re listening to, the S4-W80 in-wall speaker from Dynaudio’s Custom Architectural Studio range delivers all the accuracy and refinement of the smaller S4-W65, and turns it up a notch.
Offering a bolder, even more authoritative sound, the S4-W80 makes easy work of bigger rooms. That’s thanks to its larger 20cm mid/bass driver, which – like the rest of the Custom Studio range – is matched with Dynaudio’s iconic 28mm soft-dome tweeter for a treble that sings.
Getting custom audio into your home shouldn’t be hard, and Dynaudio’s specially designed easy-mount frames can be installed quickly and simply during any building or renovation process.
Not planning on tearing down your walls any time soon? The frames can also be retrofitted into the majority of existing wall cavities for fuss-free installation.
StatusCurrent
SegmentCustom Install
RangeStudio
TypeIn-wall
Sensitivity (dB @ 2.83V/1m)89
Rated Power100
Long Term Power140
Rated Impedance (Ohm)8
Impedance (Minimum)5
Lower Cutoff (Hz @ +/- 3 dB)45
Upper Cutoff (kHz @ +/- 3 dB)20
Crossover2-way
Tweeter28 mm soft dome
Midrange/Woofer20 cm MSP
Tweeter level options-3dB, 0dB, +3dB
Width mm236,5
Height mm391,5
Depth mm 99
Width inches9,311023622
Height inches15,41338583
Depth inches3,897637795
Width Cutout mm215
Height Cutout mm370
Height cutout inches8 4/8
Width cutout inches14 5/8
Grille materialPainted steel
Grille optionsRectangular
Grille attachmentMagnetic
Grille finishWhite (paintable)
CertificationsCE
EnvironnmentalRoHS
