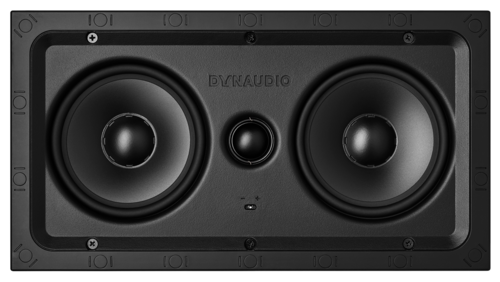

P4-LCR50
Centre stage. Slimline in-wall speaker with twin 5in woofers
It’s been said that up to 80% of the movie-going experience centres on sound. And most of that sound – dialogue, music and more – comes from the centre-channel. There is no more important speaker in a cinema set-up.If you’re building or specifying a home cinema or media-room, you need to know you’re installing a centre channel you can trust. And if you’ve been finding yourself grappling with surprises (or limited space) behind the drywall, this is the LCR speaker you need.It has a Dynaudio 28mm coated soft-dome tweeter flanked by twin 5in woofers – all tuned and refined by the same expert team (and expert ears) that have created some of our most legendary home, pro and car systems (including Evidence, Confidence and the new Evoke).The paintable magnetic grille and extreme ease of installation – plus stellar performance – all make for a solution that will give any movie the delivery it deserves.
StatusCurrent
SegmentCustom Install
RangePerformance
TypeIn-wall
Sensitivity (dB @ 2.83V/1m)89
Rated Power50
Long Term Power100
Rated Impedance (Ohm)4
Impedance (Minimum)3,2
Lower Cutoff (Hz @ +/- 3 dB)46
Upper Cutoff (kHz @ +/- 3 dB)20
Crossover2-way
Tweeter28 mm soft dome
Midrange/Woofer2x 16.5 cm MSP
Tweeter level options-3dB, 0dB, +3dB
Width mm360
Height mm195
Depth mm 77
Width inches14,17322835
Height inches7,677165354
Depth inches3,031496063
Width Cutout mm175
Height Cutout mm340
Height cutout inches6 7/8
Width cutout inches13 3/8
