Stunning Realism, Immersive Sound

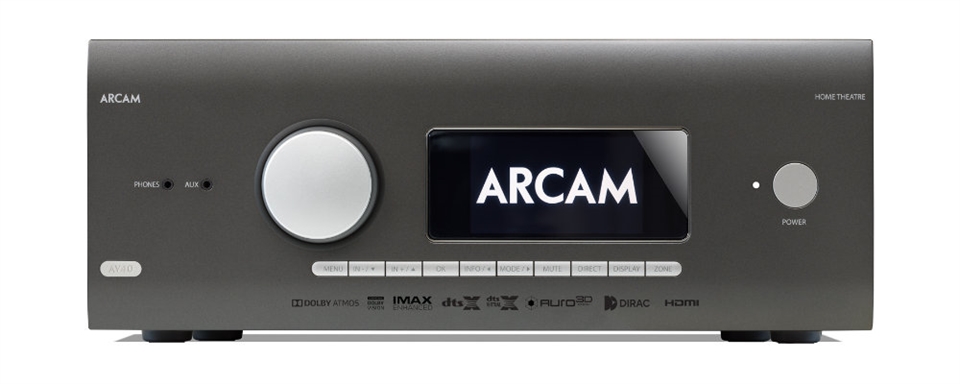

The AV40 is a high-performance audio/visual processor that delivers stunning realism for the ultimate home cinema experience. With an impressive 16-channels of surround sound processing and featuring all the latest CODECs from Dolby, DTS, Auro-3D and IMAX Enhanced, the AV40 exemplifies sound quality and engineering excellence.

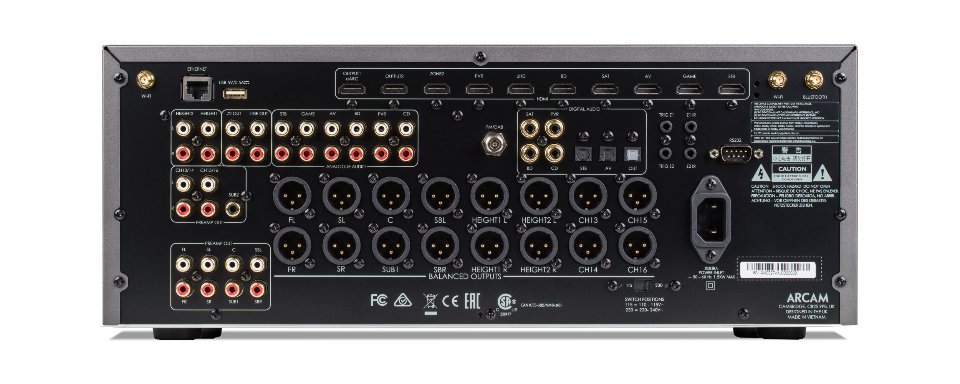

The AV40 boasts XLR balanced outputs for every channel to deliver the highest quality analogue connection to power amplifiers.
Audiophile listening experiences are optimised with full 16-channel Dirac calibration on board as well as simple streaming with a mobile device using the native app of choice via Apple AirPlay2 or Google Chromecast.
Dirac Live® Bass Control is available at an additional cost via the Dirac website: https://www.dirac.com/online-store/arcam-av40/
Dirac Live® Bass Control aggregates measurement and location data from each subwoofer as well as the main speakers to determine how a system’s bass is distributed throughout the room.
Stereo Line Inputs
Maximum input 4.5V rms
Nominal sensitivity 1V, 2V, 4V (user adjustable)
Input impedance 47kΩ
Signal/noise ratio (A-wtd ref 100W) normal/stereo direct 100dB/110dB
Frequency response 20Hz—20kHz ± 0.2dB
Preamplifier Outputs
Nominal output level 1V RMS (max. 5V RMS)
Output impedance 560Ω
THD+N (20Hz—20kHz) –100dB
Headphone Output
Maximum output level into 32Ω 5Vrms
Output impedance <100Ω
General
Mains voltage 110–120V or 220–240V, 50–60Hz
Power consumption (maximum) 50W (Thermal dissipation approx. 170 BTU/hour)
Power consumption (idle, typical) 40W (Thermal dissipation approx. 170 BTU/hour)
Power consumption (standby) <0.5W
Dimensions W x D (including speaker terminals) x H (including feet) 433 x 425 x 171mm
Weight (net) 10.6kg
Weight (packed) 13.9kg
Supplied accessories Mains lead
Remote control with 2 x AAA batteries
Manual
DAB/FM aerial
3 x WiFi/Bluetooth antennas
Calibration microphone
USB cable
EAN 6925281947063
