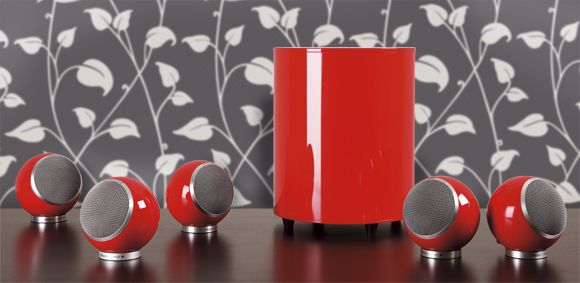

Following in the Elipson tradition, the Planet L is a superb compact speaker with outstanding musical qualities inherent to its spherical shape.
The Planet L speaker is the fruit of two years of research in the field of state-of-the-art acoustic technologies with the aim of achieving excellent musical performance and a particularly attractive design featuring a stunning lacquer.
Equipped with a 17 cm coaxial midrange/low driver and a 25 mm dome tweeter, this bass-reflex speaker provides an exceptional listening experience from the very first notes of any song. Its meticulous construction (heavy and rigid for excellent inertia) ensures clean and muscular bass delivery. The Planet L offers an exceptionally neutral sound with remarkable coherence among the different timbres and registers (no excessive mids, highs or lows). The highs are soft and silky, the mids are full and sensual and the bass is ultra-responsive and tight. The Planet L strikes the right balance between high-definition and energy.
The stereo soundstage is wide thanks to the excellent directivity offered by the coaxial speaker. The optional mounts may be used to install the Planet L on a wall or ceiling.
Speaker : Bookshelf
Number of way : 2
Tweeter : 0,7"
Woofer : 4"
Recommended amplifier : 30-80 W
Frequency Response (±3 dB) : 90 Hz - 22 kHz
Sensitivity : 88 dB / 1W / 1m
Impedance : 8 Ohms
Blindage : Magnetic
Base : Amovible
Colors : Matt finish Mercury Ice, Neptune Stone or Saturn Dust. Black, white or red lacquer.
Weight : 2,25 kg

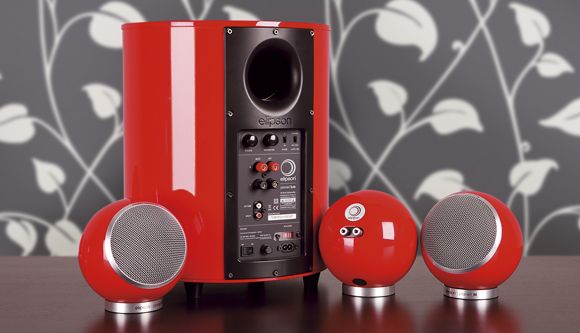

The Planet Sub carries the genes of Elipson’s Planet range : its exceptional design and uncompromising audio performance testify to this prestigious lineage.
Equipped with a 20 cm driver and featuring bass-reflex technology, this subwoofer is particularly responsive in the upper-bass register in order to support compact surround speakers. Its active class-D amplifier delivers up to 200 watts and its response reaches down to 30Hz, giving it a sense of versatility that allows it to be equally as suited for use in a stereo installation as in a home cinema installation.
Thanks to its adjustable cutoff frequency, the Planet Sub can be paired with other types of speakers (compact models, floorstanding models...).
Its cylindrical design promotes a very fluid internal airflow, while the down-firing driver allows for placement anywhere in the listening room. Combining elegance and performance, the Planet Sub is designed to ensure harmonious integration with Elipson's spherical speakers.
Amplifier power: 200 watts
20cm speaker
Amplifier Type: Class D
Bandwidth: 30 - 240 Hz
Inputs: line and speaker
Load Type: Bass Reflex
Phase adjustment: 0/180°
Dimensions (W x H x D): 316 x 393 x 316 mm
Weight: 10kg
