The Elipson Prestige Facet 14C speaker introduces a host of innovative technologies which allow it to offer a realistic and detailed reproduction of dialogues for your movies. The most visible is undeniably the ring of sculpted facets surrounding each driver, which gives the range its name. A rigorous design process ensures optimal acoustic performance, while an elegant finish allows the speaker to blend in harmonioulsy with your interior decor.

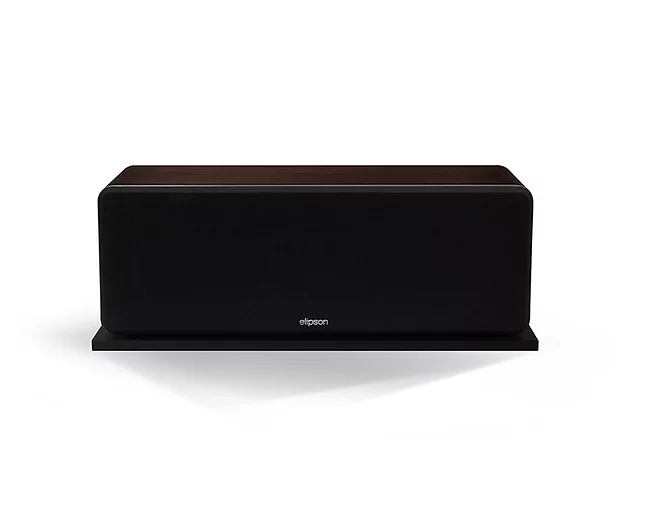

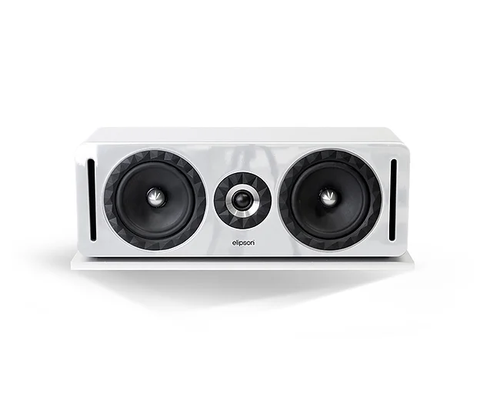

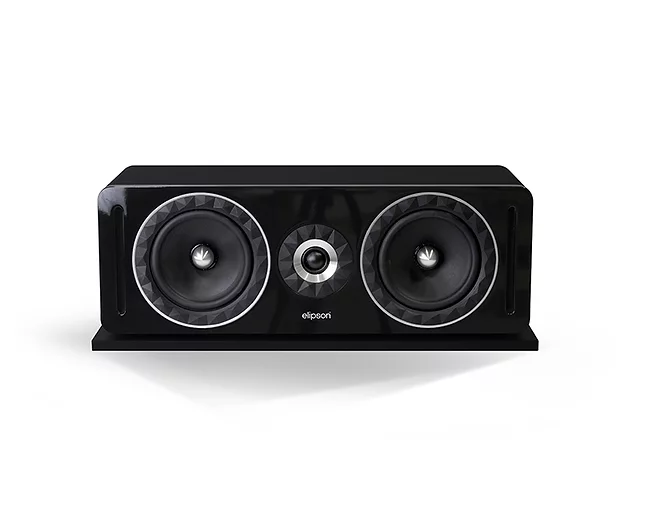

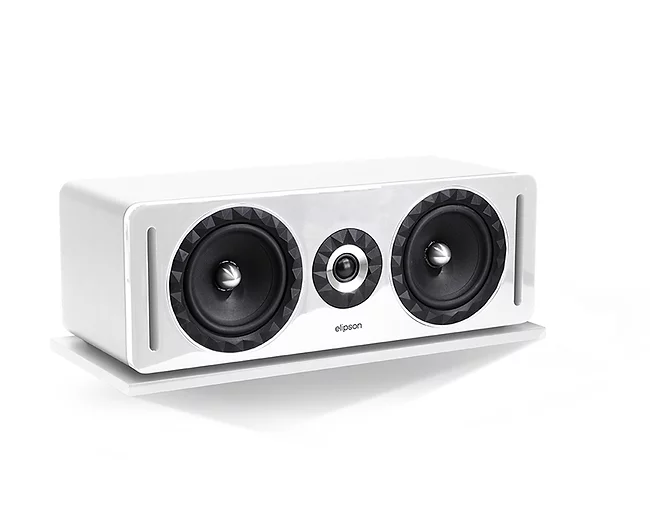

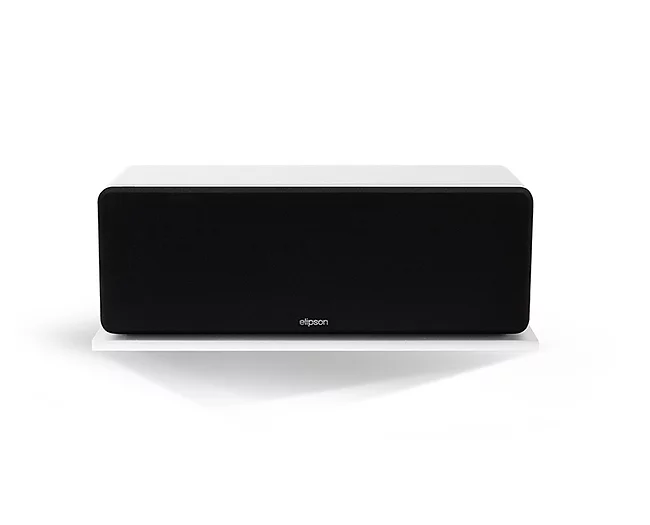

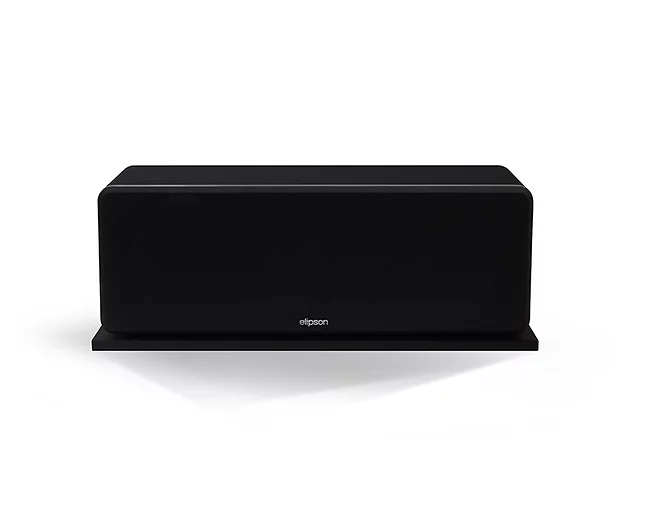

The Prestige Facet 14C is availble in black, walnut and white. A black or white lacquer is applied to the double-layer front panel.
This center-channel speaker is fitted with a pair of 17 cm drivers featuring bullet-shaped phase plugs to limit vibrations and, consequently, reduce distortion. It can reproduce frequencies as low as 43 Hz and has a continuous power rating of 150 W. A 25 mm soft dome tweeter reproduces highs with finesse and precision. The multifaceted, sculpted silicone surround rings encircling each driver reduce the baffle effect and limit diffractions. The result is an extremely precise reproduction of dialogues.
Extra attention has been paid to the speaker's cabinet. The lacquered front panel is composed of two dense, thick materials and strengthened by several internal brackets. The speaker's steep-slope filter relies on highly efficient, audiophile-grade components. As for the finish quality, it is not overlooked and offers benefits such as premium-quality vinyl and a lacquered front panel.
At Elipson, the back counts as much as the front. Our designers have created rounded, high-end dual speaker terminals which offer the possibility of biwiring and biamplifying while benefiting from silver-plated contacts to maximize signal transmission. Banana plugs may also be connected to the terminals.
The Prestige Facet 14C's high sensitivity (93 dB) allows it to be paired with any home cinema receiver. When combined with the rest of the Prestige Facet family, you will obtain a homogeneous ensemble capable of reproducing the soundstage in an optimized manner during your viewing sessions.
Design
Type: 2 way
Load: B ass-reflex 2x vertical laminar vents on the front
Admissible power: 150 W RMS
Custom-made synthetic rubber speaker surround to limit baffle effect and diffraction
Speakers on specifications
Internal reinforcements
Finish: lacquered front, vinyl box
Colours: black, white, black/walnut
Speakers
Medium-bass: 165 mm
Tweeter: 25mm
Measures
Frequency response (± 3dB): 43 Hz - 25 kHz
Sensitivity: 93dB/1W/1m
Impedance: 6 ohms
connectors
Screw terminals
Silver connectors
Bi-wiring or bi-amplification compatible
General
Dimensions: W623 x H207 x D250 mm (with base)
W600 x H228 x D275 mm (without base)
Weight: 15 kg
