The Elipson Prestige Facet 34F speaker introduces a host of innovative technologies. The most visible is undeniably the ring of sculpted facets surrounding each driver, which gives the range its name. A rigorous design process ensures optimal acoustic performance, while an elegant finish allows the speaker to blend in harmoniously with your interior decor.

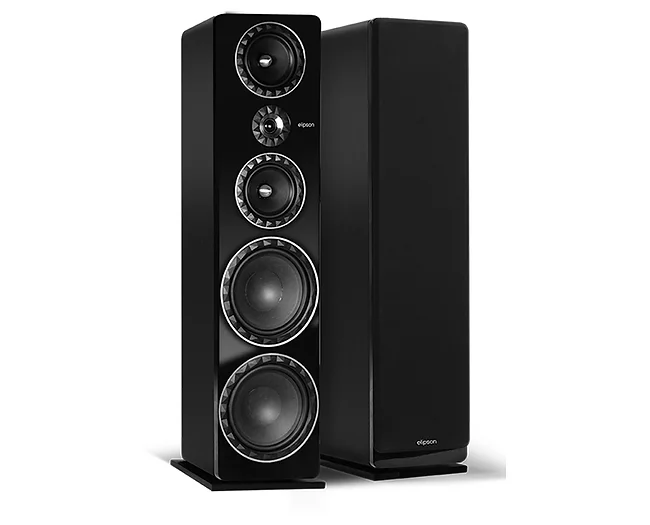

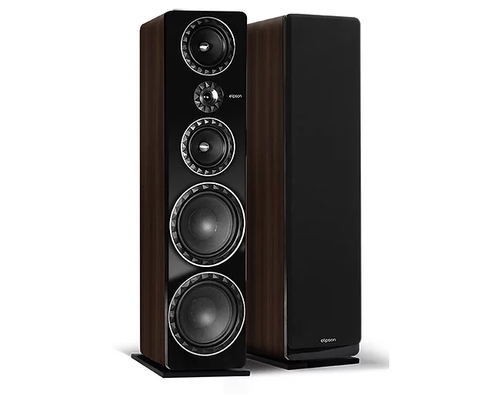

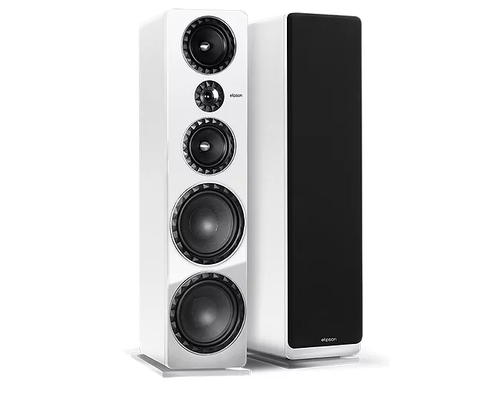

The Prestige Facet 34F is availble in black, walnut and white. Signs of a high-quality finish include a double-layer front panel to which a black or white lacquer is applied. This 3-way floorstanding speaker is equipped with two 10" bass drivers and two 7"mid-low drivers. The latter is fitted with a bullet-shaped phase plug to limit vibrations and, consequently, reduce distortion. A 25 mm soft dome tweeter reproduces highs with finesse and precision. The multifaceted, sculpted silicone surround rings encircling each driver reduce the baffle effect and limit diffractions. The result is a more linear response curve and a smoother listening experience.
Extra attention has been paid to the speaker's cabinet. The lacquered front panel is composed of two dense, thick materials and strengthened by several internal brackets. The speaker's steep-slope filter relies on highly efficient, audiophile-grade components. As for the finish quality, it is not overlooked and offers benefits such as premium-quality vinyl and a lacquered front panel.
At Elipson, the back counts as much as the front. That is why our designers have created rounded, high-end dual speaker terminals which offer the possibility of biwiring and biamplifying while benefiting from silver-plated contacts to maximize signal transmission. Banana plugs may also be connected to the terminals.
Neutral and accurate, this speaker delivers sound which is free from colouration and faithful to the original recording. Impressions of smoothness and serenity emanate from each track as it is masterfully reproduced, without any hint of harshness.
The Prestige Facet 34F's high sensitivity allows it to be paired with any amplifier with a power rating of 300 W or less per channel. Its lively performance make it an excellent left or right front channel speaker for a multichannel home cinema installation.
Kind
3-way bass-reflex enclosure
Admissible power: 300 W RMS
Speakers
Bass: 2 x 250 mm (2 x 10''), 50 mm diameter voice coils offering high power handling and maximum cooling during power ups
Medium: 2 x 170 mm (2 x 7''), central ogive to limit turbulence and reduce distortion
Tweeter: 25 mm (1''), silk dome, magnetic assembly offering 95 dB of sensitivity
Optimum Treble Midrange type MTM (Medium/Tweeter/Medium): tweeter at ear height
Filtering
High-end components
- 18 dB/octave with impedance network for Tweeter
- 6 dB / octave high pass & 12 dB / octave low pass for Mid speakers
- 12 dB octave for Woofers
Cutoff frequencies: 400 / 3500 Hz
Measures
Frequency Response (±3dB): 25Hz - 25kHz
Sensitivity: 94dB/1W/1m
Nominal impedance: 6 ohms
Minimum impedance: 4.5 ohms (at 28 Hz, bass-reflex tuning frequency)
Connectors
Silver for bi-wiring or bi-amplification
Finishing
Lacquered front
MDF box
Vinyl veneer
Colors: Black, White, Black/Walnut
Dimensions and weight
Dimensions without base (wxhxd): 295 x 1190 x 360 mm
Weight: 42.4 kg / unit (44.6 kg with stand)
Packaging (unit): brown cardboard
Packaging dimensions (wxhxd): 535 x 1345 x 470 mm (unit)
Weight (unit): 50 kg
Accessories
Decoupling spikes (4 per enclosure)
