Engineered with care.
Dimensions (W × H × D)
430 × 73 × 347 mm
17” x 2 7/8” x 13 5/8”
Front Panel Height
60 mm (2 3/8”)
Power Requirements
120 V, 60 Hz
Power Consumption
150 W
Standby Power Consumption
<0.5 W
Net Weight
6.8 kg (15 lbs.)
BTU Rating (4Ω, 1/8th power)
450 BTU/h
Power Output
50 W/Ch (8 Ohms)
62 W/Ch (4 Ohms)
Total Harmonic Distortion (THD)
<0.03%
Frequency Response
Line Level Inputs: 10 Hz - 100k Hz, -0.5 dB, +0.05 dB
Phono Input: 20 Hz - 20k Hz, -0.5 dB, +0.3 dB
Digital Input: 20 Hz – 20k Hz, -0.15 dB, +0 dB
S/N Ratio (IHF "A" Weighted)
Line Level Inputs: 90 dB
Phono Input: 85 dB
Product Description
The A11MKII Integrated Amplifier offers an ideal combination of power and connectivity for the music lover seeking to elevate their listening experience.
Constructed around a linear power supply featuring a massive Rotel-built toroidal power transformer, the A11MKII delivers an authoritative 50 Watts per channel of Class A/B power into 8 ohms, and even higher power into demanding loudspeakers.

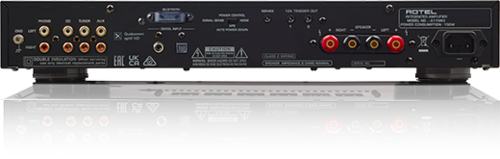

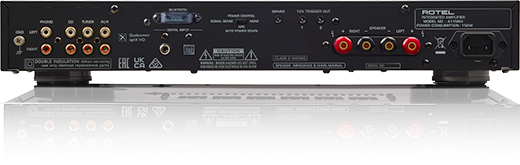

Both analog and digital sources are welcome, with three line-level RCA inputs, coaxial and optical digital inputs, a Moving Magnet Phono stage, and aptX™ HD Bluetooth. An 1/8” headphone jack with dedicated headphone amplifier circuit is provided on the front panel for private listening sessions.

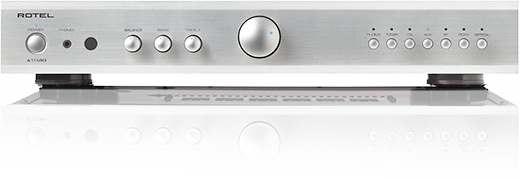

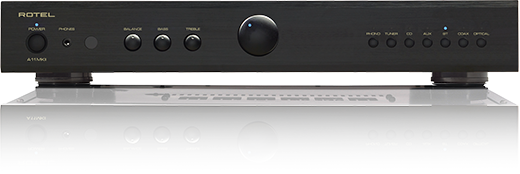

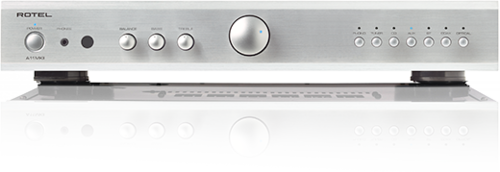

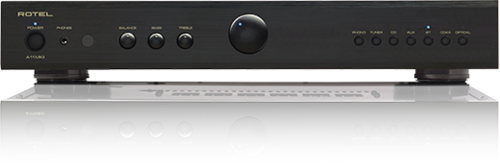

The intuitive front panel layout includes Bass, Treble, and Balance rotary controls and source input selection ensuring the A11MKII is personal and a pleasure to operate up close. The included IR remote drives a motorized analog volume controller for ease of use at the listening position.
The A11MKII is available in both black and silver colors.
More Specifications
Intermodulation Distortion (60 Hz:7k Hz, 4:1)
<0.03%
Damping Factor
120
Input Sensitivity
Line Level Inputs: 130 mV
Phono Input (MM): 1.6 mV
Input Impedance
Line Level Inputs: 45k Ohms
Phono Input (MM): 43k Ohms
Input Overload
Line Level Inputs: 4 V
Phono Input: 50 mV
Tone Controls
±6 dB at 100 Hz / 10k Hz
Input Sensitivity / Impedance
-20 dBFS / 75 Ohms
Digital Inputs
SPDIF LPCM (up to 24-bit/192k Hz )
