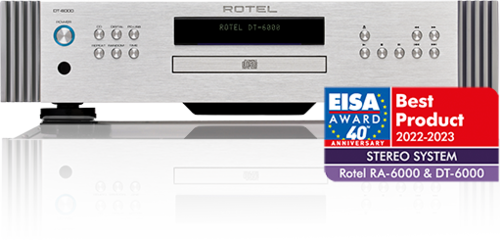

Rotel’s Diamond Series DT-6000 DAC Transport celebrates 60-Years of performance, passion, and value synonymous with the brands Japanese heritage.
An 8-channel ESS Sabre ES9028PRO DAC dedicates 4 channels each to stereo outputs rendering unprecedented details with an ultra-low noise floor and immersive sound stage.
Dedicated power supplies feed critical circuits utilizing an in-house manufactured toroidal transformer with isolation techniques lowering residual noise and distortion.
The PC-USB input supports up to 32-bit/384kHz including MQA (24-bit/384kHz) and DSD (4X). Optical and Coaxial inputs are also included supporting 24-bit/192kHz streams.
The tray loading CD utilizes Rotel’s 30-years of multi-award winning CD player design experience extracting every nuance and detail from CD collections both large and small.
Front panel controls, a back-lit IR remote and 2-line display ensure intuitive operation of the unit.

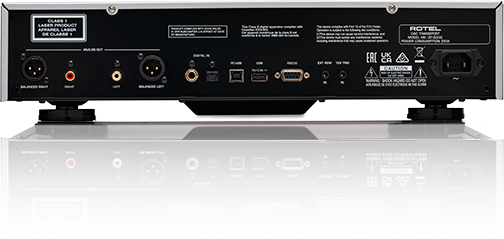

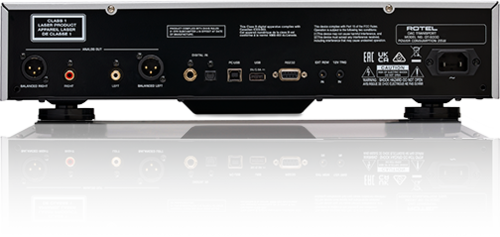

RS232, 12V trigger and external remote input ensure integration with control systems.

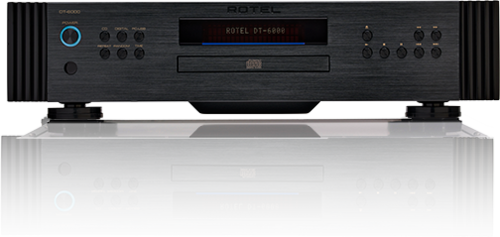

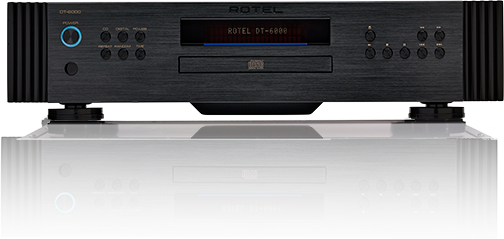

The DT-6000 is available in silver and black colors.
More Specifications
INTERMODULATION DISTORTION
<0.0012%
ANALOG OUTPUT LEVEL
Unbalanced (RCA): 2.1V
Balanced (XLR): 4.3V
ANALOG OUTPUT IMPEDANCE
Unbalanced (RCA): 10Ω
Balanced (XLR): 20Ω
INPUT SENSITIVITY
0dBfs / 75 Ohms
COAX/OPTICAL DIGITAL INPUT SIGNALS
LPCM (Up to 24-bit/192kHz)
PC-USB
USB Audio Class 2.0 (up to 32-bit/384kHz)*
*Driver installation required
Support native DSD (up to 11.2M) and DoP
Supoort MQA and MQA Studio (up to 24-bit/384kHz )
Roon Tested
