Features include:
New Electronics platform, up to 15.2 pre-amplifier channels with 11 amplifier channels, HDMI 2.0b HDCP 2.2, and HDMI 2.1 (8K)
All object-oriented audio codecs have been updated to the latest version of DTS:X and Dolby Atmos.
IMAX Enhanced
ARC Genesis now features a more precise microphone, ensuring better results in any listening environment.
Platform Agnostic Streaming with AirPlay2, Google Chromecast (Audio), Bluetooth v4.2, and Spotify Connect
Reliable Networking Platform with web-based setup and over-the-air updates
Next-Generation DSP Platform

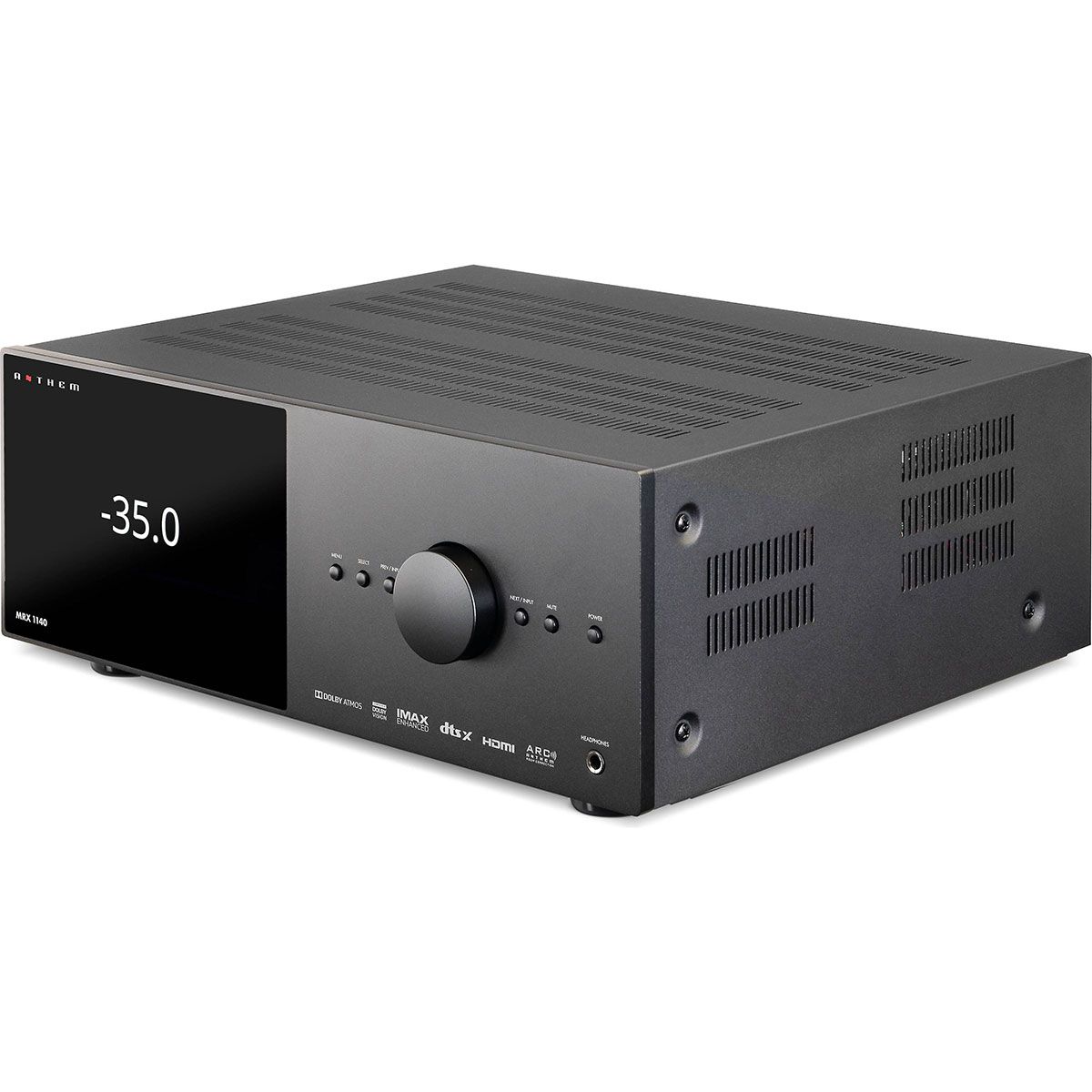

Modernized Design with high-resolution front panel display
Amp matrixing with up to 10 re-assignable channels
Two Independent sub outputs on MRX 1140, allow ARC Genesis to correct multiple subs individually for frequency response and phase alignment.
Independent HDMI Zone 2 output.
Audio Features:
15.2 pre-amplifier channels with 11 amplifier channels. 140 watts per channel continuous power into 8 ohms.
Amp matrixing with up to 10 re-assignable channels
Two independent subwoofer outputs
Auto Subwoofer Phase Adjustments (ARC Genesis)
Auto Subwoofer Polarity Adjustments (ARC Genesis)
Latest Implementation of ARC Genesis
Four Speaker Profile Memories
2” / 5 cm Speaker Distance Increments
0.5dB Level Increments
Super Sub Front Setting
HDMI & Video:
Dolby Vision
IMAX Enhanced
HDMI 2.1 8K
HDMI eARC
4:4:4 Subsampling @4K60 (18.2 Gbps)
High Dynamic Range (HDR)
Hybrid Log Gamma (HLG)
BT.2020 Color Gamut
4K 50/60 Switching
Zone 2 HDMI Output
Dual HDMI Outputs
Standby Pass-Through
Decoding:
Dolby Atmos
Dolby HD
DTS:X
DTS-HD Master Audio

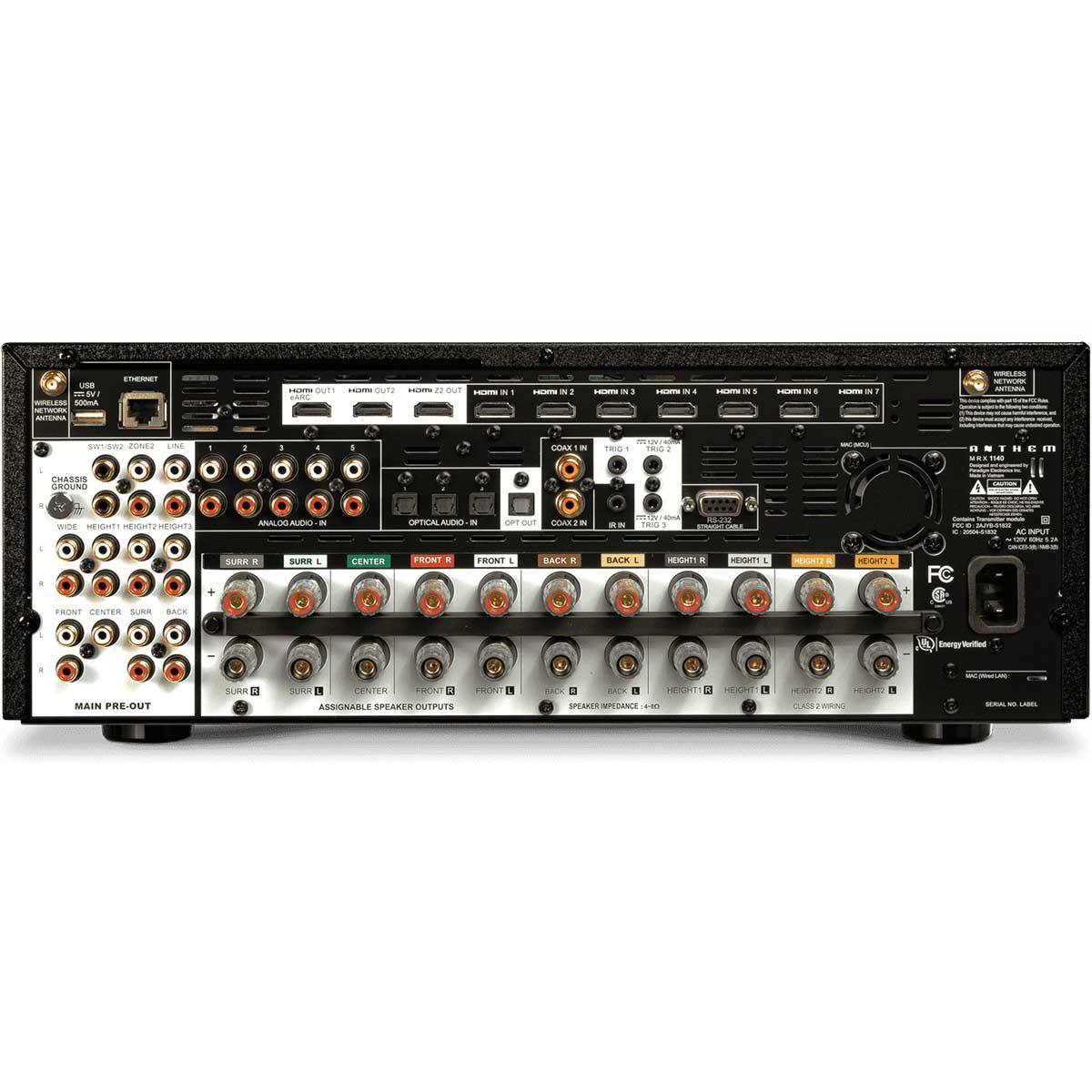

Custom Installation:
IP Control
RS-232 Control
IR Input
Three 12V Trigger Outputs
Pre-made Control Drivers
Save and Load Settings
Import and Export Settings
Rackmount kit (sold separately)
Streaming:
Apple Airplay
Apple Airplay 2
Google Chromecast Audio
Bluetooth
Spotify Connect (coming soon!)
Roon (coming soon!)
Listening Modes:
Anthem Logic
Dolby Surround
DTS Neural:X
DTS Virtual:X
Stereo
All Channel Stereo
Mono
All Channel Mono
Additional Features:
Anthem Web User Interface
Advanced Load Monitoring (ALM)
30 Input Configurations
Input trim adjustments
Power-on Input Assignment
Auto Power Off
Eco Mode (standby)
Over-the-air Network updates
USB updates
Beta updates (over-the-air)
Backlit Remote Control
Toroidal Transformer
Preamplifier
Maximum Output (<0.1% THD) - 5.2 VRMS, 7.1VRMS
Frequency Response - 20Hz - 30KHz +/-0.2dB
Frequency Response, Analog-Direct - N/A
THD+N (2 Vrms output) - -100 dB
S/N Ratio (2 Vrms output, IEC-A filter) - 110 dB
Preamplifier + Amplifier (1 W Output)
SNR: 91 dB ch 1-5, 86dB others
Speaker Impedance
Compatible with 4 Ohms or higher impedance.
Maximum Continuous Output (1% Thd)
Channels 1-5, Two Driven into 8 Ohms - 140 W
Channels 1-5, Two Driven into 6 Ohms - 170 W
Remaining Channels, Two Driven into 8 Ohms - 60 W
Remaining Channels, Two Driven into 6 Ohms - 75 W
Power Consumption
Typical Load - 570 W
Standby - 0.3 W
Standby IP Control Enabled - 1.8 W
Standby HDMI Bypass Enabled - 4.9 W
Dimensions
Height (without feet) - 6" (15.24 cm)
Height with Rackmount Kit - 4U
Width - 17" (43.18 cm)
Depth (including wifi ant not power cord) - 14-1/2" (36.4 cm)
Weight - 33.6 lb (12.8 kg)
