The Michi P5 Control Amplifier will give you the ultimate culmination of audio performance with all of the well-known and loved source inputs. The Michi P5 has been in the works for just over three years, the P5 meets the highest of standards when it comes to preamplifier standards which in Rotel's words, the P5 "Proudly wears the Michi Logo"

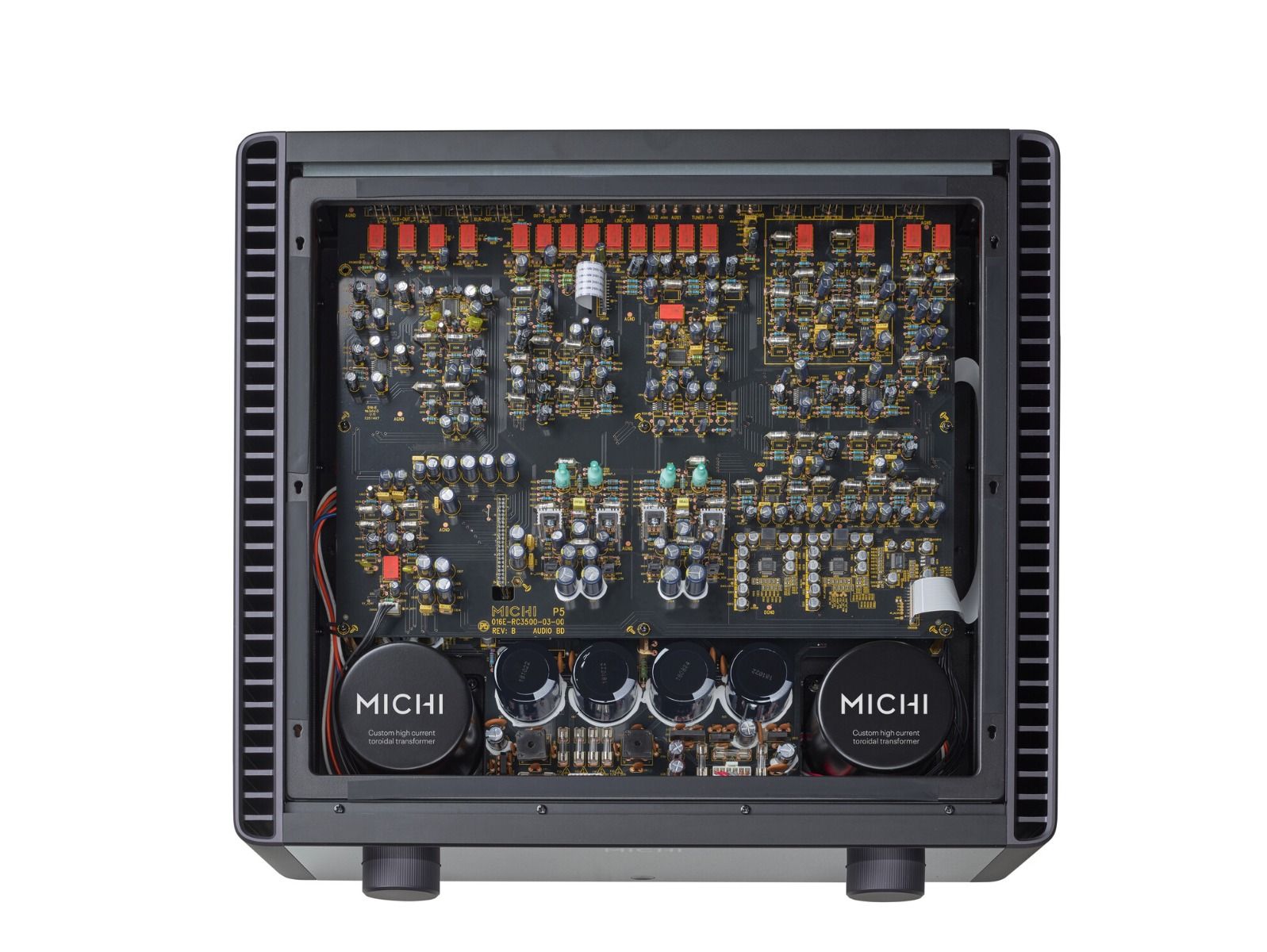

The P5 Control Amplifier delivers you the most unrivalled performance in audio processing with a full complement of analogue and digital source inputs. The Dual AKM 32-bit DACs feed the class-A preamplifier circuit ensuring superb detail, accuracy and the highest musical fidelity while maintaining crucial rhythm and timing for all musical genres regardless of your listening style. These circuits are supported by an array of 17 independent voltage regulators driven by 2 custom-designed and factory-built toroidal transformers with low ESR smoothing capacitors to deliver ripple-free current to all critical circuits.

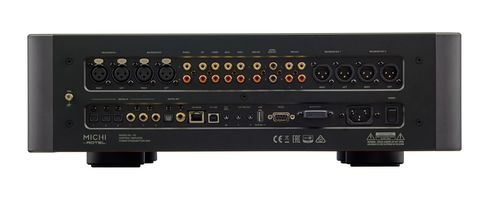

The Michi P5 includes MQA (Master Quality Authenticated) technology, which enables you to playback MQA audio files and streams, delivering the sound of the original master recording. Automation and control system integration is easily supported with RS232 and Ethernet connections.
Who is Rotel?
Rotel is a Japanese, 50-year-old family business dedicated to designing and manufacturing the finest affordable HiFi and home cinema components available on the market. Note that Rotel manufactures core components and assembles them into complete products, and so has total control over quality and sound characteristics.
DIMENSIONS (W × H × D)
485 × 150 × 452mm
19" × 6" × 17.75"
FRONT PANEL HEIGHT
132mm (5.25")
POWER REQUIREMENTS
120V, 60Hz
POWER CONSUMPTION
40W
STANDBY POWER CONSUMPTION
Normal: <0.5W
Network Wakeup: <2W
NET WEIGHT
22.9kg (50.5lbs.)
BTU RATING (4Ω, 1/8th power)
87 BTU/h
TOTAL HARMONIC DISTORTION (THD)
(20Hz–20kHz) <0.002%
FREQUENCY RESPONSE
Line Level Inputs: 10Hz - 100kHz (±0.3dB)
Digital Inputs: 20Hz - 20kHz (±0.3dB)
Phono Input: 20Hz - 20kHz (±0.3dB)
S/N RATIO (IHF "A" Weighted)
Line Level Inputs: 116dB
Digital Inputs: 100dB
Phono Input: 80dB
