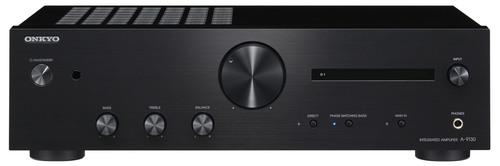

Integrated Stereo Amplifier
The A-9130 is a robust and versatile pre-main amplifier with wide connectivity and deeply enjoyable sound quality. In pursuit of musicality and fidelity to the source, the amp is tuned for warm, lively sound that expresses the tonal colors of your best-loved albums.
Stable high-current power delivers accurate and agile sound across a wide and dimensionally realistic soundstage. WRAT (Wide Range Amplification Technology) was fine-tuned specifically for the A-9130 by Onkyo’s master technicians.
Two 10,000 μF main audio capacitors were custom-made following exhaustive listening tests to realize a richness and dynamism that’s very easy to love. Make the A-9130 the heart of your home hi-fi and enjoy the musical refinement expected of a far more expensive component.
Highlights
60 W + 60 W high-current amplification
WRAT (Wide Range Amplification Technology)
Direct Mode for source-authentic audio reproduction
Phase Matching Bass Boost
Custom-made high-current EI transformer and two 10,000 µF capacitors
Wolfson® WM8718 DAC
MM phono input, 5 x RCA, and 2 x digital audio inputs
New fine display for easy source selection
Amplification features
60 W + 60 W (4 Ω, 20 Hz–20 kHz, 0.5% THD, 2-ch driven, IEC)
WRAT (Wide Range Amplifier Technology)
Customized high-current EI transformer
Two large custom-fabricated 10,000 µF audio-grade main capacitors
Optimum Gain Volume Circuitry for clear low-volume playback
Rigid anti-resonant 1.6 mm metal chassis
4 Ω speaker-driving capability
High-quality Wolfson® WM8718 192 kHz/24-bit D/A converter
Phase Matching Bass Boost
Power Amp Direct main input function
Direct Mode for source-authentic audio reproduction
Thick detachable IEC-compliant power cable

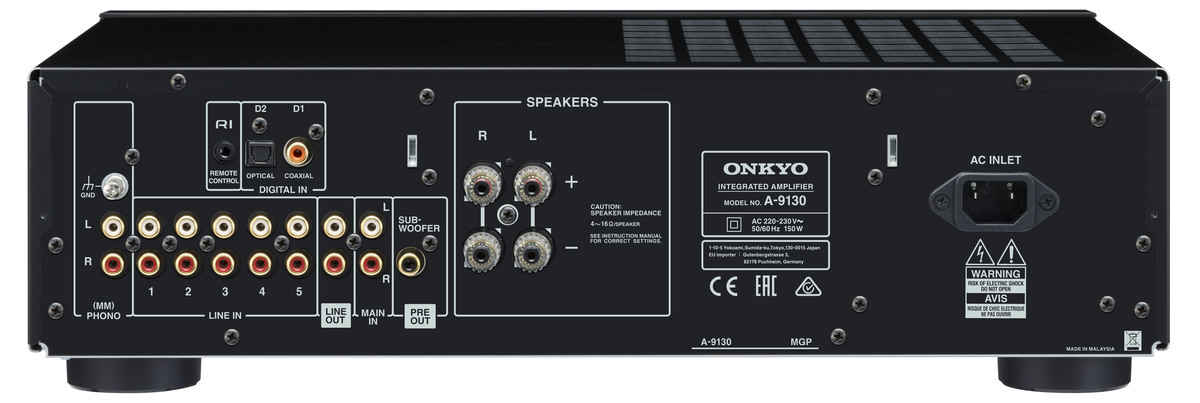

Connection features
5 gold-plated analog RCA inputs
2 digital audio inputs (1 coaxial, 1 optical, 192 kHz/24-bit-capable)
1 phono input with discrete MM phono equalizer
1 analog RCA line-level output
Direct main power amp input
Subwoofer pre-out
High-quality non-magnetic speaker posts with clear knobs
Silver-plated 6.35 mm headphone jack
RI (Remote Interactive) input
Additional features
Fine display shows active input
Aluminum volume control knob (motorized)
Independent bass and treble tone controls and balance control
Easy-to-use knobs for smooth operation without a remote
RI (Remote Interactive) input enables connection of a supported component for integrated control with one remote controller
Auto Power Standby
Available in silver or black
